INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING:
If the information in these
instructions is not followed exactly a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical Switch.
Do not use any phone in your building.
Immediately call your gas supplier
If you cannot reach your gas supplier
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
090414

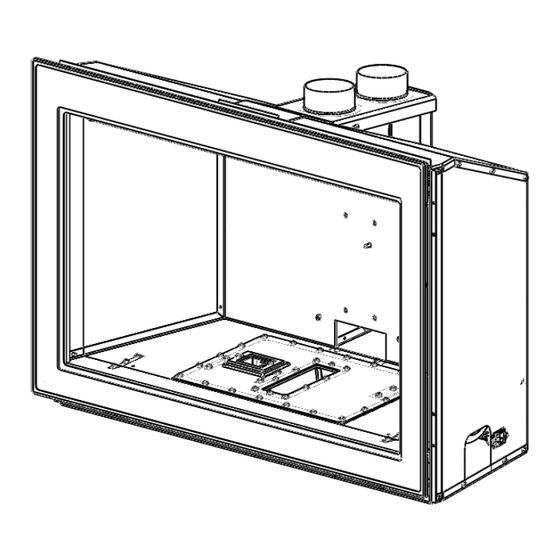

BROADWAY & BRENTWOOD
INSTALLATION AND

OPERATING INSTRUCTIONS

MODEL: BROADWAY /
BRENTWOOD
SERIES: A
DIRECT VENT GAS INSERT


5055.66-­‐B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BROADWAY and is the answer not in the manual?

Questions and answers

Summary of Contents for Pacific energy BROADWAY

  • Page 1: Operating Instructions

    WHAT TO DO IF YOU SMELL GAS Do not try to light any appliance. Do not touch any electrical Switch. Do not use any phone in your building. BROADWAY & BRENTWOOD Immediately call your gas supplier INSTALLATION AND OPERATING INSTRUCTIONS If you cannot reach your gas supplier call the fire department.
  • Page 2     Important Note for the Commonwealth of M assachusetts: From Massachusetts Rules and Regulations 248 CMR 5.08: For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied.
  • Page 3: Table Of Contents

          Table Of Contents Caution..............4 Safety..............5 Owners Information First Fire...............6 Remote control.............7 Maintenance............13 Lighting Instructions...........14 Installer information Fireplace Dimensions........15 Existing Fireplace Preparation......16 Clearances to Combustibles......17 Surround Installation..........18 Venting...............20 Plumbing and Electrical........21 Gas Supply............22 Gas Pressure Check / Output / Efficiency..22 Gas Pressure Testing Procedure.......23 Pilot Adjustment..........23 Propane Conversion..........24...
  • Page 4: Caution

    Caution FOR YOUR SAFETY - Do not install or operate your Pacific Energy appliance without first reading and understanding this manual. Any installation or operational deviation from the following instructions voids the Pacific Energy Warranty and may prove hazardous. This appliance and its individual shut off valve must be disconnected from gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
  • Page 5: Safety

    Safety     Due to high temperatures, this gas appliance should be located out of traffic and away from furniture and draperies. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the same room as the appliance.
  • Page 6: First Fire

      INFORMATION Congratulations on your purchase of a Pacific Energy Gas Appliance. Your fireplace has been professionally installed by: Dealer name: ___________________ Phone Number:_________________ If you discover any problems with your gas appliance contact your dealer immediately to have the unit repaired.
  • Page 7: Remote Control

      Remote Control Operation `   INFORMATION     System Description The Proflame Remote Control System consists of two elements:   1. Proflame Transmitter. 2. Proflame Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC   to the gas valve and stepper motor.
  • Page 8: Operating Procedure

          INFORMATION IFC Module The Proflame 2 Integrated Fireplace Control (IFC) board is a device that allows the automatic ignition and pilot flame supervision, to command the functions of a hearth appliance. It is configured to control the ON/OFF main burner operation, giving the choice of both IPI (intermittent pilot ignition), and CPI (continuous pilot ignition) modes.
  • Page 9       INFORMATION Temperature indication Display Mode Key at the same time. Look at the LCD screen on the transmitter to verify that a C or F is visible to the right of the Room Temperature display. (Fig. 3 & 4) Turn on the Appliance First close the main ON/OFF switch on the wirings.
  • Page 10       INFORMATION Remote Flame Control The Proflame has six (6) flame levels. With the system on, and the flame level at the maximum in the appliance, pressing the down arrow key once will reduce the flame height by one step until the flame is turned off.
  • Page 11     INFORMATION     Comfort Fan Speed Control If the appliance is equipped with a hot air circulating fan, the speed of the fan can be controlled by the Proflame system. The fan speed can be adjusted through six (6) speeds. To activate this function use the Mode Key (fig.1) to index the fan control icon (Fig.
  • Page 12       INFORMATION Low Battery Power Detection Transmitter The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc.
  • Page 13: Maintenance

    Do not strike or otherwise impact the glass in any way that may cause it to break. If the glass becomes cracked or broken it must be replaced before using the fireplace. Replacement door can be obtained from your nearest Pacific Energy dealer. Do not substitute with any other type.
  • Page 14: Lighting Instructions

      Lighting Instructions   INFORMATION       14    ...
  • Page 15: Installer Information

      INSTALLER Fireplace Dimensions     INFORMATION Broadway: 14  3/4   Figure 12: Broadway Dimensions Brentwood:   Figure 13: Brentwood Dimensions   15    ...
  • Page 16: Existing Fireplace Preparation

    Existing Fireplace Preparation   INFORMATION     The Broadway and Brentwood Gas inserts are certified to be installed into pre-existing approved fire place cavities. The minimum cavity requirements are listed in Figure 14 below.   Dimension   Broadway   Brentwood  ...
  • Page 17: Clearances To Combustibles

      INSTALLER Clearances to Combustibles     INFORMATION *MANTEL  CLEARANCE           Broadway   Brentwood   A           B         C       **  MANTEL  DEPTH      ...
  • Page 18: Surround Installation

      INSTALLER Surround Installation Instructions     INFORMATION   Figure 18: Traditional Surround Figure 17: Contemporary Surround Installation 1. Fasten the surround base to the fireplace using supplied screws and mounting holes located along the inner edge of the base. 2.
  • Page 19   INSTALLER     INFORMATION GBNT.SMBKA GBWY.SMBKA GBNT.SMBKOSA GBWY.SMBKOSA GBNT.STBKA GBNT.STSSA GBWY.STBKA GBWY.STSSA GBNT.STBKOSA GBNT.STSSOSA GBWY.STBKOSA GBWY.STSSOSA Figure 19: Surround Dimensions   19    ...
  • Page 20: Venting

      Note: The following Simpson Duravent kits are MAX. Vent Height recommended for use with this appliance.     High-Wind (Broadway 46DVA-CL33) 26 -35 (Brentwood 46DVA-CL34) Full Closed Prairie Co-Linear Kit (Broadway 46DVA-CL33P) (Brentwood 46DVA-CL34P) Only certified venting systems or components may 16 -2 be installed with this fireplace.
  • Page 21: Plumbing And Electrical

      INSTALLER Plumbing and Electrical   INFORMATION     Figure 23: Gas and Electrical Connections Note: Installation requires that an electrical outlet be installed into existing fireplace cavity before insert is installed. To make the required electrical and gas connections start by positioning the gas insert within the existing fireplace.
  • Page 22: Gas Supply

      Gas Pressure Check / Output / Efficiency Please refer to following page for gas pressure testing procedure. Gas pressure requirements Broadway   Gas   Orifice                Output     AFUE  ...
  • Page 23: Gas Pressure Testing Procedure

      INSTALLER Gas Pressure Testing Procedure       INFORMATION Note: To test the gas pressure, turn off the gas supply to the appliance before loosening test point screws. Verify gas pressures with the fireplace lit and at the highest setting. 1.
  • Page 24: Propane Conversion

      INSTALLER Propane Conversion   INFORMATION   Before starting the conversion make sure to shut   off the gas supply to the unit and allow fireplace to cool to room temperature. To convert the gas fireplace insert from natural gas to propane the (GASC.LPKIT) kit is required.
  • Page 25: Door Installation/Removal

      INSTALLER Door Installation/Removal   INFORMATION Installation 1. Position the door so that the doors upper bracket is positioned overtop of the lip on top of the firebox. 2. Lower the bottom edge of the door and secure it with bolts to the relief arms as shown in figure 28.
  • Page 26: Panel Installation/Removal

      INSTALLER Panel Installation / Removal     INFORMATION Installation NOTE: Air Deflector from burner kit needs to be installed before panels. See Burner Kit Installation.   1. Insert back panel so that it is sitting on ledge at the back of the firebox as shown in Figure 31.
  • Page 27: Log Burner Kit Installation/Removal

      INSTALLER Log Burner Kit Installation / Removal   INFORMATION   Air Deflector Installation / Removal     Installation Position the air deflector in the fireplace as seen in figure 34 and secure with two screws using a screwdriver. Removal Remove the two screws seen in figure 34 using a screwdriver, and remove the air deflector from fireplace.
  • Page 28: Log Set Installation/Removal

      INSTALLER Log Set Installation / Removal     INFORMATION Installation 1. Position rear log against the back firebox as seen in Figure 39. 2. Position front log just behind the front burner tube as seen in Figure 40. 3. Position log 3 with the thin end of the log resting on top of the right end of the front log as seen in Figure 41.
  • Page 29: Glass Burner Kit Installation/Removal

      INSTALLER Glass Burner Installation / Removal     INFORMATION Air Deflector Installation / Removal Installation Position the air deflector in the fireplace as seen in figure 44 and secure with two screws using a screwdriver. Removal Remove the two screws seen in figure 44 using a screwdriver, and remove the air deflector from fireplace.
  • Page 30: Replacement Parts / Kits List

      INSTALLER   INFORMATION     Replacement Parts Description Order Number Broadway Replacement Door........... BDEM.DSPA Brentwood Replacement Door.......... BRNT.DSPA Broadway Regular Screen..........GBWY.SCRNA Brentwood Regular Screen..........GBNT.SCRNA Complete Replacement Gas Tray........GASC.BRNTRAYA Replacement Gas Valve........... GASC.VALVEA Replacement Control Module..........GASC.MODA Replacement Pilot Assembly..........
  • Page 31: Wiring Diagram

      INSTALLER   INFORMATION       Caution: Label all wires prior to disconnection when servicing   controls. Wiring errors can cause improper and dangerous operation.       Verify proper operation after   servicing.            ...
  • Page 32: Notes

      INSTALLER   INFORMATION NOTES:   __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
  • Page 33   INSTALLER   INFORMATION         33    ...
  • Page 34   INSTALLER   INFORMATION           34    ...
  • Page 35   INSTALLER     INFORMATION   35    ...
  • Page 36     INSTALLER   INFORMATION   Technical support: 1-250-748-1184 Web site: www. pacificenergy.net   2975 Allenby Rd., Duncan, BC V9l 6V8     36    ...
