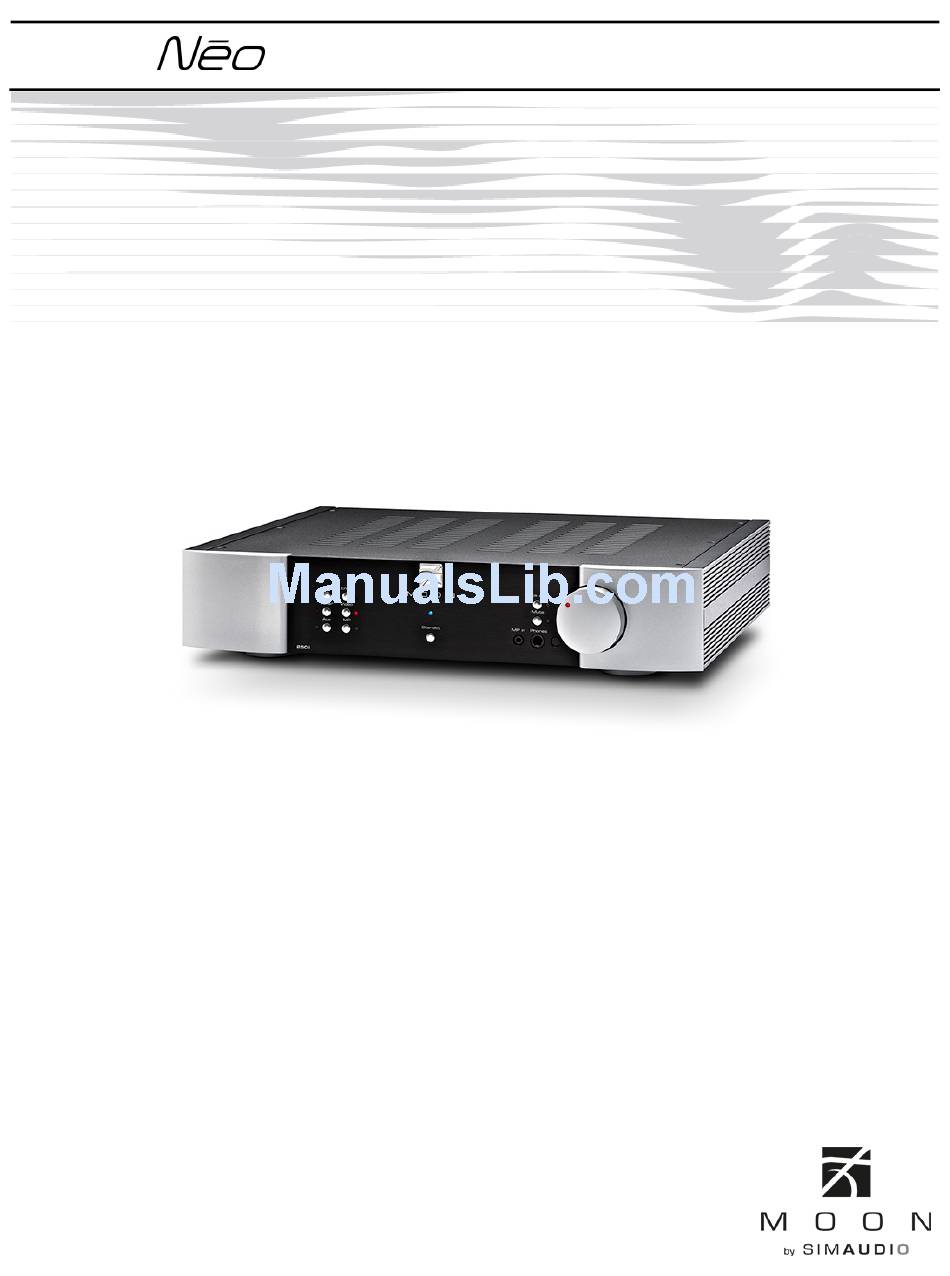

- Page 1 250i Series Integrated Amplifier Owner’s Manual...
- Page 2 250i Nēo Series...
-
Page 3: Important Safety Instructions
Owner’s Manual Important Safety Instructions Read these instructions. receptacles, and the point where they exit from the apparatus. Unplug mains cord during Keep these instructions. transportation. Heed all warnings. 11. Only use attachments and accessories specified by Follow all instructions. the manufacturer. - Page 4 250i, immediately disconnect it from the AC component. To completely disconnect this mains and take it to your MOON dealer for a apparatus from the AC mains, disconnect the complete check-up. power supply cord plug from the AC receptacle.
-
Page 5: Table Of Contents
Owner’s Manual Table of Contents Introduction Unpacking Installation & Placement Front Panel Controls Rear Panel Connections SimLink™ Operating the Nēo 250i Remote Control Operation Specifications www.simaudio.com Simaudio Ltd., 1345 Newton Road Boucherville, Québec J4B 5H2 CANADA Date Code: 20150128... -
Page 6: Introduction
Headphone output on ¼” TRS jack located on the front panel. and the know-how gained through our cumulative experience is an important reason why MOON RS-232 port for i) full unsolicited bidirectional feedback in integrated amplifiers are so musically satisfying. -
Page 7: Unpacking
Owner’s Manual Unpacking The Nēo 250i integrated amplifier should be removed from its box with care. The following accessories should be included inside the box with your integrated amplifier: AC power cable ‘CRM-2’ remote control with two ‘AA’ batteries ‘SimLink™’ cable with 1/8” mini plug terminations on each end This owner’s manual Warranty and product registration information (USA and Canada only) Once the Nēo 250i is unpacked, inspect it thoroughly and report any damage to your dealer immediately. -
Page 8: Front Panel Controls
250i Nēo Series Front Panel Controls Figure 1: Nēo 250i Front panel The front panel will look similar to Figure 1 (above). The remote control sensor is located directly to the right of the “Phones” output jack and it should never be blocked, otherwise remote control operation may be compromised. The “Standby”... -
Page 9: Rear Panel Connections
Finally, there’s a full-function bi-directional RS-232 port control and status for custom integration or * Please speak with your MOON Authorized Retailer about the benefits of high quality cables for your system, and superior automation on a DB9 connector. -
Page 10: Simlink
When you between various MOON components. For example, if plan on being away for a few days, it may not be a bad you were to connect the 260D to the 250i via the idea to power off your amplifier. -
Page 11: Remote Control Operation
The Nēo 250i Integrated Amplifier uses the ‘CRM-2’ full-function remote control (figure 4). It operates on the Philips RC-5 communication protocol and is can be used with other MOON by Simaudio components. The ‘CRM-2’ remote uses two AA batteries (included). To install them, simply slide the back plate off in the direction of the arrow;... - Page 12 250i Nēo Series Remote operation with multiple MOON components Figure 4: Remote Operation with SimLink™ In figure 4 we have a 180 MiND Music Streamer and a Nēo 250i Integrated Amplifier connected together via their respective SimLink™ ports. The SimLink™ output on the 180 MiND is connected to the SimLink™ input on the 250i using a 1/8”...
-
Page 13: Specifications
Owner’s Manual Specifications Configuration Stereo Power Supply Transformer 320VA Power Supply Capacitance 20,000μF Class Of Operation – Amplifier Class A/B Single-ended inputs 5 (RCA) Mini-jack input 1 (1/8”) Input Sensitivity 370mV – 3.0V RMS Input Impedance 11,000Ω Preamplifier output 1 (RCA) Headphone output 1 ( 1/4”... - Page 14 250i Nēo Series...
