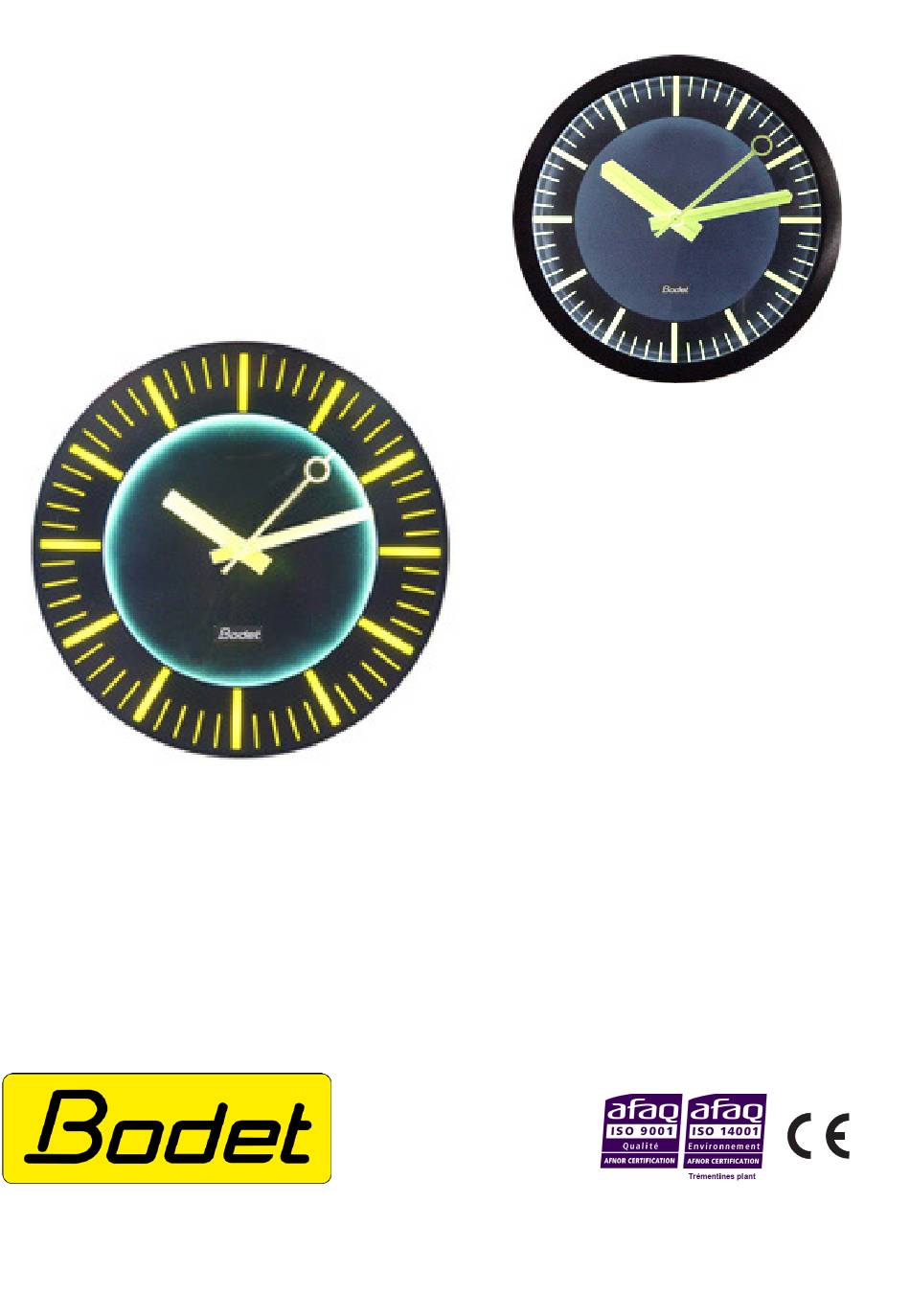

  • Page 1 Clock Profil TGV 950 Profil TGV 970 AFNOR / IRIG B receiver RADIO receiver INSTALLATION AND OPERATING INSTRUCTIONS 1 rue du Général de Gaulle 49340 TRÉMENTINES FRANCE Tél. : 02 41 71 72 33 www.bodet-time.com Réf.: 607100 F Upon receipt, always check the product for damage during shipment. If any is found, you may file a damage...

  • Page 2: Table Of Contents

    Table of contents I - INITIAL VERIFICATION 1.1 Unpacking the clock 1.2 Cleaning II - DISCLAIMER III - INSTALLATION 3.1 Mechanical installation 3.2 Setting in operation 3.2.1. AFNOR/IRIG-B receiver clock 3.2.3. Radio receiver clock 3.3 Setting the antenna IV - SAFETY INSTRUCTIONS IV - TECHNICAL FEATURES TGV 950 TGV 970...

  • Page 4: I - Initial Verification

    I - INITIAL VERIFICATION Thank you for choosing a BODET clock. This product has been carefully designed for your satisfaction based on ISO9001 quality requirements. We advise you to read this manual thoroughly before attempting to manipulate the clock. Keep this booklet during all the life of your clock, so that you can refer to it each time it is necessary.

  • Page 5: Disclaimer

    II - DISCLAIMER Bodet accepts no responsibility for accidents resulting from any use not conforming with the above provisions. Any modification to the product will invalidate the warrantee. Read the chapter «Safety instructions» in this manual before installing this equipment.

  • Page 6: Setting In Operation

    ■ Open the clock by giving the screw a quarter turn with the key (5). ■ On the TGV950 clock, remove the 2 locking srews (3) (provided for the transit). ■ Pull the whole dial (1) towards you. ■ The hinge arm opening system ensures a fast and secure maintenance of the lighting without having to put the front part of the clock on the ground.

  • Page 7: Radio Receiver Clock

    ■ During 1 hour without reception of the time signal the clock operates with its own time basis. If the signal recovery is achieved within this hour, the clock will be resynchronised automatically. After 1 hour the clock is reset and hands are set on position 12.00. ■...

  • Page 8: Setting The Antenna

    3.3 Setting the antenna For radio synchronised clocks : The best reception conditions are outside buildings or near windows. Positioning the antenna (perpendicular to the direction of the transmitter) improves reception. The antenna must not be placed on a metal support.

  • Page 9: Safety Instructions

    IV - SAFETY INSTRUCTIONS Installation and maintenance of this equipment must be carried out by qualified personnel only. Electrical installation must comply with current standard CEI 364. (NF C15-100 in France for example). This is a class I product. Do not apply the power before installation. The mains supply for the clock must include a circuit breaker rapidly accessible.

  • Page 10: Technical Features

    IV - TECHNICAL FEATURES Power supply : 230 Volt 50 Hz ±10%, Operating temperatures : -25°C to +50°C, Protection index : IP54. TGV 950 Readability : 40m. Weight : 8 kg. Lighting consumption : 14 W. Double face Dimensions : clock 24 trous Ø...

  • Page 11: Tgv970

    Radio receiver clock with synchronous second hand HMS : Permanent power supply: 230V 50Hz; 110mA pour une TGV950 et 140mA pour une TGV970. Earthing system: TT or TN (this product is also suitable for IT earthing system). Battery: risk of explosion if the battery is not properly connected. Replace it with the same model or with an equivalent model recommended in this manual.

  • Page 12: What To Do If

    V - WHAT TO DO IF...? ...CHECK. What to do if...? … Check. ■ No synchronisation after ■ Check that the type of signal send by the installation. the master clock (min, ½ min, AFNOR/ Irig-B) is in accordance with the type programmed in the clock.
