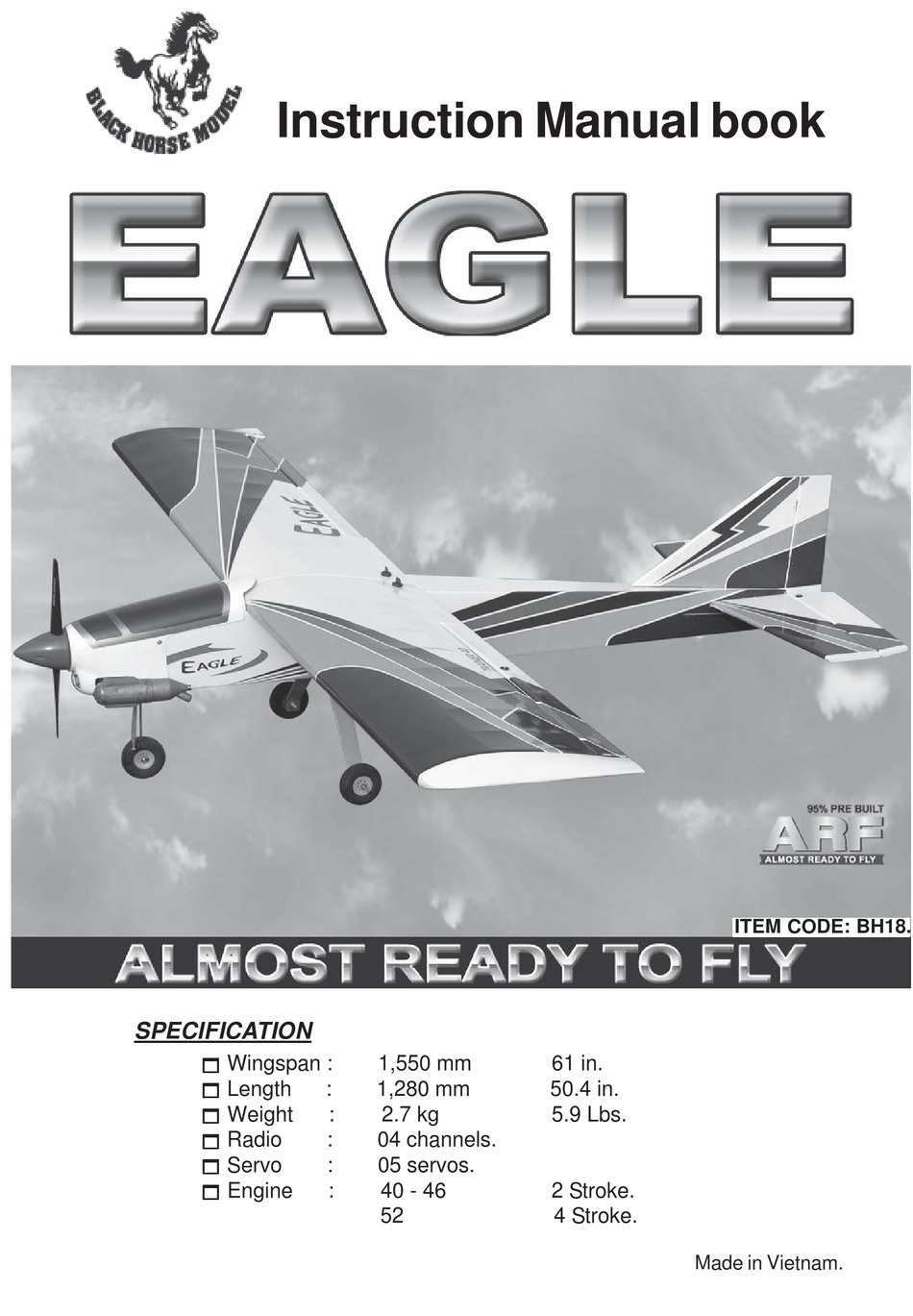

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1,550 mm
:
1,280 mm
:
2.7 kg
:
04 channels.
:
05 servos.
:
40 - 46
52
61 in.
50.4 in.
5.9 Lbs.
2 Stroke.
4 Stroke.
Made in Vietnam.
ITEM CODE: BH18.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAGLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Horse Model EAGLE

  • Page 1 Instruction Manual book ITEM CODE: BH18. SPECIFICATION      Wingspan : 1,550 mm 61 in.      Length 1,280 mm 50.4 in.      Weight 2.7 kg 5.9 Lbs.      Radio 04 channels.
  • Page 2 Item code:BH18 INSTRUCTION MANUAL. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EAGLE. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.
  • Page 3: Safety Precaution

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency. + Do not smoke near fuel + Store fuel in a cool, dry place, away from children and pets.
  • Page 4 EAGLE- Item code:BH18 INSTRUCTION MANUAL.  4. Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.
  • Page 5 EAGLE- Item code:BH18 INSTRUCTION MANUAL. Repeat the procedure for the other wing half. INSTALLING THE AILERON CONTROL HORN. Nilon control clasp. M3 lock nut. aileron  3. Install control horn as same as 3x40mm. picture below.  1. Using a ruler & pen to draw a straight line as below picture.
  • Page 6: Installing The Aileron Linkages

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Bottom side. Control horn. Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Aileron control horn  1. Working with the aileron linkage for now, thread one clevis onto one of the threaded wires.
  • Page 7: Joining The Wing Halves

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. M2 clevis.  2. Using a modeling knife, remove the cov- ering wing. Snap keeper.  3. Test fit the dihedral brace into each wing half. The brace should slide in easily. If not, ...
  • Page 8: Installing The Stopper Assembly

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Top side FUEL TANK.  5. Test fit the stopper assembly into the tank. It may be necessary to remove some of INSTALLING THE STOPPER ASSEMBLY the flashing around the tank opening using  1. The stopper has been pre-assembled at a modeling knife.
  • Page 9: Installing The Nose Gear

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. 3x20mm. Push. INSTALLING THE NOSE GEAR. Fuel tank. INSTALLING THE ENGINE MOUNT.
  • Page 10: Installing The Engine

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Install the wheel and collar. Secure. INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z”...
  • Page 11 EAGLE- Item code:BH18 INSTRUCTION MANUAL.  2. While keeping the back edge of the COWLING. cowl flush with the marks, align the front of  1. Slide the fiberglass cowl over the en- the cowl with the crankshaft of the engine. The...
  • Page 12: Installing Landing Gear

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. INSTALLING LANDING GEAR. INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 15mm wood screws. Secure.
  • Page 13 EAGLE- Item code:BH18 INSTRUCTION MANUAL.  1. The blind nuts are already mounted inside the fuselage.  2. The holes in the landing gear should be to accept the mounting bolts.  3. Using the hardware provided, mount the main landing gear to the fuselage.
  • Page 14: Horizontal Stabilizer Installa- Tion

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. C/A glue Elevator servo. HORIZONTAL STABILIZER INSTALLA- TION.  1. Using a modeling knife, cut away the covering from the fuselage for the stabilizer and remove it. Remove covering. C/A glue C/A glue Bottom side...
  • Page 15 EAGLE- Item code:BH18 INSTRUCTION MANUAL.  2. Draw a center line onto the horizontal stabilizer. Then slide the horizontal into the fuselage. Top side. Top side. Center line. C/A glue  3. Mark the shape of the vertical on the left...
  • Page 16: Elevator Control Horn Installa- Tion

    EAGLE- Item code:BH18 INSTRUCTION MANUAL.  6. After the epoxy has fully cured, re- move the masking tape or T-pins used to hold the stabilizer in place and carefully inspect the glue joints. Use more epoxy to fill in any...
  • Page 17: Elevator Pushrod Installation

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. C/A glue. C/A glue. Mark point Drill 1 hole with 6 mm diameter. Remove covering. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod.
  • Page 18 EAGLE- Item code:BH18 INSTRUCTION MANUAL. Cut. Elevator pushrod. Elevator Elevator pushrod. Secure. pushrod. Top side. Secure.
  • Page 19: Vertical Stabilizer Installation

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Bend and cut C/A glue Elevator servo. C/A glue VERTICAL STABILIZER C/A glue INSTALLATION. C/A glue...
  • Page 20 EAGLE- Item code:BH18 INSTRUCTION MANUAL. C/A glue Hinge slot.  2. Slide the rudder into the fuselage as same as picture below. C/A glue  3. Mark the shape of the vertical on the left and right side on the rudder using a felt-tip pen.
  • Page 21 EAGLE- Item code:BH18 INSTRUCTION MANUAL.  5. Put the vertical stabilizer back in place. Using a triangle, check to ensure that the vertical stabilizer is aligned 90 de- gree to the horizontal stabilizer. Vertical Stabilizer. 90º Horizontal Stabilizer. C/A glue RUDDER CONTROL HORN INSTALLATION.
  • Page 22: Rudder Pushrod Installation

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Rudder control horn. Rudder pushrod. C/A glue Elevator Elevator pushrod. pushrod. Rudder pushrod. RUDDER PUSHROD INSTALLATION.  Rudder pushrod install as same as the way of aileron pushrod. C/A glue...
  • Page 23: Installing The Throttle Pushrod

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Elevator pushrod. Rudder servo Snap keeper. INSTALLING THE THROTTLE PUSHROD.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 24: Installing The Switch

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Secure. Nose gear pushrod. Throttle pushrod Throttle pushrod. Switch Throttle servo. Elevator servo. Nose gear pushrod. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch Rudder pushrod.
  • Page 25: Wing Attachment

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. Battery. WING ATTACHMENT. Wing bolt. Insert. Secure.       4. Using a 2mm drill bit, drill a hole through the side of the fuselage, near the receiver, for the antenna to exit.
  • Page 26: Control Throws

    EAGLE- Item code:BH18 INSTRUCTION MANUAL. BALANCING. CONTROL THROWS.        1) It is critical that your airplane be bal-      1. We highly recommend setting up a plane anced correctly. Improper balance will cause using the control throws listed.
