SPECIFICATION
Wingspan :
Length
Weight
Parts listing required (not included) .
Battery:
Electric motor : AXI 2808/24.
Radio
Servo
Propeller : 9 x 5
Speed control :

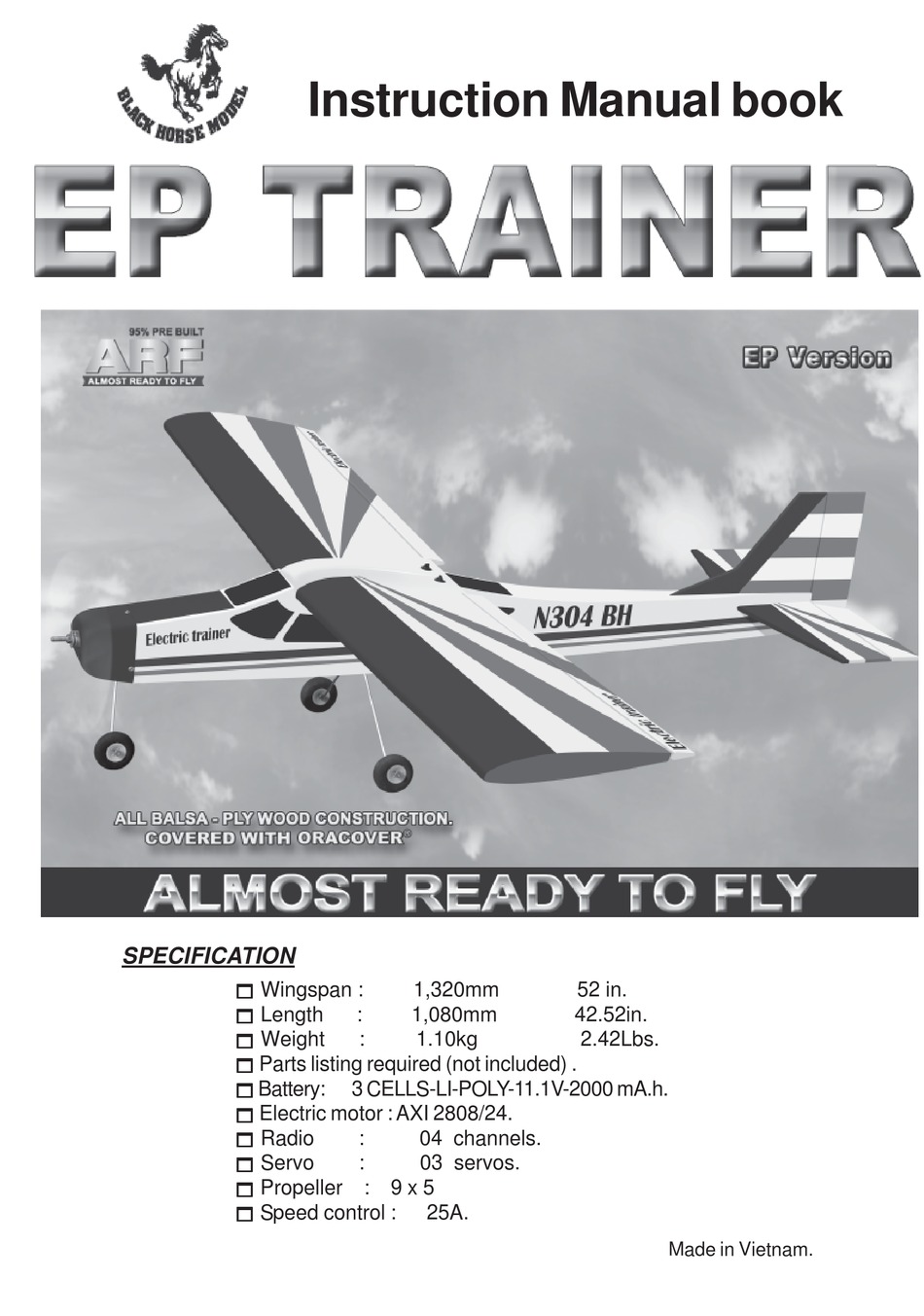

Instruction Manual book
1,320mm
:
1,080mm
:
1.10kg
3 CELLS-LI-POLY-11.1V-2000 mA.h.
:
04 channels.
:
03 servos.
25A.
52 in.
42.52in.
2.42Lbs.
Made in Vietnam.
Advertisement
Table of Contents
Related Manuals for Black Horse Model EP-TRAINER
Summary of Contents for Black Horse Model EP-TRAINER
- Page 1 Instruction Manual book SPECIFICATION Wingspan : 1,320mm 52 in. Length 1,080mm 42.52in. Weight 1.10kg 2.42Lbs. Parts listing required (not included) . ...
-
Page 2: Parts List
EP-TRAINER. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EP-TRAINER. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property. -
Page 3: Safety Precaution
Instruction Manual. SAFETY PRECAUTION. + This is not a toy C/A glue + Be sure that no other flyers are using your radio frequency. + Wear safety glasses. + Keep loose clothing and wires away from the propeller. + Do not start the motor if people are near. Do not stand in line with the side of the propel- ler. - Page 4 EP-TRAINER. Mark line Servo mount. Remove covering Epoxy glue 2) Remove the aileron servo. Place the mount onto the wing, aligning the cutout in the mount with the cutout in the wing. The two notches in the mount should face the leading edge of the wing.
-
Page 5: Installing The Aileron Linkage
Instruction Manual. 6) Using a modeling knife, carefully remove the covering from servo mount. Epoxy glue Remove covering INSTALLING THE AILERON LINKAGE. 7) Install the aileron servo into the servo mount, with the output shaft towards the lead- ing edge of the wing, using the wood screws provided with your radio system. -
Page 6: Nose Gear Installation
EP-TRAINER. NOSE GEAR INSTALLATION. 3) With the aileron servo centered, install the servo arm onto the servo. The arm should be installed so it is parallel with the trailing edge of the wing. Bend and cut after. Aileron pushrod. - Page 7 Instruction Manual. Adjust the nose gear steering arm until the arm is parallel with the fire wall. 3 X 12 mm INSTALLING ELECTRIC MOTOR. See pictures below: Motor mount wood: 3 X 10mm Secure Push . Secure C/A glue Epoxy glue Steering arm.
- Page 8 EP-TRAINER. Rotor shaft Motor Front view. 2) While keeping the back edge of the cowl flush with the marks, align the front of COWLING. the cowl with the crankshaft of the motor. The 1) Slide the cowl over the motor and line...
-
Page 9: Horizontal Stabilizer
Instruction Manual. ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray. 2. Mount the servo to the tray using the mounting screws provided with your radio sys- tem. - Page 10 EP-TRAINER. 5. Remove the stabilizer. Using the lines you just drew as a guide, carefully remove the covering from between them using a modeling knife. When cutting through the covering to remove it, cut with only enough pressure to only cut through the covering it’s self.
- Page 11 Instruction Manual. C/A glue. Check to mark sure the wing and stabi- lizer are paralell. If they are not, lightly sand the opening in the fuselage for the stabilizer until the stabilizer is paralell to the wing. 6. When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute epoxy.
-
Page 12: Control Horn Installation
EP-TRAINER. CONTROL HORN INSTALLATION. See pictures below: Elevator pushrod 2 X 12mm. Bend. Mark point Elevator control horn... -
Page 13: Vertical Stabilizer Installation
Instruction Manual. Elevator pushrod Hinge slot VERTICAL STABILIZER INSTALLATION. 2. Slide the vertical stabilizer into the slot in the top of the fuselage. The rear edge of the stabilizer should be flush with the rear edge of the fuselage and the lower rudder hinge should engage the precut hinge slot in the lower fuselage. - Page 14 EP-TRAINER. When cutting through the covering to re- move it, cut with only enough pressure to only cut through the covering itself. Cutting into the balsa structure may weaken it. C/A glue. 5. Slide the vertical stabilizer back in place.
- Page 15 Instruction Manual. RUDDER PUSHROD INSTALLATION. Rudder pushrod install as same as the way of aileron pushrod. Rudder control horn Rudder pushrod. Rudder Elevator pushrod. pushrod. Elevator pushrod. Rudder pushrod. Nose gear pushrod. Nose gear pushrod. Secure...
-
Page 16: Main Gear Installation
EP-TRAINER. MAIN GEAR INSTALLATION. Secure. Nilon strap 3 x 12 mm Collars 1) Using a modeling knife, remove the covering from over the two main gear mount- ing slots located in the bottom of the fuselage. - Page 17 Instruction Manual. ATTACHMENT WING-FUSELAGE. See pictures below: Battery Mark point Insert and secure Recever...
-
Page 18: Control Throws
5) Check the receiver antenna . It should be fully extended and not coiled up inside the 75mm fuselage. 6) Properly balance the propeller. We wish you many safe and enjoy- able flights with your EP-TRAINER.
