Williams Sound Personal PA PPA R700 Operating Instructions

Personal PA

Introduction:

The R700 Monitor Receiver is designed for use with Williams Sound PERSONAL PA (PPA) FM
Transmitters. The R700 allows a small group of people to listen to the FM broadcast from the
PPA Transmitter in a cry room, nursery, or office area. It is perfect for applications where a
remote speaker is needed and it is difficult to run wires.
What's Included:
You should have the R700 Receiver, whip antenna, instructions, and a warranty card.

Using the R700 Receiver:

Step 1. Attach the antenna to the antenna connector on the rear panel of the R700. Hold
the antenna upright as shown, while you tighten the connector firmly with your fingers. You
do not have to use a wrench or pliers to tighten the antenna connector.
Step 2. Plug the AC power cord into an AC outlet. Turn the power switch on.
Step 3. Make sure your PPA Transmitter is on and has an active audio source. Adjust the vol-
ume control on the R700 until you hear the broadcast.

Operating Distance:

The R700 will normally receive the FM broadcast up to 150 feet away from the Transmitter
with the whip antenna. An optional Coaxial Antenna (ANT 006) is available, which will
extend the operating distance up to 500 feet.

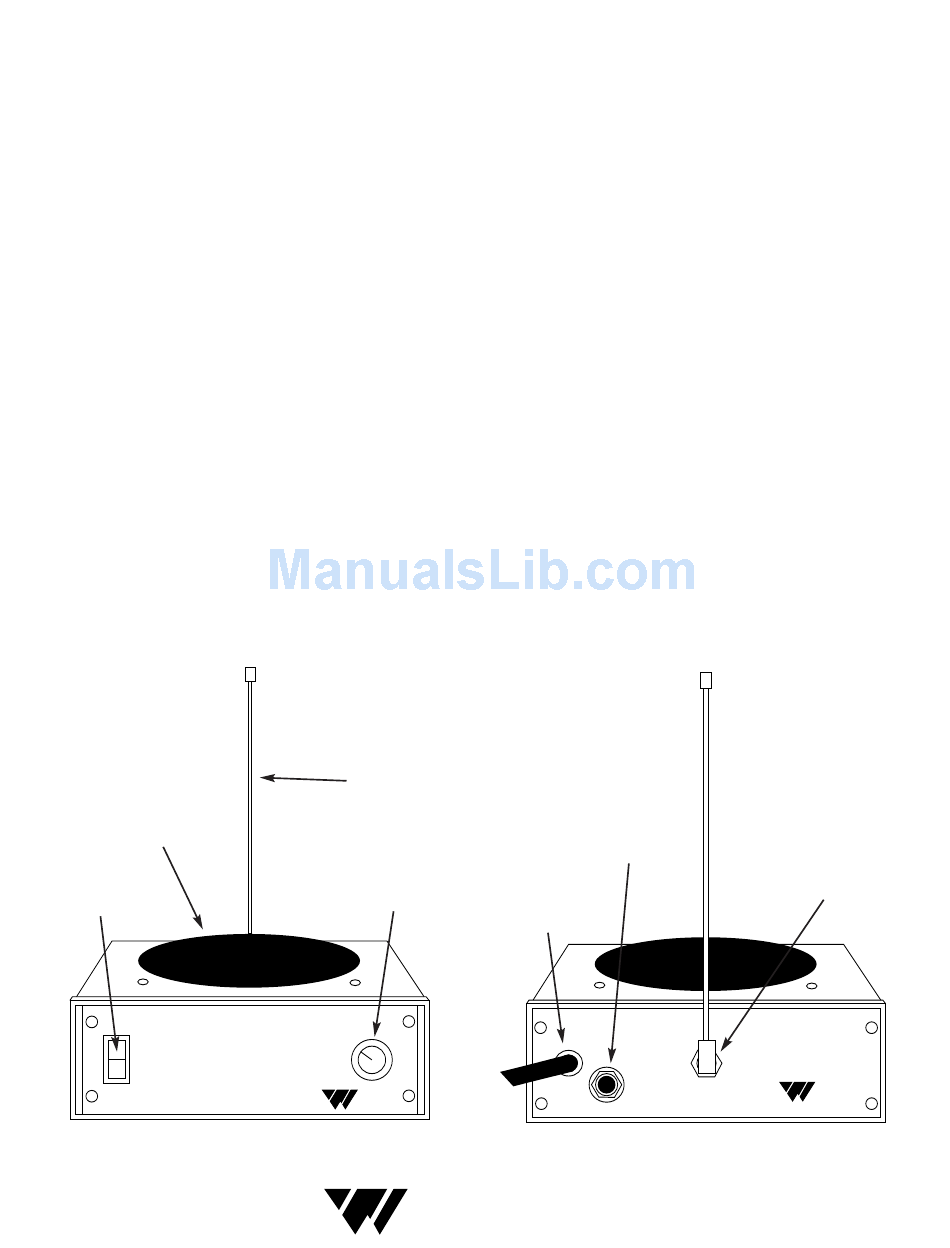

Speaker
Power Switch

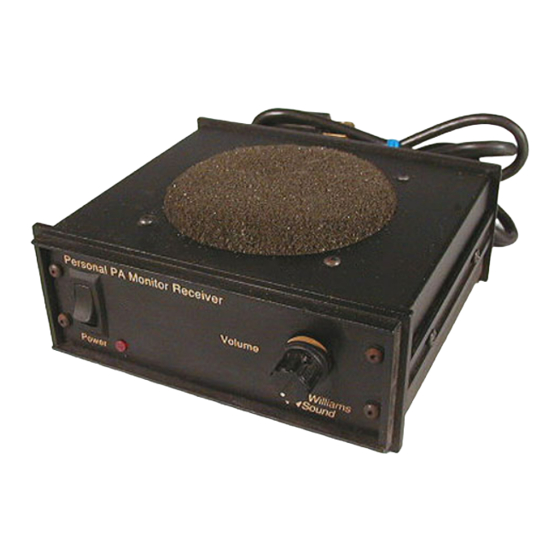

Personal PA Monitor Receiver
Power
R700 Front
®
Monitor Receiver Model PPA R700

Operating Instructions

Antenna
Volume Control
Volume
Williams
Sound
Williams Sound
Helping People Hear
External Speaker
Jack
AC Power Cord
Personal PA Receiver Model R700
120 VAC
60Hz, 1.5W
External Speaker
8 Ohm, 1W
Made in USA
R700 Rear
®
Antenna
Connector
Remote Antenna
75 Ohm
Williams
Sound
