DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
!
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
— Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪ Do not try to light any appliance.
▪ Do not touch any electrical switch; do
not use any phone in your building.
▪ Leave the building immediately.
▪ Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
▪ If you cannot reach your gas supplier,
call the fi re department.
— Installation and service must be
performed by a qualifi ed installer, service
agency or the gas supplier.
4004339-02
©2014, Miles Industries Ltd.
L
EGEND

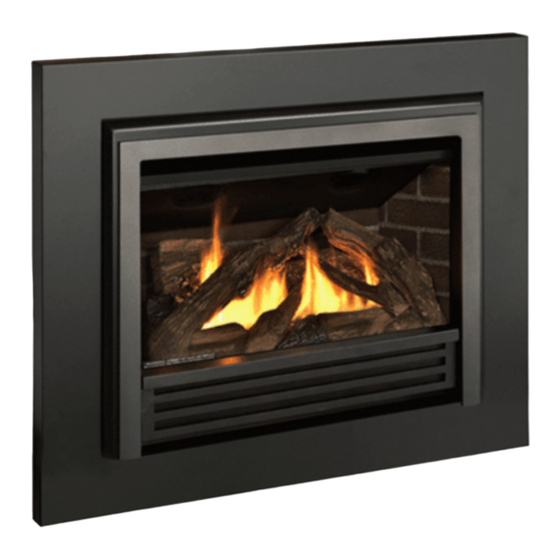

Direct Vent Gas Insert
780JN (NG) & 780JP (LPG)
Installation and Owner's Manual
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
G4
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
R e t a i n t h i s m a n u a l
f o r f u t u r e r e f e r e n c e .
Please read this manual
BEFORE installing and
operating this appliance.
This manual contains instructions to install the
ENGINE ONLY. A front is also REQUIRED to
complete this installation. A barrier screen is pro-
vided with the front. Refer to the manual sup-
plied with the front for installation.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certifi ed kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Ce guide est disponible en français sur demande.
Patent Pending
I N S TA L L E R
C O N S U M E R
Advertisement
Table of Contents
Related Manuals for Valor LEGEND G4 780JN (NG)
Summary of Contents for Valor LEGEND G4 780JN (NG)
- Page 1 EGEND Patent Pending Direct Vent Gas Insert 780JN (NG) & 780JP (LPG) Installation and Owner’s Manual DANGER I N S TA L L E R L e a v e t h i s m a n u a l HOT GLASS WILL w i t h t h e a p p l i a n c e .
-
Page 2: Table Of Contents
fi tter in the State assumes no responsibility for any consequential of Massachusetts. damage(s). Designed and Manufactured by / for Miles Industries Ltd. 190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com © Copyright Miles Industries Ltd., 2014... -
Page 3: Safety Precautions
Safety Precautions READ and UNDERSTAND all instructions carefully Due to the high temperature, the appliance should be before starting the installation. FAILURE TO FOLLOW LOCATED out of traffi c areas and away from furniture these installation instructions may result in possible fi re and draperies. -
Page 4: Safety And Your Fireplace
Child Safety Precautions and Recommendations, A physical barrier is strongly • recommended if there are young Parts of your Valor Fireplace become • children, or at-risk individuals in the extremely hot while in operation. house. Install an approved after- The glass viewing window •... -
Page 5: Owner's Information
For purchasing a Valor by Miles Industries. Your new EXTREMELY HOT!!! radiant gas heater is a technical appliance that must be installed by a qualifi ed dealer. Each Valor fi replace • READ the SAFETY information on pages is fully tested during the production process for your 3 and 4 of this manual BEFORE operating safety and comfort. -
Page 6: Cleaning Your Fireplace
OWNER’S Owner’s Information INFORMATION Cleaning Your Fireplace To remove the window: 1. Unhook the trim WARNING WARNING with the barrier screen. DO NOT TOUCH THE GLASS WHILE IT IS HOT! Let the fi replace cool fi rst before cleaning it. 2. -
Page 7: Checking Pilot And Burner Flames
OWNER’S Owner’s Information INFORMATION 3. Apply light hand pressure against the window frame sides to bed-in the window seal. 4. If the Hot Glass Warning plate has been removed from the front lower corner of the window, reinstall it by sliding it between the glass and the frame as indicated. -
Page 8: Replacing Batteries
OWNER’S Owner’s Information INFORMATION Replacing Batteries Locating Lighting, Operation and Rating Information Plate WARNING WARNING WARNING WARNING DO NOT ATTEMPT TO CHANGE THE BATTER- IES WHILE THE FIREPLACE IS STILL HOT! Let DO NOT ATTEMPT TO TOUCH THE DATA PLATE the fi... -
Page 9: How To Turn Your Fireplace Off (Including Pilot)
OWNER’S Owner’s Information INFORMATION How to Turn Your Fireplace OFF (including pilot) Familiarize yourself with each of these methods before operating your fi replace. Handset and Wall Switch: Press and hold the OFF button for a second. If the fl ames are on, they go down and you hear the valve motor wind down. -
Page 10: Remote Control Operation
OWNER’S Remote Control Operation INFORMATION NOTE: Before using the remote control system for IMPORTANT: BEFORE YOU BEGIN, please note that the fi rst time, the receiver and the handset must be on this system, the settings of time, temperature and synchronized. - Page 11 OWNER’S Remote Control Operation INFORMATION • Press and hold (small fl ame) MODES OF OPERATION button to decrease fl ame height or • Briefl y pressing the SET button to set the appliance at pilot fl ame. changes the mode of operation in •...
- Page 12 OWNER’S Remote Control Operation INFORMATION SETTING THE ON / OFF TEMPERATURES • - Nighttime Setback T E M P Temperature Mode (Appliance SETTING THE “DAYTIME” TEMPERATURE must be in standby mode; pilot ignited) - The room temperature Default Settings: (sun), 23ºC / 74ºF TEMP is measured and compared to the Nighttime Setback temperature.
- Page 13 OWNER’S Remote Control Operation INFORMATION SETTING THE “NIGHTTIME SETBACK” TEMPERA- SETTING PROGRAM TIMERS TURE • You can program two periods of time between 12:00 Default Settings: (moon), “ ” (OFF) T E M P am and 11:50 pm in each 24-hour cycle. •...
- Page 14 OWNER’S Remote Control Operation INFORMATION SETTING P1 OFF TIME SETTING P2 ON TIME • Briefl y press SET to scroll to TIMER mode • Briefl y press SET button to scroll (sun) while the time fl ashes. to TIMER (moon) while the •...
-
Page 15: Options
786LSLV2—Ledgestone Liner Set 796ALP—Adjustable Leveling Platform 787EBLV2—Enamel Black Liner Set 1265WSK—Wall Switch Kit 788FBLV2—Fluted Black Liner Set Conversion Kit 789VRLV2—Valor Red Brick Liner Set 780PGK—Conversion Kit to Propane Gas Fuel Bed 780NGK—Conversion Kit to Natural Gas 781RSK—Rock Set Hearth Gate 782LSK—Log Set... -
Page 16: Lighting Instructions
OWNER’S Lighting Instructions INFORMATION FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING : If you do not follow these instructions exactly A. This appliance has a pilot which must be lighted by hand or by remote control. Follow these instructions exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time. -
Page 17: Specifi Cations
QUALIFIED Specifi cations INSTALLER Approval & Codes *High Altitude Installations This appliance is certifi ed to ANSI Z21.88-2014 / CSA Input ratings are shown in BTU per hour and are 2.33-2014 American National Standard / CSA Standard certifi ed without deration for elevations up to 4,500 feet for Vented Gas Fireplace Heaters for use in Canada (1,370 m) above sea level. -
Page 18: Overview
QUALIFIED Overview INSTALLER This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fi replace with a working fl ue and constructed of non-combustible material. DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero clearance kit. WARNING WARNING Chimney Terminal Cap... -
Page 19: Dimensions
QUALIFIED Dimensions INSTALLER 33” (838 mm) 24” (610 mm) 6’ (1.9 m) Fan power cord 3” (76 mm) Optional fan 3” 3” 15” (76 mm) (76 mm) (381 mm) 15” 4” Trim (381 mm) (102 mm) (sold separately) 10” Gas line approx. 24“ (610 mm) of flex protruding from (254 mm) sheet metal box... -
Page 20: Clearances
QUALIFIED Clearances INSTALLER WARNING WARNING Some materials or items, although safe, may discolor, shrink, warp, crack, peel, and so on because of the heat produced by the fi replace. Avoid placing candles, paintings, photos, and other items sensitive to heat around the fi replace. Combustible Mantel Clearances Mantel Pro- 1”... -
Page 21: Venting
QUALIFIED Venting INSTALLER Typical Vent Installation See list of approved Venting Accessories on page 39 of this manual. NOTE: Flexible co-linear vent pipes may only be installed into existing non-combustible solid-fuel burning fi replaces and chimneys. Terminal Cap Vent Location The vent terminal must be located through the roof. -
Page 22: Existing Fireplace Preparation
QUALIFIED Installation Planning INSTALLER Only qualifi ed licensed or trained personnel should install this appliance. Installer—READ THIS FIRST 1. YOU NEED TO KNOW FROM THE 13. Refi t window. HOMEOWNER what accessories (surround, 14. Reinstall the hot glass warning plate if it has been screen, fan/blower, etc.) will be installed with removed. -
Page 23: Installation
QUALIFIED Existing Fireplace Preparation INSTALLER Gas Line Routing Combustible Mantels Plan the routing of the gas line before proceeding. Combustible mantel clearances must conform to those Utilize the existing hole for the gas line of the factory- required for the original solid-fuel fi replace into which built fi... -
Page 24: Remove Window
QUALIFIED Installation INSTALLER Remove Window The window is held in place by a spring-loaded lever on each side. 1. To remove the window, locate the levers on each side of the window towards the top. Using your fi nger, pull the lever towards you and unhook it from the window frame bracket. -
Page 25: Connect Venting
QUALIFIED Installation INSTALLER Connect Venting IMPORTANT: This appliance’s venting system is room sealed and therefore, does not require room air to be used in the combustion process. 1. Rough-in two 3” diameter vent liners into the existing chimney system from the roof. Be careful not to tear or damage the liners in the process. -
Page 26: Connect Gas Supply
QUALIFIED Installation INSTALLER Connect Gas Supply Pressure Test Points The gas supply inlet connection is a 1/2” NPT female. The minimum supply pressure is given in the Gas shut-off valve supplied on the end of stainless section Specifi cations of this manual—page 17. steel fl... - Page 27 QUALIFIED Installation INSTALLER Alternate Inlet Connection Use common elbow and fi ttings (not supplied) to redirect the position of In cases where local codes do not permit the fl ex the fl ex connector. NOTE: the fl ex connector to be used inside the appliance case, connector bend radius must be no reconnect the fl...
-
Page 28: Install Liner Panels
QUALIFIED Installation INSTALLER Install Liner Panels 5. Rotate the anchor up and out of the way and slide the left hand side panel against the fi rebox side. The following guidelines apply for all brick liners. Rotate the anchor back down to hold the panel. 1. -
Page 29: Install Ceramic Logs
QUALIFIED Installation INSTALLER 9. Reinstall the front brick support. 11. With logs only: Install the front bricks in front of the burner. 10. Reinstall the rear log support (3 screws). Its rear 12. With logs only: Slide the cast iron grate in the edge rests on the rear brick support ledge. - Page 30 QUALIFIED Installation INSTALLER 2. Place the black glass piece on top of the burner and 4. Place the right front log with its left end fl at on the move it forward to rest in the grooved recess of the glass.
- Page 31 QUALIFIED Installation INSTALLER 6. Identify the top right log. It is the longest of the two 7. Place the top left log’s wider end on the peg of the remaining logs. Place its wider end on the front right front left log and rest its narrow end in the notch on log’s peg and rest its narrow end in the notch on the the rear log.
-
Page 32: Install Ceramic Rocks
QUALIFIED Installation INSTALLER Install Ceramic Rocks Unpack the ceramic rocks very carefully to avoid damaging them. Install the rocks as shown. Please note that the position of some of the rocks identifi ed in the following instructions is critical to ensure proper performance of the appliance. - Page 33 QUALIFIED Installation INSTALLER 4. Each rock is embossed 8. Identify the rocks 7, 9, 11 and 14. These rocks underneath with a number have one hole underneath and fi t on the peg of and an arrow indicating the rocks 6, 8, 10 and 13 respectively. Install these its position.
-
Page 34: Refi T And Check Window
QUALIFIED Installation INSTALLER 11. Optional: Lay the twigs on the rocks. They can be IMPORTANT: The rocks of the top row (14, 11, 9 and placed as suggested below or elsewhere on the slightly 7) overhang over the burner. rocks as long as they do not block the pilot fl ame or the burner fl... -
Page 35: Synchronize Remote Control
QUALIFIED Installation INSTALLER Synchronize Remote Control 5. With a sharp object, press and hold the receiver’s reset button until you hear one short and one long The receiver and the handset of the remote control beeps. Release the reset button after the second system must be initially synchronized before the fi... -
Page 36: Check Operation
QUALIFIED Installation INSTALLER Check Operation In a few unusual installations, the fl ame picture may be improved by adjusting the aeration. The need for Turn the fi replace fl ame up and down using the adjustment should be determined only by operating the remote control to confi... -
Page 37: Install Front, Trim And Barrier Screen
QUALIFIED Installation INSTALLER Install Front, Trim and Barrier Screen Install the front or trim chosen by the customer for their fi replace. Install as well the barrier screen which is provided with the front or trim. Show the customer how to access the controls when the front or trim are installed and how to remove them. -
Page 38: Wiring Diagram
QUALIFIED Wiring Diagram INSTALLER Optional Wall Switch Kit 1265WSK Connector Yellow Optional 795CFKV2 Remote Battery Box Control Module 4 AA Batteries GV60 MAX Wiring Diagram... -
Page 39: Approved Venting Components
QUALIFIED Approved Venting Components INSTALLER Approved Direct Vent Suppliers for Valor Models 700, 739 , 780, 785 and RF24DV Venting Parts Code / availability by Manufacturer Venting Parts Description 4DVC 940264 HSDV4658- Standard Co-axial 46DVA-VC 4DT-VC TM-4VT — 4DH-1313 —... -
Page 40: Warranty
OWNER’S Warranty INFORMATION If you have a problem with this unit, please contact your dealer or supplier immediately. Under no circumstances should you attempt to service the unit in any way by yourself. The warranties in paragraphs 1 and 2 are provided only to the fi... -
Page 41: Spare Parts
OWNER’S Spare Parts INFORMATION Part Part Code Description Code Description Number Number Exhaust slide assembly 4002287 34” fl ex pipe with shut-off valve 4002475 Exhaust slide gasket 4000176 Air shutter slider NG 4002345 Restrictor enclosure 4002330 Air shutter cover NG 4002346 Metal strip 4002329... - Page 42 4001828 Ceramic platform—sand 4002439 Platform support assembly 4002663 Liner panels—complete set Ledgestone 786LSLV2 Enamel black 787EBLV2 Ceramic black 788FBLV2 Valor red brick 789VRLV2 Top panel Ledgestone 4002368 Enamel black 4002374 Ceramic black 4002374 Valor red brick 4002385 Rear panel Ledgestone...
- Page 43 OWNER’S Spare Parts INFORMATION 3 - 7 56 - 57 71 72 27 - 32 16 - 23a 34a, 34b...
-
Page 45: Miles Industries Ltd
Thank You ... For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical appliance that must be installed by a qualifi ed installer. Please fi ll in the information below. The information provided will be used for customer records only. -
Page 46: Miles Industries Ltd
Tape Shut Fold here Postage needed Miles Industries Ltd. 190 - 2255 Dollarton Highway North Vancouver, BC V7H 3B1 Canada Online Warranty registration at www.valorfi replaces.com Thank you for choosing a Valor Product...
