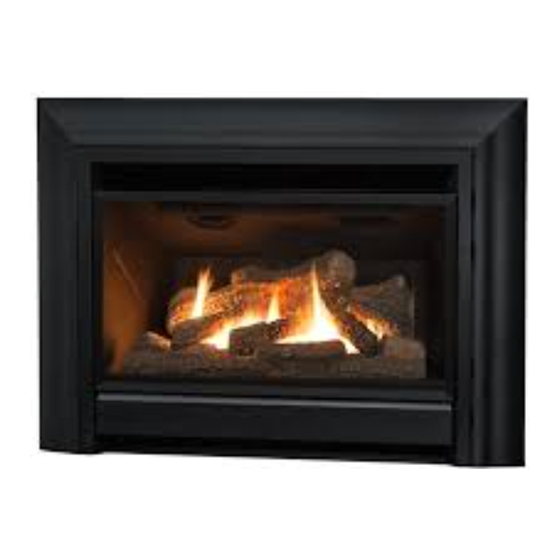

INSTALLATION & OWNER'S MANUAL
Direct Vent Gas Insert Fireplace
739MN (natural gas) / 739MP (propane gas)
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
!
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
— Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪ Do not try to light any appliance.
▪ Do not touch any electrical switch; do
not use any phone in your building.
▪ Leave the building immediately.
▪ Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
▪ If you cannot reach your gas supplier,
call the fi re department.
— Installation and service must be
performed by a qualifi ed installer,
service agency or the gas supplier.
4006175-13
©2022, Miles Industries Ltd.
G3
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
with
Canadian Patent 2,717,779 issued Oct 24 2017
US Patent 10,060,624 issued Aug 28 2018
US Patent 10,935,246 issued Mar 2 2021
Please read this manual
BEFORE
operating this appliance.
INSTALLER:Leave this
manual with the appliance.
CONSUMER:Retain this
manual for future reference.
This manual contains
instructions to install the
ENGINE ONLY. A trim kit is
REQUIRED to complete the
installation. A barrier screen is
provided with the trim kit. Refer
to the manual supplied with
the trim for installation.
This appliance may be installed
in an after-market permanently
located, manufactured (mobile)
home where not prohibited by
local codes.
This appliance is only for use
with the type of gas indicated
on the rating plate. This
appliance is not convertible for
use with other gases, unless a
certifi ed kit is used.
This appliance is a domestic
room-heating appliance. It
must not be used for any
other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in
a bedroom or bed sitting room.
Ce guide est disponible en français sur demande.
installing and
