1080p HDMI-over-UTP Extender with IR and PoC
EX-40-G3
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
HDMI Source

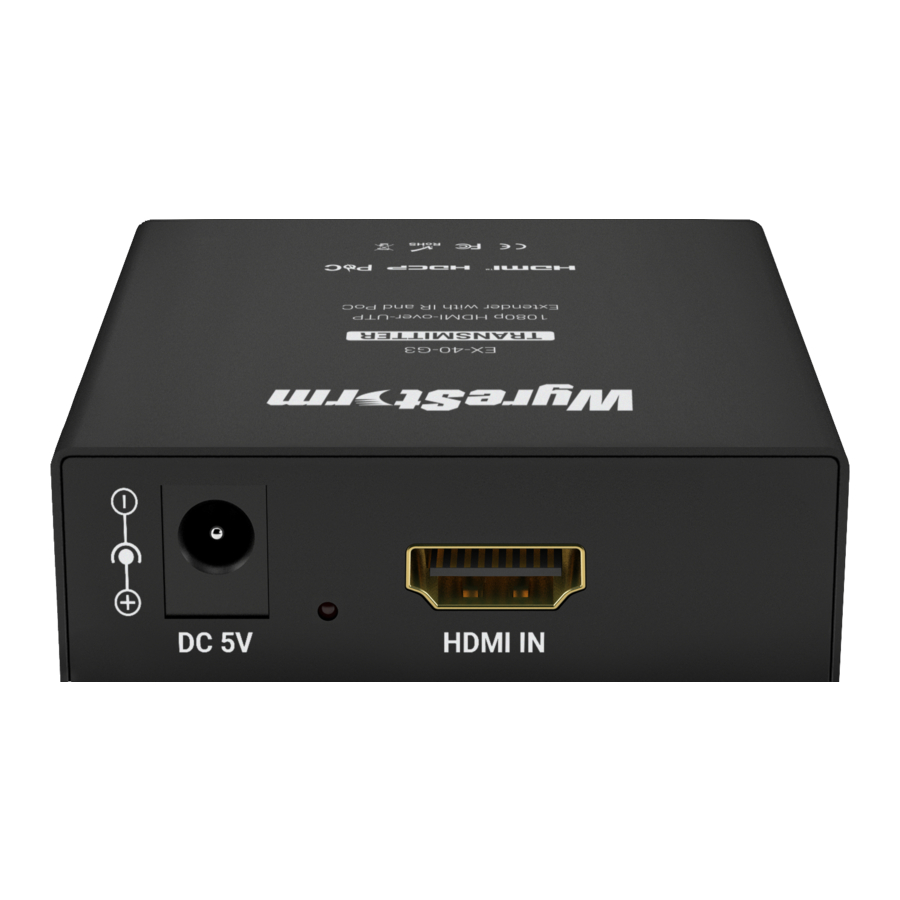

EX-40-G3
Transmitter
5V DC
Power Supply
CAB-IR-LINK (Sold Separately)
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-40-G3 Quickstart Guide | 190121
section for important wiring
HDMI
IR to Control System
In the Box
1x EX-40-G3 Transmitter
1x EX-40-G3 Receiver
1x 5V DC 1A Power Supply (US/UK/EU/AU)
1x USB-A to Micro-B RX Power Cable
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
HDMI Display
5V DC
Power Supply
HDBaseT Cat5e/6/6a
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
HDMI
EX-40-G3
Receiver
KEY
HDMI
HDBaseT
IR
Power
support@wyrestorm.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm EX-40-G3
Summary of Contents for Wyrestorm EX-40-G3
- Page 1 1080p HDMI-over-UTP Extender with IR and PoC Quickstart Guide EX-40-G3 WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x EX-40-G3 Transmitter •...
- Page 2 • Verify that the HDBaseT cable is properly terminated following EIA568B Troubleshooting Tips: standard. • WyreStorm recommends using a cable tester or connecting the cable to • Verify that the output resolution of the source and display is supported by other devices to verify functionality.
- Page 3 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
