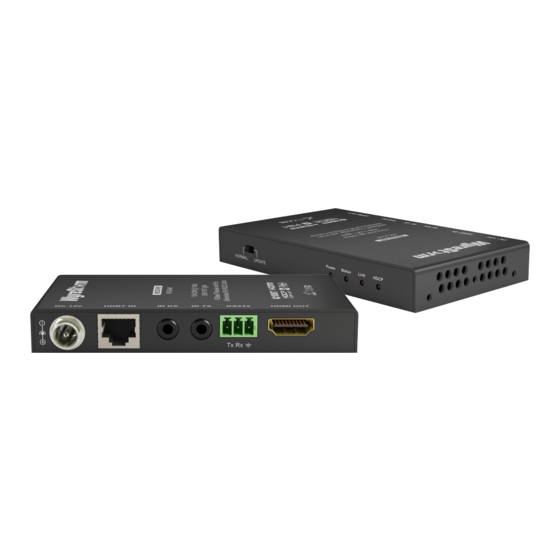

4k hdbaset extender set with bi-directional ir, rs-232
Hide thumbs Also See for EX-35-4K:

Advertisement

Quick Links

4K HDBaseT Extender Set
with Bi-directional IR | RS-232 | PoH (35m/115ft)
EX-35-4K
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x TX-35-4K Transmitter
1x RX-35-4K Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
2x Wide-band IR Emitters
2x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)

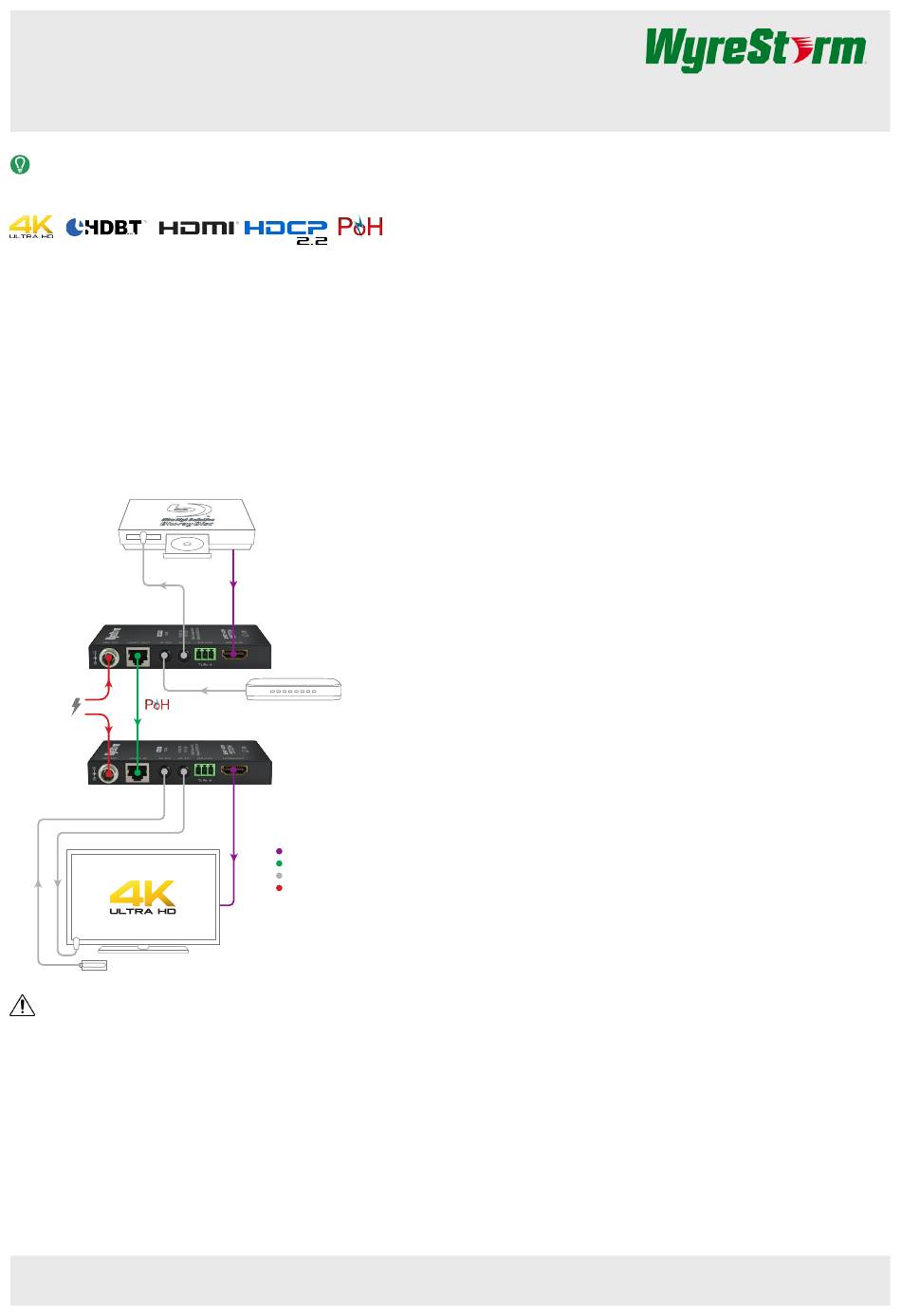

Basic Wiring Diagram
4K/UHD HDMI Source
IR Emitter
EX-35-4K Transmitter (TX)
18V DC 1A
or
Power Supply
HDBaseT
Cat5e/6/6a
EX-35-4K Receiver (RX)
IR Emitter
HDMI Display
IR Receiver
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Copyright © 2015 WyreStorm Technologies |
EX-35-4K Quickstart Guide | 160127
HDMI
IR to Control System
CAB-IR-LINK (Sold Separately)
KEY
HDMI
HDMI
HDBaseT Cat5e/6/6a
IR TX and RX
Power
wyrestorm.com
Installation
Before Beginning
• WyreStorm recommends visiting the product page before installing
this product for updates to this Quickstart Guide as well as other
information about the product.
• Verify that all items are included in the packaging per the
list.
Pre Wire
1.
Run a Cat5e/6/6a cable from the transmitter location to the receiver
location. Terminate the cable per the
2.
(Optional) If using 3rd party IR emitters or connecting blocks at
either the transmitter or receiver, run the wire and terminate per the
IR TX (Emitter) Wiring
3.
(Optional) If using RS-232 pass-through, run the wire and terminate
per the
RS-232 Wiring
4.
(Optional) If using 3rd party IR receivers at either the transmitter or
receiver, run the wire and terminate per the
section.
Transmitter Installation
1.
Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as
Express.
2.
(Optional) Place an IR emitter onto the source device near the
device's IR receiver and connect it the IR TX port.
3.
Connect the cable created in
4.
(Optional) Connect the 3-pin connector to the RS-232 port on the
transmitter and the opposite end to a port on a control system.
5.
If using PoH from the transmitter to power the receiver, connect the
included 18V DC 1A power supply to the 18V DC 1A jack.
Receiver Installation
1.
Connect the HDMI Out on the receiver to an input on the display
using an HDMI cable from a high quality brand such as
Express.
2.
(Optional) Place an IR emitter onto the source device near the
device's IR receiver and connect it the IR TX port.
3.
Connect the cable created in Pre Wire step 1 to the HDBT In.
4.
(Optional) If using RS-232 pass-through, connect the 3-pin
connector to the RS-232 port on the receiver and the opposite end
to a port on the device being controlled.
5.
If not using PoH from the receiver to power the transmitter, connect
the included 18V DC 1A power supply to the 18V DC 1A jack.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
HDBaseT Wiring
section.
section.
IR RX (Receiver) Wiring
WyreStorm
step 1 to the HDBT Out.
Pre Wire
support@wyrestorm.com
In the Box
section.
WyreStorm

Advertisement

loading
Need help?

Need help?

Do you have a question about the EX-35-4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wyrestorm EX-35-4K

  • Page 1 4K HDBaseT Extender Set with Bi-directional IR | RS-232 | PoH (35m/115ft) Quickstart Guide EX-35-4K WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. Installation In the Box...
  • Page 2 Supports HDMI and DVI/D (requires HDMI Out (RX) adapter-not included). Limited to 297MHz pixel clock Copyright © 2015 WyreStorm Technologies | wyrestorm.com North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343 2 of 4 EX-35-4K Quickstart Guide | 160127...
  • Page 3 Wire colors shown follow EIA-561 standard. Power Supply Wiring The EX-35-4K can supply power via PoH to the receiver or transmitter. The included power supply must be used on the transmitter in order for PoH to power the receiver device.
  • Page 4 8.88W Consumption Troubleshooting Tips: 48V 15.4W • WyreStorm recommends using a cable tester or connecting the cable Environmental to other devices to verify functionality. 32°F ~ 113°F (0°C ~ 45°C) • Use a flashlight to locate the IR sensor behind any tinted panels on the...
