18Gbps 4K HDR HDBaseT Extender with
HDCP 2.2 and 2-way PoH
EX-35-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• This product was released in 2 different versions which contain different
chassis designs and feature sets.
• See Identifying Product Versions for details.
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Identifying Product Versions
This product was released in 2 different versions which contain different chassis designs and feature sets. The differences are identified throughout this
document in order to make installation and use easier.
Versions can be identified by a v# after the model number on the product chassis model number sticker. Note that version 1 of this product may not contain a
v1 after the product while all version 2s will contain a v2 after the model number.
Operational Differences
Feature
RS-232 Mode Switch
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

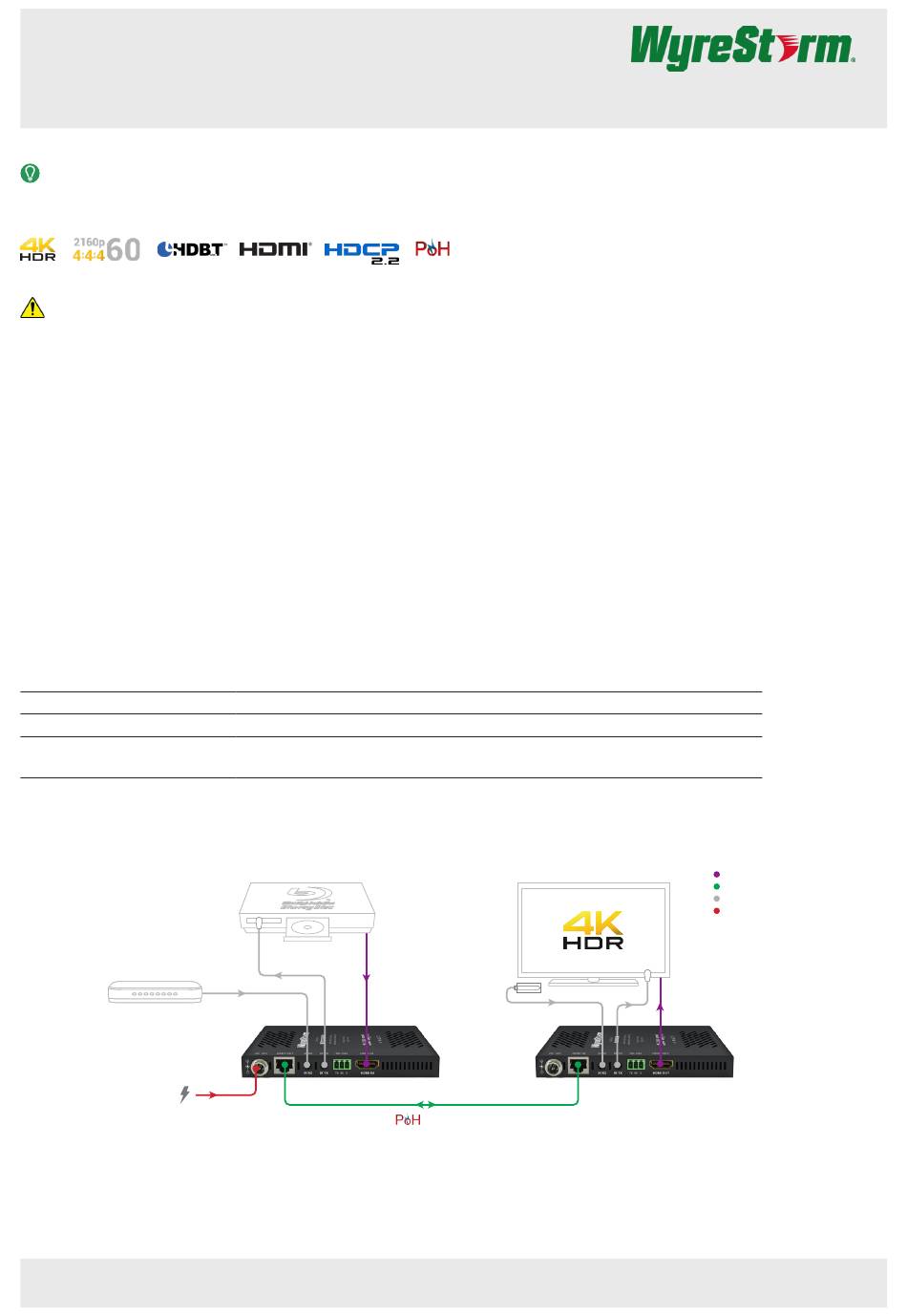

Basic Wiring Diagram
IR to Control System
CAB-IR-LINK (Sold Separately)
18V DC 1A
Power Supply
Note: Extender set may be powered
by either the TX or RX. Only one
power supply is required.
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
EX-35-H2 Quickstart Guide | 190509
section for important wiring
Version 1
Yes
Not Supported on Category Cable (HDBaseT)
4K/UHD HDMI Source
IR Emitter
HDMI

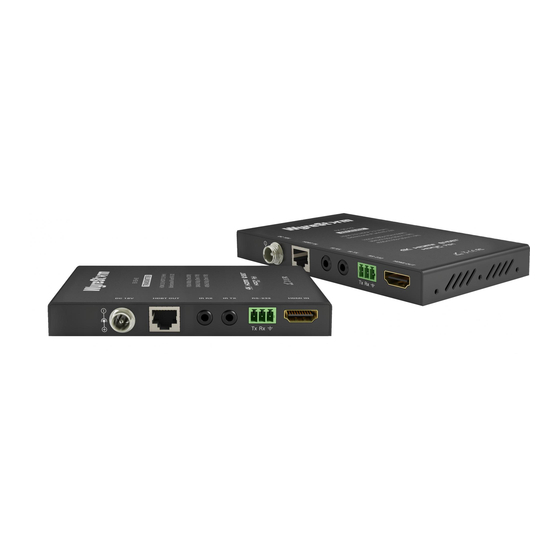

EX-35-H2 Transmitter (TX)
In the Box
1x EX-35-H2 Transmitter
1x EX-35-H2 Receiver
1x 18V DC 1A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connectors
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide (this document)
Version 2
No – Changes made this switch unnecessary
Supported on Category Cable (HDBaseT)
4K/UHD HDMI Display
IR Receiver
HDBaseT
Cat5e/6/6a/7
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
KEY
HDMI
HDBaseT Cat6/7
IR TX and RX
Power
IR Emitter
HDMI
EX-35-H2 Receiver (RX)
support@wyrestorm.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm EX-35-H2
Summary of Contents for Wyrestorm EX-35-H2
- Page 1 18Gbps 4K HDR HDBaseT Extender with HDCP 2.2 and 2-way PoH Quickstart Guide EX-35-H2 WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x EX-35-H2 Transmitter •...
- Page 2 HDMI In 19-pin type A HDMI female HDMI Out Supports HDMI and DVI/D with adapter Copyright © 2018 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 2 of 4 EX-35-H2 Quickstart Guide | 190509...
- Page 3 Power Supply Wiring The EX-35-H2 can supply power from the transmitter to the receiver using PoH on the same category cable that transmits audio and video. The included power must be connected to the transmitter in order to power the receiver. Should distance of the category cable or other factors prevent PoH from being used, connect an 18V DC 1A power supply to both devices.
- Page 4 • If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated. Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Copyright © 2018 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
