WSL-Q7
Item ref: 154.012UK
User Manual

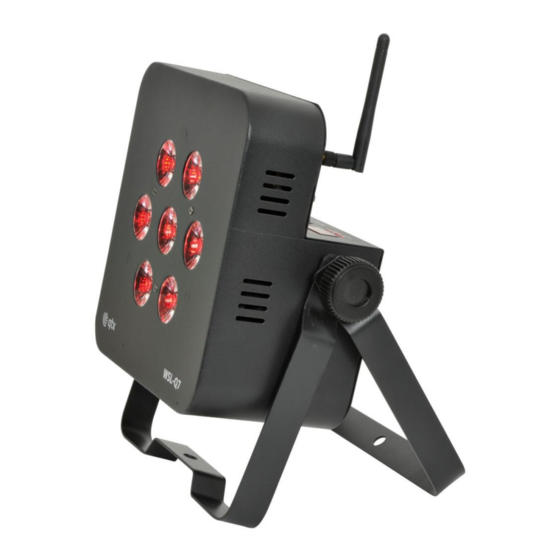

Wireless RGBW PAR Can

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSL-Q7 and is the answer not in the manual?

Questions and answers

Related Manuals for Qtx WSL-Q7

Summary of Contents for Qtx WSL-Q7

  • Page 1 WSL-Q7 Item ref: 154.012UK User Manual Wireless RGBW PAR Can...

  • Page 2: Charging The Battery

    Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing the WSL-Q7 wireless quad colour PAR light as part of your effect lighting setup. This unit has been designed to provide wire-free colour effects for stage shows, special events and architecture.

  • Page 3: Operation

    Setting up Install the WSL-Q7 by the mounting bracket, which can also be configured as a floor stand. Experiment with positioning and distance to get the best coverage for the area to be lighted. For DMX or master/slave control, link DMX out to DMX in using good quality DMX leads.

  • Page 4: Display Mode

    2 units to  will allow control as 2 pairs)    setting allows the user to set the WSL-Q7 as white mode or RGBW fixture    when set to  , the LED display will go out 15secs after no button pushes (LED display automatically lights again when any control panel buttons are pressed) ...

  • Page 5: Master/Slave Operation

    WSL-Q7 via a DMX link. For instance, setting a WSL-Q7 unit to Auto1 and connecting DMX out to the DMX in of another WSL-Q7 that has been set to Slave mode will make the slave unit mimic the Auto1 program of the first unit.

  • Page 6: Specifications

    Specifications Mains power 100-240Vac, 50-60Hz Current consumption 0.5A @ 230V Fuse rating F3.15A Rated power Battery 12Vdc 10Ah Li-ion rechargeable Charge time 5 hours Battery life 10hrs 2/3 colours, 3.5-4hrs full colour Mode(s) Auto, sound, master, slave, DMX (wired or wireless) LEDs 7 x 8W LED type...
  • Page 7 Appendix: DMX implementation HSV (3CH) Mode Value Function Channel 1 000-255 Scroll through colours Channel 2 Saturation 000-255 Adjust depth of colour mix Channel 3 Value 000-255 Master dimmer 4CH Mode Mode Value Function Channel 1 000-255 Red brightness 0-100% Channel 2 Green 000-255...
  • Page 8 8CH Mode Mode Value Function Channel 1 Dimmer 000-255 Master dimmer 0-100% Channel 2 000-255 Red brightness 0-100% Channel 3 Green 000-255 Green brightness 0-100% Channel 4 Blue 000-255 Blue brightness 0-100% Channel 5 White 000-255 White brightness 0-100% Channel 6 Strobe 000-255 Speed: slow to fast...
