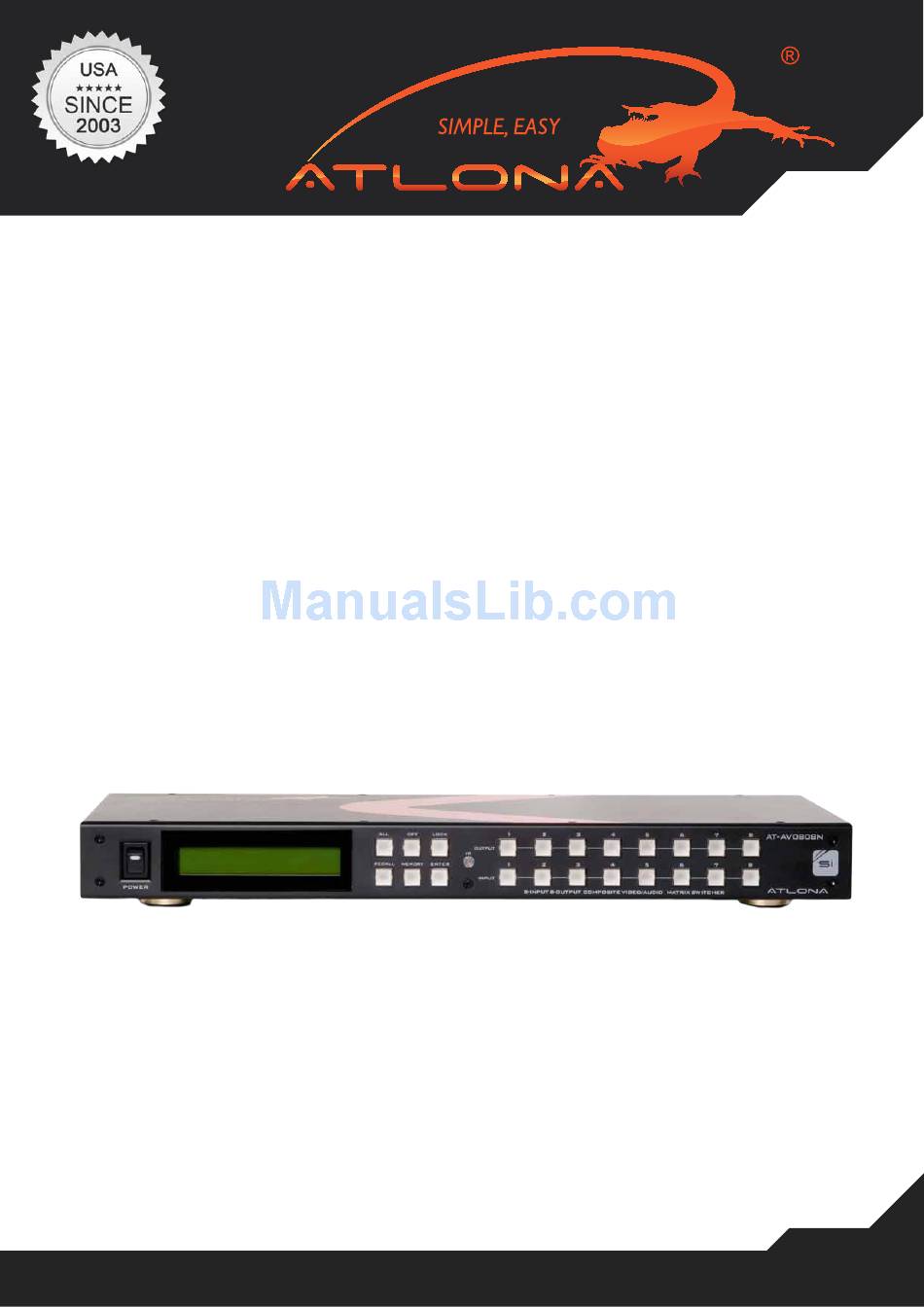

- Page 1 AtlonA 8x8 Composite Video + Stereo Audio Matrix Switch AT-AV0808N www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
5.2 Rear Panel ..........6. Connection and Installation ....................7. IR Extender & Remote Control ..........8. RS232 Control 9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
8 outputs. This gives you great exibility over other ordinary switchers!! The AT-AV0808N can be used with up to 8 sources such as a VCR or DVD and connected to up to 8 displays. There are several remote control options such as the supplied hand held IR remote, RS-232 for computer or touch panel control and an IR extender solution for control from another zone. -
Page 4: Panel Descriptions
Selecting the ENTER key will save the preset memory position. Example: To recall a preset select the RECALL key, then the number of the memory preset followed by the ENTER key. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Rs232 Control
Panel 1. Connect the output of a composite video source such as a VCR or DVD to the composite video and L/R audio inputs of the AT-AV0808N. 2. Connect the composite video output to the composite input of your display. - Page 6 1. IR Extender Connection REMOTE CONTROL The supplied remote control provides IR selection for 1-8 display output and 1-8 source input, plus power ON/OFF. IR HEX codes available from www.Atlona.com website. 1. Power On 2. Power Off 3. Output Select 4.
- Page 7 Not used 2. RS-232 The Atlona switcher can be controlled via the RS-232 serial control port to allow PC or 3rd party control system. The serial communication parameters are 9600 baud, 8 bit, no parity and 1 stop bit, often referred to as 9600 8N1.
-
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. - Page 9 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
-
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
