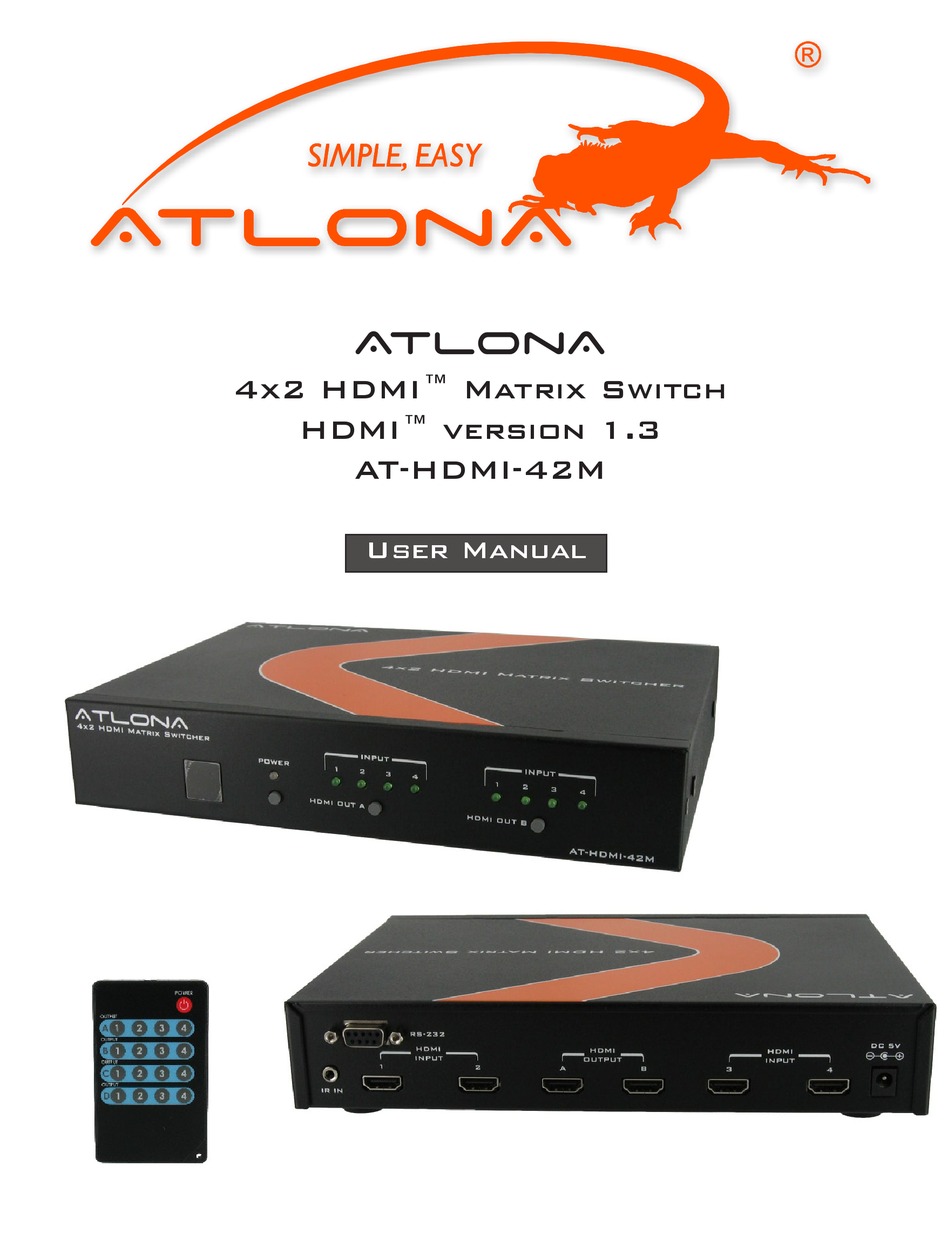

- Page 1 AtlonA 4x2 HDMI™ Matrix Switch HDMI™ version 1.3 AT-HDMI-42M User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Operation Controls and Functions ......2 4.1 Front Panel ..........4.2 Rear Panel ..........4.3 Remote Control ..........4.4 RS-232 Protocol ..........4.4.1 Pin Definition ..........4.4.2 Commands .......... -
Page 3: Introduction
Introduction AT-HDMI-42M is a high performance HDMI™ Matrix with remote control. It offers you maxi- mum convenience in HDMI™ signal distribution when you have multiple HDMI™ sources and displays to connect together. Each of the four HDMI™ sources can be directed to any one of the two outputs, so two displays can show 2 identical or 2 different sources at the same time. -
Page 4: Operation Controls And Functions

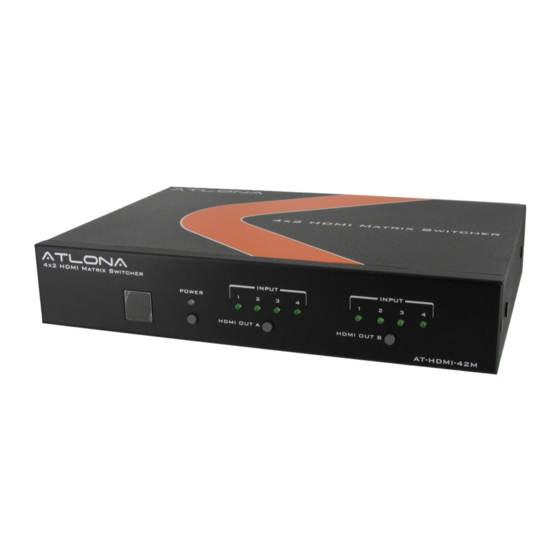

Operation Controls and Functions 4.1. Front Panel AtlonA INPUT INPUT POWER HDMI OUT A HDMI OUT B 1. Remote control sensor. 2. Power Switch & LED Indicator: The LED will illuminate when the power is turned on. 3. Input Select/Indicators (A): Press the “HDMI™... -
Page 5: Rear Panel
4.2 Rear Panel RS-232 DC 5V INPUT OUTPUT INPUT IR IN 1. IR IN Socket: Plug the IR extender sensor (optional) into the socket for IR extension control. 2. RS-232 Communication Port: Connect to the COM port of your PC for the distant control over RS-232 channel. 3. -
Page 6: Rs-232 Protocol
4.4 RS-232 Protocol 4.4.1 Pin Definition AT-HDMI-42M Remote Control Console Definition Definition *RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit 4.4.2 Commands COMMAND ACTION Power Off (standby) Power On * System Status *... -
Page 7: Specifications
Specifications 5.1 General Specification * Frequency bandwidth: 2.25Gbps (single link) * HDMI v1.3 * Input/Output: 4-in to 2-out HDMI™ female ports * 5V DC power supply * Dimensions: 240 (W) x 165 (D) x 49 (H)mm * Weight: version 1.35Kgs 5.2 Support Resolution INTPUT VGA, SVGA, XGA, SXGA, UXGA... -
Page 8: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
