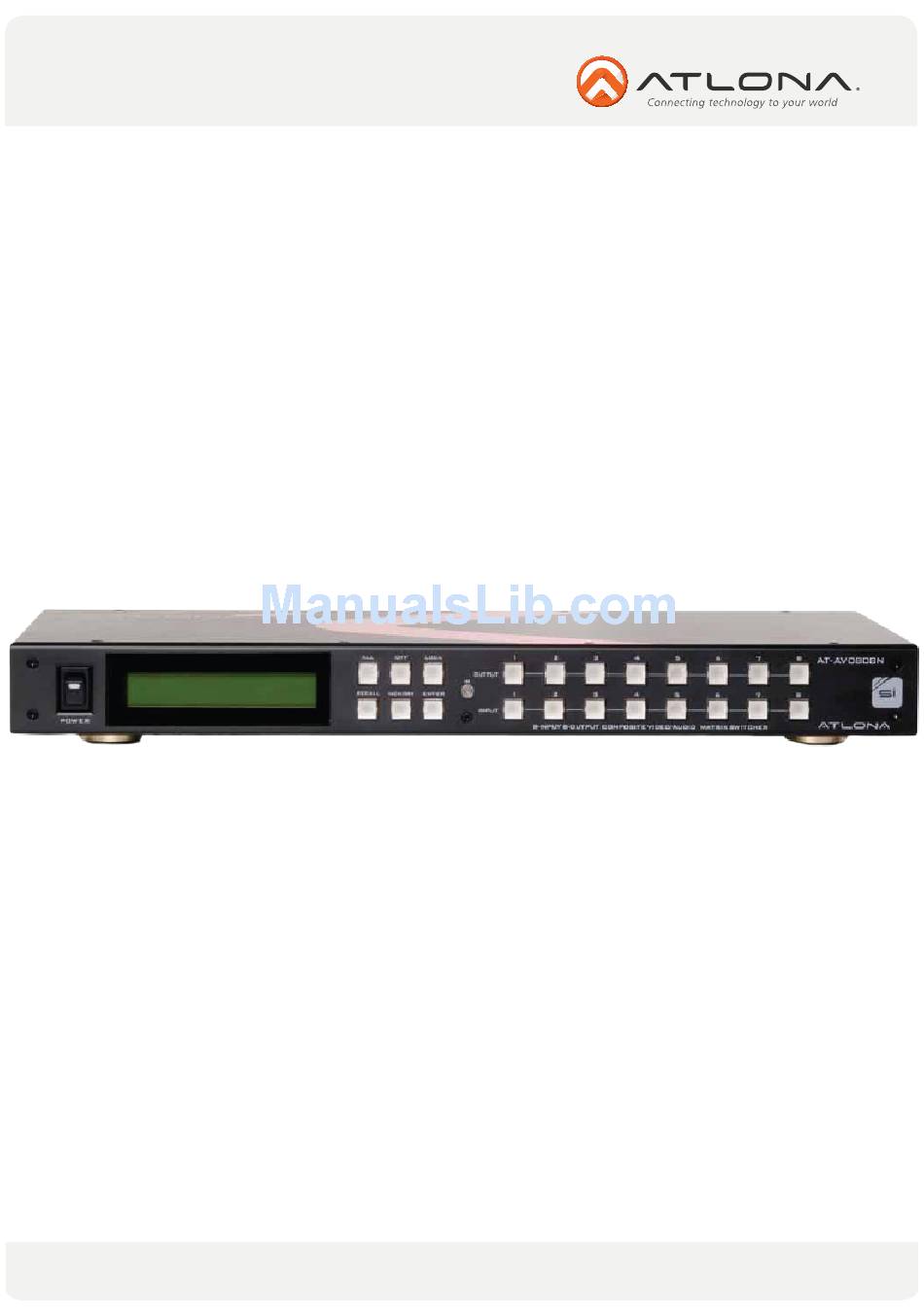

- Page 1 Atlona 8 by 8 Composite Video and Stereo Audio Matrix Switch AT-AV0808N User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
5.1 Front Panel ..........5.2 Rear Panel ..........6. Connection and Installation ....................7. IR Extender & Remote Control ..........8. RS232 Control 9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Because it is a matrix switch you can associate any of the 8 A/V inputs AT-AV0808N can be used with up to 8 sources such as a VCR or DVD and connected to up to 8 displays. There are several remote control options such as the supplied hand held IR remote, RS-232 for computer or touch panel control and an IR extender solution for control from another zone. -
Page 4: Panel Descriptions
Selecting the ENTER key will save the preset memory position. Example: To recall a preset select the RECALL key, then the number of the memory preset followed by the ENTER key. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
2. Back Panel 1. Connect the output of a composite video source such as a VCR or DVD to the composite video and L/R audio inputs of the AT-AV0808N. 2. Connect the composite video output to the composite input of your display. -
Page 6: Ir Extender & Remote Control
1. IR Extender Connection REMOTE CONTROL The supplied remote control provides IR selection for 1-8 display output and 1-8 source input, plus power ON/OFF. IR HEX codes available from www.Atlona.com website. 1. Power On 2. Power O 3. Output Select 4. -
Page 7: Rs232 Control
Erases the save for the number you selected Mreset Mreset Sets matrix back to the default settings Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-AV0808N. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 10: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure.
