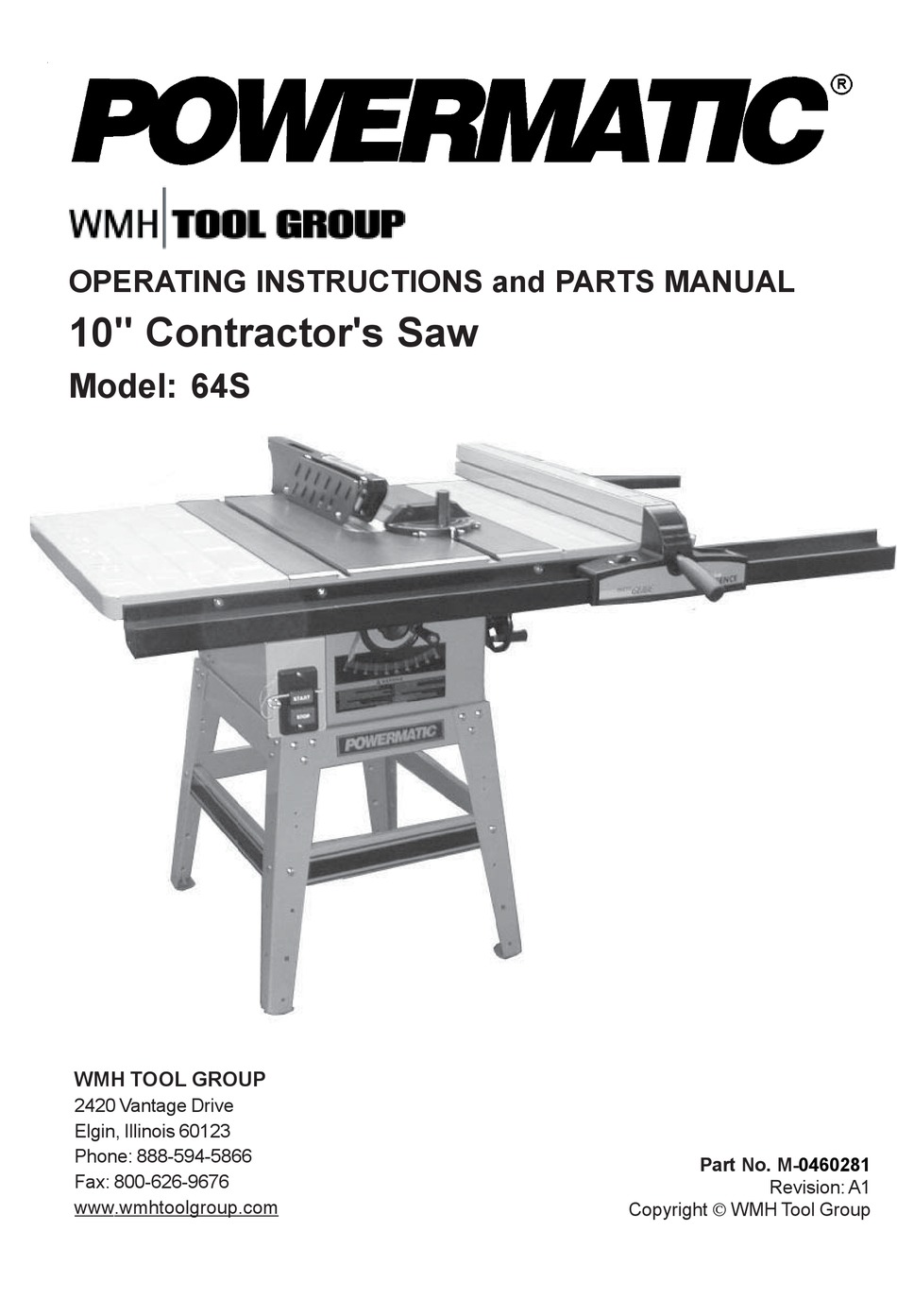

- Page 1 OPERATING INSTRUCTIONS and PARTS MANUAL 10" Contractor's Saw Model: 64S WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Phone: 888-594-5866 Part No. M-0460281 Fax: 800-626-9676 Revision: A1 www.wmhtoolgroup.com Copyright WMH Tool Group...
-
Page 2: More Information
This manual has been prepared for the owner and operators of a Powermatic Model 64S Table Saw. Its purpose, aside from machine operation, is to promote safety using accepted operating and maintenance procedures. To obtain maximum life and efficiency from your table saw, and to aid in using the machine safely, please read this manual thoroughly and follow all instructions carefully. -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Rules ................................. 4 Safety Labels ................................ 6 Features ................................7 Specifications ............................... 7 Receiving ................................8 Installation & Assembly ............................8 Stand Assembly ............................9 Mounting the Saw to the Stand ......................... 10 Assembling the Handwheels and Lock Knobs ..................10 Mounting the Motor ............................ -
Page 4: Safety Rules
Make certain the work area is well lighted and that a proper exhaust system is used to minimize dust. Powermatic recommends the use of anti-skid floor strips on the floor area where the operator normally stands and that each machine’s work area be marked off. Provide adequate work space around the machine. - Page 5 Misuse. Do not use this Powermatic table saw for other than its intended use. If used for other purposes, Powermatic disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use.
-
Page 6: Safety Labels
Familiarize yourself with the following safety notices used in this manual: CAUTION: (This means that if precautions are not heeded, it may result in minor or moderate injury and/or possible machine damage) WARNING: (This means that if precautions are not heeded, it could result in serious injury or possibly even death). -
Page 7: Features
Weight (Saw Only) ........................235 lbs. NOTE: The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, Powermatic reserves the right to change specifications without notice and without incur- ring obligations. -
Page 8: Receiving
RECEIVING Remove the saw and accessories from the shipping carton and inspect for damage. Any damage should be reported to your distributor and shipping agent im- mediately. Before proceeding further, read your instruction manual thoroughly to familiarize yourself with proper assem- bly, maintenance and safety procedures. -
Page 9: Stand Assembly
Remove the protective wax coating from the saw table surface with a soft cloth moistened with a good com- mercial solvent. NOTE: Do not use acetone, gasoline, or lacquer thin- ner to remove the protective wax coating, as it can damage plastic parts and painted areas. -
Page 10: Mounting The Saw To The Stand
MOUNTING THE SAW TO THE STAND Tools required 12mm wrench. Tip: Remove all the contents from the box except the saw and one extension wing. Put some soft padding on the floor beside the box. Fold back the carton flaps and gently roll the box upside down on to the pad- ding. -
Page 11: Mounting The Motor
Attach the elevating and tilting handwheels with the lock knobs to the elevating and tilting screws on the machine, as shown in Figure 5. Make sure the slot in both handwheels engages with the roll pins in the elevating and tilting screws. MOUNTING THE MOTOR Tools required 10mm and 12mm wrenches... -
Page 12: Mounting The Blade Guard And Splitter
10. Align the pulleys using a straight edge as shown in Figure 11. NOTE: If a pulley needs to be adjusted on the shaft, loosen the set screw, slide the pulley forward or back as needed and re-tighten the set screw. 11. -
Page 13: Saw Blade Installation
tion to slide on to the screw so that the nut and washer compress the guard's feet against the plate. When the splitter assembly is properly situated, tighten the screws, (Figure 13, Item B and Figure 14, Items A and C). SAW BLADE INSTALLATION Tools required Arbor wrench... -
Page 14: Mounting The Extension Wings
MOUNTING THE EXTENSION WINGS Tools required 17mm wrench straight edge hammer & wood block (or rubber mallet) TIP: Use WD-40 to clean the table edges. Have an assistant hold the wing in place while the three 7/16-14 x 1-1/4 screws are inserted with the 7/16 lock washers. -
Page 15: Installing The Dust Shroud
INSTALLING THE DUST SHROUD Tools Required Small adjustable wrench phillips screwdriver. TIP: Since the dust shroud is installed from beneath, aid from a helper to install the screws and tabs will make this task much easier. From under the saw, position the dust shroud at an angle so it fits through the opening between the stand and the saw. -
Page 16: Motor Disconnect Plug
MOTOR DISCONNECT PLUG The motor is equipped with a special disconnect plug to facilitate removal for saw transportation convenience. Before connecting or disconnecting this special plug, always make sure that the main power cord is un- plugged. INSTALLING THE DADO INSERT Dadoing is cutting a rabbet or a wide groove into the workpiece. - Page 17 Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating less than 150 volts: • This saw is intended for use on a circuit that has an outlet that looks like the one shown in Figure 23(A). •...
-
Page 18: Adjustments
ADJUSTMENTS CAUTION: Disconnect the saw from the power source before making any adjust- ments. SAW BLADE ADJUSTMENT To raise and lower the saw blade, loosen the front lock knob (A) on the elevating handwheel as shown in Figure 24. Turn the front handwheel (B) clockwise to raise the saw blade and counterclockwise to lower the saw blade. -
Page 19: Mitre Gauge Adjustment
Disconnect the machine from the power source. Raise the saw blade to its maximum height. Set the blade at 90 to the table by turning the blade tilting handwheel clockwise as far as it will go. Place a square on the table and check to see that the blade is at a 90 angle as shown in Figure 26. -
Page 20: Aligning The Splitter To The Saw Blade
ALIGNING THE SPLITTER TO THE SAW BLADE CAUTION: The splitter assembly must be aligned with the saw blade to help prevent kickback. Lay a straight edge against the saw blade and the splitter as shown in Figure 30. If the splitter and the saw blade do not line up, loosen the lower screws on the splitter mounting bracket (D) and the lower screws on the inside splitter mounting plate (E) as shown in Figure 31. -
Page 21: Basic Saw Operation
Note: An alternative to the paste wax is white talcum powder applied with a blackboard eraser rubbed in vig- orously once a week to fill casting pores and form a moisture barrier. This method provides a table top that is slick and allows rust rings to be easily wiped from the surface. -
Page 22: Operating Procedures Ripping
Do not use the mitre gauge and rip fence in the same operation unless provision is made of a facing board on the fence to allow the cutoff section of the workpiece to come free before the cut is started. (See page 24). - Page 23 Never rip freehand or use the mitre gauge in combi- nation with the fence. Never rip workpieces shorter than the saw blade diameter without a push stick. Never remove the cutoff piece with the saw blade ro- tating. Always use the saw guard, splitter and anti-kick- back pawls and make sure the splitter is properly aligned.
-
Page 24: Resawing
RESAWING Resawing is a ripping operation in which thick boards are cut into thinner ones. Narrow boards up to 3" can be resawed in one pass. Wider boards up to 6" must be resawed in two passes. When resawing wider boards, adjust the saw blade height so it overlaps the two cuts by 1/2"... -
Page 25: Bevel And Mitre Operations
Adjust the saw blade height so it extends about 1/8" above the top of the workpiece. Raising the saw blade above this point increases the risk of injury. BEVEL AND MITRE OPERATIONS A bevel cut is a special type of operation where the saw blade is tilted at an angle less than 90 to the table top. -
Page 26: Electrical: 230 Volt Conversion
WARNING: The conversion from 115V to 230V operation must be done by a qualified electrician. The 64S saw is prewired for 115 volt operation. If 230 volt, single phase operation is desired, the following instructions must be followed: Disconnect the machine from the power source. -
Page 27: Safety Devices
SAFETY DEVICES Filler Piece (Figure 45) A filler piece is necessary for narrow ripping and per- Feather Board (Figure 44) mits the guard to remain on the machine. It also pro- vides space for the safe use of a push stick. A Feather Board is made of straight grain hardwood approximately 1”... -
Page 28: Troubleshooting
TroubleShooting PROBLEM POSSIBLE CAUSE SOLUTION Excessive Vibration. 1. Tilt or raising clamp knobs not tightened. 1. Tighten the knobs. 2. Blade out of balance. 2. Change the saw blade. 3. Bad motor. 3. Replace the motor. 4. Pulleys loose 4. Tighten pulley set screws. 5. -
Page 29: Replacement Parts
Replacement Parts To order parts or reach our service department, please call our toll free number between 8:00 A.M. and 4:30 P.M. (CST), Monday through Friday. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Locating the stock number of the part(s) required from your parts manual will also expedite your order. - Page 30 8 ..6290506 ......Spring Washer ..........5/16" ......9 9 ..6290507 ......Hex Head Bolt ..........5/16"-18x5/8" ... 6 10 ..64S-110 ......Extension Wing ................. 2 11 ..TS-0680051 ....... Flat Washer ............ 7/16"x25D ....6 12 ..6290511 ......Spring Washer ..........7/16" ......6 13 ..
- Page 31 PARTS LIST: Table Saw, Extension Wings and Guard Part No. Description Size Qty. 63 ..6291373 ......Power Cord (Junction to Switch) ............1 64 ..6290629 ......Power Cord ..................1 65 ..6290630 ......Clamp .............. 7W2 ......6 66 ..
- Page 32 Table Saw, Extension Wings and Guard...
-
Page 33: Stand Assembly
PARTS LIST: Stand Assembly Part No. Description Size Qty. 1 ..6290646 ......Leg ....................4 2 ..6290650 ......Bottom Long Bracket ................ 2 3 ..6290648 ......Bottom Short Bracket ............... 2 4 ..6290647 ......Top Short Bracket ................2 5 .. -
Page 34: Motor & Trunnion Assembly
PARTS LIST: Motor and Trunnion Assembly Part No. Description Size Qty. 1 ..6290563 ......Knob ....................2 2 ..6290565 ......Handle ....................2 3 ..6290566 ......Hex Nut ............3/8"-16 ...... 4 4 ..6290564 ......Handwheel ..................2 5 .. - Page 35 PARTS LIST: Motor and Trunnion Assembly Part No. Description Size Qty. 69 ..6290631 ......Electrical Cord (Junction to Motor) ............ 1 70 ..6291384 ......Carriage Bolt ........... 5/16"-18x1-3/4" ..2 72 ..6291385 ......Pulley Cover Seat ................1 73 ..
- Page 36 Motor and Trunnion Assembly...
-
Page 37: Casters (Optional)
CASTERS (Optional) Part No. Description 6290656 Caster (2) -
Page 38: Optional Accessories
Notes:... - Page 39 Notes:...
- Page 40 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 888-594-5866 Fax: 800-626-9676 Website: www.wmhtoolgroup.com Copyright WMH Tool Group...
