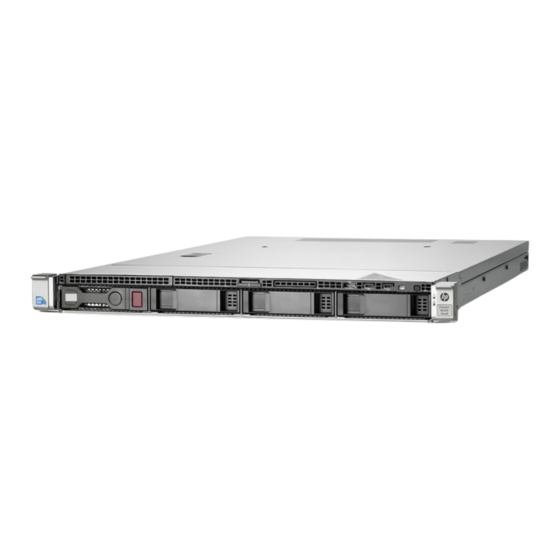

HP ProLiant DL160 Gen8 Server

User Guide

Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the
servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
Part Number: 670519-002
April 2012
Edition: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLiant DL160 Gen8 and is the answer not in the manual?

Questions and answers

Related Manuals for HP ProLiant DL160 Gen8

Summary of Contents for HP ProLiant DL160 Gen8

  • Page 1: User Guide

    User Guide Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
  • Page 2 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Contents Component identification ....................... 7 Front panel components ..........................7 Front panel LEDs and buttons ........................8 Rear panel components ..........................8 Rear panel LEDs and buttons ........................9 System board components ........................10 DIMM slots ........................... 11 System maintenance switch ......................11 NMI jumper ..........................
  • Page 4 VGA power cable option ......................... 58 Mini-SAS cable option ..........................59 Installing the 700 mm mini-SAS cable ....................60 HP Trusted Platform Module option ......................60 Installing the Trusted Platform Module board ..................61 Retaining the recovery key/password ....................63 Enabling the Trusted Platform Module ....................
  • Page 5 Drivers ............................79 Software and firmware ........................80 Version control ..........................80 HP Operating Systems and Virtualization Software Support for ProLiant Servers ........80 HP Technology Service Portfolio ...................... 81 Change control and proactive notification ..................81 Troubleshooting .......................... 82 Troubleshooting resources ........................
  • Page 6 HP 750 W CS Power Supply (94%) specifications ................94 HP 500 W Multi-output Power Supply specifications ................94 Power supply calculations ......................... 95 Support and other resources ......................96 Before you contact HP ..........................96 HP contact information ..........................96 Customer Self Repair ..........................

  • Page 7: Component Identification

    Component identification Front panel components • Item Description Optical drive Front video connector (Front video port adapter required) USB connectors (2) UID LED button Power on/Standby button and system power LED Health LED NIC status LED SAS/SATA drives (8) • Item Description Optical drives...

  • Page 8: Front Panel Leds And Buttons

    Front panel LEDs and buttons Item Description Status UID LED/button Blue = Identification is activated. Flashing blue = System is being managed remotely. Off = Identification is deactivated. Power On/Standby button Green = System is on. Flashing green = Waiting for power Amber = System is in standby, but power is still applied.

  • Page 9: Rear Panel Leds And Buttons

    Description Slot 1 PCIe3 x16 (8, 4, 2, 1) iLO connector NIC connector 2 NIC connector1 Torx tool Power supply Serial connector Video connector USB connectors (4) FlexibleLOM slot Rear panel LEDs and buttons Item Description Status iLO NIC activity LED Green = Activity exists Flashing green = Activity exists Off = No activity exists iLO NIC link LED...

  • Page 10: System Board Components

    System board components Item Description Processor 1DIMM slots Processor socket 1 PCI riser connector 1 FlexibleLOM connector System maintenance switch Cache module connector PCI riser connector 2 TPM connector NMI header Mini-SAS connector SATA connector 2 SATA connector 1 Internal USB connector Fan connector 8 Front panel connectors Fan connector 7...

  • Page 11: Dimm Slots

    Item Description Fan connector 5 8-pin power connector Fan connector 4 SD card slot Fan connector 3 24-pin power connector Fan connector 2 System battery FlexibleLOM standby power connector 4-pin power connector Redundant power supply connector Discovery service connector Processor socket 2 Processor 2 DIMM slots DIMM slots DIMM slots are numbered sequentially (1 through 12) for each processor.

  • Page 12: Nmi Jumper

    Position Default Function Off = System configuration can be changed On = System configuration is locked Reserved Reserved Off = Power-on password is enabled On = Power-on password is disabled Off = No function On = Reset configuration — Reserved —...

  • Page 13: Drive Led Definitions

    Drive LED definitions Item Status Definition Locate Solid blue The drive is being identified by a host application. Flashing blue The drive carrier firmware is being updated or requires an update. Activity ring Rotating green Drive activity No drive activity Do not remove Solid white Do not remove the drive.

  • Page 14: Fbwc Module Leds

    FBWC module LEDs The FBWC module has three single-color LEDs (one amber and two green). The LEDs are duplicated on the reverse side of the cache module to facilitate status viewing. 1 - Amber 2 - Green 3 - Green Interpretation The cache module is not powered.

  • Page 15: Fan Modules

    Fan modules • One-processor configuration When only one processor is installed, for proper cooling, make sure the fan blanks are installed in fan positions 1, 2, and 5. • Two-processor configuration When processor 2 is installed, install fans in positions 2 and 5. Component identification 15...

  • Page 16: T-10/T-15 Torx Screwdriver

    T-10/T-15 Torx screwdriver The server ships with a T-10/T-15 Torx screwdriver. Use the screwdriver to loosen screws or thumbscrews, as needed, during procedures. Component identification 16...

  • Page 17: Operations

    Operations Power up the server To power up the server, press the Power On/Standby button. Power down the server Before powering down the server for any upgrade or maintenance procedures, perform a backup of critical server data and programs. IMPORTANT: When the server is in standby mode, auxiliary power is still being provided to the system.

  • Page 18: Remove The Server From The Rack

    The sliding rails could pinch your fingers. Remove the server from the rack To remove the server from an HP, Compaq branded, Telco, or third-party rack: If installed, remove the rack bezel (on page 57).

  • Page 19: Remove The Access Panel

    Extend the server from the rack (on page 17). Release the locking latches. Disconnect the cabling, and then remove the server from the rack. For more information, see the documentation that ships with the rack mounting option. Place the server on a sturdy, level surface. Remove the access panel WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the...

  • Page 20: Install The Processor Air Baffle

    Remove the processor air baffle. Install the processor air baffle Place the air baffle on top of the server. Push down the air baffle. The air baffle slides down to a closed position. Remove the PCI riser cage CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all AC power cords before removing or installing the PCI riser board assembly.

  • Page 21: Install The Pci Riser Cage

    Power down the server (on page 17). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 17). Remove the access panel (on page 19). Remove the processor air baffle (on page 19).
  • Page 22 Insert and then tighten the three screws of the PCI cage. Install the processor air baffle. Install the access panel (on page 19). Slide the server into the rack. Connect each power cord to the server. Connect each power cord to the power source. Power up the server (on page 17).

  • Page 23: Setup

    For more information on HP Care Pack Services, see the HP website (http://www.hp.com/services/carepack). Rack planning resources The rack resource kit ships with all HP branded or Compaq branded 9000, 10000, and H9 series racks. For more information on the content of each resource, see the rack resource kit documentation. Optimum environment When installing the server in a rack, select a location that meets the environmental standards described in this section.

  • Page 24: Space And Airflow Requirements

    HP servers draw in cool air through the front and expel warm air through the rear. Therefore, the front and rear rack doors must be adequately ventilated to allow ambient room air to enter the cabinet, and the rear door must be adequately ventilated to allow the warm air to escape from the cabinet.

  • Page 25: Power Requirements

    Because of the high ground-leakage currents associated with multiple servers connected to the same power source, HP recommends the use of a PDU that is either permanently wired to the building’s branch circuit or includes a nondetachable cord that is wired to an industrial-style plug. NEMA locking-style plugs or those complying with IEC 60309 are considered suitable for this purpose.

  • Page 26: Contents Of The Server Shipping Carton

    If you are installing the server into a telco rack, order the appropriate option kit at the RackSolutions.com website (http://www.racksolutions.com/hp). Follow the server-specific instructions on the website to install the rack brackets. Use the following information when connecting peripheral cables and power cords to the server.

  • Page 27: Powering Up And Configuring The Server

    WARNING: This server is very heavy. To reduce the risk of personal injury or damage to the equipment: Observe local occupational health and safety requirements and guidelines for manual • material handling. • Get help to lift and stabilize the product during installation or removal, especially when the product is not fastened to the rails.

  • Page 28: Installing The Operating System

    Remote deployment installation—To remotely deploy an operating system, use Insight Control server deployment for an automated solution. For additional system software and firmware updates, download the HP Service Pack for ProLiant from the HP website (http://www.hp.com/go/spp/download). Software and firmware must be updated before using the server for the first time, unless any installed software or components require an older version.

  • Page 29: Hardware Options Installation

    Hardware options installation Introduction If more than one option is being installed, read the installation instructions for all the hardware options and identify similar steps to streamline the installation process. WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.
  • Page 30 Open each of the processor locking levers in the order indicated, and then open the processor retaining bracket. Remove the clear processor socket cover. Retain the processor socket cover for future use. Hardware options installation 30...
  • Page 31 Install the processor. Verify that the processor is fully seated in the processor retaining bracket by visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.
  • Page 32 Press and hold the processor retaining bracket in place, and then close each processor locking lever. Press only in the area indicated on the processor retaining bracket. Remove the thermal interface protective cover from the heatsink. Hardware options installation 32...
  • Page 33 Remove the adhesive tape from the slot, and then install the heatsink. Locate fan slots 2 and 5. Remove the fan blanks from slots 2 and 5. NOTE: Dual-processor configurations require seven fans. Hardware options installation 33...

  • Page 34: Memory Options

    Install the fans in slots 2 and 5. Connect the fans to the system board connector. Install the processor air baffle (on page 20). Install the access panel (on page 19). Slide the server into the rack. Connect each power cord to the server. Connect each power cord to the power source.

  • Page 35: Hp Smartmemory

    3 DIMMs per channel at 1066 MT/s running at 1.35V. This equates to up to 20% less power at the DIMM level with no performance penalty. In addition, the industry supports UDIMM at 2 DIMMs per channel at 1066 MT/s. HP SmartMemory supports 2 DIMMs per channel at 1333 MT/s, or 25% greater bandwidth. Memory subsystem architecture The memory subsystem in this server is divided into channels.

  • Page 36: Single-Rank And Dual-Rank Dimms

    Channel Population order Slot number For the location of the slot numbers, see "DIMM slots (on page 11)." This multi-channel architecture provides enhanced performance in Advanced ECC mode. This architecture also enables Lockstep and Online Spare Memory modes. This server supports RDIMMs and UDIMMs. DIMM slots in this server are identified by number and by letter.

  • Page 37: Dimm Identification

    E = UDIMM (unbuffered with ECC) L = LRDIMM (load reduced) For the latest supported memory information, see the QuickSpecs on the HP website (http://h18000.www1.hp.com/products/quickspecs/ProductBulletin.html). At the website, choose the geographic region, and then locate the product by name or product category.

  • Page 38: Intel Gen8 Supported Memory Bandwidth

    The server can continue to function if a single-bit or multi-bit memory failure within a single DRAM device occurs. For the latest memory configuration information, see the QuickSpecs on the HP website (http://www.hp.com). Intel Gen8 supported memory bandwidth The following tables show the supported memory for each DIMM type.

  • Page 39: Rdimm Maximum Memory Configurations

    UDIMM * RDIMM supports 1.35V 3DPC at 1066. Third-party memory supports 1.5V 3DPC at 1066. † UDIMM is supported at 2DPC at 1333 using HP SmartMemory only. Third-party memory supports up to 2DPC at 1066. RDIMM maximum memory configurations The following table lists the maximum memory configurations possible with 8- or 16-GB RDIMMs.

  • Page 40: Lockstep Memory Configuration

    Lockstep mode can correct any single DRAM device failure on x4 and x8 DIMM types. The DIMMs in each channel must have identical HP part numbers. Lockstep mode uses channel 1 and channel 2. Channel 3 is not populated. Because channel 3 cannot be populated when using Lockstep mode, the maximum memory capacity is lower than Advanced ECC mode.

  • Page 41: Lockstep Memory Population Guidelines

    • DIMMs may be installed individually. Single-processor Advanced ECC population order For Advanced ECC mode configurations with a single processor, populate the DIMM slots in the following order: • RDIMM: Sequentially in alphabetical order (A through L) • UDIMM: A through H, sequentially in alphabetical order. Do not populate DIMM slots I through L. Multi-processor Advanced ECC population order For Advanced ECC mode configurations with multiple processors, populate the DIMM slots for each processor in the following order:...

  • Page 42: Online Spare Population Guidelines

    First: A, B, C, and D Last: E, F, G, and H Do not populate slots I, J, K, or L. After installing the DIMMs, use RBSU to configure the system for Lockstep memory support. Online Spare population guidelines For Online Spare mode configurations, observe the following guidelines: •...

  • Page 43: Hot-Plug Drive Guidelines

    Power up the server (on page 17). If removed, install the rack bezel (on page 58). If you are installing DIMMs in online spare or lock-step configuration, configure this mode in RBSU ("HP ROM-Based Setup Utility" on page 74). Hot-plug drive guidelines When adding drives to the server, observe the following general guidelines: •...

  • Page 44: Removing The Drive Blank

    Removing the drive blank Remove the component as indicated. Installing a hot-plug drive The server can support four drives in a LFF configuration and up to eight drives in a SFF configuration. To install the component: Remove the drive blank. Prepare the drive.

  • Page 45: Dvd-Rom And Dvd-Rw Drive Option

    Install the drive. Determine the status of the drive from the drive LED definitions (on page 13). DVD-ROM and DVD-RW drive option This server supports the installation of a SATA DVD-ROM optical drive or a SATA DVD-RW optical drive. To install the component: If installed, remove the rack bezel (on page 57).
  • Page 46 Remove the bezel blank from the DVD-ROM bay. If you have a SFF configuration, do the following: Using the T-10 screw from this kit and the T-10/T-15 Torx screwdriver provided with the server, install the drive. Hardware options installation 46...
  • Page 47 Connect the cable from the rear of the drive to the SATA DVD-ROM drive connector on the system board. Use cable ( HP part number 663771-001) to connect to the drive. Connect the blue and black end of the cable to the optical drive, connect the longer blue end to the SATA connector on the system board and the short black cable to the power connector.
  • Page 48 Connect the cable from the rear of the drive to the SATA DVD-ROM drive connector on the system board. Use cable (HP part number 663771-001 to connect to the drive. Connect the blue and black end of the cable to the optical drive, connect the longer blue end to the SATA connector on the system board and the short black cable to the power connector.

  • Page 49: Controller Options

    The cache module is backing up data, and data is lost if the cable is detached. For more information about the controller and its features, see the HP Smart Array Controllers for HP ProLiant Servers User Guide on the HP website (http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c01608507/c01608507.pdf).
  • Page 50 Remove the access panel (on page 19). Remove the processor air baffle (on page 19). Remove the PCI riser cage (on page 20). Install the cache module. CAUTION: When connecting or disconnecting the capacitor pack cable, the connectors on the cache module and cable are susceptible to damage.

  • Page 51: Installing The Front Video Adapter Cable

    Eight-drive SFF Four-drive LFF Install the processor air baffle (on page 20). Install the access panel (on page 19). Slide the server into the rack. Connect each power cord to the server. Connect each power cord to the power source. Power up the server (on page 17).

  • Page 52: Flexiblelom Option

    To install the component: Connect the front video adapter to the front video connector. CAUTION: Be sure to connect the video adapter to the video connector, and not to the USB connector. Connect the front video adapter to the video device. FlexibleLOM option WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,...
  • Page 53 Remove the FlexibleLOM blank. Install the component: Firmly seat the FlexibleLOM in the slot. Tighten the thumbscrew. Install the PCI riser cage. ("Install the PCI riser cage" on page 21) Install the processor air baffle ("Install the processor air baffle" on page 20). Install the access panel (on page 19).

  • Page 54: Expansion Board Options

    Expansion board options The server supports PCI Express expansion boards. The server ships with PCIe riser boards and expansion slots. PCIe expansion boards are supported with optional riser boards. Installing an expansion board If installed, remove the rack bezel (on page 57). Power down the server (on page 17).

  • Page 55: Common Slot Power Supply Option

    If installing a full length full height expansion board, remove the low profile bracket, and then install the expansion board into the slot until it sits firmly. Install the PCI riser board assembly. ("Install the PCI riser cage" on page 21) IMPORTANT: The server does not power up if the PCI riser board assembly is not seated properly.
  • Page 56 Remove the protective cover from the connector pins on the power supply. WARNING: To reduce the risk of electric shock or damage to the equipment, do not connect the power cord to the power supply until the power supply is installed. Install the power supply into the bay until it clicks into place.

  • Page 57: Rack Bezel Option

    Connect the power cord to the power supply. Route the power cord through the cable management solution to strain relief clip. Connect the power cord to the power source. Be sure that the power supply LED is green. Rack bezel option The rack bezel helps prevent any unauthorized physical access to the server in the rack configuration.

  • Page 58: Install The Rack Bezel

    Install the rack bezel Install the rack bezel into the chassis, and then lock the rack bezel with the key. VGA power cable option If installed, remove the rack bezel. ("Remove the rack bezel" on page 57) Power down the server (on page 17). Remove all power: Disconnect each power cord from the power source.

  • Page 59: Mini-Sas Cable Option

    Remove the adhesive stickers from the VGA cable clips, and then attach the clips onto the fan cage. Route the cable through the cable clips, and then connect then cable to the VGA card and power supply cable. Install the processor air baffle. ("Install the processor air baffle"...

  • Page 60: Installing The 700 Mm Mini-Sas Cable

    Connect each power cord to the power source. Power up the server (on page 17). If removed, install the rack bezel (on page 58). HP Trusted Platform Module option Use these instructions to install and enable a TPM on a supported server. This procedure includes three sections: Installing the Trusted Platform Module board.

  • Page 61: Installing The Trusted Platform Module Board

    Recovery Mode after BitLocker detects a possible compromise of system integrity. • HP is not liable for blocked data access caused by improper TPM use. For operating instructions, see the encryption technology feature documentation provided by the operating system.
  • Page 62 CAUTION: Any attempt to remove an installed TPM from the system board breaks or disfigures the TPM security rivet. Upon locating a broken or disfigured rivet on an installed TPM, administrators should consider the system compromised and take appropriate measures to ensure the integrity of the system data.

  • Page 63: Retaining The Recovery Key/Password

    OS application TPM settings. For more information on firmware updates and hardware procedures, see the HP Trusted Platform Module Best Practices White Paper on the HP website (http://www.hp.com/support).

  • Page 64: Cabling

    For information on cabling peripheral components, refer to the white paper on high-density deployment at the HP website (http://www.hp.com/products/servers/platforms). CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or crimped.

  • Page 65: Sata Cabling

    SATA cabling Cable number Description SATA Cable Power cabling Server power cabling Basic configuration Cable number Description Drive backplane cable 2x4 Power supply cable 2x12 Power supply cable 2x2 Power supply cable RPS control cable Cabling 65...

  • Page 66: Fbwc Capacitor Pack Cabling

    Cable number Description Discovery service cable Maximum configuration Cable number Description Drive backplane cable 2x4 Power supply cable 2x12 Power supply cable FlexibleLOM standby power cable 2x2 Power supply cable RPS control cable Discovery service cable FBWC capacitor pack cabling Cabling 66...

  • Page 67: Front Panel Cabling

    Cable number Description FBWC capacitor pack cable Front panel cabling Cable number Description 2x10 Front panel IO cables 2x12 Front panel IO cables Internal USB cabling SFF configuration Cable number Description Internal USB cable Cabling 67...
  • Page 68 LFF configuration Cable number Description Internal USB cable Cabling 68...

  • Page 69: Software And Configuration Utilities

    HP iLO The iLO subsystem is a standard component of selected HP ProLiant servers that simplifies initial server setup, server health monitoring, power and thermal optimization, and remote server administration. The iLO subsystem includes an intelligent microprocessor, secure memory, and a dedicated network interface.

  • Page 70: Active Health System

    HP Active Health System does not parse or change operating system data from third-party error event log activities, such as content created or passed through by the operating system. The data that is collected is managed according to the HP Data Privacy policy. For more information see the HP website (http://www.hp.com/go/privacy).

  • Page 71: Integrated Management Log

    HP website (http://www.hp.com/go/spp/download). The Active Health System log can be downloaded manually from iLO or HP Intelligent Provisioning and sent to HP. For more information, see the HP iLO User Guide or HP Intelligent Provisioning User Guide on the HP website (http://www.hp.com/go/ilo/docs).

  • Page 72: Hp Insight Diagnostics

    For more information or to download the utility, see the HP website (http://www.hp.com/servers/diags). HP Insight Diagnostics Online Edition is also available in the SPP. For more information, see the HP website (http://www.hp.com/go/spp/download).

  • Page 73: Hp Insight Remote Support Software

    HP strongly recommends that you install HP Insight Remote Support software to complete the installation or upgrade of your product and to enable enhanced delivery of your HP Warranty, HP Care Pack Service, or HP contractual support agreement. HP Insight Remote Support supplements your monitoring 24 x 7 to ensure maximum system availability by providing intelligent event diagnosis, and automatic, secure submission of hardware event notifications to HP, which will initiate a fast and accurate resolution, based on your product’s...

  • Page 74: Hp Service Pack For Proliant

    HP external storage. SPP has several key features for updating HP ProLiant servers. Using HP SUM as the deployment tool, SPP can be used in an online mode on a Windows or Linux hosted operating system, or in an offline mode where the server is booted to the ISO so that the server can be updated automatically with no user interaction or updated in interactive mode.

  • Page 75: Using Rbsu

    • Configuring memory options • Language selection For more information on RBSU, see the HP ROM-Based Setup Utility User Guide on the Documentation CD or the HP website (http://www.hp.com/support/rbsu). Using RBSU To use RBSU, use the following keys: • To access RBSU, press the F9 key during power-up when prompted.

  • Page 76: Boot Options

    Boot options Near the end of the boot process, the boot options screen is displayed. This screen is visible for several seconds before the system attempts to boot from a supported boot device. During this time, you can do the following: •...

  • Page 77: Utilities And Features

    Provides context-sensitive searchable help content • Provides diagnostic and SmartSSD Wear Gauge functionality on the Diagnostics tab ACU is now available as an embedded utility, starting with HP ProLiant Gen8 servers. To access ACU, use one of the following methods: •...

  • Page 78: Option Rom Configuration For Arrays

    ASR is a feature that causes the system to restart when a catastrophic operating system error occurs, such as a blue screen, ABEND (does not apply to HP ProLiant DL980 Servers), or panic. A system fail-safe timer, the ASR timer, starts when the System Management driver, also known as the Health Driver, is loaded. When the operating system is functioning properly, the system periodically resets the timer.

  • Page 79: Usb Support

    USB support HP provides both standard USB 2.0 support and legacy USB 2.0 support. Standard support is provided by the OS through the appropriate USB device drivers. Before the OS loads, HP provides support for USB devices through legacy USB support, which is enabled by default in the system ROM.

  • Page 80: Software And Firmware

    Administrators configure VCA to point to a repository managed by VCRM. For more information about version control tools, see the HP Systems Insight Manager User Guide, the HP Version Control Agent User Guide, and the HP Version Control Repository User Guide on the HP website (http://www.hp.com/go/hpsim).

  • Page 81: Hp Technology Service Portfolio

    If the problem is identified as hardware, HP will resolve as per service level commitments. If the reported incident is related to HP or supported 3rd party software product and cannot be resolved by applying known fixes, HP will contact the third-party vendor and create a problem incident on the your behalf.

  • Page 82: Troubleshooting

    • Simplified Chinese (http://www.hp.com/support/ProLiant_TSG_v1_sc) The HP ProLiant Gen8 Troubleshooting Guide, Volume II: Error Messages provides a list of error messages and information to assist with interpreting and resolving error messages on ProLiant servers and server blades. To view the guide, select a language: •...

  • Page 83: System Battery

    System battery If the server no longer automatically displays the correct date and time, you may need to replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years. WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack.
  • Page 84 To replace the component, reverse the removal procedure. For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider. System battery 84...

  • Page 85: Regulatory Compliance Notices

    Regulatory compliance notices Regulatory compliance identification numbers For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number. The regulatory model number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to this regulatory model number.

  • Page 86: Declaration Of Conformity For Products Marked With The Fcc Logo, United States Only

    Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 • 1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded or monitored.) For questions regarding this FCC declaration, contact us by mail or telephone: • Hewlett-Packard Company P.

  • Page 87: European Union Regulatory Notice

    Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either within the product documentation or at the following HP website (http://www.hp.eu/certificates) (type the product number in the search field).

  • Page 88: Japanese Notice

    This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 89: Chinese Notice

    Class B equipment Chinese notice Class A equipment Vietnam compliance marking notice This marking is for applicable products only. Ukraine notice Laser compliance This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber optic transceiver.

  • Page 90: Battery Replacement Notice

    To forward them to recycling or proper disposal, use the public collection system or return them to HP, an authorized HP Partner, or their agents. For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider.

  • Page 91: Acoustics Statement For Germany (Geräuschemission)

    Acoustics statement for Germany (Geräuschemission) Schalldruckpegel L < 70 dB(A) Zuschauerpositionen (bystander positions), Normaler Betrieb (normal operation) Nach ISO 7779:1999 (Typprüfung) Regulatory compliance notices 91...

  • Page 92: Electrostatic Discharge

    Electrostatic discharge Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.

  • Page 93: Specifications

    Power supply specifications Depending on installed options, the server is configured with one of the following power supplies: • HP 460 W CS Power Supply (94%) specifications • HP 750 W CS Power Supply (94%) specifications • HP 500 W Multi-output Power Supply specifications...

  • Page 94: Hp 460 W Cs Power Supply (94%) Specifications

    HP 460 W CS Power Supply (94%) specifications Specification Value Input requirements 100 to 240 VAC Rated input voltage 50 Hz or 60 Hz Rated input frequency 6 to 3 A Rated input current 509 W at 115V AC input...

  • Page 95: Power Supply Calculations

    (60 V direct current). The branch circuit overcurrent protection must be rated 20A. • Power supply calculations For power supply specifications and calculators to determine electrical and heat loading for the server, refer to the HP Enterprise Configurator website (http://h30099.www3.hp.com/configurator/). Specifications 95...

  • Page 96: Support And Other Resources

    Active Health System log Download and have available an Active Health System log for 3 days before the failure was detected. For more information, see the HP iLO 4 User Guide or HP Intelligent Provisioning User Guide on the HP website (http://www.hp.com/go/ilo/docs).
  • Page 97 HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material.
  • Page 98 HP sono realizzati con numerosi componenti che possono essere riparati direttamente dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di assistenza HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente al cliente per la sostituzione.
  • Page 99 Si, durante la fase de diagnóstico, HP (o los proveedores o socios de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el uso de un componente CSR, HP le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se clasifican en dos categorías:...
  • Page 100 HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio. Para obtener más información acerca del programa de Reparaciones del propio cliente de HP, póngase en contacto con su proveedor de servicios local.
  • Page 101 Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 102 Support and other resources 102...
  • Page 103 Support and other resources 103...

  • Page 104: Acronyms And Abbreviations

    Advanced Memory Protection Automatic Server Recovery BBWC battery-backed write cache Customer Self Repair DIMMs per channel electrostatic discharge FBWC flash-backed write cache HP SIM HP Systems Insight Manager HP SUM HP Smart Update Manager International Electrotechnical Commission Acronyms and abbreviations 104...
  • Page 105 Integrated Lights-Out Integrated Management Log keyboard, video, and mouse non maskable interrupt NVRAM non-volatile memory ORCA Option ROM Configuration for Arrays PCIe peripheral component interconnect express PCI-X peripheral component interconnect extended power distribution unit POST Power-On Self Test ProLiant Support Pack RBSU ROM-Based Setup Utility RDIMM...
  • Page 106 storage area network serial attached SCSI SATA serial ATA Secure Digital small form factor TMRA recommended ambient operating temperature Trusted Platform Module UDIMM unregistered dual in-line memory module unit identification Version Control Agent VCRM Version Control Repository Manager Acronyms and abbreviations 106...

  • Page 107: Documentation Feedback

    Documentation feedback HP is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hp.com). Include the document title and part number, version number, or the URL when submitting your feedback.

  • Page 108: Index

    27, 69 FCC rating label 85 configuring AMP modes 76 features 7, 77 connectors 7 Federal Communications Commission (FCC) contacting HP 96 notice 85, 86 controller 49 firmware update 74, 80 firmware upgrade utility, troubleshooting 82 Index 108...
  • Page 109 HP Insight Diagnostics 72 memory, online spare 40, 42, 76 HP Insight Diagnostics survey functionality 72 mirrored memory 77 HP Insight Remote Support software 73, 81 multi-processor Advanced ECC population order 41 HP Service Pack for ProLiant 69, 74 HP Smart memory 35...
  • Page 110 Vietnam compliance marking notice 89 Server mode 69 server options, installing 26, 29 shipping carton contents 26 warnings 25 site requirements 24 website, HP 96 Smart Update Manager 69, 74 space requirements 24 specifications 93 specifications, power 94 Index 110...

Table of Contents
