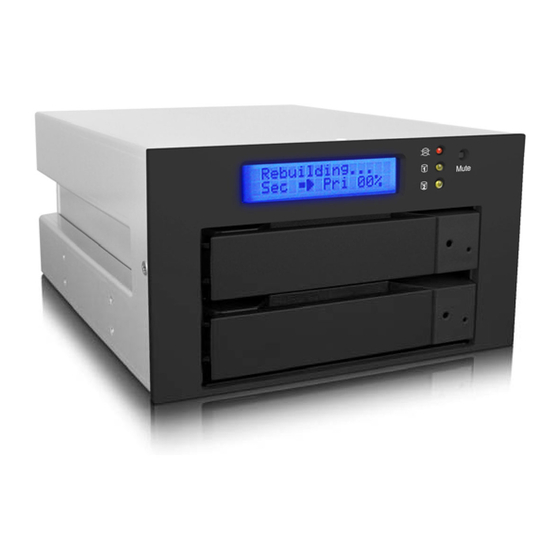

- Page 1 InTANK Series iR2620-2S-S2 / SR2611-2S-S2R User Manual iR2620-2S-S2 SR2611-2S-S2R v.2.2 (Jun, 2011)
-
Page 2: Table Of Contents
Index Chapter 1 Check Package Contents and Accessories........3 Chapter 2 Hardware Introduction..............4 Chapter 3 Precaution before Usage..............5 Chapter 4 Hardware Installation Procedure............. 6 Chapter 5 Connecting iR2620 / SR2611 to your computer......7 Chapter 6 Setting the Hard Drive Array Mode..........8 Chapter 7 Computer Set Up................ -
Page 3: Chapter 1 Check Package Contents And Accessories
Chapter 1 Check Package Contents and Accessories iR2620 / SR2611 system includes the following: Item Quantity iR2620 / SR2611 1 / 1 Internal RS232 Cable External RS232 Cable SATA Cable Accessory bag iR2620 : includes 6 of screws for device, 6 of screws for HDD tray, and 2 of keys for key lock SR2611 : includes 8 of screws and, 2 of keys for key lock iR2620 SR2611... -
Page 4: Chapter 2 Hardware Introduction
Chapter 2 Hardware Introduction iR2620 Front Panel SR2611 Front Panel Tray of Pri HDD Tray of Pri HDD Tray of Sec HDD Tray of Sec HDD LCD Display LED of Failure Alarm LCD Display LED of Failure Alarm LED of Pri HDD LED of Sec HDD LED of Pri HDD LED of Sec HDD... -
Page 5: Chapter 3 Precaution Before Usage
3) The iR2620 / SR2611 is equipped with a ball bearing cooling fan that will provide effective cooling for the 7200 &... -
Page 6: Chapter 4 Hardware Installation Procedure
Chapter 4 Hardware Installation Procedure 1. Install your hard disks into the removable trays and secure them with the screws from accessory kit. This will protect your hard disk from any unnecessary movement. iR2620 SR2611 2. Once the hard disks have been installed, insert the removable trays into device and close the handles. -
Page 7: Chapter 5 Connecting Ir2620 / Sr2611 To Your Computer
SR2611 Real Panel Note : 1. RS232 Port and RS232 Cable: Provides hardware status monitoring to industrial control system or IPC via RS232. If more information required, please contact at supporting@raidon.com.tw Connecting iR2620 / SR2611 to your computer 7... -
Page 8: Chapter 6 Setting The Hard Drive Array Mode
2. We do not recommend users to disassemble the device without proper instructions and authorization. The manufacture warranty will not cover the damages caused by unauthorized disassembling. 3. To prevent the device from malfunction, please make sure the device is connected with a direct and dedicated power connection of a stable power input. -
Page 9: Chapter 7 Computer Set Up
Chapter 7 Computer Set Up When the hardware setup for iR2620 / SR2611 is complete, you are now ready to turn the machine on. 1. After the hardware installation is complete, the iR2620 / SR2611 will be treated as one single hard drive. -
Page 10: Chapter 8 Hard Disk Status On Lcd Screen
Chapter 8 Hard Disk status on LCD screen 1. Normal hard drives 2. Primary hard drive is failure, but secondary hard drive is normal 3. Primary hard drive storage capacity larger than secondary hard drive 4. Secondary hard drive storage capacity larger than primary hard drive 5. -
Page 11: Chapter 9 Data Rebuilding Operation
Chapter 9 Data Rebuilding Operation The hard drive Hot Swap and Auto Rebuilding functions are available. (The Hot Swap & Auto Rebuilding functions are applicable in) 1. Off-line Back up When the data is stored within iR2620 / SR2611, the user can remove one of the hard drives from iR2620 / SR2611 as back up drive for data such as system operation file, secured files, seldom modified files or image and music files. -
Page 12: Chapter 10 Gui Monitoring Software & Fw Updating
6. When the rebuilding is fully completed, the LCD display screen will again display the following messages: 7. When iR2620 /SR2611 is overheating, “T” will be displayed on the lower right-hand cor ner of screen (As shown in illustration) 8. When cooling fan module is not functional, “F” will be displayed on the upper right-hand corner of screen. - Page 13 Caution : Any Random firmware updates may cause device in malfunction, it is strongly suggested not to update device firmware if device is operating properly. To prevent device malfunctioning from your firmware updates, please contact RAIDON technical support personnel for confirmation or by e-mail at supporting@raidon.com.tw...
- Page 14 3. E-Mail Notify Configuring an e-mail address for notification of drive malfunctioning or being removed. 3-1 Setup 1) Insert “Outgoing” SMTP and e-mail name and address. 2) If it is passwords required, select the option “SMTP Login Authentication” and insert the passwords. 3) When the configuration completed, click on the “OK”...
- Page 15 4. About Indicates GUI Management Software version GUI Monitoring Software & FW Updating 15...
-
Page 16: Appendix: Trouble Shooting / Q&A
Appendix: Trouble Shooting / Q&A Unstable system after connecting iR2620 / SR2611 Q: After installing iR2620 / SR2611, we are unable to start the computer or the computer can not locate iR2620 / SR2611 upon startup. A: 1. Please check whether the readings on the iR2620 / SR2611 LCD display screen appear normal. - Page 17 Q: My hard drive is obviously operating properly but why is it shown as failed in the iR2620 / SR2611 display? A: iR2620 / SR2611 uses more strict requirements and standards to examine the bad sectors in the hard drive. The user can first overwrite the bad sector on a PC before placing the hard drive into iR2620 / SR2611.
- Page 18 Q: How to turn on and off the Buzzer? A: 1. The manufacture default setting for the Buzzer in iR2620 / SR2611 is Buzzer On. 2. The user can use any pointed materials to push the bottom on the front dash board to turn on and off the Buzzer.
