SR2611-2S-S2+
User Manual
v3.0 (December, 2009)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR2611-2S-S2+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raidon SR2611-2S-S2+

Summary of Contents for Raidon SR2611-2S-S2+

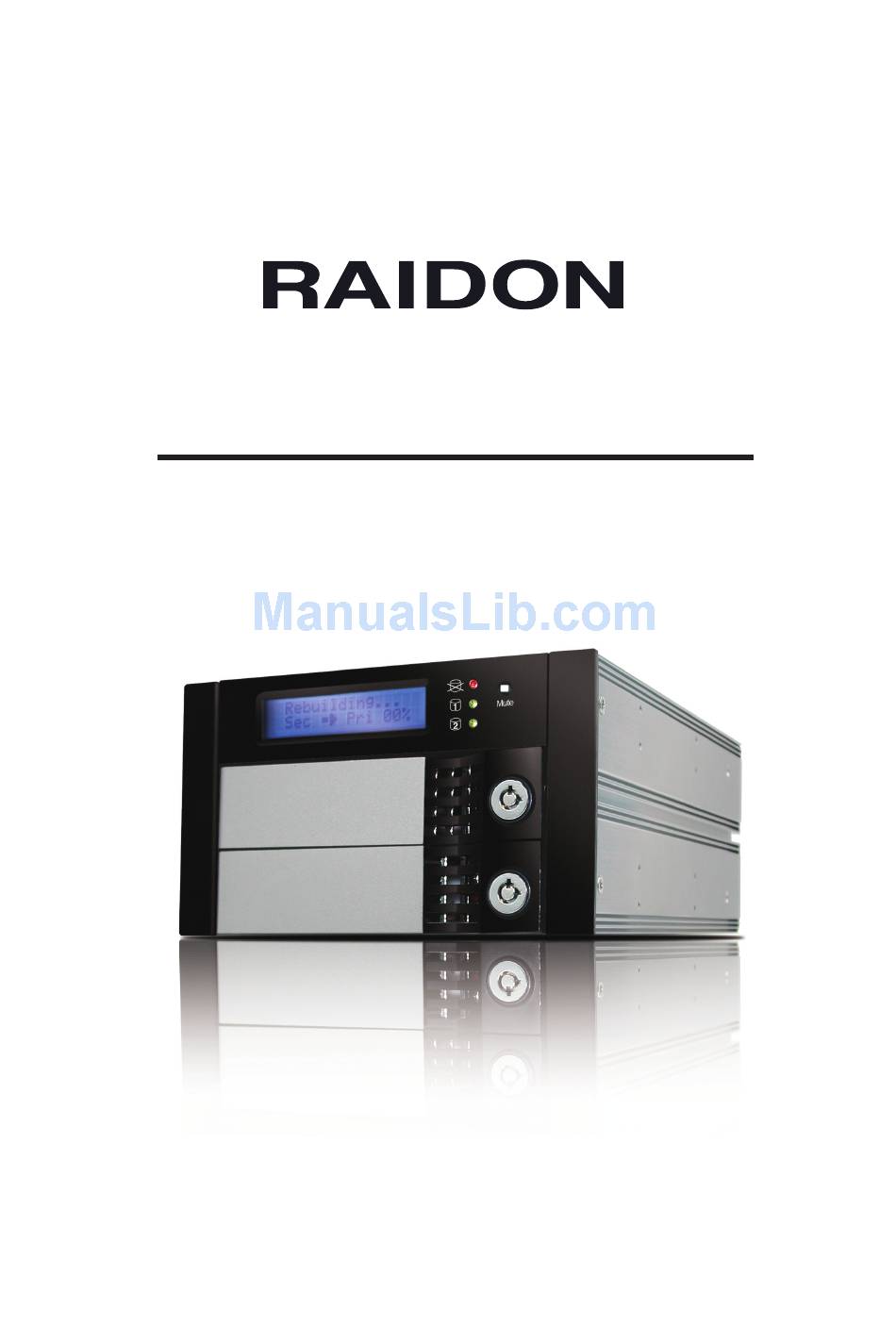

  • Page 1 SR2611-2S-S2+ User Manual v3.0 (December, 2009)

  • Page 2: Table Of Contents

    Index Check Package Contents and Accessories............3 Hardware Introduction..................4 System Requirement & Environment Requirement and Notices......4 Hardware Installation Procedure................. 5 Connecting SR2611 to your computer..............6 Setting the Hard Drive Array Mode..............6 OS Backup......................7 Computer Set Up....................8 Hard Disk status on LCD screen.................

  • Page 3: Check Package Contents And Accessories

    Check Package Contents and Accessories SR2611 system includes the following: Item Quantity SR2611 Removable Carrier 45cm SATA Cable Product CD Accessory bag (includes 6#-32 screws x 8 pcs , Key for keylock x 2) SR2611 Removable Carrier 45cm SATA Cable Accessory bag Product CD Note :...

  • Page 4: Hardware Introduction

    Fujitsu, Hitachi, and etc. However, due to the new types of hard drives appearing on the market, if your hard drive is not compatible with the system, please contact us through the following email:supporting@raidon.com.tw and we will reply as soon as possible. 4 Hardware Introduction / System Requirement & Environment requirement and notices...

  • Page 5: Hardware Installation Procedure

    4. The SR2611 is equipped with a 5.2 cm ball bearing cooling fan that will provide effective cooling for the 7200&10000 rpm hard drive. We highly recommend using computer chassis with effective cooling design to avoid disk array crashing due to ineffective cooling.

  • Page 6: Connecting Sr2611 To Your Computer

    Connecting SR2611 to your computer 1. Connect DC12V&5V power cables and SATA cables to SR2611. 2. Connect SATA cable to SATA port on the motherboard. 45cm SATA Cable Power Supply Connector Power Supply SR2611 Real Panel Motherboard SATA Ports Internal Case Note : We do not recommend users to disassemble the machine without proper instructions and authorization.

  • Page 7: Os Backup

    2. RAID 1 Mode 1). Place two new hard drives into SR2611 and strongly suggest you to use two identical hard drives to get the equal capacity. If the capacity is different, SR2611 is downward to the small hard drive capacity. 2).

  • Page 8: Computer Set Up

    Computer Set Up When the hardware setup for SR2611 is complete, you are now ready to turn the machine 1. After the hardware installation is complete, the SR2611 will be treated as one single hard drive. Set the hard drive to AUTO in the computer’s BIOS. When the computer is turned on, the system will retrieve the following information: 2.

  • Page 9: Hard Disk Status On Lcd Screen

    Hard Disk status on LCD screen Left Hard Drive (Primary Hard Drive) Fail 1. Right Hard Drive (Secondary Hard Drive) Normal 2. Primary hard drive storage capacity larger than secondary hard drive 3. Secondary hard drive storage capacity larger than primary hard drive Hot Swap &...
  • Page 10 4. After removing the failed hard drive and replacing with a new hard drive, if the hard drive is properly installed, the LCD display screen will display the following messages: 5. After few seconds of installing the new hard drive, the LCD display screen will display the data rebuilding progress: Pri->Sec represents that the data in the original hard drive (primary hard drive) is copied to the new hard drive (secondary hard drive).

  • Page 11: Gui Monitoring Software & Fw Updating

    GUI Monitoring Software & FW Updating You can install GUI software to monitor RAID status. This can be done by installing RAID_ GUI. exe software from CD-ROM. 1. RAID information You can install GUI software to monitor RAID status. This can be done by installing RAID_GUI.
  • Page 12 Updating firmware may cause your system unable to operate normally. If your system runs normally, we suggest that you do not update firmware. Should you have any doubts on firmware updating, please contact the technical service staff of Raidon Technology Inc. or email us at: supporting@raidon.com.tw.

  • Page 13: Appendix: Trouble Shooting/Q&A

    Appendix: Trouble Shooting / Q&A Unstable system after connecting SR2611 Q: After installing SR2611, we are unable to start the computer or the computer can not locate SR2611 upon startup. A: 1. Please check whether the readings on the SR2611 LCD display screen appear normal. 2.
  • Page 14 Buzzer. NOTE: RAIDON Technology, Inc. provides both technical support and service to our global distributor and as for the end users or do not buy products directly from us, please contact where your purchase from or local distributor for prompt and better responses service.
