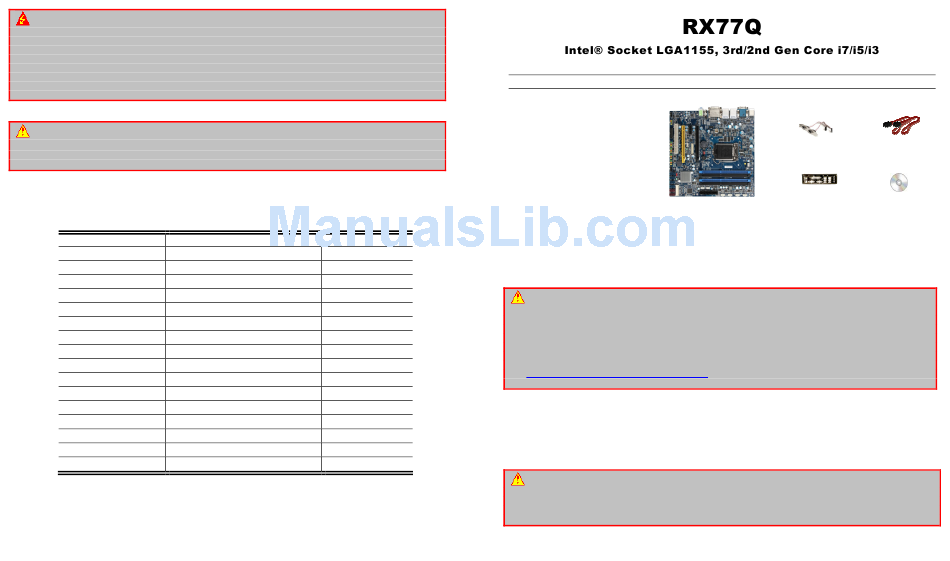

BCM RX77Q User's Quick Start Card

WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard
and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface
before you remove any system component from its protective anti-static packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same
points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any
static electrical charge that may have built up in your body.
motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral
card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard
warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers
while the motherboard has power.
Jumper / Connector
Name Description
CI1 Chassis Intrusion Pinheader
CLR_CMOS1 Clear CMOS Jumper
COM2-5 Serial Port Connector
JCOMP2-5 COM Power Jumper
CPUFAN1 Fan Power Connector
SYSFAN1-2 Fan Power Connector
JAMP1 Audio Amplifier Pinheader
JAUD1 Front Audio
JAT1 ATX/AT Jumper
JFP1 Front Panel Pinheader
JGPIO1 GPIO Pinheader
JINV1 LVDS Inverter Connector
JLVDS1 LVDS Connector
JVDD1 LVDS Power Jumper
JLPT1 Parallel Port Pinheader
JSPDI1 S/PDIF Pinheader
Avoid touching the components when handling the
Note
2 pin
3 pin
2x5 pin (keyed)
3 pin
4 pin
4 pin
4 pin
2x5 pin (keyed)
3 pin
2x5 pin (keyed)
2x5 pin
5 pin
2x20 pin
3 pin
2x13 pin (keyed)
3 pin
User's Quick Start Card
Version 1.0
Package Contents:
One RX77Q Motherboard
One 2 COM Ports with Bracket
Two SATA cables
One Standard I/O Shield
One Driver CD/DVD
One User's Quick Start Card
Disclaimer:
This manual is provided "As-Is" with no warranties of any kind, expressed or implied, including, but not limited to the
implied warranties or conditions of this product's fitness for any particular purpose. In no event shall we be liable for any
loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential
damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We
reserve the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer's instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard's manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User's Manual in the provided CD or DVD ROM. The
Online User's Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify
any of the settings than otherwise instructed in the User's Quick Start Card. Even a seemingly small incorrect adjustment
or modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by
your motherboard's manufacturer warranty. Try to Clear CMOS when system does not boot after BIOS settings change.
http://www.bcmcom.com
COM Ports w/ Bracket
I/O Shield

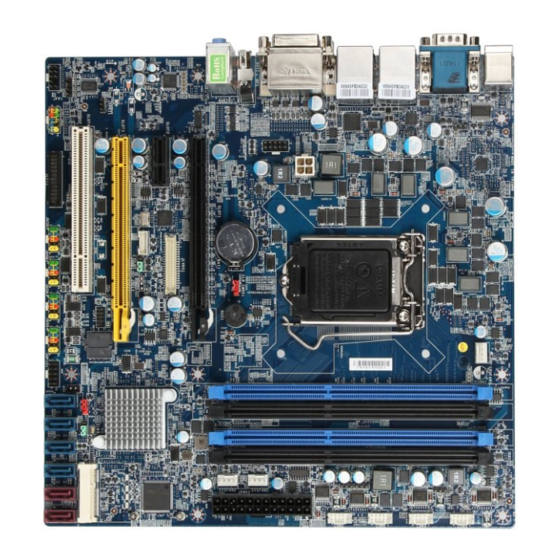

RX77Q
SATA cables
Driver CD/DVD
