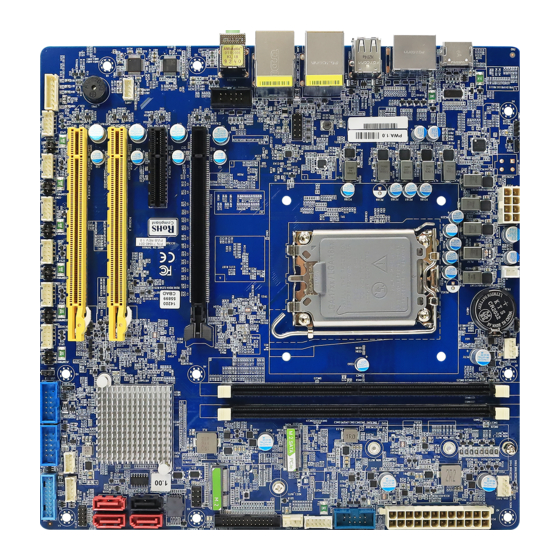

RX610H
th
Intel® H610E support 12
generation Core™ i9, Core i7, Core
i5, Core i3, Pentium, Celeron
Micro-ATX Motherboard
User's Manual
Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX610H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BCM RX610H

Summary of Contents for BCM RX610H

  • Page 1 RX610H Intel® H610E support 12 generation Core™ i9, Core i7, Core i5, Core i3, Pentium, Celeron Micro-ATX Motherboard User’s Manual Ver. 1.0...

  • Page 2: Table Of Contents

    1.7.1 Rear panel connectors ........................... 34 1.7.2 CPU and System fan connectors (CPU_FAN1, CHA_FAN1, CHA_FAN2) ........... 36 1.7.3 System Panel (F_PANEL) ........................36 1.7.4 ATX power connectors (EATXPWR1 & ATX12V1) ................37 1.7.5 Serial Port connectors (COM1~6) ......................38 2 RX610H User’s Manual...
  • Page 3 2.4.8 S5 RTC wake settings ..........................65 2.4.9 Serial Port Console Redirection ......................66 2.4.9.1 Console Redirection settings ........................... 66 2.4.10 intel TXT information ..........................68 2.4.11 USB configuration ..........................68 2.4.12 Network Stack Configuration ........................ 70 RX610H User’s Manual 3...
  • Page 4 2.5.2.2 SATA Configuration ............................86 2.5.2.3 USB Configuration ............................87 2.5.2.4 HD audio Configuration ..........................88 2.5.2.5 Serial IO Configuration ........................... 89 2.6 Security ........................... 90 2.7 Boot ..........................91 2.8 Save & Exit ........................92 4 RX610H User’s Manual...

  • Page 5: Safety Information

    If you encounter technical problems with the product, contact a qualified service technician or your retailer. The symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products. RX610H User’s Manual 5...
  • Page 6 This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the following two conditions: ⚫ This device may not cause harmful interference. ⚫ This device must accept any interference received, including interference that may cause undesired operation. 6 RX610H User’s Manual...

  • Page 7: About This Guide

    CAUTION: Information to prevent damage to the components when trying to complete a task. IMPORTANT: Instructions that you MUST follow to complete a task. NOTE: Tips and additional information to help you complete a task. RX610H User’s Manual 7...

  • Page 8: Typography

    Means that you must type the command exactly as shown, then supply the required item or value enclosed in brackets Example: At the UEFI command prompt, type the command line: AfuEfix64 [filename] /B /P /N /X AfuEfix64 71841100.ROM /B /P /N /X 8 RX610H User’s Manual...

  • Page 9: Packing List

    RX610H User’s Manual Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x RX610H Micro-ATX Main board ⚫ 1 x I/O Shield ⚫ If any of the above items is damaged or missing, please contact your retailer.

  • Page 10: Revision History

    RX610H User’s Manual Revision History Revision Revision History Date V 1.0 First release version Oct, 2022 10 RX610H User’s Manual...
  • Page 11 RX610H User’s Manual This chapter describes the motherboard features and the new technologies it supports. Product Introduction RX610H User’s Manual 11...

  • Page 12: Specifications Summary

    1 x PS/2 Header 2 x USB 2.0 Headers with Shroud (4 Ports on Header) 1 x USB 3.2 Gen 1x1 Header with Shroud (2 Ports on Header) 1 x SPI Header (2.54mm Pitch) 1 x I2C Header 12 RX610H User’s Manual...
  • Page 13 1 x Chassis Intrusion Locking Type Header 1 x LPT Pin Header 2.0mm Pitch Mechanical & Environmental Operating Temperature 0~60°C (32~140°F) Operating Humidity 5%~90% relative humidity, non-condensing Size (L x W) 9.6" (L) x 9.6" (W) (244mm x 244mm) RX610H User’s Manual 13...
  • Page 14 RX610H User’s Manual Block Diagram 14 RX610H User’s Manual...

  • Page 15: Chapter 1 - Product Introduction

    Failure to do so may cause severe damage to the motherboard, peripherals, and/or components. This chapter describes the motherboard features and the new technologies it supports. Product Introduction RX610H User’s Manual 15...

  • Page 16: Motherboard Overview

    Secure the Motherboard with nine (9) screws into the holes indicated below circles on red to secure the motherboard to the chassis. Do not over tighten the screws! Doing so can damage the motherboard. Place this side towards the rear of the chassis. 16 RX610H User’s Manual...

  • Page 17: Motherboard Layout

    X4 Physical only(Slot 2) PCIEX16_3~4 PCI-e Gen 3 x1 X16 Physical only (Slot 3 & Jumpers Label Function Note CLCMOS1 Clear CMOS 1 x 3 header, pitch 2.00mm JPSON1 AT/ATX Mode Select 1 x 3 header, pitch 2.00mm RX610H User’s Manual 17...
  • Page 18 Front USB 2.0 Headers BOX header 2x5P, 2.54mm USB1112 LPT1 Parallel Port header BOX header 2x13P, 2.0mm SMB1 SM bus connector WAFER 1x5P, 2.0mm JAMP1 Amplifier Connector WAFER 1x4P, 2.0mm LANLED1 LAN LED Headers Header 2x5P, 2.54mm 18 RX610H User’s Manual...

  • Page 19: Central Processing Unit (Cpu)

    Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket pins/motherboard components. BCM will shoulder the cost of repair only if the damage is shipment/transit-related. ⚫...

  • Page 20: Installing The Cpu

    CPU. Keep the Protective cover incase the board need to send back to factory for service, you will need to place it back to cover the socket to protect socket Pin. 20 RX610H User’s Manual...
  • Page 21 Secure the lever under its retention tab to complete the installation of the CPU. *Always replace the plastic protective cover when the CPU is not installed to protect the CPU socket. RX610H User’s Manual 21...

  • Page 22: Installing The Cpu Heatsink And Fan

    Push pin) match the holes on the motherboard. Fasten the screws Fastener Motherboard hole Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector. Make sure each fastener is oriented as shown. 22 RX610H User’s Manual...
  • Page 23 Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors. RX610H User’s Manual 23...

  • Page 24: Uninstalling The Cpu Heatsink And Fan

    2. Rotate each fastener counterclockwise Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard. Carefully remove the heatsink and fan assembly from the motherboard. 24 RX610H User’s Manual...
  • Page 25 When using a screw on CPU cooler, please make sure you have enough clearance to avoid short circuit In the highlighted area: * It is preferred that no components be placed * Traces and solder bumps are ok Examples of the mounting stud with shoulder RX610H User’s Manual 25...
  • Page 26 RX610H User’s Manual 26 RX610H User’s Manual...

  • Page 27: System Memory

    2. Hold two edges of the DIMM module carefully, and keep away of touching its connectors. 3. Align the notch key on the module with the rib on the slot. 4. Firmly press the modules into the socket which will automatically snap into the mounting RX610H User’s Manual 27...

  • Page 28: Removing A Dimm

    1. Press the two ejector tabs on the slot outward simultaneously, and then pull out the DIMM module. Support the DIMM lightly with your fingers when pressing the ejector tabs. The DIMM might get damaged when it flips out with extra force. 28 RX610H User’s Manual...

  • Page 29: Expansion Card

    1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup. 2. Assign an IRQ to the card if needed. Refer to the tables on the next page. 3. Install the software drivers for the expansion card if necessary. RX610H User’s Manual 29...

  • Page 30: Pci Express X16 Slot

    Slot3: Gen 3 PCIe x1 (x16 Physical Yellow) Slot4: Gen 3 PCIe x1 (x16 Physical Yellow) Slot1 Slot3 Slot4 2.4.1 PCI Express x4 slot This motherboard supports one PCIe x4 slot that complies with the PCIe x4 specifications. Slot2 30 RX610H User’s Manual...

  • Page 31: Connector

    1 x M.2 2242/2280/22110 M Key NVMe (PCIe M.2 E key x4 + SATA III) M.2 M key 1 x M.2 2230 E Key with CNVi Support (PCIe x 1 share with slot4 + USB 2.0) RX610H User’s Manual 31...

  • Page 32: Jumpers

    6. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data. Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! Normal (Default) Clear CMOS 32 RX610H User’s Manual...

  • Page 33: At/Atx Power Mode Select (Jpson1)

    1.6.2 AT/ATX Power Mode Select (JPSON1) This jumper allows you to select ATX Mode or AT mode AT mode ATX mode (Default) 1.6.3 COM POWER SETTING (JCOMPWR1~6) This jumper allows you to select COM1~6 to support Ring/+12V/+5 Ring +12V RX610H User’s Manual 33...

  • Page 34: Pcie Selection (Pcisel)

    RX610H User’s Manual 1.6.4 PCIe Selection (PCISEL) This jumper allows you to switch PCIe bus between M.2 and PCIe slot. For E key M.2 For PCIE slot 1.7 Connectors 1.7.1 Rear panel connectors 34 RX610H User’s Manual...
  • Page 35 No link 10/100Mbps connection Orange Linked Green 1Gbps connection Blinking Data Orange 2.5Gbps activity connection AUDIO Microphone This port connects a microphone. port (Pink) AUDIO Line-out port This port connects a headphone or a speaker. (Green) RX610H User’s Manual 35...

  • Page 36: Cpu And System Fan Connectors (Cpu_Fan1, Cha_Fan1, Cha_Fan2)

    1.7.3 System Panel (F_PANEL) This connector is for a chassis-mounted front panel. The functions are as following. 1. HDD LED+ 2. +5VSB 3. HDD LED# 4. PWR LED# 5. GND 6. PANSWIN# 7. RST 8. GND 9. N/A 36 RX610H User’s Manual...

  • Page 37: Atx Power Connectors (Eatxpwr1 & Atx12V1)

    Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate. (Intel recommend actual power x2 times for system) RX610H User’s Manual 37...

  • Page 38: Serial Port Connectors (Com1~6)

    SATA 1~4 support SATA 3.0. and SATA 1 is shared by M.2 slot. These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives. SATA 1. GND 2. TX+ 3. TX- 4. GND 5. RX- 6. RX+ 7. GND 38 RX610H User’s Manual...

  • Page 39: Usb Connectors (Usb910, Usb1112)

    These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed. Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! The USB module is purchased separately. RX610H User’s Manual 39...

  • Page 40: Usb3.2 Connector (Usb78)

    8. LPT_SLIN# 9. LPT_PD3 10. GND 11. LPT_PD4 12. GND 13. LPT_PD5 14. GND 15. LPT_PD6 16. GND 17. LPT_PD7 18. GND 19. LPT_ACK# 20. GND 21. LPT_BUSY 22. GND 23. LPT_PE 24. GND 25.LPT_SLCT 26. NC 40 RX610H User’s Manual...

  • Page 41: Bit Gpio Header (Jdio1)

    This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC ‘97 (optional) audio standard. FP_AUDIO1 9. LINE2L 10. LINE2-JD 7. SENSEB 8. NC 6. MIC2-JD 5. LINE2R 3. MIC2R 4. +3.3 2. GND 1. MIC2L RX610H User’s Manual 41...

  • Page 42: Amplifier Connector (Jamp1)

    1.7.12 Amplifier Connector (JAMP1) This connector allow user to connect an external audio amplifier. JAMP1 1. AMP_L- 2. AMP_L+ 3. AMP_R- 4. AMP_R+ 1.7.13 SM bus connector (SMB1) 5. 3.3V 4. GND 3. SMB_ALT 2. SMB_DATA 1. SMB_CLK 42 RX610H User’s Manual...

  • Page 43: Lan Led Status Connector (Lanled1)

    RX610H User’s Manual 1.7.14 LAN LED status connector (LANLED1) 1.7.15 I2C header (I2C1) 4. GND 3. I2C_SDA 2. I2C_SCL 1. +3.3V RX610H User’s Manual 43...

  • Page 44: Chapter 2 - Bios Setup

    BIOS Setup Chapter 2 - BIOS Setup 2.1 BIOS Setup Program This motherboard supports a programmable firmware chip that you can update using the provided utility. Use the BIOS Setup program when you are installing a motherboard, 44 RX610H User’s Manual...

  • Page 45: Legend Box

    Visit the system builder’s website to download the latest BIOS file ⚫ for this motherboard 2.1.1 Legend Box The keys in the legend bar allow you to navigate through the various setup menus Key(s) Function Description →← Select Screen ↑↓ Select Item Enter Select RX610H User’s Manual 45...

  • Page 46: List Box

    Change Opt. General Help Previous Values Optimal Defaults Save and Exit Exit 2.1.2 List Box This box appears only in the opening screen. The box displays an initial list of configurable items in the menu you selected. 46 RX610H User’s Manual...

  • Page 47: Sub-Menu

    <F3> to load the optimal default values. While moving around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field. RX610H User’s Manual 47...

  • Page 48: Bios Menu Screen

    To access the menu items, press the up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to open the specific menu. 48 RX610H User’s Manual...

  • Page 49: Main Setup

    Use this menu for basic system configurations, such as time, date etc. BIOS Information Displays the auto-detected BIOS information. ⚫ System Date The date format is <Date>,<Month>,<Day>,<Year>. ⚫ System Time The time format is <Hour>,<Minute>,<Second>. RX610H User’s Manual 49...

  • Page 50: Advanced Bios Setup

    The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 50 RX610H User’s Manual...

  • Page 51: Cpu Configuration

    ⚫ Active Performance –Cores Number of P-core to enable in each processor package ⚫ Active Efficient-cores Number of E-core to enable in each processor package ⚫ Hyper-Threading Enable or disable Hyper-Threading technology Configuration options: [Enable] [Disable] RX610H User’s Manual 51...

  • Page 52: Power & Performance

    When enabled, CPU will switch to minimum speed when all cores enter C state Configuration options: [Enable] [Disable] ⚫ Package C state limit Maximum package C state limit setting. CPU default: Leaves to factory default value 52 RX610H User’s Manual...

  • Page 53: Pch-Fw Configuration

    When disabled ME will be put into ME temporarily disabled mode Configuration options: [Enable] [Disable] ⚫ ME unlock control [Lock] When it is Set to unlock, system will shut down for active function Configuration options: [Lock] [Unlock] RX610H User’s Manual 53...

  • Page 54: Trusted Computing

    RX610H User’s Manual 2.4.4 Trusted Computing Security device settings ⚫ TPM Device Selection [dTPM] Select TPM device Configuration options: [dTPM] [PTT] ⚫ Security Device support [Disabled] Enable or Disable BIOS support security device Configuration options: [Enable] [Disable] 54 RX610H User’s Manual...

  • Page 55: Acpi Settings

    PCIE# wake from S5 [Disabled] Enable or disable PCIE wake the system from S5. Configuration options: [Disabled] [Enabled] ⚫ Wake on Ring [Disabled] Enable or disable wake on ring function under ACPI S3/S4/S5. Configuration options: [Disabled] [Enabled] RX610H User’s Manual 55...

  • Page 56: Nct6126D Super Io Configuration

    Configuration options: [Second] [Minute] ⚫ WatchDog Timeout value Fill watchdog timeout value, 0 means disables ⚫ Chassis opened warning [Disabled] Select chassis intrusion enabled to Disabled Configuration options: [Disabled] [Enabled] ⚫ ErP/EuP S5 Support [Disabled] Configuration options: [Disabled] [Enabled] 56 RX610H User’s Manual...

  • Page 57: Serial Port 1 Configuration

    Configuration options: [Disabled] [Enabled] ⚫ Change Setting [Auto] Select an optimal settings for super IO device Configuration options: as below 2.4.6.2 Serial Port 2 Configuration ⚫ Serial Port [Enabled] Enable or Disable serial Port (COM) Configuration options: [Disabled] [Enabled] RX610H User’s Manual 57...

  • Page 58: Serial Port 3 Configuration

    2.4.6.3 Serial Port 3 Configuration ⚫ Serial Port [Enabled] Enable or Disable serial Port (COM) Configuration options: [Disabled] [Enabled] ⚫ Change Settings [Auto] Select an optimal settings for super IO device Configuration options: as below ⚫ COM Mode Select [RS232] 58 RX610H User’s Manual...

  • Page 59: Serial Port 4 Configuration

    Configuration options: as below 2.4.6.5 Serial Port 5 Configuration ⚫ Serial Port [Enabled] Enable or Disable serial Port (COM) Configuration options: [Disabled] [Enabled] ⚫ Change Settings [Auto] Select an optimal settings for super IO device Configuration options: as below RX610H User’s Manual 59...

  • Page 60: Serial Port 6 Configuration

    Serial Port [Enabled] Enable or Disable serial Port (COM) Configuration options: [Disabled] [Enabled] ⚫ Change Settings [Auto] Select an optimal settings for super IO device Configuration options: as below 2.4.6.7 Parallel Port Configuration ⚫ Parallel Port [Enabled] 60 RX610H User’s Manual...
  • Page 61 Enable or Disable parallel Port (LPT) Configuration options: [Disabled] [Enabled] ⚫ Change Settings [Auto] Select an optimal settings for super IO device Configuration options: as below ⚫ Device mode [STD Printer Mode] Change the printer port mode Configuration options: as below RX610H User’s Manual 61...

  • Page 62: Hardware Monitor

    RX610H User’s Manual 2.4.7 Hardware monitor Display Hardware monitor information 62 RX610H User’s Manual...

  • Page 63: Smart Fan

    RX610H User’s Manual 2.4.7.1 Smart FAN ⚫ Smart FAN Function [Enabled] Smart fan function Enable/Disabled Configuration options: [Enabled] [Disabled][Manual] 2.4.7.1.1 Smart FAN mode Configuration Setting different FAN on this motherboard RX610H User’s Manual 63...
  • Page 64 RX610H User’s Manual ⚫ SYS_FAN1/CPU_FAN1/CHA_FAN1 FAN Target Smart FAN target temperature Configuration options: Please see below picture ⚫ CPU_FAN1/CHA_FAN1/CHA_FAN2 MIN.FAN Speed (%) CPU or Chassis Smart FAN minimum settings Configuration options: Please see below picture 64 RX610H User’s Manual...

  • Page 65: S5 Rtc Wake Settings

    RX610H User’s Manual 2.4.8 S5 RTC wake settings ⚫ Wake system from S5 [Disabled] Enabled or Disabled system wake on alarm event RX610H User’s Manual 65...

  • Page 66: Serial Port Console Redirection

    RX610H User’s Manual Configuration options: [Enabled] [Disabled] 2.4.9 Serial Port Console Redirection Display CPU configuration ⚫ Console Redirection [Disabled] Enabled or Disabled COM1 Console redirection Configuration options: [Disabled][Enabled] 2.4.9.1 Console Redirection settings 66 RX610H User’s Manual...
  • Page 67 Stop Bits[1] Stop bits indicate the end of a serial data package Configuration options: [1][2] ⚫ Flow Control[None] Flow control can prevent data loss from buffer overflow. Configuration options: [None][Hardware RTS/CTS] ⚫ VT-UTF8 Combo key Support [Enabled] RX610H User’s Manual 67...

  • Page 68: Intel Txt Information

    Enables or disables extended terminal resolution Configuration options: [Enabled] [Disabled] ⚫ Putty Keypad [VT100] Selects function key and keypad on putty Configuration options: [VT1000] [LINUX][XTERMR6][SCO][ESCN][VT400] 2.4.10 intel TXT information Display Intel TXT information. This depends on CPU sku. 2.4.11 USB configuration 68 RX610H User’s Manual...
  • Page 69 ⚫ USB Mass Storage Driver Support [Enabled] Enable or Disable USB Mass Storage Driver Support Configuration options: [Enabled][Disabled] ⚫ Mass Storage Devices [Auto] Mass Storage device emulation Type. “Auto” enumerates device according to its media format. RX610H User’s Manual 69...

  • Page 70: Network Stack Configuration

    Enabled or disabled IPv6 PXE boot Support Configuration options: [Enabled][Disabled] ⚫ PXE boot wait time Wait time in seconds to press ESC key to abort the PXE boot. ⚫ Media detect count Number of time the presence of media will be checked 70 RX610H User’s Manual...

  • Page 71: Ip Configuration

    RX610H User’s Manual 2.4.13 IP configuration ⚫ Auto Configuration[Disabled] Allow user to set IP. Disabled→IP won’t set Every Boot→Sets IP on every boot On demand→User has to set IP using IPConfig interface. RX610H User’s Manual 71...

  • Page 72: Nvme Configuration

    RX610H User’s Manual 2.4.14 NVMe Configuration Display NVMe controller or Drive information 72 RX610H User’s Manual...

  • Page 73: Remote Server Configuration

    Enable to communicate with management server. Configuration options: [Disabled][Enabled] ⚫ Auto Server searching [Enabled] Enabled to obtain DHCP server IP automatically. Disabled to provide Server IP manually. Need to do clear Enrollment, if server is changed to DHCP. Configuration options: [Enabled][Disabled] RX610H User’s Manual 73...

  • Page 74: Chipset

    RX610H User’s Manual 2.5 Chipset 74 RX610H User’s Manual...

  • Page 75: System Agent (Sa) Configuration

    2.5.1 System Agent (SA) Configuration ⚫ VT-d [Enabled] VT-d capability Configuration options: [Disabled] [Enabled] 2.5.1.1 Memory Configuration Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. RX610H User’s Manual 75...

  • Page 76: Graphic Configuration

    Select which of IGFX/PEG/PCIE graphic device should be primary display or select HG for Hybrid Gfx. Configuration options: [Auto] [IGFX][PEG slot][PCIE] ⚫ Internal Graphics [Auto] Keep IGFX enabled based on the setup options Configuration options: [Auto] [disabled][enabled] 76 RX610H User’s Manual...
  • Page 77 RX610H User’s Manual ⚫ PSMI Support [Disabled] PSMI eabled/Disabled Configuration options: [Disabled][Enabled] ⚫ DVMT Pre-allocated [60M] Select DVMT 5.0 Pre-allocated (Fixed) Graphics memory size used by the internal graphics device. Configuration options: As below picture RX610H User’s Manual 77...

  • Page 78: Pci Express Configuration

    RX610H User’s Manual 2.5.1.3 PCI Express Configuration ⚫ Detect Non-compliance Device [Disabled] Detect Non-compliance Device in PEG Configuration options: [Disabled][Enabled] 2.5.1.3.1 PCI Express Root Port 2 (x16 slot1) 78 RX610H User’s Manual...
  • Page 79 PCI Express Root Port 2[Enabled] Control the PCI express Root Port Configuration options: [Enabled] [Disabled] ⚫ ASPM [Disabled] Set the ASPM level Configuration options: [Disaled] [L0S][L1][L0sL1] ⚫ PCIe Speed [Auto] Configure PCIe Speed Configuration options: [Auto][Gen1][Gen2][Gen3][Gen4][Gen5] RX610H User’s Manual 79...

  • Page 80: Pch-Io Configuration

    Enable or Disable onboard LAN2 Configuration options: [Disabled][Enabled] ⚫ Lan2 PXE OpROM [Disabled] Enabled or Disabled boot option for LAN2 controller Configuration options: [Disabled][Enabled] ⚫ Flash Protection Range Registers(FPRR) [Disabled] Enabled Flash Protection Range Registers Configuration options: [Disabled][Enabled] 80 RX610H User’s Manual...

  • Page 81: Pci Express Configuration

    RX610H User’s Manual ⚫ GPIO Group Control [Disabled] Configure the digital GPIO pins Configuration options: [Disabled][Enabled] ⚫ Amplifier GAIN(db) [15.3db] Select Amplifier GAIN value Configuration options: [15.3db][21.2db][27.2db][31.8db] 2.5.2.1 PCI Express Configuration 2.5.2.1.1 PCI Express Root Port 1(x4 slot2) RX610H User’s Manual 81...
  • Page 82 ⚫ PCIe Speed [Auto] Select PCI Express Port speed Configuration options: [Auto][Gen1][Gen2][Gen3] [Gen4] ⚫ Detect Non-compliance device [Disabled] Detect non-compliance PCI express Device, If enabled, it will take more time at Post time. Configuration options: [Disabled][Enabled] 82 RX610H User’s Manual...

  • Page 83: Pci Express Root Port 2(X16 Slot 3)

    ⚫ PCIe Speed [Auto] Select PCI Express Port speed Configuration options: [Auto][Gen1][Gen2][Gen3] [Gen4] ⚫ Detect Non-compliance device [Disabled] Detect non-compliance PCI express Device, If enabled, it will take more time at Post time. Configuration options: [Disabled][Enabled] RX610H User’s Manual 83...

  • Page 84: Pci Express Root Port 4(X16 Slot 4 & M.2 E Key)

    ⚫ PCIe Speed [Auto] Select PCI Express Port speed Configuration options: [Auto][Gen1][Gen2][Gen3] [Gen4] ⚫ Detect Non-compliance device [Disabled] Detect non-compliance PCI express Device, If enabled, it will take more time at Post time. Configuration options: [Disabled][Enabled] 84 RX610H User’s Manual...

  • Page 85: Pci Express Root Port 5(X4 Key M)

    ⚫ PCIe Speed [Auto] Select PCI Express Port speed Configuration options: [Auto][Gen1][Gen2][Gen3] [Gen4] ⚫ Detect Non-compliance device [Disabled] Detect non-compliance PCI express Device, If enabled, it will take more time at Post time. Configuration options: [Disabled][Enabled] RX610H User’s Manual 85...

  • Page 86: Sata Configuration

    Enable or Disable SATA port 2 Configuration options: [Enable ][Disabled] ⚫ Port 3 [Enabled] Enable or Disable SATA port 3 Configuration options: [Enabled][Disabled] ⚫ Port 4 [Enabled] Enable or Disable SATA port 4 Configuration options: [Enabled][Disabled] 86 RX610H User’s Manual...

  • Page 87: Usb Configuration

    Enable or Disable USB standby power Configuration options: [Disabled] [Enabled] ⚫ USB910 Standby Power[Enabled] Enable or Disable USB standby power Configuration options: [Disabled] [Enabled] ⚫ USB1112 Standby Power[Enabled] Enable or Disable USB standby power Configuration options: [Disabled] [Enabled] RX610H User’s Manual 87...

  • Page 88: Hd Audio Configuration

    RX610H User’s Manual 2.5.2.4 HD audio Configuration ⚫ HD audio[Enabled] Control Detection of the HD-Audio device. Configuration options: [Disabled] [Enabled] 88 RX610H User’s Manual...

  • Page 89: Serial Io Configuration

    RX610H User’s Manual 2.5.2.5 Serial IO Configuration ⚫ I2C0 Controller[Enabled] Enabled/Disabled Serial IO Controller Configuration options: [Disabled] [Enabled] ⚫ I2C2 Controller[Enabled] Enabled/Disabled Serial IO Controller Configuration options: [Disabled] [Enabled] RX610H User’s Manual 89...

  • Page 90: Security

    RX610H User’s Manual 2.6 Security ⚫ Administrator Password Set Administrator Password ⚫ User Password Set User Password 90 RX610H User’s Manual...

  • Page 91: Boot

    Configuration options: [LEGACY] [UEFI] ⚫ UEFI USB Key Drive BBS Priorities Specifies the boot device priority sequence from available UEFI USB key Drives. ⚫ UEFI Application Boot Priorities Specifies the boot device priority sequence from available UEFI Application. RX610H User’s Manual 91...

  • Page 92: Save & Exit

    Reset the system after saving the changes. ⚫ Restore Defaults Restore/Load default values for all the setup option. ⚫ Launch EFI Shell from filesystem device Attempts to launch EFI shell application from one of the available filesystem devices. ⚫ AMIFWUpdate Launches AMIFWUpdate 92 RX610H User’s Manual...
