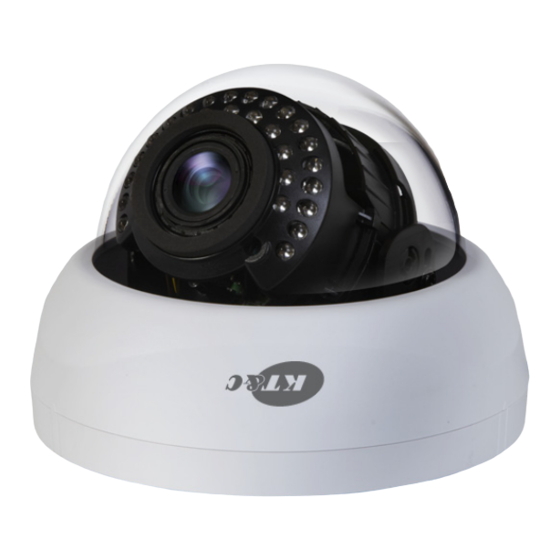

KT&C KNC-HDDi100 Installation Manual

Megapixel Network Camera
KNC-HDDi100 / KNC-HNDi100
KNC-HDDi120 / KNC-HNDi120
Installation Guide
Table of Contents
1.INTRODUCTION
2.PACKAGE CONTENTS
3.PRODUCT DESCRIPTION
4.INSTALL THE HARDWARE
5.ASSIGN AN IP ADDRESS
6. PRODUCT SPECIFICATIONS
1. Introduction
KNC-HDDi100, KNC-HNDi100, KNC-HDDi120, KNC-HNDi120 Installation Guide
This installation guide provides instructions for installing the Network Camera on your
network. For all other aspects of using the product, please see the User's Manual,
available on the CD included in this package, or from http://www.ktnc.co.kr
Installation steps
1. Check the package contents against the list below.
2. Product description.
3. Install the hardware.
4. Set an IP address.
5. Set the admin and user ID and password, See User's Manual.
Im por tant!
This product must be used in compliance with local laws and regulations.
2. Package Contents
Network Camera Video Output Test Cable
Installation Guide Template
M170-HD(N)Di100/120-001

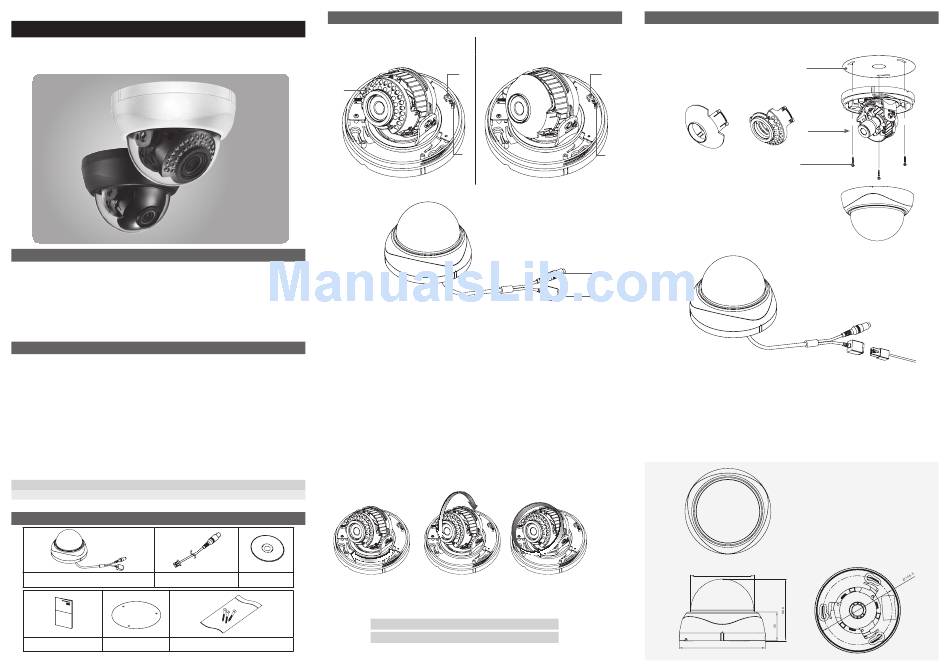

3. Product Description
Description and function
LED Type:
KNC-HNDi100, KNC-HNDi120
❶
1. Infrared LED – These LEDs emit infra red radiations.
2. Reset Button – Press the reset switch for more than 10 seconds,
the restore the camera to the function default settings.
3. Service Video Connector – Outputs video to the monitor.
4. Power Input(DC12V) – Connect DC 12V power.
5. Network Connector –
The Network Camera connects to the network via a standard network cable, and
automatically detects the speed of the local network segment
(10BaseT/100BaseTX Ethernet). PoE Supported
3-Axis Gimbal
Software CD
Pan Rotation
CAUTION
CAUTION
Screws
Standard Type:
KNC-HDDi100, KNC-HDDi120
❷
❸
Tilt Rotation
Horizontal Rotation
panning(Pan + Horizontal) the bracket in excess of 1 rotations in one direction
may cause damage to the cable.
Tilt Rotation - LED Type: Viewable operation tilt angle 50˚
Standard Type: Viewable operation tilt angle 70˚
4. Install the hardware
KNC-HDDi100, KNC-HNDi100, KNC-HDDi120, KNC-HNDi120 are designed to be installed using a
template as shown below.
❷
❸
Standard Type LED Type
(Sunshield Cover) (LED Cover)
1. Template – To mount the camera.
2. Screws(3ea) - To secure the camera to the template.
Connection
❹
❺
1. Connect the camera to the network using a UTP cable (CAT.5), Power can be supplied via
the network cable (PoE)
2. Connect DC 12V to the power terminal. This is not necessary if the Network Camera is
connected to PoE hub or midspan.
3. Check that the indicator LEDs indicates the correct conditions.
4. Connect the analog monitor to the service video connector for adjusting focus and press and quickly
release the reset switch for focus assistant mode.
Then you can select normal view or focus view mode using the reset switch.
Caution: When you use focus assistant mode, "Focus View" mode is recommended for more exact focus.
Caution: Focus assistant mode will be automatically exited after 3 minutes for normal operation.
Dimensions
Ø100
Ø135
❶
❷
