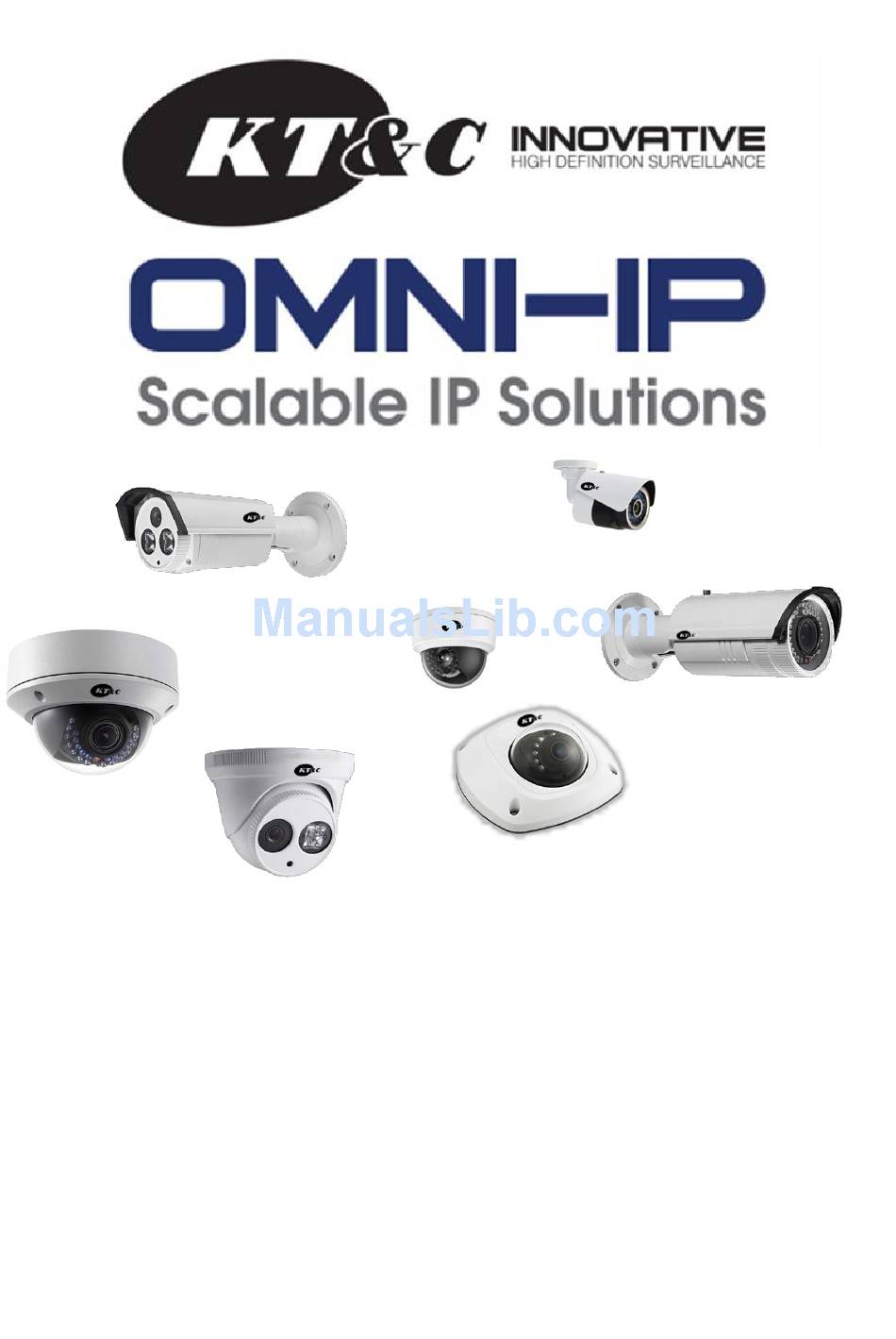

Plug-and-Play Network Cameras
KNC-p3 Series
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for KT&C KNC-p3 Series

  • Page 1 Plug-and-Play Network Cameras KNC-p3 Series User Manual...
  • Page 2 User Manual for OMNI-IP Network Cameras Thank you for selecting this KT&C Omni IP Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.
  • Page 3: Regulatory Information

    User Manual for OMNI-IP Network Cameras Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4: Safety Instructions

    User Manual for OMNI-IP Network Cameras Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment/property damage may occur if any of the cautions are neglected.
  • Page 5 User Manual for OMNI-IP Network Cameras moisture beyond the IP66 rating of applicable products. Installation should be performed only by qualified service personnel and should  conform to all local codes. Please install appropriate overload protection in the power supply circuits for any ...
  • Page 6: Table Of Contents

    User Manual for OMNI-IP Network Cameras Table of Contents Chapter 1 System Requirements ................7 Chapter 2 Network Connection ................8 Setting the Network Camera over the LAN............8 2.1.1 Wiring over the LAN ......................8 2.1.2 Detecting and Changing the IP Address ................9 Accessing a Network Camera over a WAN ............
  • Page 7 User Manual for OMNI-IP Network Cameras 5.3.7 Configuring QoS Settings ....................35 Configuring UPnP™ Settings ..................36 5.3.8 5.3.9 Email Sending Triggered by Alarm ................37 5.3.10 Configuring NAT (Network Address Translation) Settings ..........39 5.3.11 Configuring FTP Settings ....................39 Configuring Video and Audio Settings ...............
  • Page 8: Chapter 1 System Requirements

    User Manual for OMNI-IP Network Cameras IP Address Filter ....................83 Viewing Device Information ................85 Maintenance ......................86 9.6.1 Rebooting the Camera ....................86 9.6.2 Restoring Default Settings ....................86 9.6.3 Exporting / Importing Configuration File ............... 87 9.6.4 Upgrading the System.....................
  • Page 9: Chapter 2 Network Connection

    User Manual for OMNI-IP Network Cameras Chapter 2 Network Connection Before you start:  If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the Network Camera over the LAN. ...
  • Page 10: Detecting And Changing The Ip Address

    User Manual for OMNI-IP Network Cameras Figure 2-1 Direct Connection Figure 2-2 Connecting via a Switch or a Router 2.1.2 Detecting and Changing the IP Address You need to know the camera’s IP address to access the network camera. Steps: 1.
  • Page 11: Accessing A Network Camera Over A Wan

    User Manual for OMNI-IP Network Cameras 8000. The default user name is admin, and password is 12345.  For accessing the network camera from different subnets, please set the gateway for the network camera, either after you logged in or though the “modify Network Parameters” applet. For more detailed information, please refer to Section 6.3.1 Configuring TCP/IP Settings.
  • Page 12: Dynamic Ip Connection

    User Manual for OMNI-IP Network Cameras Steps: 1. Connect the network camera to LAN side of the router. 2. Assign a LAN IP address, the subnet mask and the gateway, consistent with the router LAN settings. The gateway address is the LAN IP address of the router. Refer to Section 2.1.2 Detecting and Changing the IP Address for discussion of detailed IP address configuration of the camera.
  • Page 13 User Manual for OMNI-IP Network Cameras through a modem or a router.  Connecting the network camera via a router Steps: 1. Connect the network camera to the router. 2. In the camera, assign a static LAN IP address, the subnet mask and the gateway. Setting a DNS server address is highly recommended (and required to be able to use DDNS).
  • Page 14 User Manual for OMNI-IP Network Cameras provider (e.g. SimpleDDNS.com). Please follow the steps below for normal domain name resolution and private domain name resolution to address the DHCP problem.  Normal Domain Name Resolution Figure 2-7 Normal Domain Name Resolution Steps: 1.
  • Page 15: Chapter 3 Web Access To The Network Camera

    User Manual for OMNI-IP Network Cameras Chapter 3 Web Access to the Network Camera 3.1 Web Browser Access System Requirements: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 16: Accessing By Omni Cms Software

    User Manual for OMNI-IP Network Cameras Figure 3-2 Download Plug-in Figure 3-3 Install Plug-in (1) Figure 3-4 Install Plug-in (2) Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. 3.2 Accessing by OMNI CMS Software 3.2.1 Accessing by CMS The product CD contains OMNI CMS.
  • Page 17 User Manual for OMNI-IP Network Cameras Follow the installation prompts to install the software. The control panel and live view interface of CMS are shown as below. Figure 3-5 CMS Control Panel Figure 3-6 CMS Live View Interface Note: For detailed information about the software, please refer to the user manual for...
  • Page 18: Accessing By Omni Remote Software

    User Manual for OMNI-IP Network Cameras OMNI CMS. 3.2.2 Accessing by OMNI Remote Software To view the camera with a mobile phone, you can just install the OMNI Remote software in your iOS or Android mobile phone. The software can be found in the App Store and Google Play.
  • Page 19: Chapter 4 Web Live View

    User Manual for OMNI-IP Network Cameras Chapter 4 Web Live View 4.1 Live View Page Purpose: The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.
  • Page 20: Starting Live View

    User Manual for OMNI-IP Network Cameras Toolbar: Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio, etc. PTZ Control: Panning, tilting and zooming actions of the camera and the lighter and wiper control (if it supports PTZ function or an external pan/tilt unit has been installed). Preset Setting/Calling: Set and call the preset for the camera (if supports PTZ function or an external pan/tilt unit has been installed).
  • Page 21: Recording And Capturing Pictures Manually

    User Manual for OMNI-IP Network Cameras 4.3 Recording and Capturing Pictures Manually In the live view interface, click on the toolbar to capture the live pictures or click to record the live view. The saving paths of the captured pictures and clips can be set on the Configuration >...
  • Page 22: Setting / Calling A Preset

    User Manual for OMNI-IP Network Cameras  For the cameras which support lens movements only, the direction buttons are invalid. Table 4-2 Descriptions of PTZ Control Panel Icon Description Zoom in/out Focus near/far Iris +/- Light on/off Wiper on/off One-touch focus Initialize lens Adjust speed of pan/tilt movements 4.4.2 Setting / Calling a Preset...
  • Page 23 User Manual for OMNI-IP Network Cameras  Calling a Preset: This feature enables the camera to point to a specified preset scene manually or when an event takes place. For the defined preset, you can call it at any time to the desired preset scene. In the PTZ control panel, select a defined preset from the list and click to call the preset.
  • Page 24: Chapter 5 Network Camera Configuration

    User Manual for OMNI-IP Network Cameras Chapter 5 Network Camera Configuration 5.1 Configuring Local Parameters Note: The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and captured using the web browser and thus the file paths for these are on the PC running the browser (or other folders available to the PC).
  • Page 25 User Manual for OMNI-IP Network Cameras streaming under some network environments. MULTICAST: It’s recommended to select MCAST type when using the Multicast function. For detailed information about Multicast, refer to Section 6.3.1 TCP/IP Settings.  Live View Performance: Set the live view performance to Shortest Delay, Real Time, Balanced or Best Fluency.
  • Page 26: Configuring Time Settings

    User Manual for OMNI-IP Network Cameras 5.2 Configuring Time Settings Purpose: You can follow the instructions in this section to configure the time synchronization and DST settings. Steps: 1. Enter the Time Settings interface: Configuration > Basic Configuration > System > Time Settings Or Configuration >...
  • Page 27 User Manual for OMNI-IP Network Cameras Figure 5-3 Time Sync by NTP Server Note: If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44).
  • Page 28: Configuring Network Settings

    User Manual for OMNI-IP Network Cameras 5.3 Configuring Network Settings 5.3.1 Configuring TCP/IP Settings Purpose: TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions may be configured simultaneously without conflicting to each other, and at least one IP version should be configured.
  • Page 29: Configuring Port Settings

    User Manual for OMNI-IP Network Cameras Notes:  The valid value range of MTU is 500 ~ 1500.  The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
  • Page 30: Configuring Pppoe Settings

    User Manual for OMNI-IP Network Cameras which is not occupied. Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535. 3. Click Save to save the settings. Note: A reboot is required for the settings to take effect.
  • Page 31 User Manual for OMNI-IP Network Cameras the camera. Steps: 1. Enter the DDNS Settings interface: Configuration > Advanced Configuration > Network > DDNS Figure 5-9 DDNS Settings 2. Check the Enable DDNS checkbox to enable this feature. 3. Select DDNS Type. Four DDNS types are selectable: SIMPLEDDNS, NO-IP IPServer and DynDNS.
  • Page 32 User Manual for OMNI-IP Network Cameras Figure 5-10 DynDNS Settings  IP Server: Steps: (1) Enter the Server Address of the IP Server. (2) Click Save to save the settings. Note: For the IP Server, you have to apply a static IP, subnet mask, gateway and preferred DNS from the ISP.
  • Page 33 User Manual for OMNI-IP Network Cameras Figure 5-12 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the Port number, if needed. (5) Enter the User Name and Password. (6) Click Save and then you can view the camera with the domain name. ...
  • Page 34: Configuring Snmp Settings

    User Manual for OMNI-IP Network Cameras 5.3.5 Configuring SNMP Settings Purpose: You can set the SNMP function to get camera status, parameters and alarm related information and manage the camera remotely when it is connected to the network. Before you start: Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port.
  • Page 35: Configuring 802.1X Settings

    User Manual for OMNI-IP Network Cameras Figure 5-14 SNMP Settings 2. Check the corresponding version checkbox ( ) to enable the feature. 3. Configure the SNMP settings. Note: The settings of the SNMP software should be the same as the settings you configure here.
  • Page 36: Configuring Qos Settings

    User Manual for OMNI-IP Network Cameras The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X. Before you start: The authentication server must be configured.
  • Page 37: Configuring Upnp™ Settings

    User Manual for OMNI-IP Network Cameras Steps: 1. Enter the QoS Settings interface: Configuration >Advanced Configuration > Network > QoS Figure 5-16 QoS Settings 2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and Management DSCP. The valid value range of the DSCP is 0-63.
  • Page 38: Email Sending Triggered By Alarm

    User Manual for OMNI-IP Network Cameras Figure 5-17 Configure UPnP Settings 5.3.9 Email Sending Triggered by Alarm Purpose: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.
  • Page 39 User Manual for OMNI-IP Network Cameras Figure 5-18 Email Settings 3. Configure the following settings: Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
  • Page 40: Configuring Nat (Network Address Translation) Settings

    User Manual for OMNI-IP Network Cameras this checkbox to use authentication to log in to this server and enter the login user Name and password. Choose Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.
  • Page 41 User Manual for OMNI-IP Network Cameras or a timing snapshot task. Steps: 1. Enter the FTP Settings interface: Configuration >Advanced Configuration > Network > FTP Figure 5-20 FTP Settings 2. Configure the FTP settings; and the user name and password are required for login the FTP server.
  • Page 42: Configuring Video And Audio Settings

    User Manual for OMNI-IP Network Cameras 3. Click Save to save the settings. Note: If you want to upload the captured pictures to FTP server, you have to enable the continuous snapshot or event-triggered snapshot on Snapshot page. For detailed information, please refer to the Section 6.6.7. 5.4 Configuring Video and Audio Settings 5.4.1 Configuring Video Settings Steps:...
  • Page 43 User Manual for OMNI-IP Network Cameras 3. You can customize the following parameters for the selected main stream or sub-stream: Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. Resolution: Select the resolution of the video output.
  • Page 44: Configuring Audio Settings

    User Manual for OMNI-IP Network Cameras Scalable Video Coding is an extension of the H.264/AVC standard. Set it OFF or ON according to your actual needs. 4. Click Save to save the settings. 5.4.2 Configuring Audio Settings Steps: 1. Enter the Audio Settings interface Configuration >...
  • Page 45 User Manual for OMNI-IP Network Cameras discriminate the ROI and background information in compression, that is to say, the technology assigns more encoding resource to the region of interest to increase the quality of the ROI whereas the background information is less focused. Steps: 1.
  • Page 46: Configuring Image Parameters

    User Manual for OMNI-IP Network Cameras can choose the Image Quality Enhancing level for ROI encoding, and you can also name the ROI area. 5. Click Save to save the settings. 5.5 Configuring Image Parameters 5.5.1 Configuring Display Settings Purpose: You can set the image quality of the camera, including brightness, contrast, saturation, hue, sharpness, etc.
  • Page 47: Image Adjustment

    User Manual for OMNI-IP Network Cameras Figure 5-25 Display Settings of Day/night Auto-switch  Image Adjustment Brightness describes bright of the image, which ranges from 1~100, and the default value is 50. Contrast describes the contrast of the image, which ranges from 1~100, and the default value is 50.
  • Page 48 User Manual for OMNI-IP Network Cameras (no IR), night (IR on) or scheduled. Figure 5-26 Day/Night Switch Day, night, auto and schedule are selectable for day/night switch. Day: the camera stays at day mode. Night: the camera stays at night mode. Auto: the camera switches between the day mode and the night mode according to the illumination automatically.
  • Page 49 User Manual for OMNI-IP Network Cameras the scene affecting the image quality.  White Balance White balance is the white rendition function of the camera used to adjust the color temperature according to the environment. Figure 5-27 White Balance  Image Enhancement Digital Noise Reduction: DNR reduces the noise in the video stream.
  • Page 50: Configuring Osd Settings

    User Manual for OMNI-IP Network Cameras illumination levels. Figure 5-28 Day/Night Scheduled-Switch Configuration Interface Steps: 1. Click the time line to select the start time and the end time of the switch. 2. Click Common tab to configure the common parameters applicable to the day mode and night mode.
  • Page 51 User Manual for OMNI-IP Network Cameras Figure 5-29 OSD Settings 2. Check the corresponding checkbox to select the display of camera name, date or week if required. 3. Edit the camera name in the text field of Camera Name. 4. Select from the drop-down list to set the time format, date format, display mode and the OSD font size.
  • Page 52: Configuring Text Overlay Settings

    User Manual for OMNI-IP Network Cameras 5.5.3 Configuring Text Overlay Settings Purpose: You can customize the text overlay. Steps: 1. Enter the Text Overlay Settings interface: Configuration > Advanced Configuration > Image > Text Overlay Figure 5-31 Text Overlay 2. Check the checkbox in front of textbox to enable the on-screen display. 3.
  • Page 53: Configuring And Handling Alarms

    User Manual for OMNI-IP Network Cameras 1. Enter the Privacy Mask Settings interface: Configuration > Advanced Configuration> Image > Privacy Mask 2. Check the checkbox of Enable Privacy Mask to enable this function. 3. Click Draw Area. Figure 5-32 Privacy Mask Settings 4.
  • Page 54: Configuring Motion Detection

    User Manual for OMNI-IP Network Cameras 5.6.1 Configuring Motion Detection Purpose: Motion detection detects the moving objects in the configured surveillance area, and triggers the certain action as a respond to detection. In order to detect the moving objects accurately and reduce the false alarm rate, normal configuration and expert configuration are selectable for different motion detection environment.
  • Page 55 User Manual for OMNI-IP Network Cameras Figure 5-33 Enable Motion Detection (4)Click Draw Area. Click and drag the mouse on the live video to draw a motion detection area. (5)Click Stop Drawing to finish drawing one area. (6)(Optional) Click Clear All to clear all of the areas. (7)(Optional) Move the slider to set the sensitivity of the detection.
  • Page 56 User Manual for OMNI-IP Network Cameras (2)Choose the day you want to set the arming schedule. (3)Click to set the time period for the arming schedule. (4)(Optional) After you set the arming schedule, you can copy the schedule to other days. (5)Click OK to save the settings.
  • Page 57 User Manual for OMNI-IP Network Cameras  Audible Warning Trigger the audible warning locally. And it only supported by the device have the audio output.  Notify Surveillance Center Send an exception or alarm signal to remote management software when an event occurs.
  • Page 58 User Manual for OMNI-IP Network Cameras Figure 5-37 Expert Mode of Motion Detection  Day/Night Switch OFF Steps: (1) Draw the detection area as in the normal configuration mode. Up to 8 areas are supported. (2) Select OFF for Switch Day and Night Settings. (3) Select the area by clicking the area No.
  • Page 59 User Manual for OMNI-IP Network Cameras Figure 5-38 Day/Night Auto-Switch (3) Select the area by clicking the area No. (4) Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime. (5) Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.
  • Page 60: Configuring Video Tampering Alarm

    User Manual for OMNI-IP Network Cameras Figure 5-39 Day/Night Scheduled-Switch (3) Select the start time and the end time for the switch timing. (4) Select the area by clicking the area No. (5) Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime.
  • Page 61: Configuring Alarm Input

    User Manual for OMNI-IP Network Cameras Figure 5-40 Video Tampering Alarm 2. Check Enable Video Tampering checkbox to enable the video tampering detection. 3. Set the video tampering area; refer to Task 1 Set the Motion Detection Area in Section 6.6.1. 4.
  • Page 62: Configuring Alarm Output

    User Manual for OMNI-IP Network Cameras (Normally Open) and NC (Normally Closed). Edit the name to set a name for the alarm input (optional). Figure 5-41 Alarm Input Settings 3. Click Edit to set the arming schedule for the alarm input. Refer to Task 2 Set the Arming Schedule for Motion Detection in Section 6.6.1.
  • Page 63: Handling Exceptions

    User Manual for OMNI-IP Network Cameras Configuration>Advanced Configuration> Events > Alarm Output 2. Select one alarm output channel in the Alarm Output drop-down list. You can also set a name for the alarm output (optional). 3. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual.
  • Page 64: Configuring Line Crossing Detection

    User Manual for OMNI-IP Network Cameras Steps: 1. Enter the Exception Settings interface: Configuration > Advanced Configuration> Events > Exception 2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Task 3 Set the Alarm Actions Taken for Motion Detection in Section 6.6.1. Figure 5-43 Exception Settings 3.
  • Page 65: Configuring Intrusion Detection

    User Manual for OMNI-IP Network Cameras Figure 5-44 Draw Crossing Line And you can select the directions as A<->B, A ->B, and B->A. A<->B: The arrows on both the A and B side show. When an object crosses the plane in either direction it can be detected and alarms are triggered.
  • Page 66 User Manual for OMNI-IP Network Cameras This function can be used for detecting whether there are people, vehicles and objects entering into and remaining in the pre-defined region longer than a set duration. You can set the duration for the alarm response actions, such as full screen monitoring, audible warning.
  • Page 67 User Manual for OMNI-IP Network Cameras You can click Clear to clear the area you have drawn. The detection area parameters can be set separately.  Threshold: Range [0-10s], the threshold for the time the object loiters in the region. If you set the value as 0, alarm is triggered immediately after the object enters the region.
  • Page 68 User Manual for OMNI-IP Network Cameras...
  • Page 69: Chapter 6 Storage Settings

    User Manual for OMNI-IP Network Cameras Chapter 6 Storage Settings Before you start: To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your camera. 6.1 Configuring NAS Settings Before you start: The network disk should be available on the network and properly configured to store the recorded files, log files, etc.
  • Page 70 User Manual for OMNI-IP Network Cameras creating the file path. (4) Click Save to add the network disk. 2. Initialize the added network disk. (1) Enter the HDD Settings interface (Advanced Configuration > Storage > Storage Management), in which you can view the capacity, free space, status, type and property of the disk.
  • Page 71: Configuring Recording Schedule

    User Manual for OMNI-IP Network Cameras Figure 6-4 Quota Settings Notes:  Up to 8 NAS disks can be connected to the camera.  To initialize and use the SD card after insert it to the camera, please refer to the steps of NAS disk initialization.
  • Page 72 User Manual for OMNI-IP Network Cameras Figure 6-5 Recording Schedule Interface 2. Check the checkbox of Enable Record Schedule to enable scheduled recording. 3. Set the record parameters of the camera. Figure 6-6 Record Parameters  Pre-record: The time you set to start recording before the scheduled time or the event.
  • Page 73 User Manual for OMNI-IP Network Cameras or 10 min. Note: The record parameter configurations vary depending on the camera model. 4. Click Edit to edit the record schedule. Figure 6-7 Record Schedule 5. Choose the day to set the record schedule. (1) Set all-day record or segment record: ...
  • Page 74 User Manual for OMNI-IP Network Cameras  Record Triggered by Motion Detection If you select Motion Detection, the video will be recorded when the motion is detected. Besides configuring the recording schedule, you have to set the motion detection area and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection Settings interface.
  • Page 75: Configuring Snapshot Settings

    User Manual for OMNI-IP Network Cameras Figure 6-8 Edit Record Schedule (3) Check the checkbox of Select All and click Copy to copy settings of this day to the whole week. You can also check any of the checkboxes before the date and click Copy.
  • Page 76 User Manual for OMNI-IP Network Cameras Check the Enable Event-triggered Snapshot checkbox to check event-triggered snapshot. 3. Select the quality of the snapshot. 4. Set the time interval between two snapshots. 5. Click Save to save the settings. Uploading to FTP You can follow below configuration instructions to upload the snapshots to FTP.
  • Page 77 User Manual for OMNI-IP Network Cameras Figure 6-9 Snapshot Settings...
  • Page 78: Chapter 7 Playback

    User Manual for OMNI-IP Network Cameras Chapter 7 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks or SD cards. Steps: 1. Click Playback on the menu bar to enter playback interface. Figure 7-1 Playback Interface 2.
  • Page 79 User Manual for OMNI-IP Network Cameras Figure 7-3 Playback Toolbar Table 7-1 Description of the buttons Button Operation Button Operation Play Capture a picture Start/Stop clipping video Pause files Audio on and adjust Stop volume/Mute Speed down Download video files Download captured Speed up pictures...
  • Page 80: Chapter 8 Log Searching

    User Manual for OMNI-IP Network Cameras Chapter 8 Log Searching Purpose: The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand. Before you start: Please configure network storage for the camera or insert a SD card in the camera. Steps: 1.
  • Page 81: Chapter 9 Other Settings

    Chapter 9 Other Settings 9.1 Managing User Accounts Enter the User Management interface: Configuration >Basic Configuration> Security > User Or Configuration > Advanced Configuration> Security > User The admin user has access to create, modify or delete other accounts. Up to 15 user accounts can be created.
  • Page 82 User Manual for OMNI-IP Network Cameras Figure 9-2 Add a User  Modify a User Steps: 1. Left-click to select the user from the list and click Modify. 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions.
  • Page 83: Configuring Rtsp Authentication

    User Manual for OMNI-IP Network Cameras  Delete a User Steps: 1. Click to select the user you want to delete and click Delete. 2. Click OK on the pop-up dialogue box to delete the user. 9.2 Configuring RTSP Authentication Purpose: You can specifically secure the stream data of live view.
  • Page 84: Ip Address Filter

    User Manual for OMNI-IP Network Cameras Figure 9-5 Anonymous Visit 2. Set the Anonymous Visit permission Enable or Disable in the drop-down list to enable or disable the anonymous visit. 3. Click Save to save the settings. There will be a checkbox for “Anonymous” presented on the LOGIN screen when this function is active.
  • Page 85 User Manual for OMNI-IP Network Cameras Figure 9-7 IP Address Filter Interface 2. Check the checkbox of Enable IP Address Filter. 3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed are selectable. 4. Set the IP Address Filter list. ...
  • Page 86: Viewing Device Information

    User Manual for OMNI-IP Network Cameras (2) Modify the IP address in the text filed. Figure 9-9 Modify an IP (3) Click the OK to finish modifying.  Delete an IP Address Left-click an IP address from filter list and click Delete. ...
  • Page 87: Maintenance

    User Manual for OMNI-IP Network Cameras Figure 9-10 Device Information 9.6 Maintenance 9.6.1 Rebooting the Camera Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance 2. Click Reboot to reboot the network camera. Figure 9-11 Reboot the Device 9.6.2 Restoring Default Settings Steps:...
  • Page 88: Exporting / Importing Configuration File

    User Manual for OMNI-IP Network Cameras Figure 9-12 Restore Default Settings Note: After restoring the default settings, the IP address is also restored to the default IP address, please be careful for this action. 9.6.3 Exporting / Importing Configuration File Purpose: Configuration file is used for the batch configuration of the camera, which can simplify the configuration steps when there are a lot of cameras needing configuring.
  • Page 89: Upgrading The System

    User Manual for OMNI-IP Network Cameras 9.6.4 Upgrading the System Steps: 1. Enter the Maintenance interface: Configuration > Basic Configuration> System > Maintenance Or Configuration > Advanced Configuration> System > Maintenance 2. Click Browse to select the local upgrade file and then click Upgrade to start remote upgrade.
  • Page 90 User Manual for OMNI-IP Network Cameras Figure 9-15 RS-232 Settings Note: If you want to connect the camera by the RS-232 port, the parameters of the RS-232 should be exactly the same with the parameters you configured here. 2. Click Save to save the settings.
  • Page 91: Appendix

    User Manual for OMNI-IP Network Cameras Appendix Appendix 1 SADP Software Introduction  Description of SADP OMNI Finder (formerly SADP - Search Active Devices Protocol) is a user-friendly and installation-free online device search/discovery tool. It searches the active online devices within your subnet and displays information about the devices. You can also modify the basic network information of the devices using this software.
  • Page 92 User Manual for OMNI-IP Network Cameras newly discovered devices will be added to the list. Note: You can click on each column heading to order the information; you can click to expand the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 93 User Manual for OMNI-IP Network Cameras 2. Contact our technical engineers with your serial number and date to get a serial code. 3. Input the code in the Serial code field and click Confirm to restore the default password. This code is only valid for the specific date; the date is typically the day on which the unit was last rebooted.
  • Page 94: Appendix 2 Port Mapping

    User Manual for OMNI-IP Network Cameras Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-WR641G). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
  • Page 95 User Manual for OMNI-IP Network Cameras another camera as 81, 8001, 555, 8201 with IP 192.168.1.24. Refer to the steps as below: Steps: 1. As the settings mentioned above, map the port 80, 8000, 554 and 8200 for the network camera at 192.168.1.23 2.
