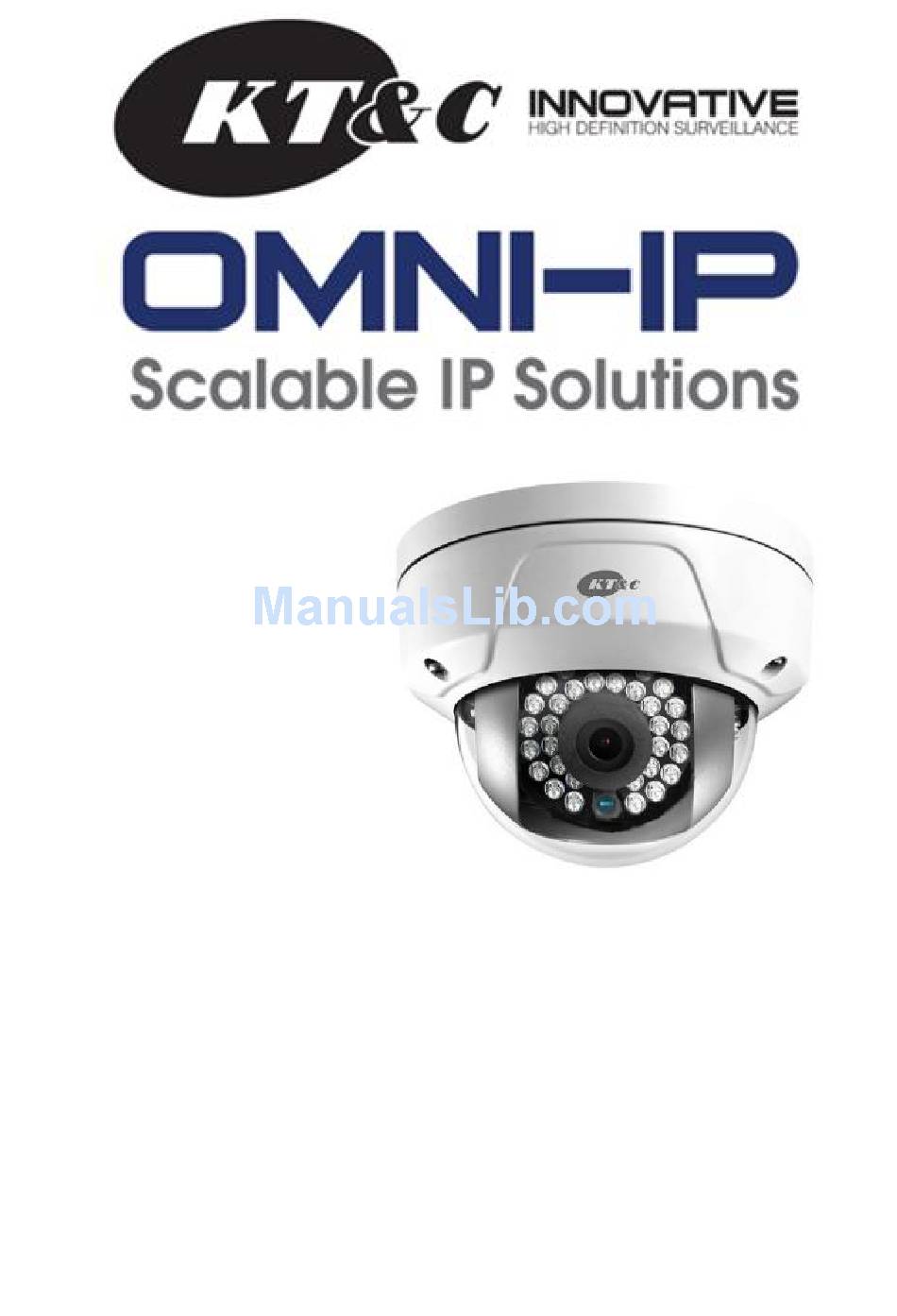

- Page 1 KNC-p3DR3IR KNC-p3DR4IR KNC-p3DR6IR KNC-p3DR12IR 3 Megapixel Plug & Play Capable 3-Axis IP66 IR Mini IP Dome Cameras with SD Quick Operation Guide...
- Page 2 KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide Thank you for selecting this KT&C Omni IP Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service.
-
Page 3: Regulatory Information
KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 KNC-p3DR_IR IP 3-Axis Mini Dome Camera with SD·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instructions
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 6 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide according to the IEC60950-1 standard; or 802.3af PoE. Please refer to technical specifications for detailed information. ● If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load.
- Page 7 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide (which is not a malfunction), and could compromise the performance of the sensor. ● The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam.
-
Page 8: Table Of Contents
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Table of Contents 1 Appearance and Description ............8 2 Installation ..................10 Mounting ..............11 Micro SD Card Installation ..........16 3 Setting the Camera Parameters over the LAN ......18... -
Page 9: Appearance And Description
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide 1 Appearance and Description Figure 1-1 Overview Table 1-1 Description Description Camera Base Rotation Mechanism Pan/Tilt Mechanism... - Page 10 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Description Cover and Dome Bubble Power/Network Cables IR LEDs Lens Dome Liner (conceals direction) Safety Cord Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
-
Page 11: Installation
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide 2 Installation Before you start: This is a 3-axis camera, so mounting to the ceiling or wall is suitable. Make sure the camera is in good condition and all the accessory parts are included. -
Page 12: Mounting
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide installation is finished. If there is dust or grease on the lens/dome cover, clean the lens/dome cover with clean soft cloth and isopropyl alcohol. ● Make sure that there is no reflective surface too close to the camera lens. - Page 13 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide 2. Loosen the cover screws with a hex key (supplied) to remove the cover and dome bubble. Figure 2-2 Remove the Bubble 3. Attach the mounting base on the wall or ceiling with screws and anchors if required.
- Page 14 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide If surface mounting, you can route the cable through the side opening in the mounting base. Side Opening Figure 2-4 Side Opening 4. Loosen the tilt lock screws, adjust the tilt position in a range of 75 degrees, and tighten the tilt lock screws.
- Page 15 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Figure 2-6 3-Axis Angle Adjustment – Liner Removed As the lens has already been factory adjusted to the best imaging effect, you just need to adjust the pan position and tilt position to get the desired field of view.
- Page 16 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Bubble Reinstallation...
-
Page 17: Micro Sd Card Installation
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Micro SD Card Installation Steps: 1. Loosen the lock screws on the bubble to disassemble the camera. Disassemble the Camera 2. Insert the micro SD card to the card slot. 3. (Optional) Push the inserted micro SD card inside, and the micro SD card will be sprung out. - Page 18 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Insert the Micro SD Card 4. Install the bubble back, and tighten the lock screws on it. Install the Bubble...
-
Page 19: Setting The Camera Parameters Over The Lan
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide 3 Setting the Camera Parameters over the LAN Purpose: To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the OMNI Finder or OMNI CMS software to search and change the IP of the network camera. - Page 20 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Use OMNI CMS software and to list the online devices. Please refer to the user manual for the OMNI CMS software for detailed information. 2. Change the IP address and subnet mask to the same subnet as that of your computer, or change your computer to match the address/subnet of the camera.
- Page 21 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Figure 3-2 Search Online Devices Devices can be discovered and displayed in the list in 15 seconds after they go online; devices will be removed from the list in 45 seconds after going offline. Search online devices manually:...
- Page 22 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click...
- Page 23 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters 4) Enter the IP address of network camera in the address field of the web browser to view the live video.
-
Page 24: Accessing Via Web Browser
KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”. For accessing the network camera from different subnets, please set the gateway for the network camera after you log in. 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version /... - Page 25 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- It is recommended to close the web browser before finishing the installation of the plug-in.
- Page 26 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
- Page 27 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For more detailed instructions about further configuration, please refer to the user manual for this series of network cameras.
- Page 28 KNC-p3DR_IR IP Mini Dome Camera·Quick Operation Guide...
