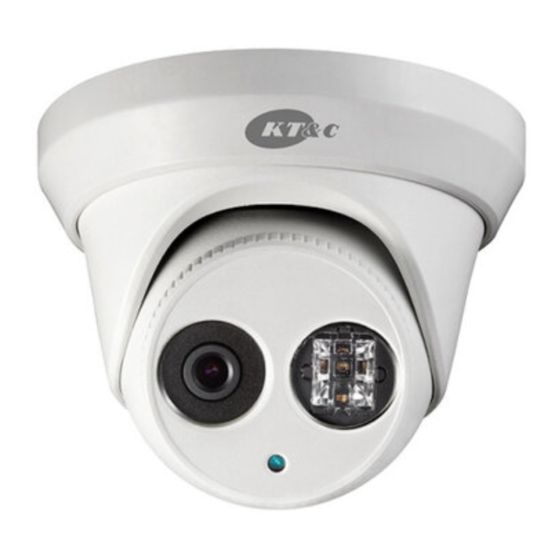

- Page 1 KNC-p3TR3XIR KNC-p3TR4XIR KNC-p3TR6XIR 3 Megapixel Plug & Play Capable IP66 EXIR IP Turret Cameras Quick Operation Guide...
- Page 2 KNC-p3TR_XIR IP Turret Camera·Quick Operation Guide Thank you for selecting this KT&C Omni IP Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.
-
Page 3: Regulatory Information
KNC-p3TR_XIR IP Turret Camera·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 KNC-p3TR_XIR IP Turret Camera·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instructions
KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions”... - Page 6 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide according to the IEC60950-1 standard; or 802.3af PoE. Please refer to technical specifications for detailed information. ● If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load.
- Page 7 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide (which is not a malfunction), and could compromise the performance of the sensor. ● The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam.
- Page 8 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Table of Contents 1 Appearance and Description ............8 2 Installation ..................10 3 Setting the Network Camera over the LAN ..Error! Bookmark not defined. 4 Accessing via Web Browser ....Error! Bookmark not defined.
- Page 9 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide 1 Appearance and Description Figure 1-1 Overview Table 1-1 Description Description 10M/100M self-adaptive Ethernet interface Power Cable Trim Ring...
- Page 10 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Description Lens IR LED Enclosure Dome Drive Please make sure that the power adapter is compatible with the camera. This series of camera supports Power over Ethernet (PoE), and the standard power supply is 12 VDC.
- Page 11 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide 2 Installation Before you start: Make sure the camera is in good condition and all the accessory parts are included. Make sure all related equipment is powered-off during the installation. ...
- Page 12 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing haze, distortion or improper scene exposure. ●...
- Page 13 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Drill the screw holes and the cable hole on the wall or ceiling according to the drill template. Figure 2-2 The Drill Template There are two cable outlet methods. One is to route the cables through the cable hole, and the other is to route the cables through the side outlet shown below.
- Page 14 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Three side outlets on the enclosure are available, which makes routing the cables easier if surface wiring will be used. Use a plier to remove the plastic where it covers the wire outlet, and route the cables through the hole.
- Page 15 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide 2). Rotate the camera module to adjust the pan angle and the tilt angle. 3). Tighten the lock screw to fix the desired surveillance angle. Lock Screw Figure 2-5 Lock Screw Figure 2-6 Adjust the Direction...
- Page 16 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Attach the trim ring to the camera and rotate the trim ring clockwise secure it. Figure 2-7 Replace the Trim Ring Figure 2-8 Completed Installation...
- Page 17 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide 3 Setting the Camera Parameters over the LAN Purpose: To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the OMNI Finder or OMNI CMS software to search and change the IP of the network camera.
- Page 18 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Use OMNI CMS software and to list the online devices. Please refer to the user manual for the OMNI CMS software for detailed information. 2. Change the IP address and subnet mask to the same subnet as that of your computer, or change your computer to match the address/subnet of the camera.
- Page 19 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Figure 3-2 Search Online Devices Devices can be discovered and displayed in the list in 15 seconds after they go online; devices will be removed from the list in 45 seconds after going offline. Search online devices manually:...
- Page 20 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click...
- Page 21 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters 4) Enter the IP address of network camera in the address field of the web browser to view the live video.
-
Page 22: Accessing Via Web Browser
KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”. For accessing the network camera from different subnets, please set the gateway for the network camera after you log in. 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version /... - Page 23 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- It is recommended to close the web browser before finishing the installation of the plug-in.
- Page 24 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
- Page 25 KNC-p3TR_XIR IP Turret Camera · Quick Operation Guide Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For more detailed instructions about further configuration, please refer to the user manual for this series of network cameras.
