KT&C KNC-SPDNi120HD Installation Manual

M e g a P ix e l Ne two rk Cam er a

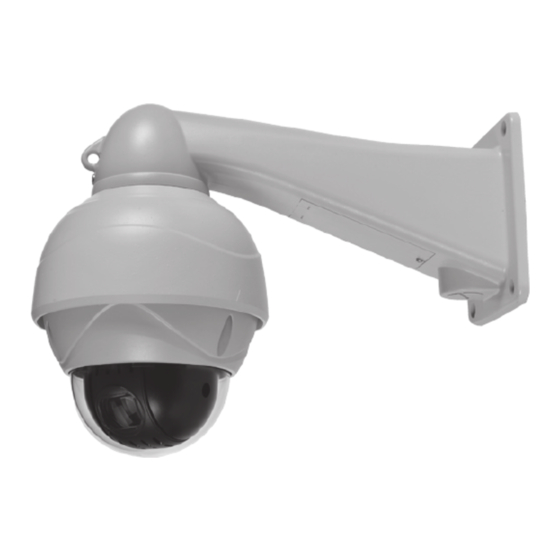

IP PTZ SPEED DOME
Installation Guide
Table of Contents
INTRODUCTION
PACKAGE CONTENTS
HARDWARE INSTALLATION
IP ADDRESS ASSIGNMENT
Introduction
IP PTZ SPEED DOME Installation Guide
This installation guide provides instructions for installing the Network
Camera on your network. For all other aspects of using the product,
please see the User's Manual, available on the CD included in this
package, or from http://www.ktnc.co.kr
Installation Steps
1. Check the package contents against the list below.
2. Read the product description.
3. Install the hardware, and set RS485 Device Configuration.
4. Set an IP address
5. Set the admin and user ID and password. (See User's Manual)
Im po r t a nt !
This product must be used in compliance with local laws and regulations.
Package Contents
Camera Wall Mount Bracket Software CD
Terminal Block(5p)
Screws(4ea)
Washers(4ea)
Terminal Block(2p)
Terminal Block(2p)
Plastic
Anchors(4ea)
Ferrite Core
Coupler
L-Wrench
Screws / Plastic Anchors / L-wrench / Washers / RJ45 coupler
M156 -I PP TZ1 2 - 00 3
Connection
Connection Interface and Wiring cables
* Caution
Do not connect the power cable until all other connections have
been completed.
After removing the protection sheet (PE form), supply the power to
the dome camera.
Connecting the RS-485 lines
The dome camera can be controlled remotely by an external device
or control system such as a controller using RS-485 half duplexer
(RS-485 Connection). A repeater is recommended to extend the
connect ion over 1.2 Km.
Connecting Video, Audio In/Out
- Connect the video jack (BNC connector) to the portable display
device (BNC out of the dome camera is provided for installation
and is not recommended for monitoring purposes)
- Connect the audio-in jack(3.5mm) to line level audio source or
MIC.
- Connect the audio-out jack(3.5mm) to speaker.
Connecting Alarms
- Alarm In: You can use external devices to trigger the dome
camera to react to events. Mechanical or electrical switches can be
wired to the AL0 and GND_ARM.
- Alarm Out: The dome camera can activate external devices such
as a buzzer.
Connect the device to NO (or NC) and COM pins.
Connecting the network and the power
The Network Camera connects to the network via a standard
network cable, and automatically detects the speed of the local
network segment (10BaseT/100BaseTX Ethernet). PoE Supported.
If in a non-PoE power supply environment, connect the power
jack(2P-terminal block) to the AC 24V power supply. A regulated
AC24V 2A(With Heater) power supply is recommended for use with
this camera for the most stable operation.

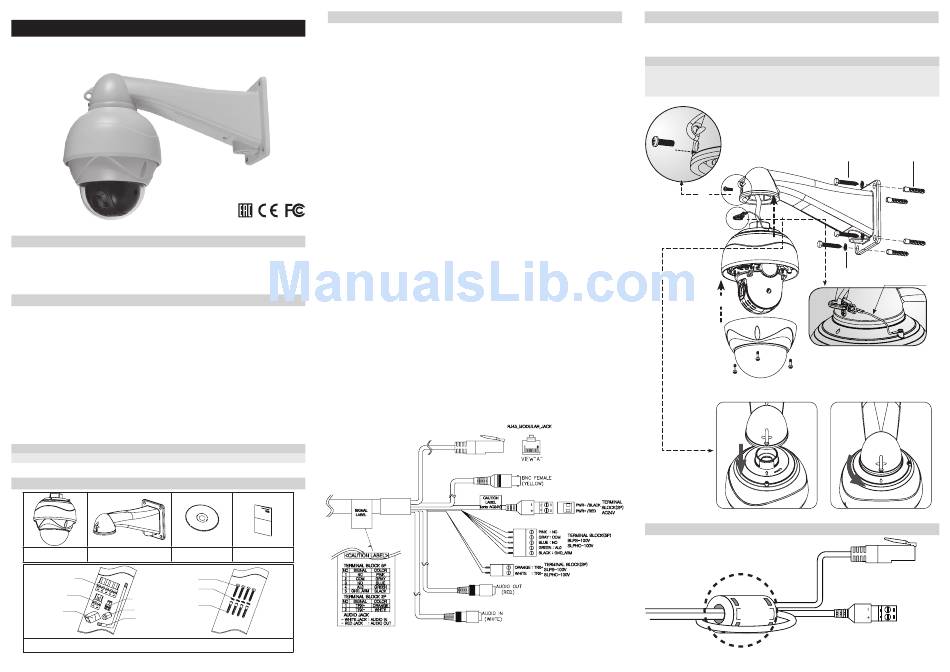

Installation Guide
Hardware Installation
IP PTZ SPEED DOME is designed to be installed using a standing bracket on
the wall or ceiling.
Note:
• It is recommended that megapixel lens be used to optimize performance.
• Please keep the lens clean.
• Any foreign objects and finger marks on the lens can cause inferior image quality in low light
level conditions
③
②
①
Connect the Camera Safety Wire
Ferrite Core
In order to reduce the generation of unnecessary signals, Pass the AC 24V and network cable
through the ferrite core and connect it as the drawing.
Screws(4ea) Plastic anchors(4ea)
Washers(4ea)
Safety Wire
to the Installation Base.
