KT&C KNC-HMB6319-iWX Installation Manual

Megapixel Network Camera
Installation Guide
2M Pixel Mini Bullet IP Camera
CAUTIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
1) This device may not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
Note -
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Caution -
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
For Your Safety
1) All warnings and instructions in this manual should be followed.
2) Save this manual for future reference.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) To help prevent electric shock, plug the equipment and peripheral power cables into properly polarized or grounded
electrical outlets.
A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong.
These cables are equipped with the wide blade or the third prong to ensure proper grounding. Do not use adapter plugs
or remove the grounding prong from a cable. If the provided plug does not fit your outlet, consult an electrician.
10) Ensure that nothing rests on your equipment's cables and that the cables are not located where they can be stepped
on, tripped over, or pinched.
11) Only use attachments or accessories as specified by the manufacturer.
12) Only use the equipment with the cart, stand, tripod, bracket, or table that is specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution to prevent the cart from tipping over and to avoid injury.
13) Do not connect or disconnect during lightning storms due to risk of electric shock.
14) If any of the following conditions occur, unplug the equipment from the electrical outlet and replace the part or
contact your trained service provider:
• The power cable, extension cable, or plug is damaged.
• An object has fallen into the equipment.
• The equipment has been exposed to water.
• The equipment has been dropped or damaged.
• The equipment does not operate correctly when you follow the operating instructions.
M363-HMB6319-001
1. Introduction
This installation guide provides instructions for installing the 2M Pixel Mini Bullet IP Camera on your network. Please
see the user guide for all other aspects of using the product.
Installation Steps
1. Check the list below and the package contents.
2. Read the Product description.
3. Install the hardware.
4. Assign an IP address if needs to. (DHCP is the default)
5. Set the admin and user ID and password. (see User Manual)
Important! : This product should be used in compliance with local laws and regulations.

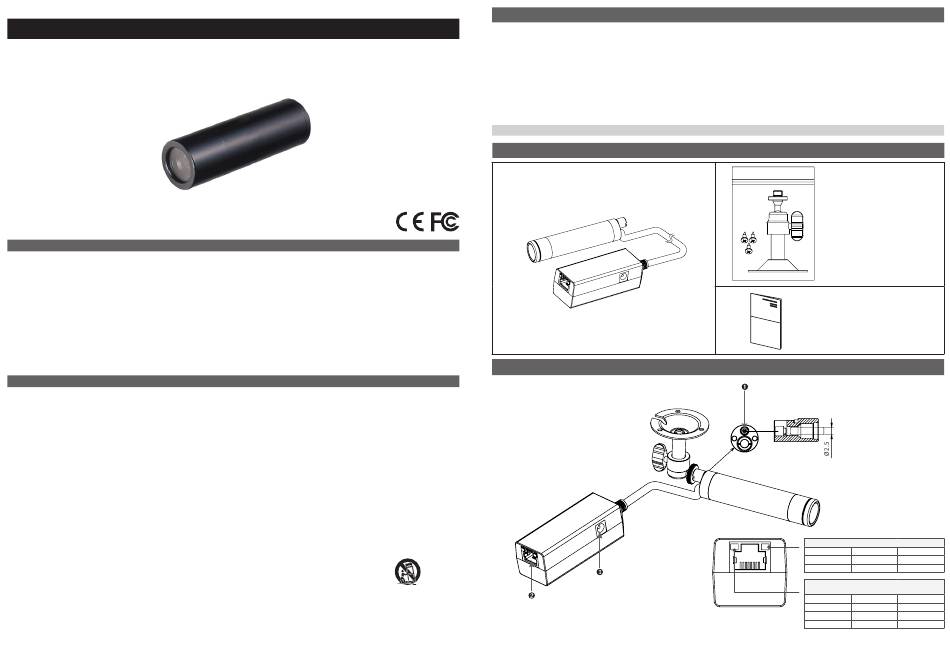

2. Package Contents
3. Product Description
Nework Connector
1. Reset Button - This button sets the camera configuration to the factory default state.
2. Network Connector - You can connect a CAT5 or CAT6 cable here. PoE integrated.
3. Power Input (DC12V) - the DC12V power supply is available.
Camera
Reset Button
Use tool size Ø2.5 for reset button.
(Using too thin or sharp tool may cause problems).
Power Input - DC12V
Mount Bracket
Manual
Yellow LED : Camera pin number 7(LED 1) : Speed
Speed Pin State LED Definition
10Base-T High OFF
100Base-TX Low ON
Green LED : Camera pin number 8(LED 0) : Link/
Activity
Link/Activity Pin State LED Definition
No link High OFF
Link Low ON
Activity Toggle Blinking
