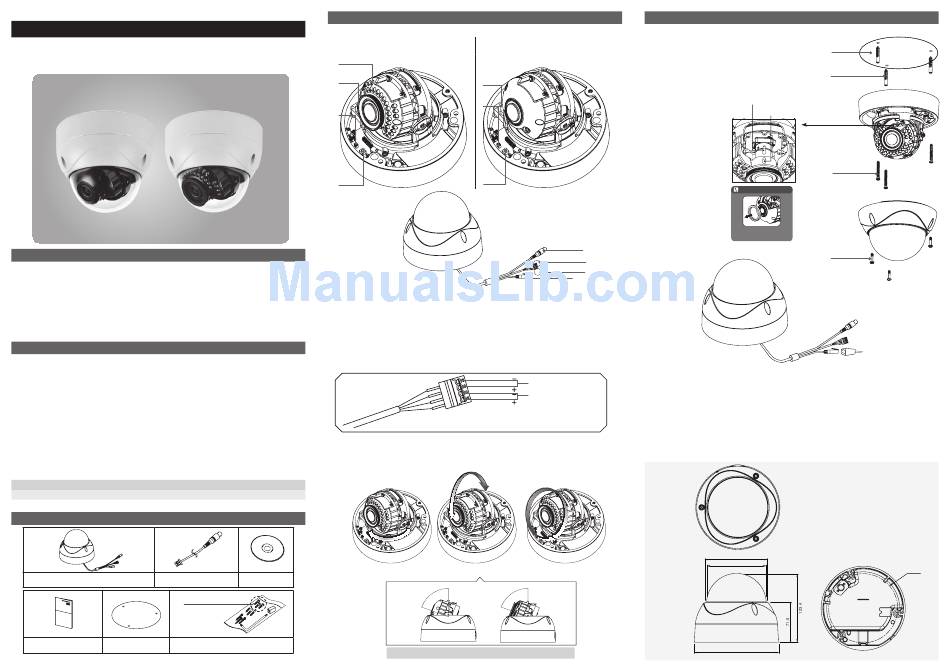

KT&C KNC-VDi100HD Installation Manual

Megapixel Network Camera
KNC-VDi100HD/KNC-VNi100HD
KNC-VDi120HD/KNC-VNi120HD
Installation Guide
Table of Contents
1.INTRODUCTION
2.PACKAGE CONTENTS
3.PRODUCT DESCRIPTION
4.INSTALL THE HARDWARE
5.ASSIGN AN IP ADDRESS
6.TERMINAL BLOCK CONNECTORS
1. Introduction
KNC-VDi100HD,KNC-VNi100HD,KNC-VDi120HD,KNC-VNi120HD Installation Guide
This installation guide provides instructions for installing the Network Camera on your
network. For all other aspects of using the product, please see the User's Manual,
available on the CD included in this package, or from http://www.ktnc.co.kr
Installation steps
1. Check the package contents against the list below.
2. Product description.
3. Install the hardware.
4. Set an IP address.
5. Set the admin and user ID and password, See User's Manual.
Im por tant!
This product must be used in compliance with local laws and regulations.
2. Package Contents
Network Camera Video Output Test Cable
When using Wall Mount Bracket
Installation Guide Template
M121-VDi100/120HD-001
3. Product Description
Description and function
LED Type:
KNC-VNi100HD, KNC-VNi120HD
❶
❷
❸
❹
1. Infrared LED – These LEDs emit infra red radiations.
2. Cooling fan – Cools the components and prevents them from overheating.
3. Service Video Connector – Outputs video to the monitor.
4. Reset Button – Resets the product to the factory default settings.
5. Power Input(DC12V) – Connect DC 12V power.
6. Digital Input – Connect signal from external sensor.
7. Digital Output – Connect signal to external alarm. (Max. current - DC 12V, 70mA)
8. Network Connector –
The Network Camera connects to the network via a standard network cable, and
automatically detects the speed of the local network segment
(10BaseT/100BaseTX Ethernet). PoE Supported
3-Axis Gimbal
Software CD
Screws / Plastic anchors /
Wrench / RJ45 Coupler
Standard Type:
KNC-VDi100HD, KNC-VDi120HD
❷
❸
❹
Digital Input
Digital Output
Pan Rotation Tilt Rotation
Horizontal Rotation
Tilting angle
70 ˚
70 ˚
CAUTION panning(Pan + Horizontal) the bracket in excess of 1 rotations in one direction
may cause damage to the cable.
4. Install the hardware
KNC-VDi100HD, KNC-VNi100HD, KNC-VDi120HD, KNC-VNi120HD are designed to be installed using
a template as shown below.
1. Template – To mount the camera.
2. Plastic Anchors(3ea) – To secure the camera to
the template.
3. Screws(3ea) - To secure the camera to the template.
4. Screws(3ea) – Screws to secure the camera case
Lens Zoom Knob
NOT E
When using the camera
without LED take off the rubber.
Connection
❺
❻
❼
❽
1. Connect the camera to the network using a UTP cable (CAT.5), Power can be supplied via
the network cable (PoE)
2. Connect DC 12V to the power terminal. This is not necessary if the Network Camera is
connected to PoE hub or midspan.
3. Check that the indicator LEDs indicates the correct conditions.
4. Connect the analog monitor to the service video connector for adjusting focus and press and quickly
release the reset switch for focus assistant mode.
Then you can select normal view or focus view mode using the reset switch.
Caution: When you use focus assistant mode, "Focus View" mode is recommended for more exact focus.
Caution: Focus assistant mode will be automatically exited after 3 minutes for normal operation.
Dimensions
Ø112.8
Ø107
Ø151
❶
❷
Lens Focus Knob
❸
❹
Ø124
