Summary of Contents for Gefen EXT-3GSDI-144

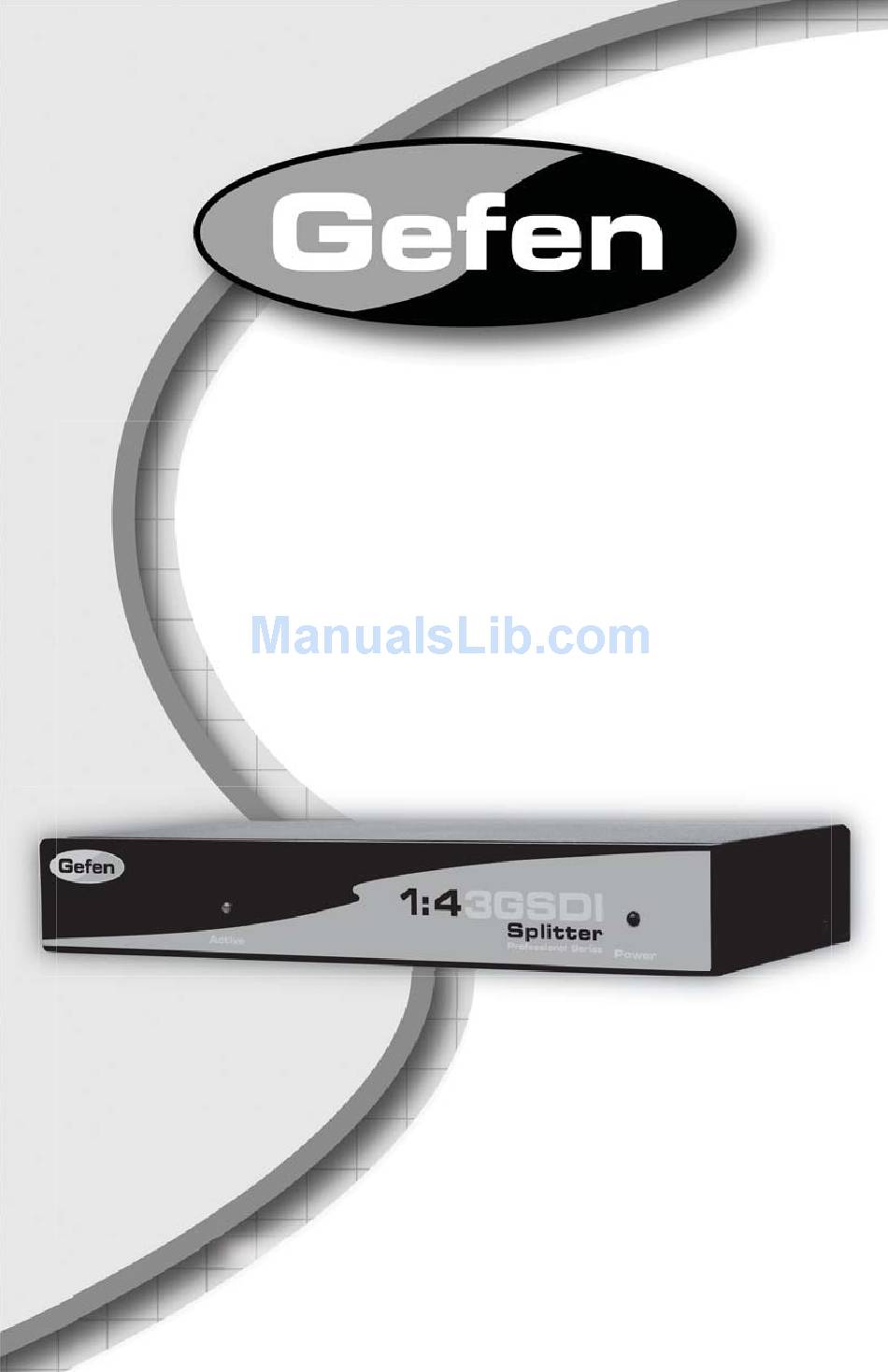

- Page 1 1:4 3GSDI Splitter EXT-3GSDI-144 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:4 3G-SDI Splitter is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 1:4 3G-SDI Splitter Specifi cations Warranty... -
Page 4: Introduction
SDI Devices. Once the source, the SDI devices and the Splitter are powered and connected, your source’s video will be distributed simultaneously in pristine color and detail. Note: Gefen’s 1:4 3G-SDI Splitter is backwards compatible with all Gefen legacy SDI equipment and signal types. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 3G-SDI SPLITTER • The 1:4 3G-SDI Splitter will mirror its input to up to four outputs. There is no scaling functionality built into this unit. Please ensure that the output 3G-SDI, HD-SDI or SDI device is capable of accepting the same timings and resolutions of the input source. -
Page 6: Features
FEATURES Features • Easily distribute one 3G-SDI source to four 3G-SDI devices • Streamlines wiring • Distributes video instantaneously Package Includes (1) 1:4 3G-SDI Distribution Amplifi er (1) 5v Power Supply (1) User’s Manual... -
Page 7: Panel Layout

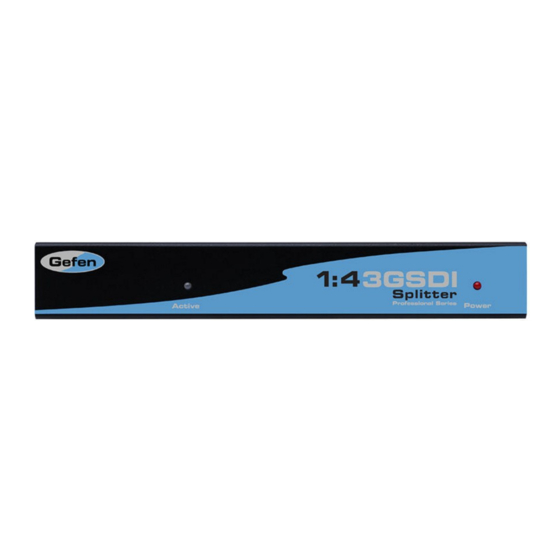

PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS LED Active Indicator This LED will become active once a valid input signal is input and detected. LED Power Indicator This LED will become active once the included 5V DC power supply is properly connected between the sender and an open wall power socket. 3G-SDI Input This input will accept a single 3G-SDI, HD-SDI or SDI source device. -
Page 9: Connecting And Operating The 1:4 3G-Sdi Splitter
CONNECTING AND OPERATING THE 1:4 3G-SDI SPLITTER How to Connect the 1:4 3G-SDI Splitter Connect a 3G-SDI, HD-SDI or SDI source device to the 1:4 3G-SDI Splitter’s single input using a user supplied cable. Connect up to four 3G-SDI, HD-SDI or SDI capable devices to the 1:4 3G-SDI Splitter’s outputs using user supplied cables. -
Page 10: Specifi Cations
SPECIFICATIONS Input/Output Formats: SDI - SMPTE 259M-C (270Mbps); HD-SDI -SMPTE 292M (1.485, 1.485/1.001 Gbps); HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps) Supported Formats ......NTSC, PAL & and all HD formats to 1080p Power Supply ....................5V DC Power Consumption ............... 10 Watts (max) Dimensions ................
