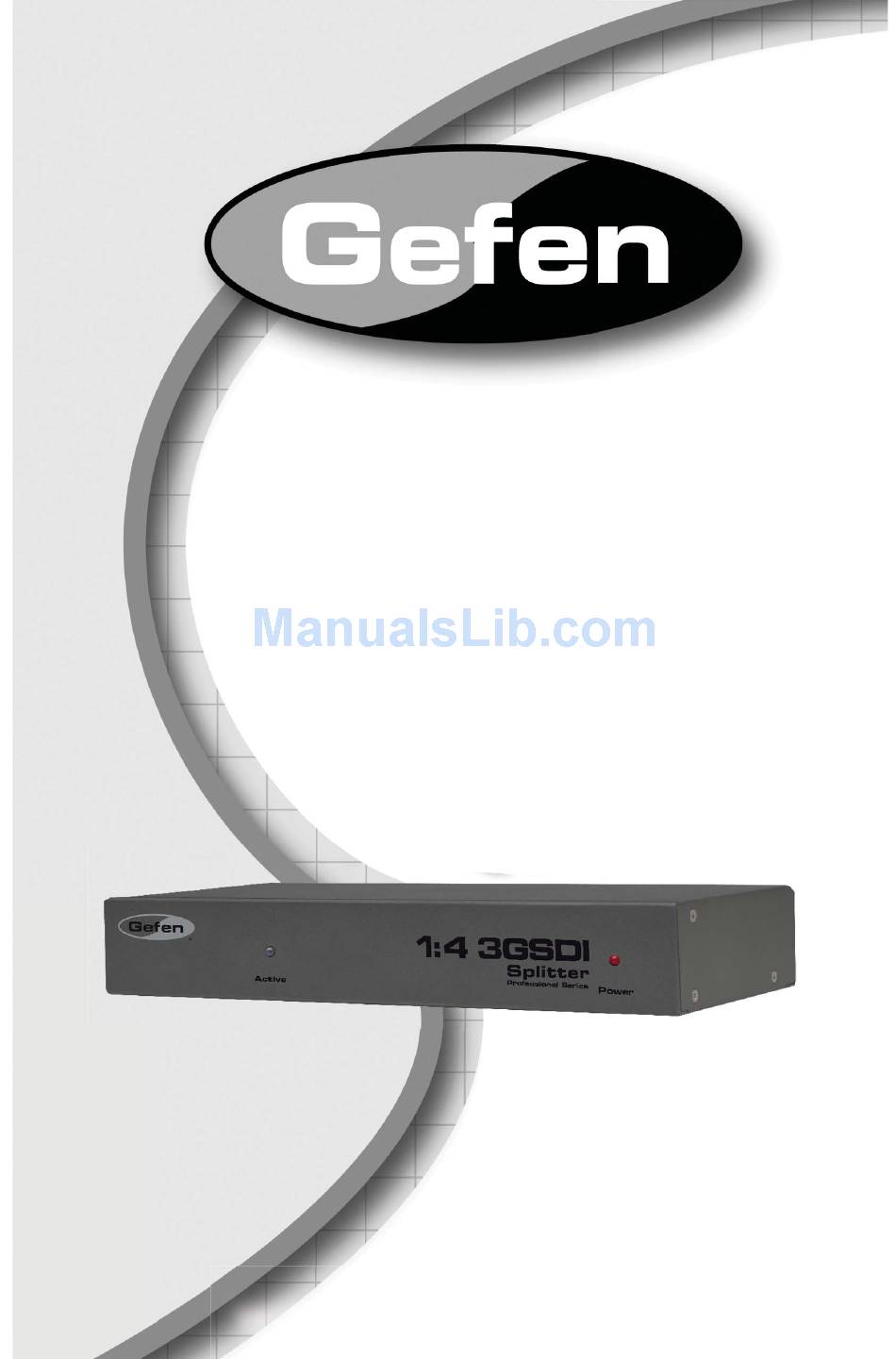

- Page 1 1:4 3GSDI Splitter EXT-3GSDI-144 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 1:4 3GSDI Splitter is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 1:4 3GSDI Splitter Specifi cations Warranty... -
Page 4: Introduction
SDI Devices. Once the source, the SDI devices and the Splitter are powered and connected, your source’s video will be distributed simultaneously in pristine color and detail. Note: Gefen’s 1:4 3GSDI Splitter is backward-compatible with all Gefen legacy SDI equipment and signal types. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 3GSDI SPLITTER • The 1:4 3GSDI Splitter will mirror its input on up to four outputs. There is no scaling functionality built into this unit. Please ensure that the output 3G-SDI, HD-SDI or SDI device is capable of accepting the same timings and resolutions of the input source. -
Page 6: Features
FEATURES Features • Easily distribute one 3G-SDI source to four 3G-SDI devices • Streamlines wiring • Distributes video instantaneously Package Includes (1) Gefen 1:4 3GSDI Splitter (1) 5V DC Locking Power Supply (1) User Manual... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS LED Active Indicator This LED will become active once a valid input signal is input and detected. LED Power Indicator This LED will become active once the included 5V DC power supply is properly connected between the sender and an open wall power socket. 3G-SDI Input This input will accept a single 3G-SDI, HD-SDI or SDI source device. -
Page 9: Connecting And Operating The 1:4 3Gsdi Splitter
How to Operate the 1:4 3GSDI Splitter There are no further confi gurations necessary to operate the 1:4 3GSDI Splitter. Wiring Diagram for the 1:4 3GSDI Splitter SDI CABLE 3G-SDI Source Splitter 3G-SDI Display 3G-SDI Display 3G-SDI Display 3G-SDI Display EXT-3GSDI-144... -
Page 10: Specifi Cations
SPECIFICATIONS Input/Output Formats: • SDI (SMPTE 259M, up to 360 Mbps) • HD-SDI (SMPTE 292M, up to 1.485 Gbps) • 3G-SDI (SMPTE 424M/425M, up to 3.0 Gbps) Supported Formats ......NTSC, PAL & and all HD formats to 1080p Input/Output Connectors: ................BNC Power Supply .................... -
Page 11: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
