- Page 1 ® 1:2 DVI SL Splitter EXT-DVI-142SL User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:2 DVI SL Splitter is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 1:2 DVI SL Splitter Specifi cations Warranty Troubleshooting... -
Page 4: Introduction
Single Link DVI display such as a projector or another Single Link DVI monitor. Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Includ- ed in that price is a lifetime of support from a team of outstanding engineers. -
Page 5: Features
FEATURES Features • Splits a Single Link DVI signal to two or more Single Link DVI displays • Uses high quality DVI cables for connections • Allows simultaneous display • Supports 720P, 1080i, and 1080P resolutions • Supports HDCP pass-through for output one •... -
Page 6: Panel Descriptions

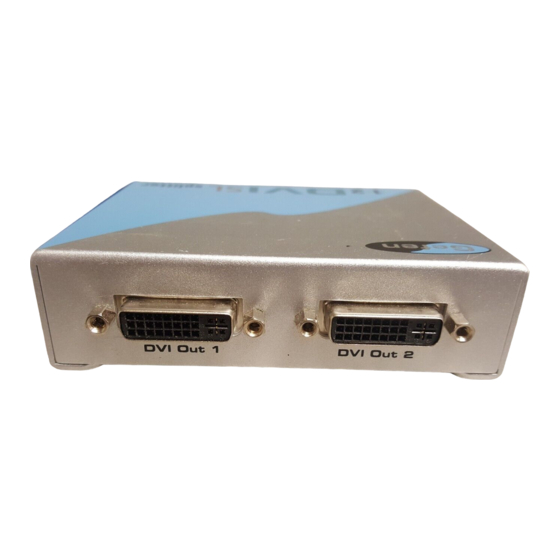

PANEL DESCRIPTIONS Front Status LEDs 5V Power Input DVI In Input Equalization Adjustment Rear DVI Out 1 DVI Out 2... -
Page 7: Connecting And Operating The 1:2 Dvi Sl Splitter
CONNECTING AND OPERATING THE 1:2 DVI SL Splitter How to Connect the 1:2 DVI SL Splitter to your devices 1- Connect the supplied Single Link DVI cable from the back of the computer into the input of the 1:2 DVI SL Splitter. 2- Connect the cable from your fi... -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................165 MHz Single Link Range ............ 1080p /1920 x 1200 @ 60Hz DVI Input/Output Connector ......DVI-I (29 pin) female (Digital Only) Power Consumption ............... 15 Watts (max) Power Supply ....................5V DC Dimensions ................4"W x 1"H x 3.2” D Shipping Weight ..................... -
Page 9: Troubleshooting
TROUBLESHOOTING Internal equalization control for the 1:2 DVI SL Splitter If you can't get the video noise to clear by adjusting the external equalization trim pot, you can adjust the internal equalization trim pots to remove video noise per each output. Internal Equalization Knob for DVI Output 1 Internal Equalization Knob for DVI Output 2 The internal E.Q.
