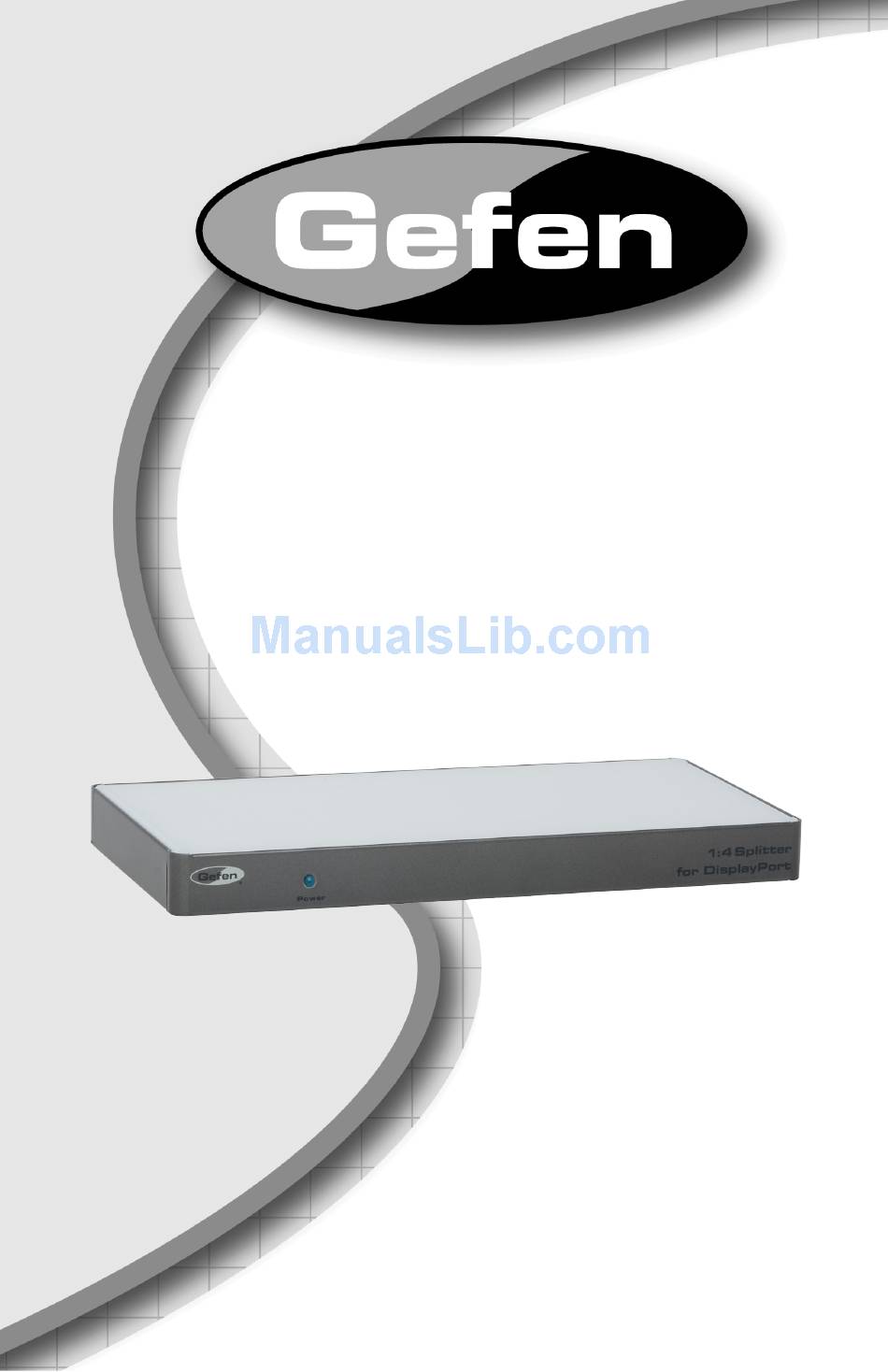

- Page 1 ® 1:4 Splitter DisplayPort EXT-DP-144 User Manual www.gefen.com...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. 1:4 Splitter for DisplayPort is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Front Panel Layout Front Panel Descriptions Back Panel Layout Back Panel Descriptions Connecting the 1:4 Splitter for DisplayPort Wiring Diagram EDID Management 11 Specifications 12 Warranty... -
Page 5: Introduction

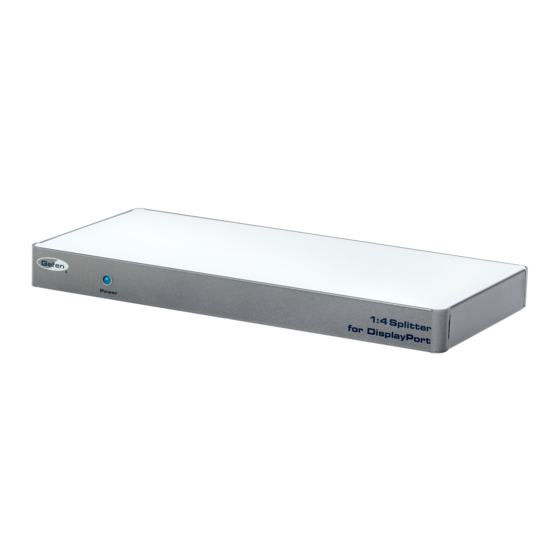

The Gefen 1:4 Splitter for DisplayPort The Gefen 1:4 Splitter for DisplayPort allows a DisplayPort-equipped computer to be connected to four DisplayPort displays. Resolutions up to 2560 x 1600 are supported. EDID management provides rapid integration of DisplayPort sources and displays. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 SPLITTER FOR DISPLAYPORT • All other DisplayPort devices/displays connected to the output ports must be compatible with at least one resolution/audio format specified in this EDID. It is recommended to set, on the source device, a common resolution and audio format shared by all attached devices/displays. -
Page 7: Features
FEATURES Features • Simultaneously displays one DisplayPort source on up to four displays • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA) • EDID Management for rapid integration of source and displays • EDID Reset button •... -
Page 8: Front Panel Layout
FRONT PANEL LAYOUT... -
Page 9: Front Panel Descriptions
FRONT PANEL DESCRIPTIONS Power This LED indicator will glow bright blue when the unit is powered. -
Page 10: Back Panel Layout
BACK PANEL LAYOUT... -
Page 11: Back Panel Descriptions
BACK PANEL DESCRIPTIONS Out 1 - Out 4 Connect up to four (4) DisplayPort displays to each of the DisplayPort output connectors. Connect a DisplayPort-equipped computer source to the input connector. 5V DC Connect the included 5V DC power supply to this receptacle. Input Indicator This LED will glow bright blue when a DisplayPort source is connected to the input connector. -
Page 12: Connecting The 1:4 Splitter For Displayport
Connect the included 5V / 3A DC power supply to the power receptacle on the 1:4 Splitter for DisplayPort then connect the AC power cord to an available electrical outlet. Wiring Diagram for the 1:4 Splitter for DisplayPort DISPLAYPORT CABLE Computer DisplayPort Splitter DisplayPort Display DisplayPort Display DisplayPort Display EXT-DP-144 DisplayPort Display... -
Page 13: Edid Management
Splitter. To use this mode, slide the EDID button to the “Int” position. This mode will use a preset EDID stored in the Gefen 1:4 Splitter for DisplayPort. This pre- programmed standard EDID data structure is compatible with most audio/video devices. All resolutions and audio formats specified in this EDID will be passed to... - Page 14 EDID MANAGEMENT External EDID Mode When the 1:4 Splitter for DisplayPort is set to External EDID Mode, the source device reads the EDID (Extended Display Identification Data) from the output devices connected to the Splitter. The EDID contains information about what type of audio/video data that the source can send to each output. To use this mode, slide the EDID button to the “Ext”...
-
Page 15: Specifications
SPECIFICATIONS Maximum Pixel Clock ................300 MHz Maximum Data Rate................10.8 Gbps Maximum Resolution ................2560 x 1600 Video Input Connector ............(1) DisplayPort, female Video Output Connectors ..........(4) DisplayPort, female Power Supply ..................5V / 3A DC Power Consumption ................15W (max.) Operating Temperature ............... -
Page 16: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. - Page 18 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed or CE compliant power supplies.
