- Page 1 1:2 DVI SL/DL Splitter EXT-DVI-142DL U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI SL/DL Splitter is a trademark of Gefen, LLC © 2011 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the DVI SL/DL Splitter Equalization Control Specifi cations Warranty... -
Page 4: Introduction
Dual Link DVI display such as a projector or another Dual Link DVI monitor. Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. - Page 5 OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN DVI SL/DL SPLITTER • You must use a single link cable on the input if running single link DVI monitors.
-
Page 6: Features
FEATURES Features • Splits a Dual Link DVI signal to two or more Dual Link DVI displays • Uses high quality DVI cables for connections • Allows simultaneous display • Supports 720P, 1080i, and 1080P resolutions • Supports HDCP compliant devices for output one •... -
Page 7: Panel Descriptions

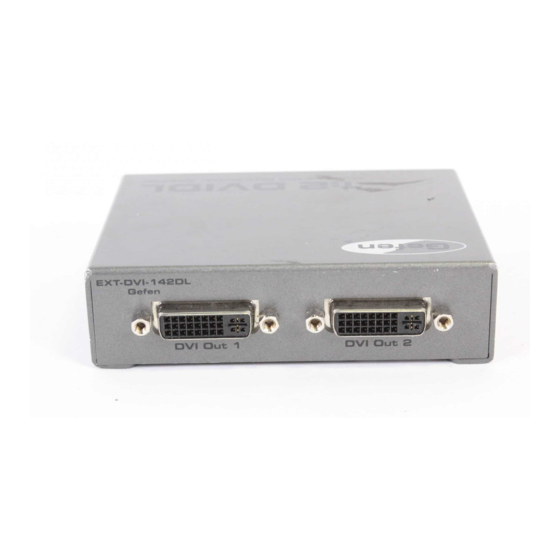

PANEL DESCRIPTIONS 5V Power Status LEDs DVI In Input Input Equalization Adjustment DVI Out 1 DVI Out 2... -
Page 8: Connecting And Operating The Dvi Sl/Dl Splitter
CONNECTING AND OPERATING THE DVI SL/DL Splitter How to Connect the DVI SL/DL Splitter to your devices Connect the supplied Dual Link DVI cable from the back of the computer into the input of the DVI SL/DL Splitter. Connect the cable from your fi rst display (monitor or projector) into the DVI Out 1 slot on the DVI SL/DL Splitter. - Page 9 EQUALIZATION CONTROL Internal equalization control for the DVI SL/DL Splitter Internal Equalization Knob for DVI Output 1 Internal Equalization Knob for DVI Output 2 The internal E.Q. knobs can be reached by removing the 6 hex nuts on the DVI connections and the 4 screws on the bottom of the unit.
-
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ..............2 x 165 MHz Dual Link Range (Max. Resolution) ......... 1080p, 2K, 3840 x 2400 Vertical Frequency Range ..............50 - 85 Hz DVI Input/Output Connector ......DVI-I (29 pin) female (Digital Only) Power Consumption ..............8.15 Watts (max) Power Supply .................... -
Page 11: Warranty
If equipment fails because of such defects and Gefen, LLC is notifi ed within two (2) year from the date of shipment, Gefen, LLC will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev A5 20600 Nordhoff Street, Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
