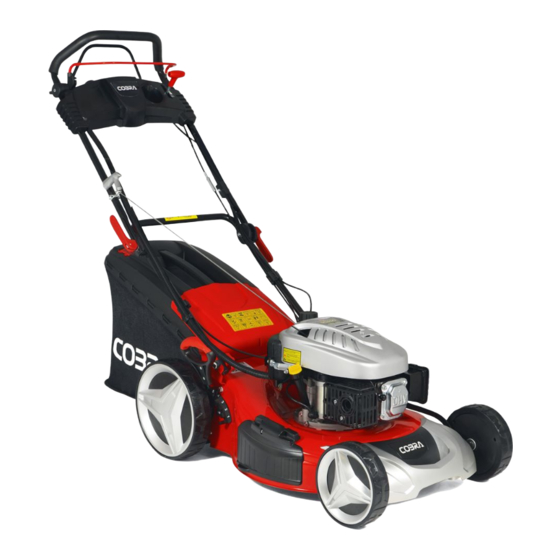

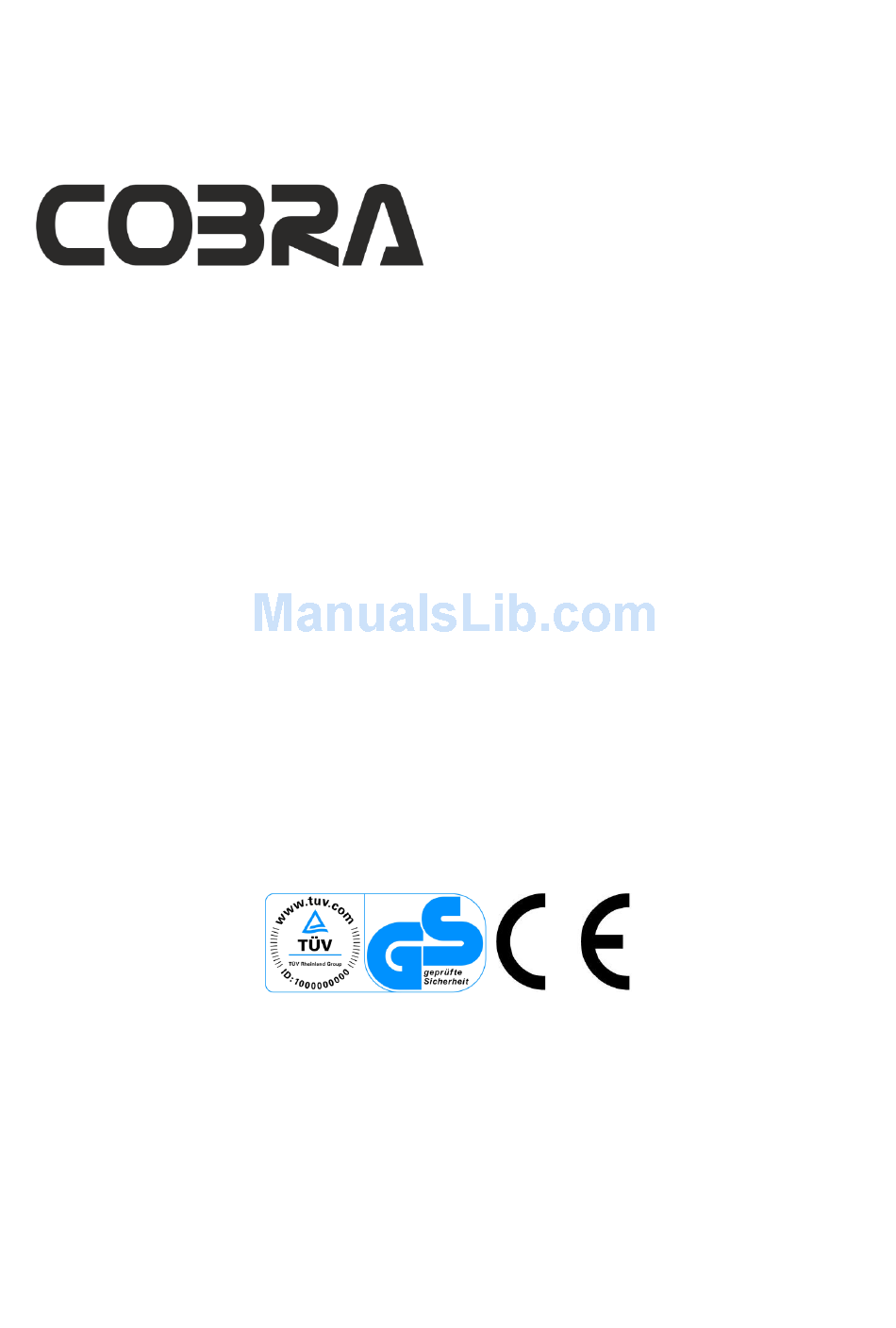

- Page 1 MX46SPCE MODELS: COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SYMBOLS MARKED ON THE PRODUCT………………………………. 3 SECTION 1 GENERAL SAFETY RULES………………………………………………. 3 SECTION 2 SECTION 3 PARTS DESCRIPTION…………………………………………………….. 6 TECHNICAL DATA………………………………………………………….. 6 SECTION 4 ASSEMBLY…………………………….……………………………………. 7 SECTION 5 “3 IN 1”………………………………………………………………………. 9 SECTION 6 OPERATION INSTRUCTIONS…………………………………………..10 SECTION 7 SECTION 8 MAINTENANCE INSTRUCTIONS……………………………………….. -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 WARNING: Do not start up the engine whilst the battery is charging. Training Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. Never allow children or people unfamiliar with these instructions to use the lawn mower.
- Page 5 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19. Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key, make sure engine has had time to cool: - Before unclogging chute and clearing blockages.
-
Page 6: Parts Description
16. Self-drive control handle Side discharge channel 18. Mulching wedge Including A: Spark plug wrench 4. TECHNICAL DATA Model MX46SPCE Engine type Cobra 450 Electric Start Self-propelled Engine displacement 135cm Blade width 460mm Rated speed 2800/min Fuel tank capacity 1.2L... -
Page 7: Assembly
MX46SPCE Guaranteed Sound pressure level at 85dB(A)(K=3 dB(A)) the operator’s position (According to EN 836 Annex H & EN ISO 4871) Measured sound power level 92.0dB(A) K=2.59dB(A) Guaranteed Sound Power level 96 dB(A) (According to 2000/14/EC) Vibration 3.099m/s² K=1.5 s²... - Page 8 5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE A).Pull the locking lever opening; B).Lift or drop the upper handle to an appropriate comfortable angle. Fig.2 shown C).Push the locking lever closed to connect the lower handle and the upper handle. Fig.2 5.3 MOUNTING AND DISMOUNTING THE GRASS CATCHER 1.
-
Page 9: In 1
To change the height of cut, squeeze the adjuster lever toward the wheel, moving it up or down to the selected height. (Fig.5 and see clause 7.9) Fig. 5 6. “3 IN 1” The lawn mower has 3 in 1 features: Rear grass collection. -
Page 10: Operation Instructions
TWO: Resetting for side-discharge mowing Only attempt this when the engine and blades are completely stopped. 1. Lift the rear cover and remove the grass catcher. 2. Mount the mulching wedge. 3. Lift the sideward flap for side discharge. (Fig.7A) 4. - Page 11 Petrol is highly flammable. Store fuel in containers specifically designed for this purpose. Refuel outdoors only, before starting the engine and do not smoke while refueling or handling fuel. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot. If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapors have dissipated.
- Page 12 Fig.8C Fig.8D Fig.8E Start the engine carefully according to instructions and with feet well away from the blade. Do not tilt the lawn mower when starting the engine. Start the mower on a level surface, free of high grass or obstacles. Keep hands and feet away from the rotating parts.
- Page 13 Avoid cutting wet grass: For effective mowing do not cut wet grass, because it tends to stick to the underside of the deck preventing proper mowing of the grass. General Recommendations: Cut no more than 1/3 the length of the grass. Ground speed will need to be adjusted to aid the even distribution of clippings onto the lawn.
-
Page 14: Maintenance Instructions
CAUTION: before changing mowing height, stop mower and disconnect spark plug cable. Your mower is equipped with a central height adjustment lever offering 7 height positions. The height (the blade to the ground) can be adjusted from 25mm to 75mm (7 height positions). (Fig.12) The lowest adjustment：25mm (position 1),the highest adjustment：75mm (position 7). - Page 15 Replace with an approved factory replacement blade only. Possible damage resulting from blade unbalance condition is not the responsibility of the manufacturer. When you change the blade only use the original type marked on blade (Cobra Part 263002488) -to order a blade, contact your local dealer. 10.4 ENGINE Refer to the separate engine manual for engine maintenance instructions.
-
Page 16: Charging The Starter Battery
Service the air cleaner as per the separate engine manual under normal conditions. Clean every few hours under extremely dusty conditions. Poor engine performance and flooding usually indicates that the air cleaner should be serviced. To service the air cleaner, refer to the separate engine manual packed with your unit. The spark plug should be cleaned and the gap reset once a season. -
Page 17: Troubleshooting
3. Slightly grease the cutter to avoid corrosion. 4. Store the lawnmower in a dry, clean and frost-protected place, out of reach of unauthorised persons. 5. Store the starter battery where it will be protected from frost. 6. Recharge the starter battery from time to time. 7. -
Page 18: Warranty
Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration. -
Page 19: Section 16 Ec-Declaration Of Conformity
EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
