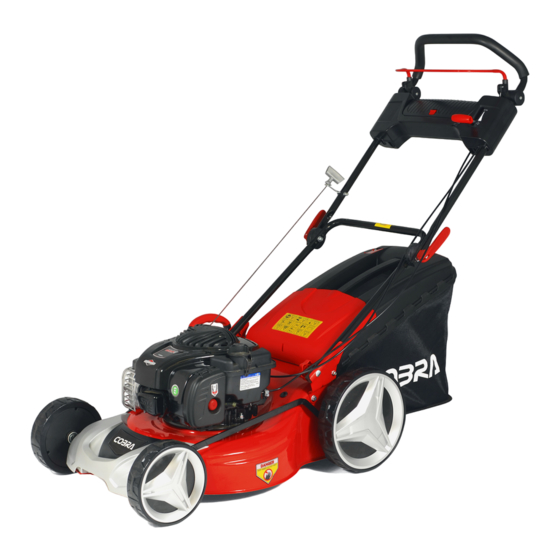

- Page 1 MODELS: MX46B MX46SPB COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SYMBOLS MARKED ON THE PRODUCT………………………………. SECTION 1 GENERAL SAFETY RULES………………………………………………. SECTION 2 SECTION 3 PARTS DESCRIPTION……………………………………………………... TECHNICAL DATA………………………………………………………….. SECTION 4 ASSEMBLY………………………… ………………………………………… SECTION 5 “3 IN 1”…………………………………………………………………………. SECTION 6 SECTION 7 OPERATION INSTRUCTIONS……………………………………………..11 SECTION 8 MAINTENANCE INSTRUCTIONS……………………………………..…… 14 LUBRICATION INSTRUCTIONS…………………………………….……... -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
- Page 5 16. Do not start the engine when standing in front of the discharge chute. 17. Never put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19.
-
Page 6: Parts Description
13. Fuel cap 10.Oil cap Cable clamp Self-drive (MX46SPB) Side discharge channel 19. Mulching wedge Including A: Spark plug wrench 4. TECHNICAL DATA Model MX46B MX46SPB Engine type Briggs 500E Briggs 500E Self-propelled Engine displacement 158 cm 158cm Blade width... -
Page 7: Assembly
Guaranteed Sound pressure level 86.9dB(A) at the operator’s position (K=3 dB(A)) (According to EN 836 Annex H & EN ISO 4871) Measured sound power level 93.7dB(A) K=2.38dB(A) Guaranteed Sound Power level 98 dB(A) (According to 2000/14/EC) Vibration 4.531m/s² K=1.5 s² (According to EN 836 Annex G) 5. - Page 8 Fig.2G Fig.2H 5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE A).Pull the locking lever opening; B).Rotating the upper handle centered of the angle adjusting gear for adjusted a appropriate angle into the scope -20º to 20º (5 position: -20º/-10º/0º/10º/20º) as the Fig.3 shown; C).Push the locking lever closed to connect the lower handle and the upper handle.
-
Page 9: In 1
5.5 HEIGHT OF CUT Apply outward pressure to disengage lever from the rack. Move lever forward or back to adjust height. (Fig.6 and see 7.9) Fig. 6 5.6 Tool Box This type of lawn mower has a tool box, you can push the button to open it, and then press the cover to lock it. You can put tools such as spanner, screwdriver in these boxes. - Page 10 Fig.7A Fig.7B Fig.7C TWO: Resetting for side-discharge mowing Only change when motor and cutting are at standstill! 1. Lift the rear cover and remove the grass catcher. 2. Mount the mulching wedge. 3. Lift sideward flap for side discharge. (Fig.8A) 4.
-
Page 11: Operation Instructions
-Regularly clean the sideward flap and discharge opening forms of grass rest and stuck dirt. 3. Mount the grass catcher: -To fit: Raise the rear cover and hitch the grass catcher on rear of mower. -To remove: Grasp and lift the rear cover, remove grass catcher. 7. - Page 12 7.3 OPERATION PROCEDURES During operation, tightly hold the brake handle with both hands. Note: During operation, when the brake handle is released, the engine will stop and thus stop the lawnmower from operating. 7.4 TO STOP ENGINE CAUTION: The blade continues to rotate for a few seconds after the engine is shut off. 1.
- Page 13 make sure they are dry and are not laying too thick on the lawn. Do not wait for all the leaves to be off the trees before you mow. WARNING: if the mower blade strikes a foreign object, then stop the engine. Remove the wire from spark plug, thoroughly inspect the mower for any damage and repair the damage before restarting and operating the mower.
-
Page 14: Maintenance Instructions
Fig.13 8. MAINTENANCE INSTRUCTIONS SPARK PLUG Use only original replacement spark plug. For best results, replace the spark plug every 100 hours of use. 9. LUBRICATION INSTRUCIONS CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING. 1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil. 2. - Page 15 Fig.14A Fig.14B 10.2 CUTTING BLADE CAUTION: Be sure to disconnect and ground the spark plug wire before working on the cutting blade to prevent accidental engine starting. Protect hands by using heavy gloves or a rag to grasp the cutting blades. Tip mower as specified in separate engine manual.
-
Page 16: Storage Instructions (Off Season)
10.4 ENGINE Refer to the separate engine manual for engine maintenance instructions. Maintain engine oil as instructed in the separate engine manual packed with your unit. Read and follow the engine instructions carefully. Service the air filter as per the separate engine manual. Clean every few hours under extremely dusty conditions. Poor engine performance and flooding usually indicates that the air filter requires attention. -
Page 17: Troubleshooting
12. TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle choke not in the correct position Move throttle choke to the correct position start. for the prevailing conditions. Fuel tank is empty. Fill the tank with fuel: refer to the ENGINE MANUAL. Air filter element is dirty. -
Page 18: Warranty
Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration. -
Page 19: Ec-Declaration Of Conformity
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity Machine Description: Lawn Mower Machine Type: MX46B (1575CN-3) MX46SPB (1576CN-3) Displacement 140 cm Max, Cutting width 460mm Measured sound power level: 93.7dB(A)
