1.4 Safety instructions

1.4
Safety instructions
Caution
In order to avoid substantial damage and for your own safety, note the safety instructions in
this documentation and in the operating instructions.
Warning
Function test while installing the device in machines or execute systems
Following the results of a risk analysis, additional protection equipment on the machine or
the system is necessary to avoid endangering persons. With this, especially the
programming, configuration and wiring of the inserted I/O modules have to be executed, in
accordance with the safety performance (SIL, PL or Cat.) identified by the necessary risk
analysis. The intended use of the device has to be ensured.
The proper use of the device has to be verified with a function test on the system. This test
can detect programming, configuration and wiring errors. The test results have to be
documented and, if necessary, entered into the relevant documents that verify safety.
1.5
Mounting / panel-mounting
1.5.1

Permitted mounting positions

Mounting positions
Only vertical installation with a deviation of up to +5° and -5° in the specified directions is
permitted for the device.

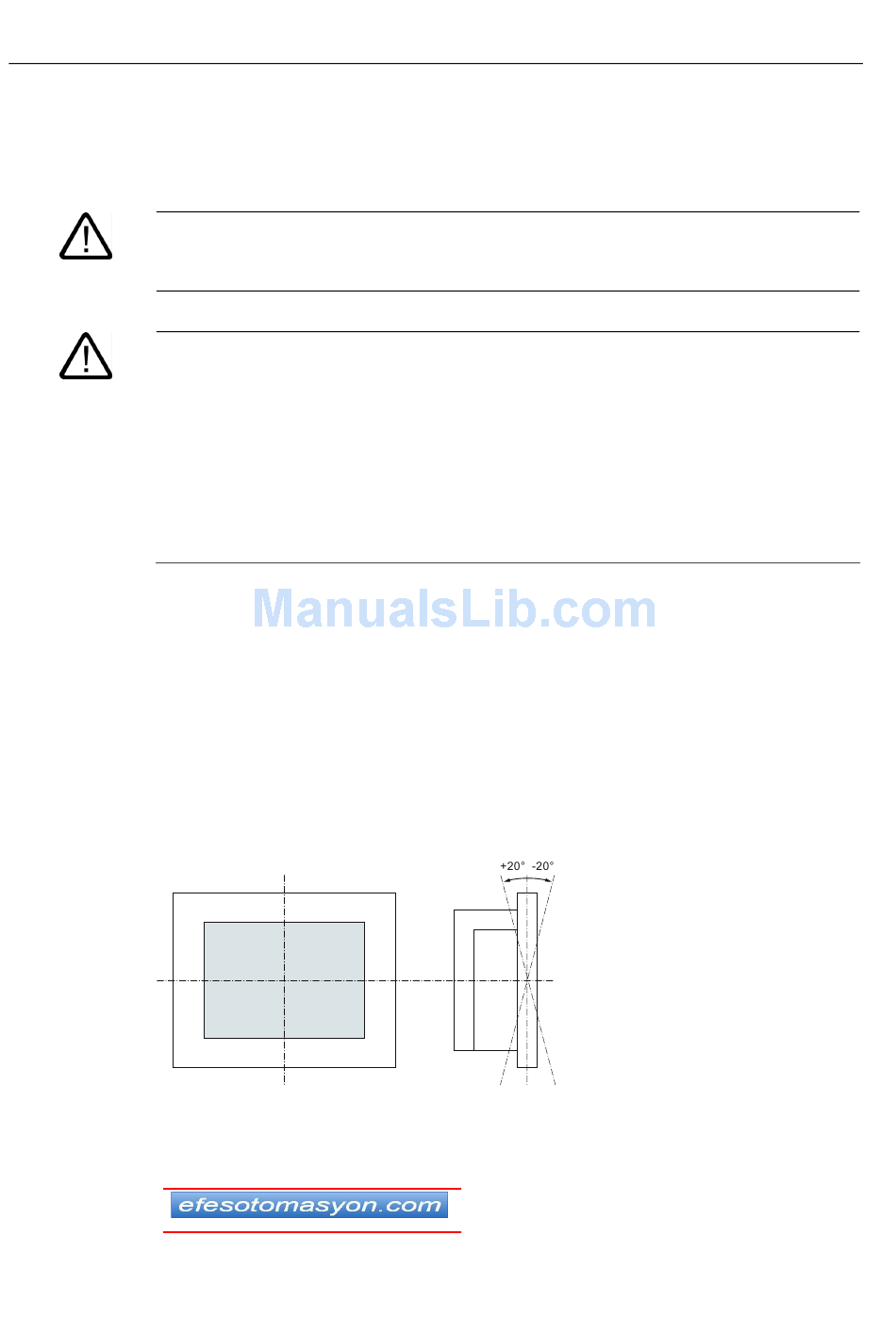

Figure 1-1
1-2
Permitted mounting positions
Operating Instructions, Release 04/2006, A5E00795255
SIMATIC Panel PC 577
