Operating Instructions (compact)
1.5 Mounting / panel-mounting
M6 thread or drill holes with a diameter of 7 mm
1)
Cut-outs for the shafts of the insert strips are only necessary for 15" key panels.
2)
Only for 19" touch panels are two clamps necessary for vertically securing clamps.
3)
Preparing the mounting cut-out
Steps for preparing the mounting cut-out
1
2
3

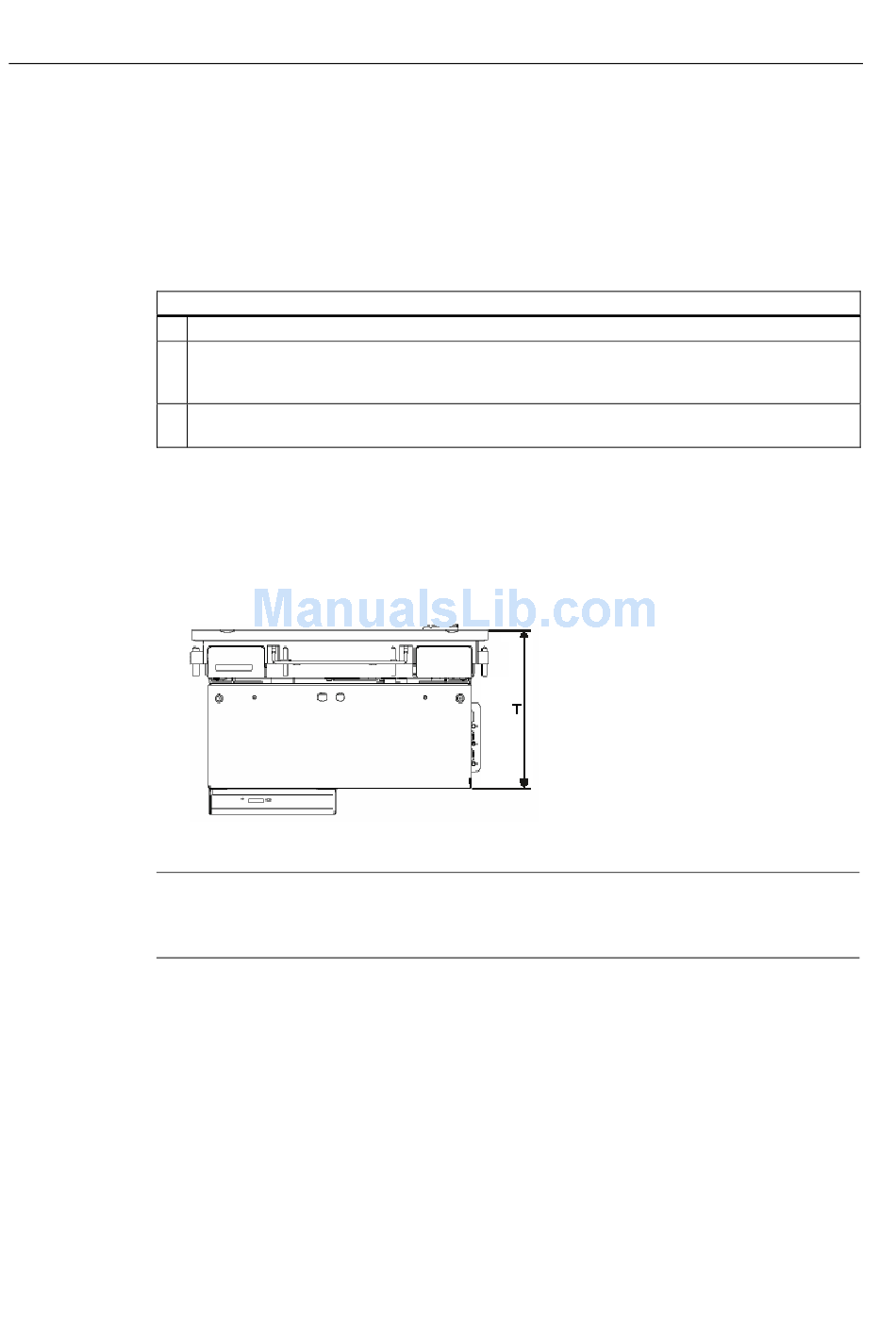

1.5.3

Mounting depth of the device

Note
Additional mounting depth with DVD drive
The device depth increases by 28 mm when a DVD drive is installed in the device.
1-4
Select a location suitable for mounting, taking into account the mounting position.
On the basis of the dimensions, check whether the required screw and pressure points on the
rear and the seal area are easily accessible after the completion of the mounting cut-out.
Otherwise the mounting cut-out is useless.
Complete the mounting cut-out in accordance with the dimensions. Use the paper template
supplied with the device for this purpose.
Control unit
Key panel with 12" TFT
Key panel with 15" TFT
Touch panel with
12" TFT
Touch panel with
15" TFT
Touch panel with
19" TFT
Operating Instructions, Release 04/2006, A5E00795255
T
147 mm
172 mm
162 mm
166 mm
182 mm
SIMATIC Panel PC 577
