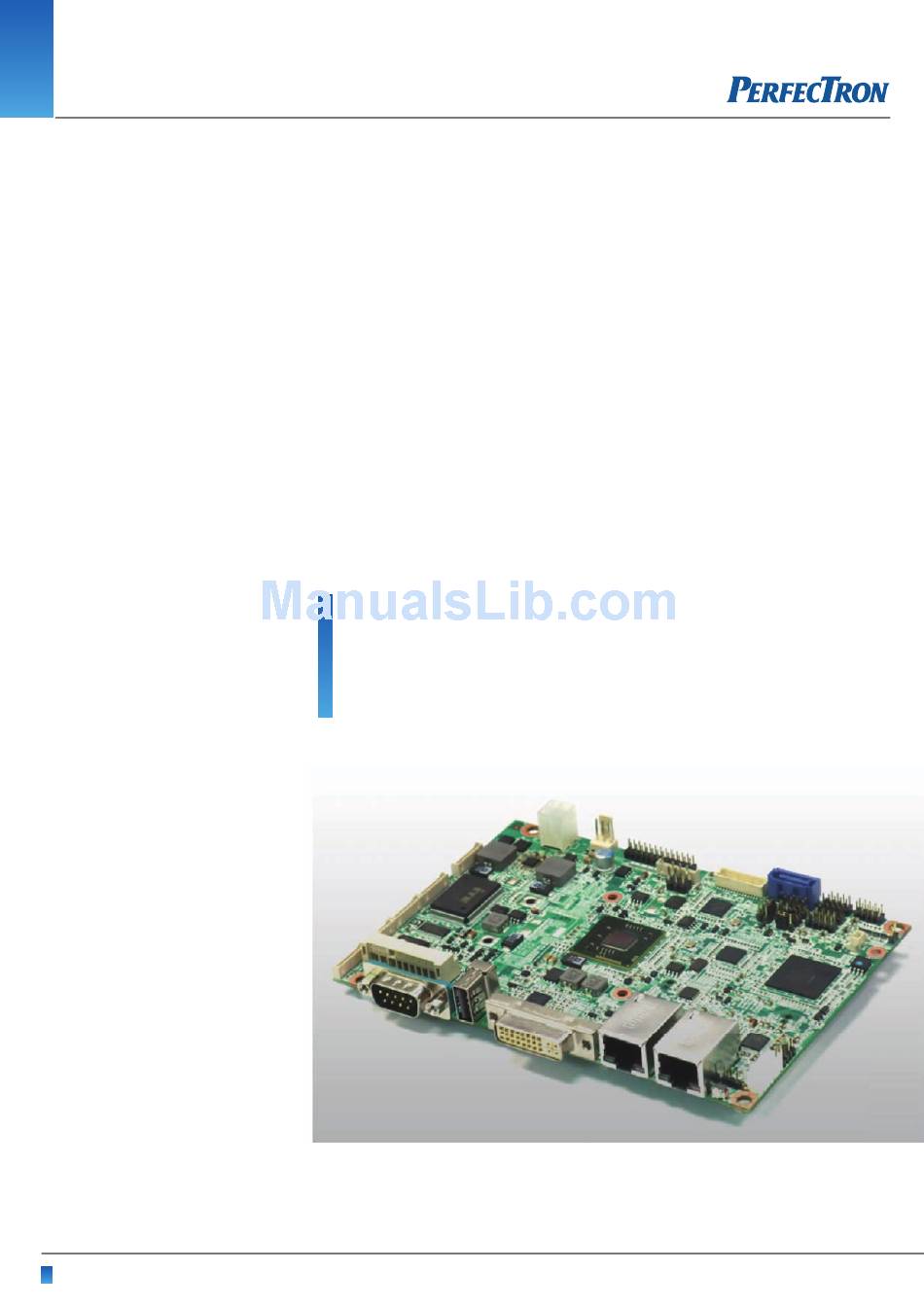

- Page 1 Version 1.2 Revision Date: August. 21, 2012 User’s Manual OXY5316A 3.5" Single Board Computer User’s Manual www.perfectron.com...
-
Page 2: Safety Information
OXY5316A 3.5” SBC User’s Manual V1.2 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
OXY5316A 3.5” SBC User’s Manual V1.2 Revision History Revision Date (dd.mm.yyyy) Changes Version 1.0 28.05.2012 Initial release Version 1.1 19.07.2012 Disable COM5 Version 1.2 21.08.2012 Enable COM5 Packing list □ OXY5316A 3.5” SBC □ CD (Driver + user's manual) Optional Accessories □... -
Page 4: Table Of Contents
OXY5316A 3.5” SBC User’s Manual V1.2 Table of Contents SAFETY INFORMATION ..............................1 ..................................1 LECTRICAL SAFETY ................................... 1 PERATION SAFETY ..................................... 1 TATEMENT ..................................2 EVISION ISTORY ................................... 2 ACKING LIST ................................2 PTIONAL CCESSORIES ................................2 RDERING NFORMATION CHAPTER 1: PRODUCT INFORMATION .......................... - Page 5 OXY5316A 3.5” SBC User’s Manual V1.2 4.4.2 ACPI Settings ................................ 22 4.4.3 Trusted Computing ............................... 23 4.4.4 CPU Configuration ..............................23 4.4.5 Thermal Configuration ............................24 4.4.6 IDE Configuration ..............................25 4.4.7 Intel Fast Flash Standby............................25 4.4.8 USB Configuration ..............................26 4.4.9 SMART Settings ..............................
-
Page 6: Chapter 1: Product Information
OXY5316A 3.5” SBC User’s Manual V1.2 Chapter 1: Product Information 1.1 Block Diagram www.perfectron.com... -
Page 7: Specifications
OXY5316A 3.5” SBC User’s Manual V1.2 1.2 Specifications Processor & System CPU Type Intel® Atom™ N2800 1.86GHz onboard Chipset Intel® NM10 Memory Type 1 x 204 pin SO-DIMM DDR3 800/1066 up to 2GB BIOS AMI® BIOS Super I/O ITE IT8783F Infineon TPM1.2 SLB9635 (optional) - Page 8 OXY5316A 3.5” SBC User’s Manual V1.2 Mechanical and Environment Form Factor 3.5" SBC Power Type 12V DC-in, 4-pin ATX power connector, AT/ATX mode support Dimension 146mm x 102mm (5.7" x 4") Operating Temp. -20°C ~ +70°C Storage Temp. -20°C ~ +85°C...
-
Page 9: Board Placement
OXY5316A 3.5” SBC User’s Manual V1.2 1.3 Board Placement www.perfectron.com... -
Page 10: Onboard Connector List
OXY5316A 3.5” SBC User’s Manual V1.2 1.4 Onboard Connector List Label Function ATX1 Power input connector FAN1 3 pin FAN connector LPT1 LPT port pin header CLRCMOS1 Clear CMOS jumper setting PSON1 ATX/AT MODE setting LVDS_CON LVDS connector JBKL1 Inverter connector... -
Page 11: Mechanical Drawings
OXY5316A 3.5” SBC User’s Manual V1.2 1.5 Mechanical Drawings www.perfectron.com... -
Page 12: Chapter 2: Jumpers And Connectors
OXY5316A 3.5” SBC User’s Manual V1.2 Chapter 2: Jumpers and Connectors 2.1 Jumper Settings PSON1: ATX/AT mode Selection Jumper Function description Setting AT Mode ATX Mode *Default setting is 2-3* 2.2 Connector Pin Definitions ATX1: Power input connector Pin Definition... -
Page 13: Lpt1: Lpt Port Pin Header
OXY5316A 3.5” SBC User’s Manual V1.2 LPT1: LPT port pin header Pin Definition Pin Definition STB# AFD# SPD0 ERROR# SPD1 PINIT# SPD2 SLIN# SPD3 SPD4 SPD5 SPD6 SPD7 ACK# BUSY SLCT LVDS_CON: LVDS Connector Pin Definition Pin Definition LVDS_BCLK LVDS_BCLK#... -
Page 14: Jbkl1: Inverter Connector
OXY5316A 3.5” SBC User’s Manual V1.2 JBKL1: Inverter connector Pin Definition VCC12_LVDSP VCC12_LVDSP VCC12_LVDSP VCC_LVDSP VCC_LVDSP BL_EN BL_ADJ KBMS1: KB/MS Pin Header Pin Definition Pin Definition +5VSB MSDAT_SIO 6 KBDAT_SIO MSCLK_SIO 8 KBCLK_SIO FP1: Front Panel 1 Pin Header Pin Definition... -
Page 15: Rusb1: Usb2.0 Port 6 Connector
OXY5316A 3.5” SBC User’s Manual V1.2 RUSB1: USB2.0 port 6 connector Pin Definition USBN USBP DIO1: Digital input/output pin header Pin Definition Pin Definition SBDO0 SBDI0 SBDO1 SBDI1 SBDO2 SBDI2 SBDO3 SBDI3 +5VIO AUDIO1: LINE-OUT/LINE-IN/MIC-IN Pin Definition Pin Definition L_IN_L... -
Page 16: Lan1, Lan2: Lan Connector
OXY5316A 3.5” SBC User’s Manual V1.2 LAN1, LAN2: LAN connector Definition Pin Definition TD1+ YLED- TD1- YLED+ TD2+ GLED- TD2- OLED- TD3+ TD3- TD4+ TD4- SPEED LED: (Lift) ACTIVE LED: (Right) GREEN: 1000Mbps ORANGE (BLINKING): ACTIVITY ORANGE: 100Mbps No Light: NOT LINK... -
Page 17: Com1: Rs232/422/485 With +12V/+5V Selection
OXY5316A 3.5” SBC User’s Manual V1.2 COM1: RS232/422/485 with +12V/+5V selection Pin RS-232 RS-422 Half Duplex RS-485 DATA- DATA+ +5V/+12V/RI +5V/+12V/NA +5V/+12V/NA COM2, COM3, COM4: RS232 with +12V/+5V selection (1x10 pin Wafer) Pin Definition +CM_P1 DCD CM_DSR CM_RXD CM_RTS CM_TXD... -
Page 18: Mpcie1: Mini Pcie Connector
OXY5316A 3.5” SBC User’s Manual V1.2 MPCIE1: Mini PCIE connector Pin Definition Pin Definition WAKE# +3.3V Reserved Reserved +1.5V CLKREQ# Reserved Reserved REF CLK- Reserved REF CLK+ Reserved Reserved Reserved Reserved Reserved PERST# PERN0 +3.3VAUX PERP0 +1.5V SMB_CLK PETN0 SMB_DATA... -
Page 19: Bat1: Rtc Battery Connector
OXY5316A 3.5” SBC User’s Manual V1.2 BAT1: RTC battery connector Pin Definition CFAST: CFAST connector Segment Definition SATA SATA SATA SATA SATA SATA SATA PWR/CTL CDI PWR/CTL GND PWR/CTL TBD1 PWR/CTL TBD2 PWR/CTL TBD3 PWR/CTL TBD4 PWR/CTL GND PWR/CTL LED1... -
Page 20: Chapter 3: Getting Started
The OXY5316A built-in CFast socket To install a CFast card: To install a CFast card into OXY5316A, align the notches on the card with the CFast socket. Then firmly insert the card into the socket until it is completely seated. The label side should be facing away from the board. -
Page 21: Chapter 4: Ami Bios Utility
OXY5316A 3.5” SBC User’s Manual V1.2 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ... -
Page 22: Main Menu
OXY5316A 3.5” SBC User’s Manual V1.2 4.3 Main Menu The Main menu is the screen that first displays when BIOS Setup is entered, unless an error has occurred. You could setup these items on the Main menu: System Language: Select this option to set the system language ... -
Page 23: Pci Subsystem Settings
OXY5316A 3.5” SBC User’s Manual V1.2 4.4.1 PCI Subsystem Settings This section allows you to configure the PCI, PCI-X and PCI Express settings. PCI Latency Timer Set this value to change the PCI Bus clocks. Default is 32 PCI Bus clock VGA Palette Snoop Set this value to enable or disable the VGA Palette snoop. -
Page 24: Trusted Computing
OXY5316A 3.5” SBC User’s Manual V1.2 ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is Selected. The Default value is set as S3 (Suspend to RAM). Lock Legacy Resources Enables or Disables System Lock of Legacy Resources. -
Page 25: Thermal Configuration
OXY5316A 3.5” SBC User’s Manual V1.2 Processor Type This option allows the user to view the information of the CPU installed on the hardware platform. Processor Speed This option allows the user to view the speed of the CPU installed on the hardware platform. -
Page 26: Ide Configuration
OXY5316A 3.5” SBC User’s Manual V1.2 4.4.6 IDE Configuration You can use this option to select options for the IDE Configuration Settings. SATA Controller(s) This item allows users to enable or disable the SATA controller(s). Configure SATA As This is option configures the Serial ATA drives as Parallel ATA physical storage device. -
Page 27: Usb Configuration
OXY5316A 3.5” SBC User’s Manual V1.2 4.4.8 USB Configuration This option allows the user to view and configure the settings of the USB configuration parameters. USB Devices Legacy USB Support This enables Legacy USB Support, the following tables outlines the different modes of this feature:... -
Page 28: Smart Settings
OXY5316A 3.5” SBC User’s Manual V1.2 Device power-up delay Sets the maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses a default value: for a Root port it is 100 ms, for a Hub port the delay is taken from the Hub descriptor. -
Page 29: Smart Fan Function
OXY5316A 3.5” SBC User’s Manual V1.2 4.4.11 Smart Fan Function Use this feature to control CPU/System Temperature vs. Fan speed. When enabling Smart Fan function, Fan speed is controlled automatically by CPU/System temperature. This function will protect CPU/System from overheat problem and maintain the system temperature at a safe level. -
Page 30: Aoac Configuration
OXY5316A 3.5” SBC User’s Manual V1.2 4.4.13 AOAC Configuration This item allows users to enable or disabled AOAC function. 4.4.14 Demo Board This item helps users for CRB test. 4.4.15 Serial Port Console Redirection This setting allows the user to enable or disable console redirection... -
Page 31: Ppm Configuration
OXY5316A 3.5” SBC User’s Manual V1.2 Console Redirection Enabling or disabling of the serial port on the module is specified in the Advanced Configuration menu. Available option are: Disabled, Enabled 4.4.16 PPM Configuration This item allows users to enable or disabled Intel SppedStep. - Page 32 OXY5316A 3.5” SBC User’s Manual V1.2 Host Bridge This section is used to configure the host bridge features. Memory Frequency and Timing Configures memory frequency and timing settings Intel IGD Configuration Configures the options for Intel IGD function. Memory Information Detects and displays information on the memory installed in the system.
-
Page 33: Boot Setting
OXY5316A 3.5” SBC User’s Manual V1.2 Restore AC Power Loss Options are Power Off, Power On and Last State. Power Off When power returns after an AC power failure, the system’s power is off. You must press the power button to power-on the system. -
Page 34: Security
OXY5316A 3.5” SBC User’s Manual V1.2 GateA20 Active The CPU address bit 20 is controlled by a signal called gateA20. ften gatea20 signal is generated by a peripheral controller (E.g. keyboard Controller) which is a part of the overall system. -
Page 35: Save And Exit
OXY5316A 3.5” SBC User’s Manual V1.2 4.8 Save and exit Save Changes and Exit Exit system setup after saving the changes. Disacard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes.
