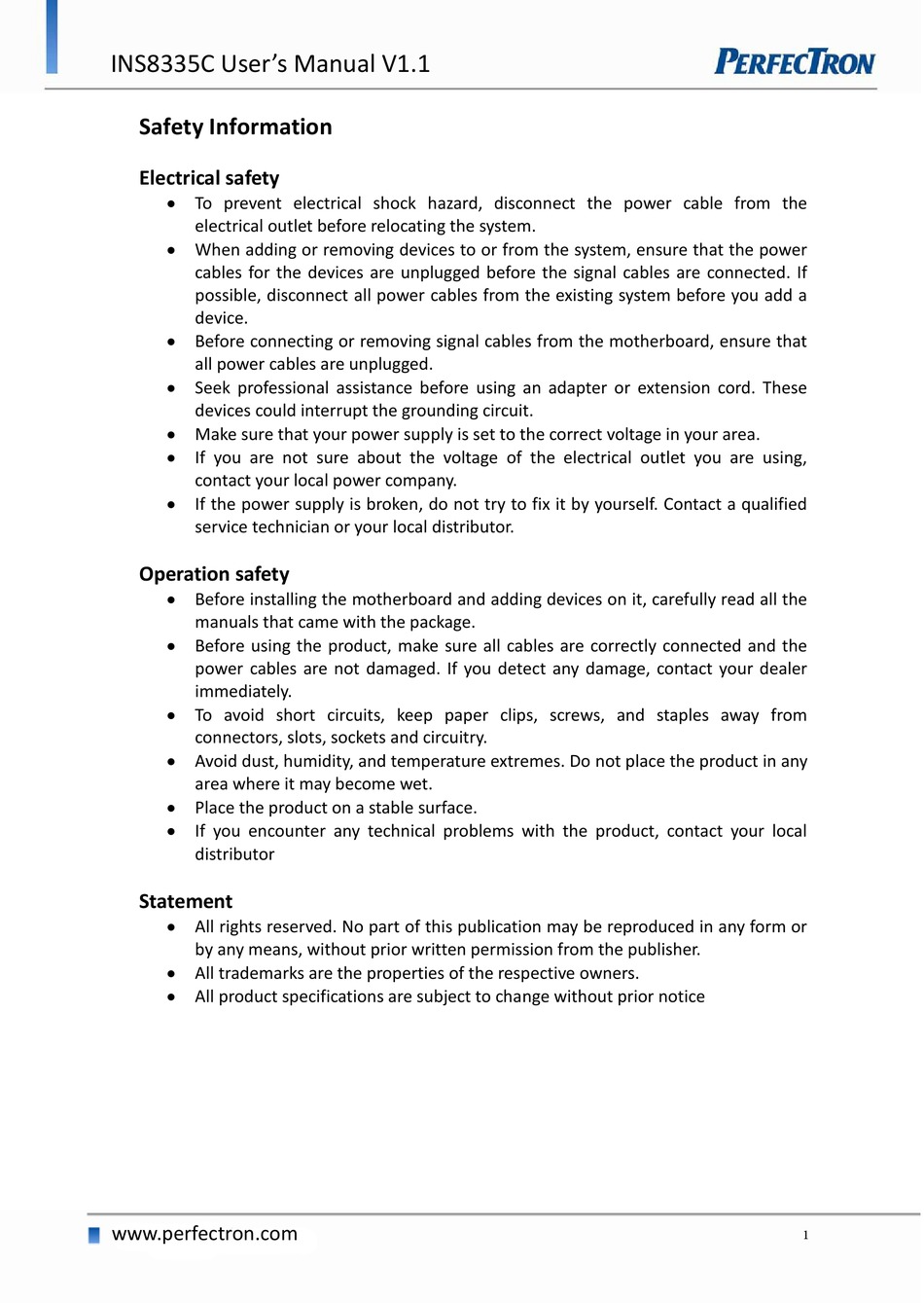

INS8335C User's Manual V1.1

Safety Information

Electrical safety
 To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
 When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If
possible, disconnect all power cables from the existing system before you add a
device.
 Before connecting or removing signal cables from the motherboard, ensure that
all power cables are unplugged.
 Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
 Make sure that your power supply is set to the correct voltage in your area.
 If you are not sure about the voltage of the electrical outlet you are using,
contact your local power company.
 If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your local distributor.
Operation safety
 Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
 Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
 To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
 Avoid dust, humidity, and temperature extremes. Do not place the product in any
area where it may become wet.
 Place the product on a stable surface.
 If you encounter any technical problems with the product, contact your local
distributor
Statement
 All rights reserved. No part of this publication may be reproduced in any form or
by any means, without prior written permission from the publisher.
 All trademarks are the properties of the respective owners.
 All product specifications are subject to change without prior notice
www.perfectron.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INS8335C and is the answer not in the manual?

Questions and answers

Summary of Contents for PerfecTron INS8335C

  • Page 1: Safety Information

    INS8335C User’s Manual V1.1 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 2: Revision History

    If any of the above items is damaged or missing, please contact your local distributor. Ordering Information Part Number Description INS8335C-ET Mini-ITX Industrial MB Intel® 22nm Ivy Bridge Processor (Mobile) (-20 to 70°C) INS8335C-UT Mini-ITX Industrial MB Intel® 22nm Ivy Bridge Processor (Mobile) (-40 to 85°C optional)
  • Page 3: Table Of Contents

    INS8335C User’s Manual V1.1 Table of Contents Safety Information ...................... 1 Electrical safety ........................1 Operation safety ........................1 Statement ..........................1 Revision History ......................2 Packing list ......................... 2 Ordering Information ....................2 Table of Contents ......................3 Chapter 1: Product Information ................... 6 1.1 Block Diagram ......................6...
  • Page 4 INS8335C User’s Manual V1.1 DIMMA1: DDR3 SO-DIMM connector ....................24 DIMMB1: DDR3 SO-DIMM connector ....................24 SIM_CARD: SIM CARD ......................... 24 MSATA_CARD: MSATA ......................... 25 PSON1: ATX/AT mode .......................... 25 COM5: RS232/422/485 and 5/12V selectable ..................26 COM6: RS232/422/485 and 5/12V selectable ..................26 COM4: RS232 ............................
  • Page 5 INS8335C User’s Manual V1.1 3.7 Security ........................55 3.8 Save and exit ......................56 www.perfectron.com...
  • Page 6: Chapter 1: Product Information

    INS8335C User’s Manual V1.1 Chapter 1: Product Information 1.1 Block Diagram www.perfectron.com...
  • Page 7: Key Features

    INS8335C User’s Manual V1.1 1.2 Key Features Processor & System CPU Type Intel® 22nm Ivy Bridge Processor (Mobile) socket rPGA988 Core™ i7-3610QE 2.3 GHz (6M Cache, 45W) Core™ i5-3610ME 2.7 GHz (3M Cache, 35W) Core™ i3-3120ME 2.4 GHz (3M Cache, 35W) Chipset Intel®...
  • Page 8 INS8335C User’s Manual V1.1 Internal I/O SATA 2 x SATAIII (6 Gb/s), 2 x SATAII (3 Gb/s) LVDS 30-pin connector 4 x USB 2.0 ports by pin header 5 x COM ports  COM2~3 ports RS232 with 5V/12V selectable by pin header ...
  • Page 9: Board Placement

    INS8335C User’s Manual V1.1 1.3 Board Placement www.perfectron.com...
  • Page 10: Mechanical Drawings

    INS8335C User’s Manual V1.1 1.4 Mechanical Drawings www.perfectron.com...
  • Page 11: Chapter 2: Jumpers And Connectors

    INS8335C User’s Manual V1.1 Chapter 2: Jumpers and Connectors 2.1 Onboard Connector List Label Function SYSFAN2 System FAN2 JCASE1 Case Open Warning PCIEX1_1 PCI Express x1 PCI1 MCARD1 mPCIE/MSATA BAT1 RTC battery connector DEBUG Debug card connector MINI_MPCIE Mini PCIE connector...
  • Page 12: Jcmos1 Rtc Reset

    INS8335C User’s Manual V1.1 DIO1 Digital input/output pin header DIO2 Digital input/output pin header F_USB2 USB2.0 pin header F_USB1 USB2.0 pin header JCMOS1 RTC Reset Flash Descriptor Security Overide/Intel ME Debug Mode Front Panel 1 INE‐OUT/MIC‐IN AFP1 SPDIF1 SPDIF OUT...
  • Page 13: Jumper Settings And Pin Assignment

    INS8335C User’s Manual V1.1 2.2 Jumper Settings and pin assignment SYSFAN2: System FAN2 Pin Definition SYSFAN2_VCC JP9: SYSFAN2_VCC 3.3/5/12V selectable Jumper Function description Setting +3.3V +12V Default setting is 1-2 JCASE1: Case Open Warning Pin Definition CASE OPEN# www.perfectron.com...
  • Page 14: Pciex1_1: Pci Express X1

    INS8335C User’s Manual V1.1 PCIEX1_1: PCI Express x1 Pin Side B Connector Side A Connector +12V +12V +12V +12V +12V SMBUS CLOCK SMBUS DATA +3.3V +3.3V +3.3VAUX +3.3V WAKE# PCIE RESET Mechanical Key PCIE CLOCK+ PCIE TXP PCIE CLOCK- PCIE TXN...
  • Page 15: Pci1: Pci

    INS8335C User’s Manual V1.1 PCI1: PCI Definition Definition Definition Definition Pull down 4.7K to AD16 -12V AD17 +12V +3.3 CBE2# FRAME# IRDY# TRDY# +3.3V INTA# DEVSEL# INTC# STOP# INTB# +3.3V INTD# LOCK# GNT1# SMBUS PERR# CLOCK SMBUS DATA REQ1# +3.3V SERR# +3.3V...
  • Page 16: Mcard1: Mpcie/Msata

    INS8335C User’s Manual V1.1 MCARD1: mPCIE/mSATA Pin Definition Pin Definition -PCH_WAKE +3.3V_MINI +1.5V_PCH UIM_DATA CLK_PCIE_mCARDN 12 UIM_CLK CLK_PCIE_mCARDP 14 UIM_RESET UIM_VPP -W_DISABLE1 -RST_PCIE mCARD_PERN0 +3.3V_MINI mCARD_PERP0 +1.5V_PCH SMB_CLK mCARD_PETN0 SMB_DATA mCARD_PETP0 -USB_MINI +USB_MINI +3.3V_MINI +3.3V_MINI WWAN_LED# WLAN_LED# WPAN_LED# +1.5V_PCH +3.3V_MINI...
  • Page 17: Afp1: Line-Out/Mic-In

    INS8335C User’s Manual V1.1 DEBUG: Debug card connector Pin Definition 33Mhz RST# LFRAME# LAD3 LAD2 LAD1 LAD0 +3.3V AMP1: 4ohm 3Watt Amplifier output pin header Pin Definition SP_OUTL- SP_OUTL+ SP_OUTR+ SP_OUTR- AUDIO1: LINE‐OUT/LINE‐IN/MIC‐IN Pin Definition LINE-IN LINE-OUT MIC-IN www.perfectron.com...
  • Page 18: Mini_Mpcie: Mini Pcie Connector

    INS8335C User’s Manual V1.1 MINI_MPCIE: Mini PCIE connector Pin Definition Pin Definition -PCH_WAKE +3VDUAL +1.5V_PCH -CLK_PCIE_MINI_REQ 8 CLK_PCIE_MININ CLK_PCIE_MINIP -W_DISABLE1 -MINI_RST PCIE_RXN_MINI +3VDUAL PCIE_RXP_MINI +1.5V_PCH SMB_CLK PCIE_TXN_MINI SMB_DATA PCIE_TXP_MINI USB2_PN4 USB2_PP4 +3VDUAL +3VDUAL WLAN_LED1# CL_CLK WPAN_LED1# CL_DATA +1.5V_PCH -CL_RST -W_DISABLE_BT +3VDUAL www.perfectron.com...
  • Page 19: Lan2_Usb34: Usb3.0 Port 3,4 And Lan Connector 2

    INS8335C User’s Manual V1.1 LAN2_USB34: USB3.0 port 3,4 and LAN connector 2 Upper USB Lower USB Pin Definition Pin Definition Pin Definition USBV2 USBV3 LAN2_MDI0+ USBD2- USBD3- LAN2_MDI0- USBD2+ USBD3+ LAN2_MDI1+ LAN2_MDI1- USB3RN3 USB3RN4 LAN2_MDI2+ USB3RP3 USB3RP4 LAN2_MDI2- LAN2_MDI3+ USB3TN3...
  • Page 20: Com1: Rs232/422/485 And 5/12V Selectable

    INS8335C User’s Manual V1.1 COM1: RS232/422/485 and 5/12V selectable Pin RS-232 RS-422 Half Duplex RS-485 COM1_DCD- DATA- COM1_SIN COM1_SOUT DATA+ COM1_DTR- COM1_DSR- COM1_RTS- COM1_CTS- COM1P9SEL COM1P9SEL COM1P9SEL (Define by JP5) (Define by JP5) (Define by JP5) JP5: COM1 +12V/+5V selection...
  • Page 21: Vga+Dvi: Vga+Dvi Connector

    INS8335C User’s Manual V1.1 VGA+DVI: VGA+DVI connector Definitio Definitio Definitio Definition TMDS2- GREEN TMDS2+ BLUE HOTPLUG_DETE DATA HSYNC TMDS0- VSYNC DDC_CLK TMDS0+ DDC_DAT CLOCK TMDS1- TMDS1+ TMDSCLK+ TMDSCLK- KB_MS1: PS2 Key Board / Mouse Pin Definition ATX_20P: 20 pin ATX Power Input Connector...
  • Page 22: Atx12V1: 4 Pin Atx Power Input Connector

    INS8335C User’s Manual V1.1 ATX12V1: 4 pin ATX Power Input Connector Pin Definition +12V +12V LVDS: LVDS connector Pin Definition Pin Definition LVDS1_CLK+ LVDS1_CLK- LVDS0_D3+ LVDS0_D3- LVDS1_D3+ LVDS1_D3- LVDS0_CLK+ LVDS1_D2+ LVDS0_CLK- LVDS1_D2- LVDS1_D1+ LVDS0_D2+ LVDS1_D1- LVDS0_D2- LVDS1_D0+ LVDS0_D1+ LVDS1_D0- LVDS0_D1-...
  • Page 23: Jbkl1: Inverter Connector

    INS8335C User’s Manual V1.1 JBKL1: Inverter connector Pin Definition Backlight power (+12V) Backlight power (+12V) Backlight power (+12V) Backlight_EN (Voltage level Select by JP3) Backlight_ADJ (Voltage level Select by JP3) JP3: BL_EN Level SELECT Jumper Function description Setting 3.3V Default setting is 1-3...
  • Page 24: Dimma1: Ddr3 So-Dimm Connector

    INS8335C User’s Manual V1.1 CPUFAN: CPU FAN Pin Definition PWM_CPUFAN TACH_CPUFAN CPUFAN_VCC DIMMA1: DDR3 SO-DIMM connector DIMMB1: DDR3 SO-DIMM connector SIM_CARD: SIM CARD Pin Definition Pin Definition DATA www.perfectron.com...
  • Page 25: Msata_Card: Msata

    INS8335C User’s Manual V1.1 MSATA_CARD: MSATA Pin Definition Pin Definition +3.3V +1.5V_PCH mSATA2_RXP_C 24 +3.3V mSATA2_RXN_C 26 +1.5V_PCH mSATA2_TXN_C 32 mSATA2_TXP_C +3.3V +3.3V +1.5V_PCH +3.3V PSON1: ATX/AT mode Jumper Function description Setting 2 - 3 ATX Mode 1 - 2...
  • Page 26: Com5: Rs232/422/485 And 5/12V Selectable

    INS8335C User’s Manual V1.1 COM5: RS232/422/485 and 5/12V selectable Pin RS-232 RS-422 Half Duplex RS-485 COM5_DCD- TX- DATA- COM5_RXD COM5_TXD DATA+ COM5_DTR- RX- COM5_DSR- NA COM5_RTS- COM5_CTS- COM5_RI- COM5_RI- COM5_RI- COM6: RS232/422/485 and 5/12V selectable Pin RS-232 RS-422 Half Duplex RS-485...
  • Page 27: Com2: Rs232 Port 5/12V Selectable

    INS8335C User’s Manual V1.1 COM2: RS232 port 5/12V selectable Pin Definition Pin Definition COM2_DCD- COM2_SIN COM2_SOUT COM2_DTR- COM2_DSR- COM2_RTS- COM2_CTS- COM2P9SEL (Define by JP6) JP6: COM2 +12V/+5V selection Pin Definition Pin Definition COM2_RI- 2 COM2P9SEL COM2P9SEL +12V COM2P9SEL LPT1: LPT port pin header...
  • Page 28: Sata3, Sata4: Serial Ata 2.0 Connector

    INS8335C User’s Manual V1.1 SATA3, SATA4: Serial ATA 2.0 Connector Pin Definition DIO1: Digital input/output pin header Pin Definition Pin Definition SBDO0 GPIO22 2 SBDI0 GPIO2 SBDO1 GPIO38 4 SBDI1 GPIO3 SBDO2 GPIO39 6 SBDI2 GPIO4 SBDO3 GPIO48 8 SBDI3...
  • Page 29: Spdif1: Spdif Out

    INS8335C User’s Manual V1.1 JCMOS1: RTC Reset Pin Definition -RTC_RST JP2: Flash Descriptor Security Overide/Intel ME Debug Mode Pin Definition HDA_SDOUT VCC3_DSW Flash Descriptor Security Overide/Intel ME Debug Mode HDA_SDOUT Low = Default (1-2) High = Enable FP1: Front Panel 1...
  • Page 30: Chapter 3: Ami Bios Utility

    INS8335C User’s Manual V1.1 Chapter 3: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Starting To enter the setup screens, perform the following steps: ...
  • Page 31: Main Menu

    INS8335C User’s Manual V1.1 3.3 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. System Language Use this function to select the system language. www.perfectron.com...
  • Page 32: Advanced Menu

    INS8335C User’s Manual V1.1 System Date Use this function to change the system date. Select System Date using the Up and Down <Arrow> keys. Enter the new values through the keyboard. Press the Left and Right <Arrow> keys to move between fields.
  • Page 33: Acpi Settings

    INS8335C User’s Manual V1.1 3.4.1 ACPI Settings System ACPI parameters Enable ACPI Auto Configuration Enables or disables BIOS ACPI auto configuration. Enable Hibernation Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.
  • Page 34: Cpu Configuration

    INS8335C User’s Manual V1.1 3.4.2 CPU Configuration This section is used to configure the CPU. www.perfectron.com...
  • Page 35 INS8335C User’s Manual V1.1 Hyper-threading Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to enable in each processor package.
  • Page 36: Sata Configuration

    INS8335C User’s Manual V1.1 3.4.3 SATA Configuration This section is used to configure the SATA drives. SATA Controller(s) Enable or disable SATA device. SATA Mode Selection Determines how SATA controller(s) operate. SATA Test Selection Enable or disable Test Mode IDE Legacy/Native Mode Selection IDE Legacy/Native Mode Selection Serial ATA Port 0 –...
  • Page 37: Thermal Configuration

    INS8335C User’s Manual V1.1 3.4.4 Thermal Configuration Platform thermal configuration options 3.4.4.1 Platform thermal configuration www.perfectron.com...
  • Page 38: Intel Rapid Start Technology

    INS8335C User’s Manual V1.1 3.4.5 Intel Rapid Start Technology www.perfectron.com...
  • Page 39: Intel Txt(Lt) Configuration

    INS8335C User’s Manual V1.1 3.4.6 Intel TXT(LT) Configuration Intel Trusted Execution Technology Intel TXT(LT) Support Enables or disables Intel TXT(LT) support 3.4.7 PCH-FW Configuration This section is used to configure Management Engine Technology parameters. www.perfectron.com...
  • Page 40: Intel Anti-Theft Technology Configuration

    INS8335C User’s Manual V1.1 3.4.8 Intel Anti-Theft Technology Configuration Disabling Intel AT allow user to login platform. This is strictly for testing only. This does not disable Intel AT services in ME Intel Anti-Theft Technology Enable or Disable Intel AT in BIOS for testing only Intel Anti-Theft Technology Rec Set the number of times Recovery attemped will be allowed.
  • Page 41: Amt Configuration

    INS8335C User’s Manual V1.1 3.4.9 AMT Configuration This section is used to configure Active Management Technology (AMT) options. Intel AMT Enable/disables Intel Active Management Technology BIOS extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device.
  • Page 42: Usb Configuration

    INS8335C User’s Manual V1.1 Enable/Disable Alert specification Format Activate Remote Assistance Process Trigger CIRA boot. USB Confirgure Enable/Disable USB configure function. PET Progress User can Enable/Disable PET Events progress to receive PET events or not. Watchdog Timer Enable/Disable Watchdog Timer.
  • Page 43: F81866 Super Io Configuration

    INS8335C User’s Manual V1.1 XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. EHCI Hand-off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.
  • Page 44: F81866 H/W Monitor

    INS8335C User’s Manual V1.1 Parallel Port configuration Set parameters of parallel port (LPT/LPTE) 3.4.12 F81866 H/W Monitor This section is used to monitor hardware status such as temperature, fan speed and voltages. System Temperature Detects and displays the current system temperature.
  • Page 45: Serial Port Console Redirection

    INS8335C User’s Manual V1.1 3.4.13 Serial Port Console Redirection This screen provides information about functions for specifying the Serial Port Console Redirection configuration settings. Console redirection can be used to remotely operate system settings and the EFI console. Console Redirection Console Redirection Enable or Disable.
  • Page 46: Cpu Ppm Configuration

    INS8335C User’s Manual V1.1 3.4.14 CPU PPM Configuration CPU PPM configuration parameters EIST Enables or disables Intel SpeedStep. CPU C3 Report Enable or disable CPU C3 (ACPI C2) report to OS. Config TDP LOCK Lock the Config TDP control register Long duration power limit Long duration power limit in Watts, 0 means use factory default.
  • Page 47: Chipset

    INS8335C User’s Manual V1.1 3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. 3.5.1 PCH-IO Configuration This section allows you to configure the North Bridge Chipset.
  • Page 48: Usb Configuration

    INS8335C User’s Manual V1.1 USB Configuration USB configuration settings PCH Azalia Configuration PCH Azalia configuration settings PCH LAN Controller Enable or disable onboard NIC. Wake on LAN Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)
  • Page 49 INS8335C User’s Manual V1.1 3.5.1.1 USB Configuration XHCI Pre-Boot Driver Enable or disable XHCI Pre-Boot driver support. XHCI Mode Mode of operation of XHCI controller HS Port #1/2/3/4 Switchable Allows for HS port switching between xHCI and EHCI. If disabled, port is routed to EHCI.
  • Page 50 INS8335C User’s Manual V1.1 3.5.1.2 PCH Azalia Configuration Azalia Control Detection of the Azalia device. Disabled=Azalia will unconditionally disabled. Enabled=Azalia will be unconditionally enabled. Auto=Azalia will enabled if present, disabled otherwise. Azalia PME Enable or disable Power Management capability of audio controller.
  • Page 51: System Agent (Sa) Configuration

    INS8335C User’s Manual V1.1 3.5.2 System Agent (SA) Configuration This section is used to configure the System Agent (SA) configuration. VT-d Check to enable VT-d function on MCH. Enable NB CRID Enable or disable NB CRID WorkAround. C-State Pre-Wake Controls C-State Pre-Wake feature for ARAT, in SSKPD[57].
  • Page 52: Graphics Configuration

    INS8335C User’s Manual V1.1 3.5.2.1 Graphics Configuration Primary Display Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable Gfx. Internal Graphics Keep IGD enabled based on the setup options. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) graphics memory size used by the internal graphics device.
  • Page 53: Memory Configuration

    INS8335C User’s Manual V1.1 3.5.2.2 Memory Configuration www.perfectron.com...
  • Page 54: Boot Setting

    INS8335C User’s Manual V1.1 3.6 Boot Setting This section is used to configure the boot features. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state.
  • Page 55 INS8335C User’s Manual V1.1 Boot Option Priorities Sets the system boot order. 3.7 Security Use the Security Menu to establish system passwords Administrator Password Set administrator password. User Password Set User Password. Secure Boot Secure boot flow control. Secure boot is possible only if system runs in user mode.
  • Page 56 INS8335C User’s Manual V1.1 3.8 Save and exit This screen provides functions for handling changes made to the BIOS settings and the exiting of the Setup program. Save Changes and Exit Exit system setup after saving the changes. Restore Defaults Restore or Load Defaults values for all the setup options.
