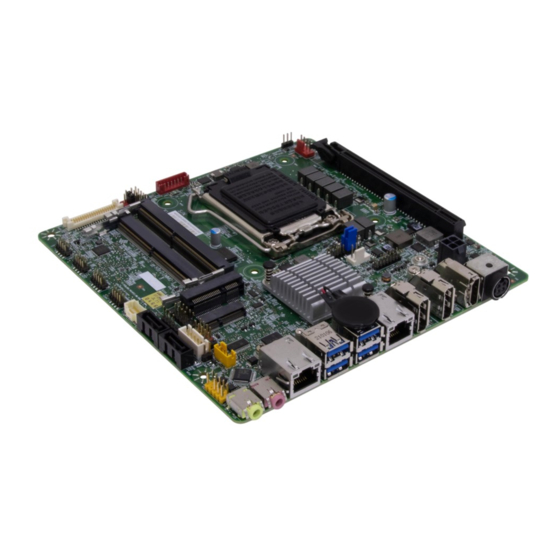

- Page 1 Version 1.0 INS8365B Intel® Coffee Lake-R 8/9 Processor with Q370 Chipset Mini-ITX www.perfectron.com...
-
Page 2: Safety Information
All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher. All trademarks are the properties of the respective owners. All product specifications are subject to change without prior notice www.perfectron.com... -
Page 3: Rohs Compliance
The task force will ensure that we follow the standard Perfectron development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which Perfectron are renowned. -
Page 4: Revision History
Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2022/05/04 First release Packing List Item Description Q’ty INS8365B CD(Drivier + User’s manual) If any of the above items is damaged or missing, please contact your local distributor. www.perfectron.com... -
Page 5: Table Of Contents
3.4.8 Serial Port 3 Configuration ............................ 27 3.4.9 Serial Port 4 Configuration ............................ 28 Hardware Monitor ............................29 3.4.10 RTC Wake Settings ............................30 3.4.11 Network Stack Configuration ......................... 31 3.4.12 NVMe Configuration ............................. 32 3.4.13 3.5 Chipset Page ................................32 www.perfectron.com... - Page 6 3.6.3 Key Management(Secure Boot Mode set to Custom) ....................39 3.6.4 BIOS Update ................................. 42 3.7 Boot Page .................................. 43 3.7.1 (List Boot Device Type) Drive BBS Priorities ....................... 45 3.8 Save & Exit Page ................................46 3.9 Recover Page (Active For Secur Flash Update Only) ......................47 www.perfectron.com...
-
Page 7: Chapter 1 : Product Introduction
Realtek® ALC662 Rear I/O 4 x USB 3.0 Display I/O 1 x HDMI 1.4 / 2 x DisplayPort 1.2 Audio I/O 1 x Mic-in / 1 x Line-out 2 x RJ-45 Power 1 x DIN – 4pin DC Jack www.perfectron.com... - Page 8 Operating TEMP. ET : -20 ~ 70°C UT : -40 ~ 85°C Storage TEMP. -40 ~ 85°C (-40 ~185°F) Relative Hum. 10% ~ 95% R/H (Non-condensing) Standard Compliance Standart Compliance CE / FCC Windows®10 64-bit OS Support Linux(Support by request) www.perfectron.com...
-
Page 9: Block Diagram
1.2 Block Diagram www.perfectron.com... -
Page 10: Board Placement
1.3 Board Placement www.perfectron.com... -
Page 11: Chapter 2 : Jumpers And Connectors Loacation
Internal Speaker Header Front Audio Header TPM Header CPU FAN AT/ATX Mode Jumper Clear CMOS Header USB2.0 Header Dual USB2.0 header Front Panel Header SATA Power Header DDR4 SO-DIMM Socket mPCIe Slot M.2 2230 E-Key Slot M.2 2280 M-Key Slot www.perfectron.com... -
Page 12: Jumper Settings
21 LVDS1_LINK1_CON_DP 22 LVDS1_LINK0_CON_DP 23 LVDS1_LINK1_CON_DN 24 LVDS1_LINK0_CON_DN 27 LVDS1_LINK3_CON_DP 28 LVDS1_LINK2_CON_DP 29 LVDS1_LINK3_CON_DN 30 LVDS1_LINK2_CON_DN 33 LVDS1_CLK_CON_DP 34 LVDS0_CLK_CON_DP 35 LVDS1_CLK_CON_DN 36 LVDS0_CLK_CON_DN +12V +12V LVDS Backlight Header DEFINITION 1 LVDS_BKTEN_R LVDS_PWM 3 BKLT_PWR (12v) 4 BKLT_PWR (12v) BRIGHT_UP- 8 BRIGHT_DOWN- www.perfectron.com... - Page 13 Key (no pin) Front Audio Header PIN DEFINITION DEFINITION AUD_GND MIC_BIAS Presence FP_OUT_R AUD_SENSE_MIC_FP Key(no pin) FIO_SENSE FP_OUT_L AUD_SENSE_HP Internal Speaker Header PIN DEFINITION Front_L- Front_L+ Front_R+ Front_R- Serial Port Pin-Out PIN DEFINITION RXD# TXD# CPU FAN Header DEFINITION +12V www.perfectron.com...
- Page 14 CPU_FAN_TACH CPU_FAN_CTRL Clear CMOS Header DEFINITION Clear CMOS 2-3 Normal(Default) SATA Power Header PIN DEFINITION VCC3 VCC3 +12V Panel Power Option PIN DEFINITION DEFINITION Key(no pin) 3.3V LCD_VCC Key(no pin) 3.3V(Default) www.perfectron.com...
- Page 15 MAPI_GPIO3 MAPI_GPIO7 MAPI_GPIO4 MAPI_GPIO8 MAPI_GPIO5 MAPI_GPIO9 WD_Time MAPI_GPIO10 Power Button SMBUS_DATA UART_TX SMBUS_CLK UART_RX 5VSB TPM Header PIN DEFINITION VSB_3V3 TPM_CS2 TPM_MISO Key(no pin) TPM_MOSI PLTRST_N PRIQ_N TPM_CLK TPM_DET VCC3_TPM AT/ATX Mode Jumper DEFINITION AT Mode 2-3 ATX Mode(Default) www.perfectron.com...
-
Page 16: Chapter 3: Ami Bios Utility
The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub-screen or changes a selected or highlighted option in each menu. www.perfectron.com... -
Page 17: Main Page
This field is not selectable. There is no help text associated with it Field Name Compliancy Default Value UEFI 2.6 ; PI 1.4 Comment This field is not selectable. There is no help text associated with it Field Name BIOS Version Default Value Display the version of the BIOS www.perfectron.com... - Page 18 Www : Mon/Tue/Wed/Thu/Fri/Sat/Sun mm : 1-12 dd : 1-31 yyyy : 1998-2099 Help Set the Date. Use Tab to switch between Date elements. Field Name System Time Default Value [hh :mm :ss] Possible Value hh : 0-23 mm : 0-59 www.perfectron.com...
-
Page 19: Advance Page
System SMART Settings. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Super IO Configuration Help System Super IO Chip Parameters. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name HW Monitor www.perfectron.com... - Page 20 Field Name Network Stack Configuration Help Network Stack Settings. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name NVMe Configuration Help NVMe Device Options Settings Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 21: Cpu Configuration
Comment This field is not selectable. There is no help text associated with it. Field Name L1 Data Cache Default Value L1 Data Cache Size Comment This field is not selectable. There is no help text associated with it. www.perfectron.com... - Page 22 Intel Trusted Execution Technology(Dependent on dTPM enable) Default Value SMX/TXT Supported or Not Possible Value Enabled Disabled Help Enables utilization of additional hardware capabilities provided by Intel (R) Trusted Execution Technology. Changes require a full power cycle to take effect. www.perfectron.com...
-
Page 23: Trusted Computing(Optional)
State of Security Device. Field Name TPM2.0 UEFI Spec Version Default Value [TCG_2] Possible Value TCG_1_2 TCG_2 Help Select the TCG2 Spec Version Support,TCG_1_2: the Compatible mode for Win8/Win10,TCG_2: Support new TCG2 protocol and event format for Win10 or later. www.perfectron.com... -
Page 24: Acpi Settings
Field Name ACPI Sleep State Default Value [S3 (Suspend to RAM)] Possible Value Suspend Disabled S3 (Suspend to RAM) Help Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. www.perfectron.com... -
Page 25: Smart Settings
Set Parameters of Serial Port 1 (COMA) Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Serial Port 2 Configuration Help Set Parameters of Serial Port 2 (COMB) Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 26: Serial Port 1 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=3E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 27: Serial Port 2 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=2E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 28: Serial Port 3 Configuration
Device Super IO COM2 Address and IRQ. Comment This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=2E0h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12; www.perfectron.com... -
Page 29: Serial Port 4 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=3F8h; IRQ=7; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 30: Hardware Monitor
3.4.10 Hardware Monitor www.perfectron.com... -
Page 31: Rtc Wake Settings
Wake up hour(Show when Wake system from S5 set to Fixed Time) Default Value Possible Value 0-59 Help Select 0-59 For Minute Field Name Wake up hour(Show when Wake system from S5 set to Fixed Time) Default Value Possible Value 0-59 Help Select 0-59 For Second www.perfectron.com... -
Page 32: Network Stack Configuration
Enable/Disable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot support will not be available. Field Name Ipv6 PXE Support (Available when Network stack Enabled) Default Value [Enabled] Possible Value Disabled Enabled Help Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot support will not be available. www.perfectron.com... -
Page 33: Nvme Configuration
Field Name System Agent (SA) Configuration Help System Agent (SA) Parameters Comment Press Enter when selected to go into the associated Sub-Menu. Field Name PCH-IO Configuration Help PCH Parameters. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 34: System Agnet (Sa) Configuration
Press Enter when selected to go into the associated Sub-Menu 3.5.2 Graphics Configuration Field Name DVMT Pre-Allocated Default Value [64M] Possible Value 64M /32M/F7/ 36M/ 40M/ 44M/ 48M/ 52M/ 56M/ 60M Help Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by www.perfectron.com... -
Page 35: Pch-Io Configuration
Comment Enabled Disabled Help configure the DeepSx Mode configuration. Field Name State After G3 Help [S5 State] Comment S0 State S5 State Help Specify what state to go to when power is re-applied after a power failure (G3 state). www.perfectron.com... -
Page 36: Sata And Rst Configuration
[Enabled] Help Comment Enabled Disabled Reset Help Configure Chassis Intrusion 3.5.4 SATA And RST Configuration Field Name SATA Mode Selection Help [AHCI] Comment AHCI / Intel RST Premium With Intel Optane System Acceleration Help Determines how SATA controller(s) operate. www.perfectron.com... -
Page 37: Security Page
HDD Security Configuration for selected drive Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Secure Boot Help Set User Password. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name BIOS Update www.perfectron.com... -
Page 38: Hdd Security
Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on HDD when password is set or removed. If the 'Set HDD User Password' option is hidden, do power cycle to enable the option again www.perfectron.com... -
Page 39: Secure Boot
Enables expert users to modify Secure Boot Policy variables without full authentication Comment Enables expert users to modify Secure Boot Policy variables without full authentication Field Name Restore Factory Keys Help Force System to User Mode. Install factory default Secure Boot key databases www.perfectron.com... -
Page 40: Key Management(Secure Boot Mode Set To Custom)
Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device Field Name Enroll Efi Image Help Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db) www.perfectron.com... - Page 41 Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
- Page 42 Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 43: Bios Update
3.6.4 BIOS Update Field Name Path for ROM Image Help Enter the path to the Secure flash option www.perfectron.com... -
Page 44: Boot Page
Select the keyboard NumLock state Field Name Boot Option #1 Default Value [USB Floppy] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME, Network, Disabled Comment Sets the system boot order www.perfectron.com... - Page 45 Press Enter when selected to go into the associated Sub-Menu. Field Name (UEFI) USB CDROM/DVD ROM Drive BBS Priorities Help Specifies the Boot Device Priority sequence from available USB CDROM/DVD Drives. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 46: List Boot Device Type) Drive Bbs Priorities
Press Enter when selected to go into the associated Sub-Menu. 3.7.1 (List Boot Device Type) Drive BBS Priorities Field Name Boot Option #1 Default Value Possible Value Boot Device Name 1 of this type Help Sets the system boot order Field Name Boot Option #2 Default Value www.perfectron.com... -
Page 47: Save & Exit Page
Discard Changes and Exit Help Exit system setup without saving any changes. Field Name Save Changes and Reset Help Reset the system after saving the changes. Field Name Restore Defaults Help Restore/Load Default values for all the setup options. www.perfectron.com... -
Page 48: Recover Page (Active For Secur Flash Update Only)
3.9 Recover Page (Active For Secur Flash Update Only) Field Name Reset NVRAM Default Value [Disabled] Possible Value Enabled Disabled Help Set this option to reset NVRAM to default values Field Name Process with flash update Help Select this to start flash update www.perfectron.com...
