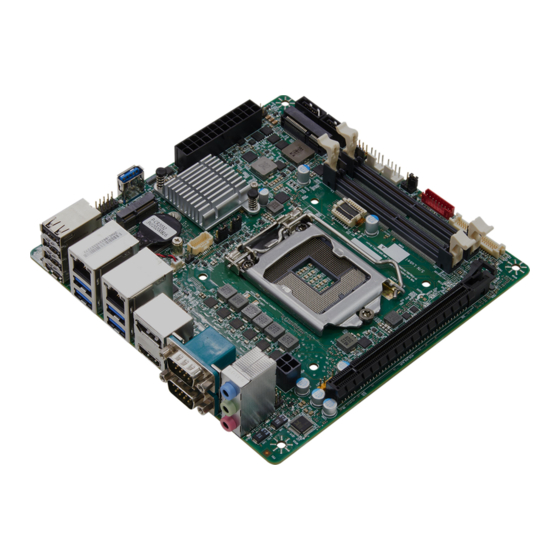

- Page 1 Version 1.0 INS8370A Intel Comet Lake-S 10th Processor with ® Q470E/H420E Chipset Mini-ITX www.perfectron.com...
-
Page 2: Safety Information
All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher. All trademarks are the properties of the respective owners. All product specifications are subject to change without prior notice www.perfectron.com... -
Page 3: Rohs Compliance
The task force will ensure that we follow the standard Perfectron development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which Perfectron are renowned. -
Page 4: Revision History
Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2022/03/10 First release Packing List Item Description Q’ty INS8370A CD(Drivier + User’s manual) Power Cable If any of the above items is damaged or missing, please contact your local distributor. www.perfectron.com... -
Page 5: Table Of Contents
3.4.8 RTC Wake Settings ............................... 31 3.4.9 Netword Stack Configuration ..........................32 3.4.10 NVMe Configuration ............................33 3.4.11 Intel® Rapid Storage Technology .......................... 34 3.5 Event Logs .................................. 35 3.5.1 Change Smbios Event Log Settings ......................... 36 3.5.2 View Smbios Event Log ............................37 www.perfectron.com... - Page 6 3.6.2 Secure Boot ................................40 3.6.3 Key Management(Secure Boot Mode set to Custom) ....................41 3.6.4 BIOS Update ................................. 44 3.7 Boot Page .................................. 45 3.7.1 (List Boot Device Type) Drive BBS Priorities ....................... 48 3.8 Save & Exit Page ................................49 www.perfectron.com...
-
Page 7: Chapter 1 : Product Introduction
Rear I/O 4 x USB 2.0 / 4 x USB 3.1 (Q470E) ; 4 x USB3.0(H420E) Display I/O 1 x HDMI 1.4 / 1 x DisplayPort 1.2 Audio I/O 1 x Mic-in / 1 x Line-out / 1 x Line-in www.perfectron.com... - Page 8 170 mm x 170mm ET : -20 ~ 70°C Operating Temp. UT : -40 ~ 85°C Storage Temp. -40 ~ 85°C Relative humidity 10% ~ 95% R/H (Non-condensing) Standard Compliance Standart Compliance CE / FCC Windows®10 64-bit OS Support Linux(Support by request) www.perfectron.com...
-
Page 9: Block Diagram
1.2 Block Diagram www.perfectron.com... -
Page 10: Board Placement
1.3 Board Placement www.perfectron.com... -
Page 11: Chapter 2 : Jumpers And Connectors Loacation
System Fan Header Front Pane Header SATA Port Full Size Mini PCIe Slot ATX 24Pin USB3.0 Connector M.2 2230 E-Key USB2.0 Header SPDIF Header CPU Socket RTC Battery header Buzzer Header MiAPI Header Clear CMOS Header AT/ATX Mode Jumper www.perfectron.com... -
Page 12: Jumper Settings
: max. 6A depends on output power of single 12V PSU! (12V = pin 20) If the mainboard is off no output voltages are available on the 24 pin ATX connec Note: Each single pin of both connectors is capable of max. 8A! www.perfectron.com... - Page 13 Please use MiTAC suggest cable (3pin terminal connector to 24p ATX + 4pin ATX + SATA power convert cable (422D83800004)) for single 12V operation. Cable drawing as below: P1: 3pin terminal connector (Pin1:12v; Pin2:NC; Pin3:GND) for 12V input P2: 4pin 12V connector for CPU power P3: 24pin ATX connector P4: SATA Power P5: SATA Power www.perfectron.com...
- Page 14 33 LVDS1_CLK_CON_DP 34 LVDS0_CLK_CON_DP 35 LVDS1_CLK_CON_DN 36 LVDS0_CLK_CON_DN +12V +12V eDP Connector(Optional) DEFINITION DEFINITION VCC3 Panel Power VCC3 Panel Power 5 EDP_CPU_AUXN 6 EDP_CPU_AUXP 7 GND (CABLE_ID1) 8 eDP1_DP eDP0_DP eDP1_DN eDP0_DN eDP3_DP eDP2_DP eDP3_DN eDP2_DN PCH_BL_EN 22 PCH_BACKLIGHT_PWM +12V +12V www.perfectron.com...
- Page 15 4 BKLT_PWR (12v) BRIGHT_UP- 8 BRIGHT_DOWN- Panel Power Option PIN DEFINITION DEFINITION Key(no pin) VCC3 +12V LCD_VCC_SEL Key(no pin) 3.3V 5V(Default) CPU FAN Header DEFINITION +12V CPU_FAN_TACH CPU_FAN_CTRL System FAN Header DEFINITION +12V System_FAN_TACH System _FAN_CTRL Front Panel Header www.perfectron.com...
- Page 16 PIN DEFINITION 2 SPDIF-OUT 4 Power(5V) MiAPI Header DEFINITION DEFINITION MAPI_GPIO1 MAPI_GPIO2 MAPI_GPIO6 MAPI_GPIO3 MAPI_GPIO7 MAPI_GPIO4 MAPI_GPIO8 MAPI_GPIO5 MAPI_GPIO9 WD_Time MAPI_GPIO10 Power Button SMBUS_DATA UART_TX SMBUS_CLK UART_RX 5VSB Clear CMOS Header DEFINITION Clear CMOS 2-3 Normal(Default) AT/ATX Mode Jumper www.perfectron.com...
-
Page 17: Chapter 3: Ami Bios Utility
DEFINITION AT Mode 2-3 ATX Mode(Default) Serial Port Pin-Out RS232 RS422 RS485 DATA- DATA+ RXD# TXD# Chapter 3: AMI BIOS UTILITY www.perfectron.com... -
Page 18: Staring
The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub-screen or changes a selected or highlighted option in each menu. www.perfectron.com... -
Page 19: Main Page
This field is not selectable. There is no help text associated with it Field Name Build Date and Time Default Value Display build date of the BIOS Comment This field is not selectable. There is no help text associated with it. www.perfectron.com... - Page 20 This field is not selectable. There is no help text associated with it. Field Name Serial ATA Port mSATA Default Value Display the installed SATA device model/size of port 4 Comment This field is not selectable. There is no help text associated with it. www.perfectron.com...
-
Page 21: Advance Page
: 0-59 ss : 0-59 Help Set the Time. Use Tab to switch between Time elements. 3.4 Advance Page Field Name Onboard Device Help Onboard Device Configuration Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... - Page 22 Press Enter when selected to go into the associated Sub-Menu. Field Name Intel (R) Rapid Storage Technology (Suppressed if SATA Mode) Help This formset allow the user to manage RAID volumes on the Intel(R) RAID Controller. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 23: Onboard Device
Specify what state to go to when power is re-applied after a power failure Field Name Force Enable LVDS Default Value [Disabled] Possible Value Enabled Help Force Enable LVDS. Enabled:Enable LVDS whether plug correct panel Field Name DVMT Pre-Allocated Default Value [64M] Possible Value 32M/F7 www.perfectron.com... - Page 24 Disabled = HDA will be unconditionally disabled. Enabled = HDA will be unconditionally enabled. Field Name ME Update Default Value [Disabled] Possible Value Enabled Disabled Help Temporary disable Intel CSME for ME FW Update. Enabled = Intel CSME disabled after first time reboot only www.perfectron.com...
-
Page 25: Cpu Configuration
Comment This field is not selectable. There is no help text associated with it. Field Name L1 Data Cache Default Value L1 Data Cache Size Comment This field is not selectable. There is no help text associated with it. www.perfectron.com... - Page 26 L3 Cache Size Comment This field is not selectable. There is no help text associated with it. Field Name SMX/TXT Default Value SMX/TXT Supported or Not Comment This field is not selectable. There is no help text associated with it. www.perfectron.com...
-
Page 27: Trusted Computing
Security Device. TCG EFI protocol and INT1A interface will not be available. Field Name Pending operation Default Value [None] Possible Value None TPM Clear Help Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device. www.perfectron.com... -
Page 28: Super Io Configuration
Set Parameters of Serial Port 1 (COMA) Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Serial Port 2 Configuration Help Set Parameters of Serial Port 2 (COMB) Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 29: Serial Port 1 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 30: Serial Port 2 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 31: Hardware Monitor
There are many kinds of the fan could be installed into the syste so we could only set 0 RPM for the failed fan speed, and Front Fan Speed there is also no high RPM limitation. CPU Vcore 0 ~1.52V 11.4 ~ 12.6V www.perfectron.com... -
Page 32: Rtc Wake Settings
BIOS display warning message and tur on beep sound. 3.4.8 RTC Wake Settings Field Name Wake system from S5 Default Value [Disabled] Possible Value Disabled Fixed Time Help Enable or disable System wake on alarm event, Select FixedTime, system will wake on the hr::min::sec specified. www.perfectron.com... -
Page 33: Netword Stack Configuration
Wake up hour(Show when Wake system from S5 set to Fixed Time) Default Value Possible Value 0-59 Help Select 0-59 For Second 3.4.9 Network Stack Configuration Field Name Network stack Default Value [Disabled] Possible Value Disabled Enabled Help Enable/Disable UEFI Network stack. www.perfectron.com... -
Page 34: Nvme Configuration
Field Name Ipv6 PXE Support (Available when Network stack Enabled) Default Value [Enabled] Possible Value Disabled Enabled Help Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot support will not be available. 3.4.10 NVMe Configuration www.perfectron.com... -
Page 35: Intel® Rapid Storage Technology
Create RAID Volume Help This page allows you to create a RAID volume Field Name Raid Volume Help Select to see more information about the RAID Volume. Field Name Non-RAID Physical Disks: Help Select to see more information about the disk. www.perfectron.com... -
Page 36: Event Logs
Press to change the Smbios Event Log configuration. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name View Smbios Event Log Help Press to view the Smbios Event Log records. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 37: Change Smbios Event Log Settings
Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset. Field Name When Log is Full Default Value [Do Nothing] Possible Value Do Nothing Erase Immediately Help Choose options for reactions to a full Smbios Event Log www.perfectron.com... -
Page 38: View Smbios Event Log
3.5.2 View Smbios Event Log Field Name DATE / TIME / ERROR CODE / SEVERITY / COUNT Default Value MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A Possible Value By Events. Help By Events. www.perfectron.com... -
Page 39: Security Page
BIOS Update Help BIOS Update support Comment Press Enter when selected to go into the associated Sub-Menu. Field Name HDD Security drive Help HDD Security Configuration for selected drive Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 40: Hdd Security
Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on HDD when password is set or removed. If the 'Set HDD User Password' option is hidden, do power cycle to enable the option again www.perfectron.com... -
Page 41: Secure Boot
Secure Boot Policy variables can be configured by a physically present user without full authentication Field Name Restore Factory Keys Help Force System to User Mode. Install factory default Secure Boot key databases Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM www.perfectron.com... -
Page 42: Key Management(Secure Boot Mode Set To Custom)
Help Delete all Secure Boot key databases from NVRAM Field Name Export Secure Boot variables Help Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device Field Name Enroll Efi Image www.perfectron.com... - Page 43 Press Enter when selected to go into the associated Sub-Menu. Field Name Authorized Signatures Default Value Size:0, Keys:0, Key source: No Keys Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) www.perfectron.com...
- Page 44 Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 45: Bios Update
3.6.4 BIOS Update Field Name Path for ROM Image Help Enter the path to the Secure flash option www.perfectron.com... -
Page 46: Boot Page
Sets the system boot order Field Name Boot Option #2 Default Value [USB CD/DVD] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME, Network, Disabled Comment Sets the system boot order www.perfectron.com... - Page 47 Press Enter when selected to go into the associated Sub-Menu. Field Name (UEFI) USB CDROM/DVD ROM Drive BBS Priorities Help Specifies the Boot Device Priority sequence from available USB CDROM/DVD Drives. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
- Page 48 Press Enter when selected to go into the associated Sub-Menu. Field Name (UEFI) NETWORK Drive BBS Priorities Help Specifies the Boot Device Priority sequence from available Hard Disk Drives. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 49: List Boot Device Type) Drive Bbs Priorities
3.7.1 (List Boot Device Type) Drive BBS Priorities Field Name Boot Option #1 Default Value Possible Value Boot Device Name 1 of this type, Disable Help Sets the system boot order www.perfectron.com... -
Page 50: Save & Exit Page
Save Changes and Reset Help Reset the system after saving the changes. Field Name Discard Changes and Rest Help Reset system setup without saving any changes. Field Name Restore Defaults Help Restore/Load Default values for all the setup options. www.perfectron.com...
