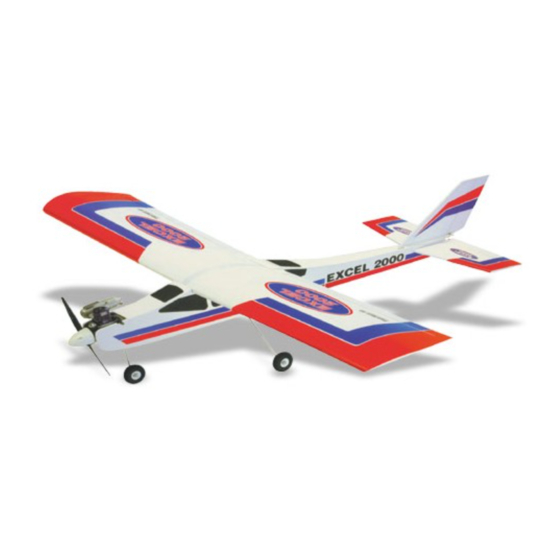

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
1,550 mm
:
1,340 mm
:
2.5 kg
:
04 channels.
:
05 servos.
:
40-46
52
61.02 in.
52.76 in.
5.5 Lbs.
2 stroke
4 stroke
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excel 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Excel 2000

Summary of Contents for Black Horse Model Excel 2000

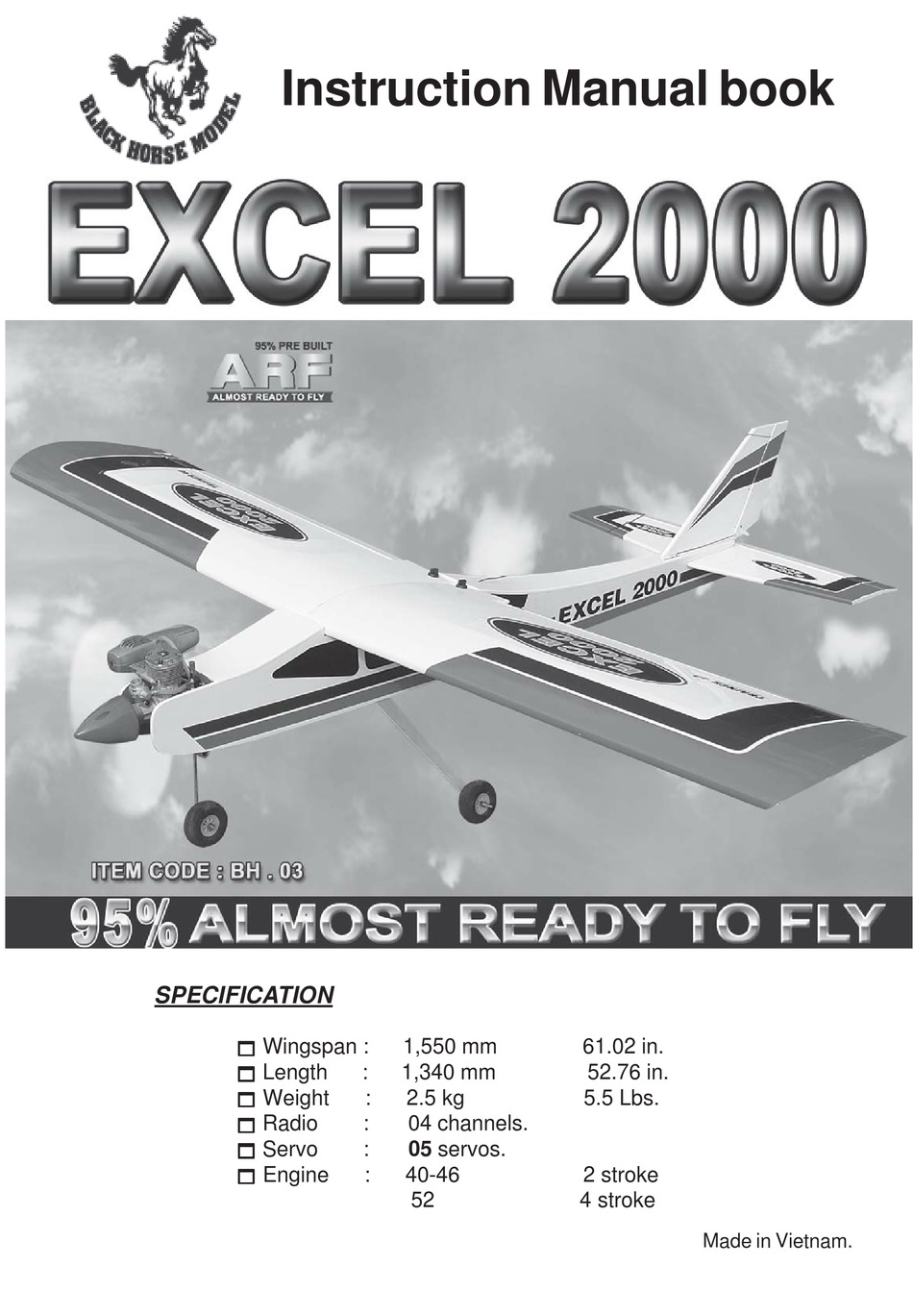

  • Page 1 Instruction Manual book SPECIFICATION      Wingspan : 1,550 mm 61.02 in.      Length 1,340 mm 52.76 in.      Weight 2.5 kg 5.5 Lbs.      Radio 04 channels.

  • Page 2: Parts List

    EXCEL 2000. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EXCEL 2000. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    Instruction Manual. SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency. Cut the covering + Wear safety glasses. away from the slot. + Keep loose clothing and wires away from the propeller.
  • Page 4 EXCEL 2000.  2. Using a modeling knife, remove the cov- Electric wire. ering servo tray. Servo tray R e m o v e covering.  5. Instal servo tray with aileron servo into the wing as same as picture below.

  • Page 5: Installing The Aileron Linkages

    Instruction Manual. Aileron control horn. R e m o v e covering Drill 2mm hole. 2 x 16 mm. Secure.  1. Using a ruler & pen to draw a straight line as below picture. INSTALLING THE AILERON LINKAGES.  2. Locate nylon control horn, nylon con- trol horn backplates .

  • Page 6: Wing Assembly

    EXCEL 2000. WING ASSEMBLY.  1) Location the aluminium wing dihedral brace. 2)Test fit the dihedral brace into each wing half. The brace should slide in easily. If not, use 220 grit sandpaper with a sanding block and sand down the edges and ends of the brace until it fits properly.

  • Page 7: Installing The Engine Mount

    Instruction Manual. Bottom side. INSTALLING THE ENGINE MOUNT. When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank. FUEL TANK.

  • Page 8: Installing The Engine

    EXCEL 2000. Blow through one of the lines to ensure INSTALLING THE ENGINE. the fuel lines have not become kinked inside Locate the long piece of wire used for the the fuel tank compartment. Air should flow throttle pushrod. One end of the wire has been through easily.

  • Page 9: Nose Gear Installation

    Instruction Manual. Steering arm. NOSE GEAR INSTALLATION. INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. Installing steering arm as follow Steering arm. Adjust the nose gear steering arm until the arm is parallel with the fire wall.

  • Page 10: Main Gear Installation

    EXCEL 2000. MAIN GEAR INSTALLATION. secure. 5x35mm ELEVATOR SERVO INSTALLATION. See pictures below: Elevator servo. Secure.       1) Using a modeling knife, remove the covering from over the two main gear mount- ing slots located in the bottom of the fuselage.
  • Page 11 Instruction Manual. Bottom side. Top side. Center line. The top of the stabilizer does not have the hinge pins exposed.       2) Using a modeling knife, carefully re- move the covering from over the vertical sta- bilizer mounting slot in the top of the fuselage.
  • Page 12 EXCEL 2000.       6) After the epoxy has fully cured, remove the masking tape or T-pins used to hold the stabilizer in place. Carefully inspect the glue joints. Use more epoxy to fill in any gaps that...
  • Page 13 Instruction Manual. Cut. Elevator control horn. Elevator servo. Elevator pushrod.

  • Page 14: Vertical Stabilizer Installation

    EXCEL 2000. VERTICAL STABILIZER INSTALLATION. C/A glue. Remove covering. 1) Slide the vertical stabilizer into the slot in the top of the fuselage. The bottom edge of Cut the covering the stabilizer should also be firmly pushed away from the slot.
  • Page 15 Instruction Manual. C/A glue. Remove covering. RUDDER CONTROL HORN - PUSHROD INSTALLATION. When cutting through the covering to re-  1) Locate the two nylon control horns, two move it, cut with only enough pressure nylon control horn backplates and four M2 x to only cut through the covering itself.

  • Page 16: Installing The Switch

    EXCEL 2000. Rudder servo. Switch. Elevator pushrod. Rudder pushrod. Nose gear. Elevator INSTALLING THE RECEIVER AND BATTERY. servo.       1) Plug the servo leads and the switch lead into the receiver. Plug the battery pack lead into the switch.
  • Page 17 Instruction Manual. Battery. Tie wrap. Battery. finishing Receiver. Tie wrap. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 85mm BACK FROM THE LEADING EDGE OF THE WING.

  • Page 18: Control Throws

    EXCEL 2000. CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
