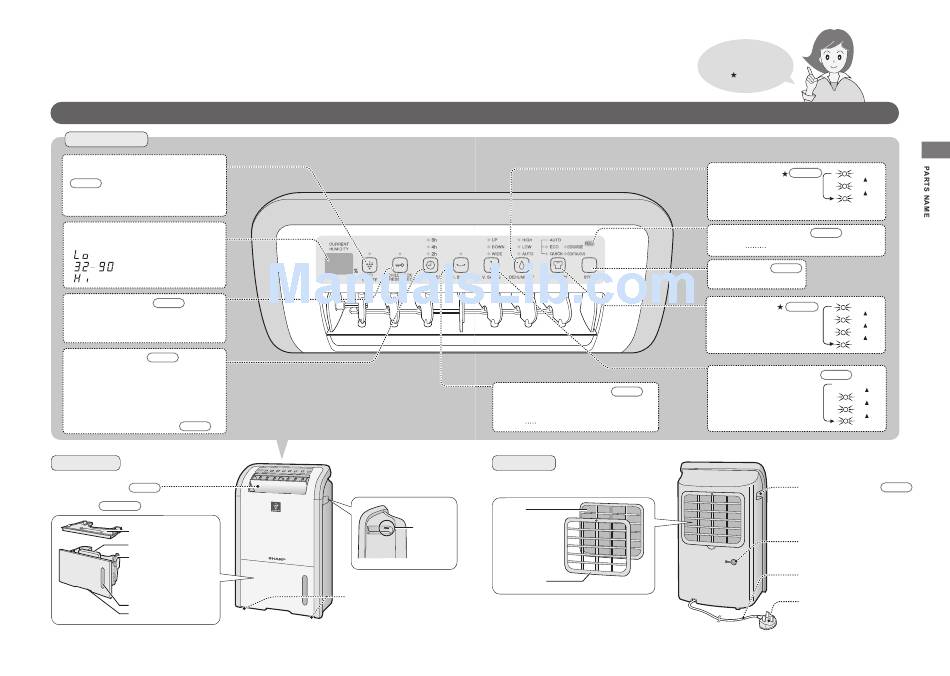

PARTS NAME

MAIN UNIT AND CONTROL PANEL
Control Panel
Plasmacluster Ion ON/OFF button
Turn Plasmacluster Ion operation on/off.
Page 15
Plasmacluster Ion indicator light (blue)
...
Lighting
Plasmacluster Ion is running.
CURRENT HUMIDITY display (green)
Displays the current humidity (estimate).
............
31% or below
Current humidity (est.) is
...
displayed in the unit of 1%.
............
91% or above
CHILD LOCK button
Page 14
Enable/Disable Child Lock.
CHILD LOCK indicator light (green)
Lighting... Child Lock is enabled
Page 15
OFF TIMER button
Sets the time for OFF TIMER
OFF TIMER indicator light (green)
"2h" lighting ... 2 hours is set for OFF TIMER.
"4h" lighting ... 4 hours is set for OFF TIMER.
"6h" lighting ... 6 hours is set for OFF TIMER.
"6h" blinking ... Auto off function
operate
Page 11
Front View
Louver (Air Outlet)
Page 14
Water tank
Pages 16,19
Tank lid
Tank handle
Float
Do not take off the
expanded polystyrene.
(Otherwise, the sensor
does not detect filling of
the tank.)
Water level window
Tank knob
8
HORIZONTAL SWING button
Turn horizontal swing of the louver on/off.
HORIZONTAL SWING indicator light (green)
Lighting
Back View
Sensor
Filter (Air Inlet)
(temperature and humidity sensor)
Filter
Located at
the inside of
the knob.
Filter cover
Casters
(four)
The device starts
when the button
with
DEHUMIDIFY button
Change the mode of
dehumidfying operation.
Dehumidifying mode
indicator light (green)
Display the operation state.
Tank FULL indicator light (red)
Blinking
STOP button
Stop the operation.
LAUNDRY button
Change to laundry operation
mode.
Laundry mode
indicator light (green)
Display the operation status.
VERTICAL SWING button
Switch the vertical swing mode
of the louver.
Page 14
VERTICAL SWING indicator
light (green)
Show the swing status.
Louver automatically swings right and left.
is pressed.
Page 13
HIGH
LOW
AUTO
Page 16
The water drainage tank is full.
Page 13
Page 12
DEODORIZE
CONTINUOUS
ECO
QUICK
Page 14
Light off
Off
UP
DOWN
WIDE
Knob (Both Sides)
Page 11
Continuous drainage
hole (Rubber Cap)
Power cord
Power plug
