Or connect the output cable of the AC adaptor supplied
with the controller to the DC 5V/12V IN connector of
the controller.

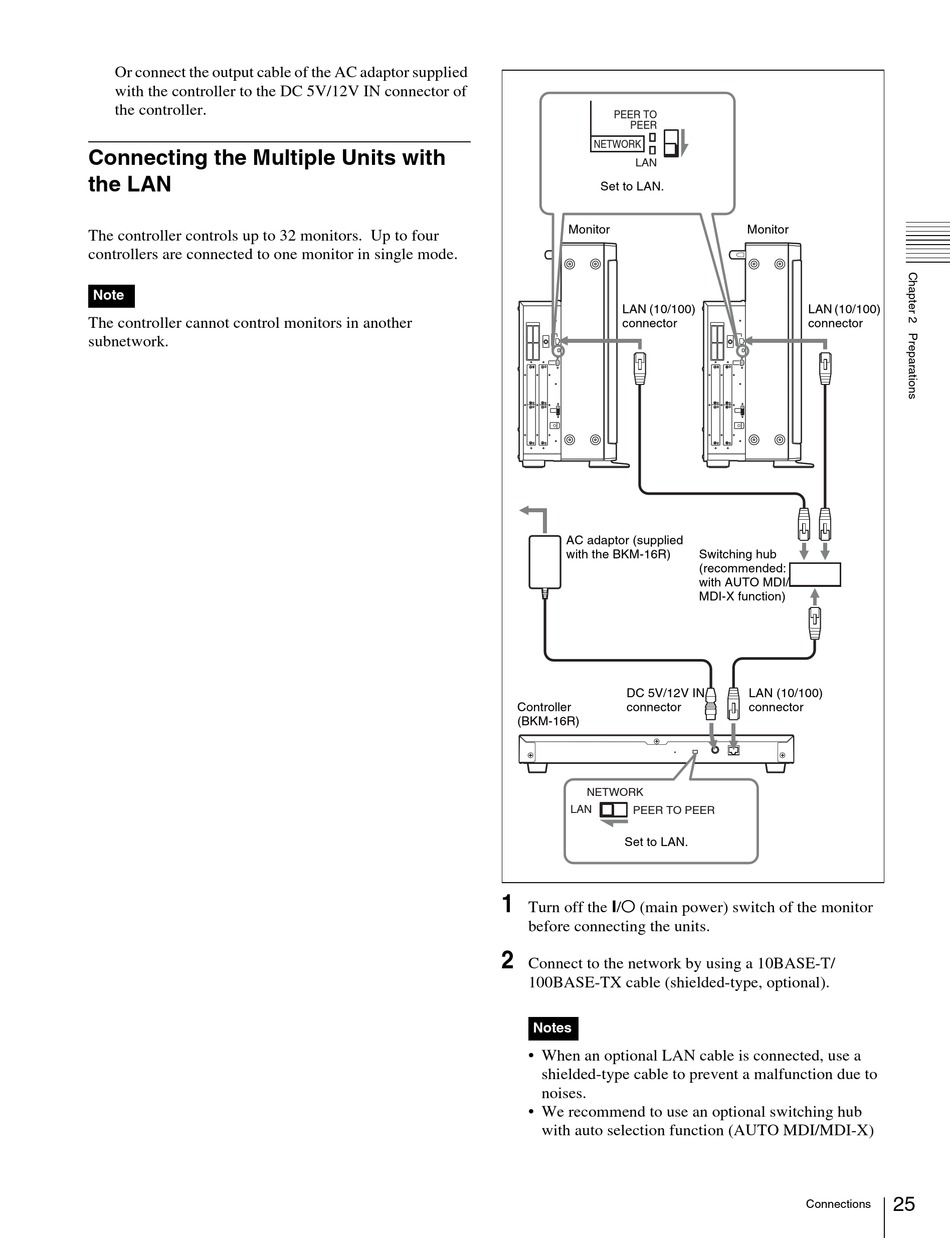

Connecting the Multiple Units with
the LAN
The controller controls up to 32 monitors. Up to four
controllers are connected to one monitor in single mode.
Note
The controller cannot control monitors in another
subnetwork.
PEER TO
PEER
NETWORK
LAN
Set to LAN.
Monitor
LAN (10/100)
connector
AC adaptor (supplied
with the BKM-16R)
DC 5V/12V IN
Controller
connector
(BKM-16R)
NETWORK
LAN
PEER TO PEER
Set to LAN.
1
Turn off the ?/a (main power) switch of the monitor
before connecting the units.
2
Connect to the network by using a 10BASE-T/
100BASE-TX cable (shielded-type, optional).
Notes
• When an optional LAN cable is connected, use a
shielded-type cable to prevent a malfunction due to
noises.
• We recommend to use an optional switching hub
with auto selection function (AUTO MDI/MDI-X)
Monitor
LAN (10/100)
connector
Switching hub
(recommended:
with AUTO MDI/
MDI-X function)
LAN (10/100)
connector
Connections
25
