8

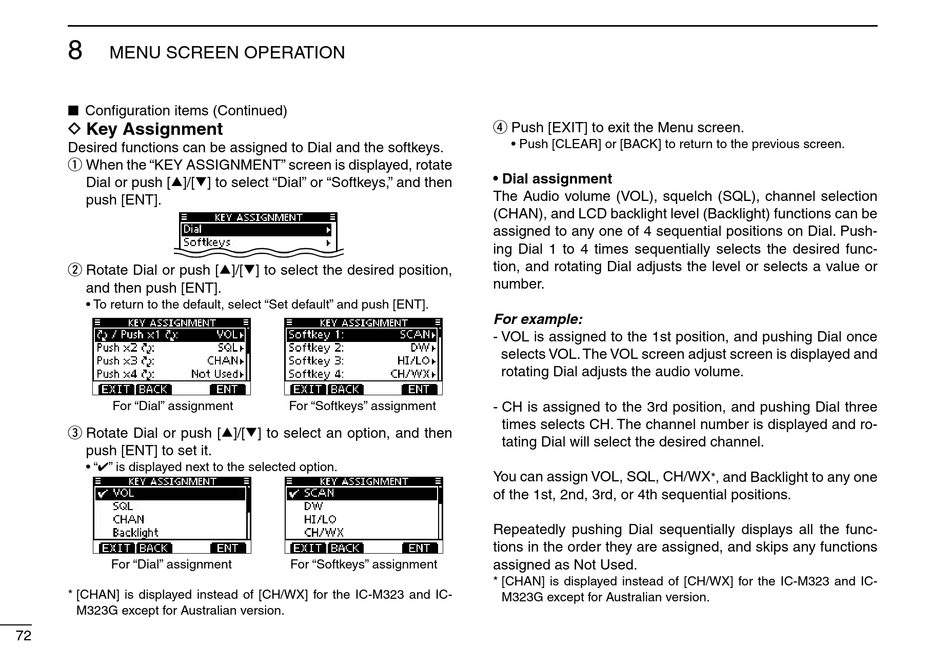

MENU SCREEN OPERATION
■ Configuration items (Continued)
D Key Assignment
Desired functions can be assigned to Dial and the softkeys.
When the "KEY ASSIGNMENT" screen is displayed, rotate
q
Dial or push [∫]/[√] to select "Dial" or "Softkeys," and then
push [ENT].
Rotate Dial or push [
w
and then push [ENT].
• To return to the default, select "Set default" and push [ENT].
For "Dial" assignment
Rotate Dial or push [
e
push [ENT] to set it.
• "✔" is displayed next to the selected option.
For "Dial" assignment
* [CHAN] is displayed instead of [CH/WX] for the IC-M323 and IC-
M323G except for Australian version.
72
∫]/[√] to select the desired position,
For "Softkeys" assignment
∫]/[√] to select an option, and then
For "Softkeys" assignment
Push [EXIT] to exit the Menu screen.
r
• Push [CLEAR] or [BACK] to return to the previous screen.
• Dial assignment
The Audio volume (VOL), squelch (SQL), channel selection
(CHAN), and LCD backlight level (Backlight) functions can be
assigned to any one of 4 sequential positions on Dial. Push-
ing Dial 1 to 4 times sequentially selects the desired func-
tion, and rotating Dial adjusts the level or selects a value or
number.
For example:
- VOL is assigned to the 1st position, and pushing Dial once
selects VOL. The VOL screen adjust screen is displayed and
rotating Dial adjusts the audio volume.
- CH is assigned to the 3rd position, and pushing Dial three
times selects CH. The channel number is displayed and ro-
tating Dial will select the desired channel.
You can assign VOL, SQL, CH/WX
of the 1st, 2nd, 3rd, or 4th sequential positions.
Repeatedly pushing Dial sequentially displays all the func-
tions in the order they are assigned, and skips any functions
assigned as Not Used.
* [CHAN] is displayed instead of [CH/WX] for the IC-M323 and IC-
M323G except for Australian version.
and Backlight to any one
*,
