7

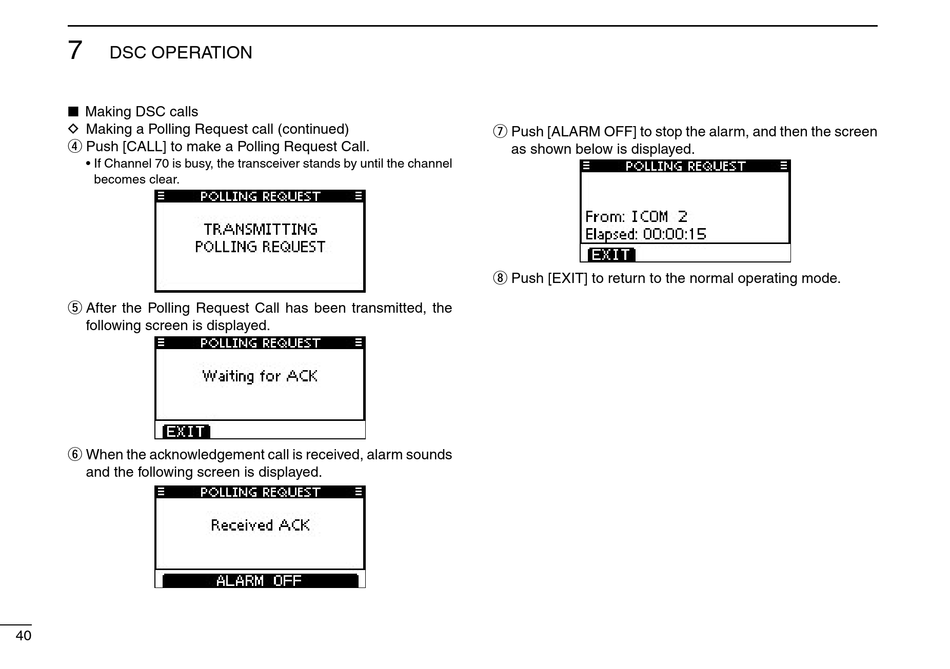

DSC OPERATION
■ Making DSC calls
D
Making a Polling Request call (continued)
Push [CALL] to make a Polling Request Call.
r
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
After the Polling Request Call has been transmitted, the
t
following screen is displayed.
When the acknowledgement call is received, alarm sounds
y
and the following screen is displayed.
40
Push [ALARM OFF] to stop the alarm, and then the screen
u
as shown below is displayed.
Push [EXIT] to return to the normal operating mode.
i
