Door Removal / Reversal Instructions

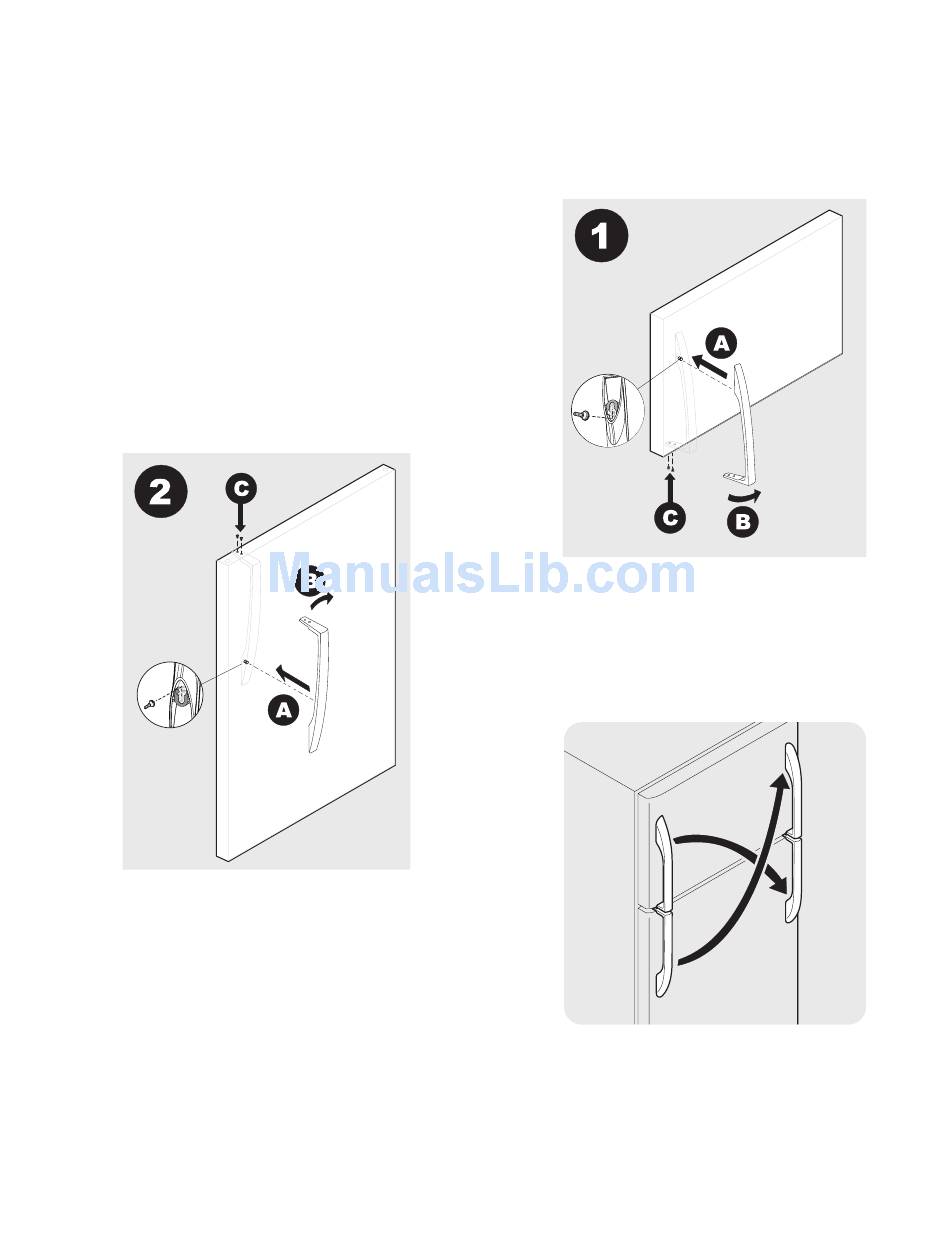

Handle Style 3
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. Slide handle straight up and pull handle off
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
To attach refrigerator handle:
1. Place top of handle over mounting screw; pull handle
straight down until handle is aligned with screw holes
on top of door.
2. Secure top of handle with two screws removed earlier.
To remove freezer handle:
(Handles may be easier to reverse while doors are off.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. Slide handle straight down and pull handle off
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty
knife to gently peel off nameplate from door and
reapply over old holes.
To attach freezer handle:
1. Place top of handle over mounting screw; pull handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed earlier.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off.
Reverse freezer and refrigerator handles by inverting the
handle removed from the refrigerator door and attaching
to the freezer door. Invert the handle removed from
freezer door and attach to the refrigerator door.
11
