Connecting the Touch 10 user interface

In order to use Touch 10 as user interface for the SX20
codec, Touch 10 must be paired to the codec via the network
(LAN). This is referred to as remote pairing.

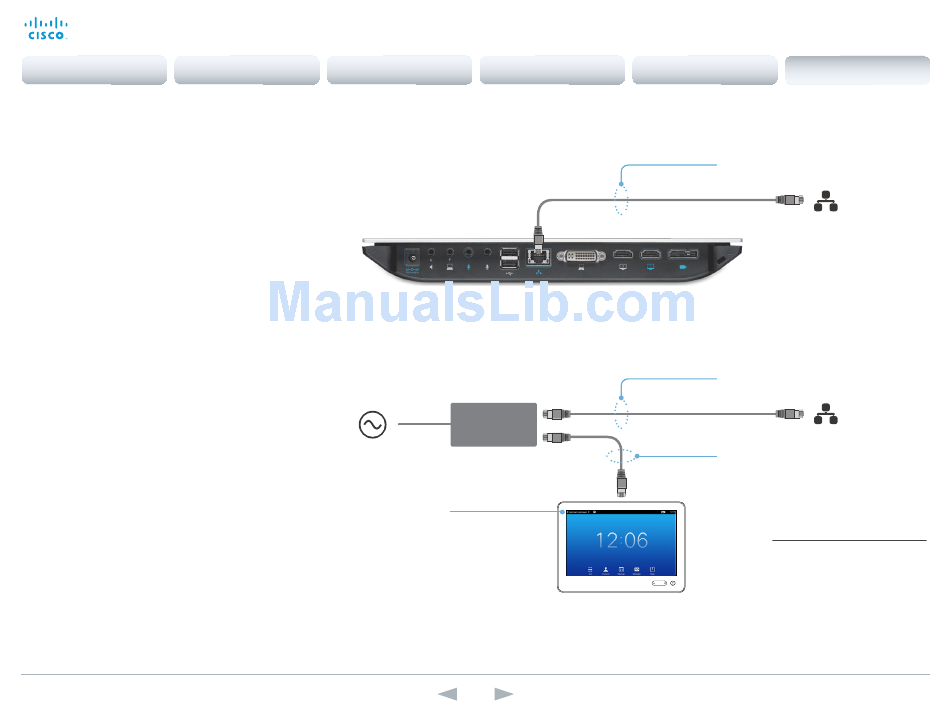

Connecting Touch 10 to the codec via LAN
Connect Touch 10 and the codec to the network wall socket
or network switch as illustrated.
Touch 10 set-up
Once Touch 10 is connected to power, the set-up procedure
begins. Follow the instructions on screen.
When the Select codec to pair with dialog appears, note the
following:
• A list of codecs signalling that they are available for paring
will show up in the dialog. Tap the name of the codec you
want to pair to followed by Start Pairing.
Note that the following must be fulfilled for a codec to
show up in the list:
• The codec and Touch 10 must be on the same
subnet.
• The codec must have been restarted within the last
10 minutes. If your codec does not appear in the list,
try restarting the codec.
• If your codec does not appear in the list of available
codecs, you can pair the devices manually. Click
codec manually..., enter the IP address or host name of
the codec, and tap Start Pairing.
• You have to enter the codec's administrator username
and password for the paring to commence.
If Touch 10 needs software upgrade, new software will
be downloaded from the codec and installed on the unit
automatically as part of the set-up procedure. Touch 10
restarts after the upgrade.
You can verify that Touch 10 is successfully connected to the
codec by checking that the codec address is displayed in the
top banner.
D14908.08 SX20 Administrator Guide TC7.2, AUGUST 2014.
Introduction Web interface
Power
• 100-240 VAC
• 50/60 Hz
Select
System settings
SWITCH
PoE
injector
AP
Codec address
The Ethernet connector
is behind the lid at the
rear of Touch 10.
www.cisco.com — Copyright © 2012-2014 Cisco Systems, Inc. All rights reserved.
128
Administrator Guide
Setting passwords Appendices Appendices
Standard
Ethernet cable
Standard
Ethernet cable
PoE rated
Ethernet cable
If the network infrastructure provides
1
Power over Ethernet (PoE), you do
not need a PoE injector; Touch 10
should be connected directly to the
wall socket (Ethernet switch) with a
PoE rated Ethernet cable.
For safety, the PoE source must be
in the same building as Touch 10.
The PoE rated Ethernet cable can be
up to 100 m (330 ft).
Network (LAN)
Network (LAN)
1
