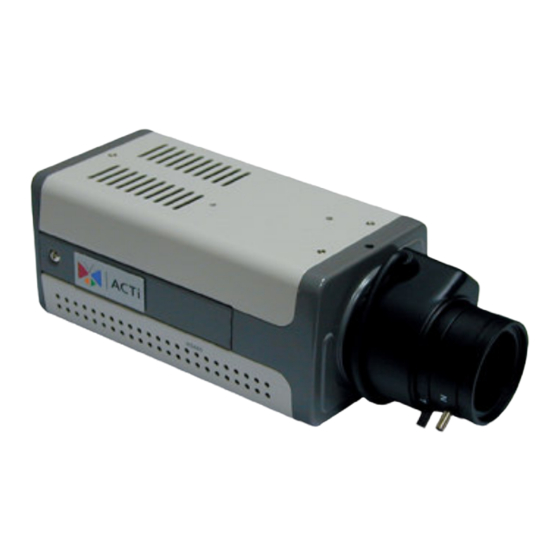

- Page 1 CIF 380TVL IP Camera w/ Audio CAM-5200S/CAM-5201S Ver. 090302 User’s Manual...
-
Page 2: Copyright
Copyright This manual is the intellectual property of ACTi and is protected by copyright. All rights are reserved. No part of this document maybe reproduced or transmitted for any purpose by any means including electronic or mechanical without the official written permission from ACTi. -
Page 3: Fcc/Ce Regulation
typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. FCC/CE Regulation NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Table Of Contents
Table of Contents PRECAUTIONS________________________________________________ 0-1 Copyright __________________________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-2 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Basic Connections ______________________________________________ 1-10... -
Page 5: Introduction
INTRODUCTION 1.1 Package Contents CAM-5200S/5201S Warranty Card Product CD Terminal Blocks for Power & DI/O Power Adaptor (Option) Accessory... -
Page 6: Features And Benefits
1.2 Features and Benefits The IP Camera is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality at reasonable bandwidth through a standard TCP/IP network. That’s because it is Ethernet (LAN and WAN) ready and has the powerful ARM9 SoC and the MPEG-4 compression ASIC inside. - Page 7 DDNS Supported The IP Camera supports DDNS (Dynamic Domain Name Server), users can set the IP Camera at a virtual domain name (such as cam1.Taipei.xxx) at dynamic IP. Everyone can use the virtual domain name to view the video anywhere that has the access to the internet. Build-in Hardware Motion Detection No more external motion sensors are required.
-
Page 8: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 9 operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
-
Page 10: Physical Description
1.4 Physical Description Microphone Input Sensitivity: -44dB(0dB=1Vpp at 1KHz) S/N Ratio: More than 58dB Directivity: Omni directional Auto Iris Video / DC (switchable) Video DC Level Adjustment CCD Functions Auto Electronic Shutter Speed Mode AES On: 1/50 (60) sec. ~ 1/100,000 sec; AES Off: 1/50 (60) sec. - Page 11 ON/OFF (Switchable) Automatic Gain Control ON/OFF (Switchable) Auto White Balance AWB / Push Lock WB Mode WAN port The IP Camera connects to the WAN (wide area network) via a standard RJ45 connector. Supporting NWAY, this IP camera can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
- Page 12 NAME DESCRIPTION Power Input (DC +12V) Ground Pin of Power Input No Connection With PoE built-in product, you can power the IP camera via WAN port, LAN port or DC input. You can power the IP camera with multiple power inputs at the same time. If you do, the IP camera will gets the power from the first power input plugged into it.
- Page 13 the boot process. 11. DI/O The IP Camera supports one alarm input and one alarm output. DI:Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V DO:Logic Level 0: 0.1~0.6V; Logic Level1: 2.4~5V NAME DESCRIPTION Ground Pin Digital Input Ground Pin Digital Output...
-
Page 14: Basic Connections
1.5 Basic Connections Follow the procedures below to connect the IP camera to the respective apparatuses. 1. Connect an analog monitor to IP Camera video out (BNC connector). 2. Connect the power adaptor to IP Camera 3. Connect IP Camera’s LAN port to an Ethernet (RJ45 connectors). If your IP camera has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch.
