Summary of Contents for LevelOne VDS-0110
-

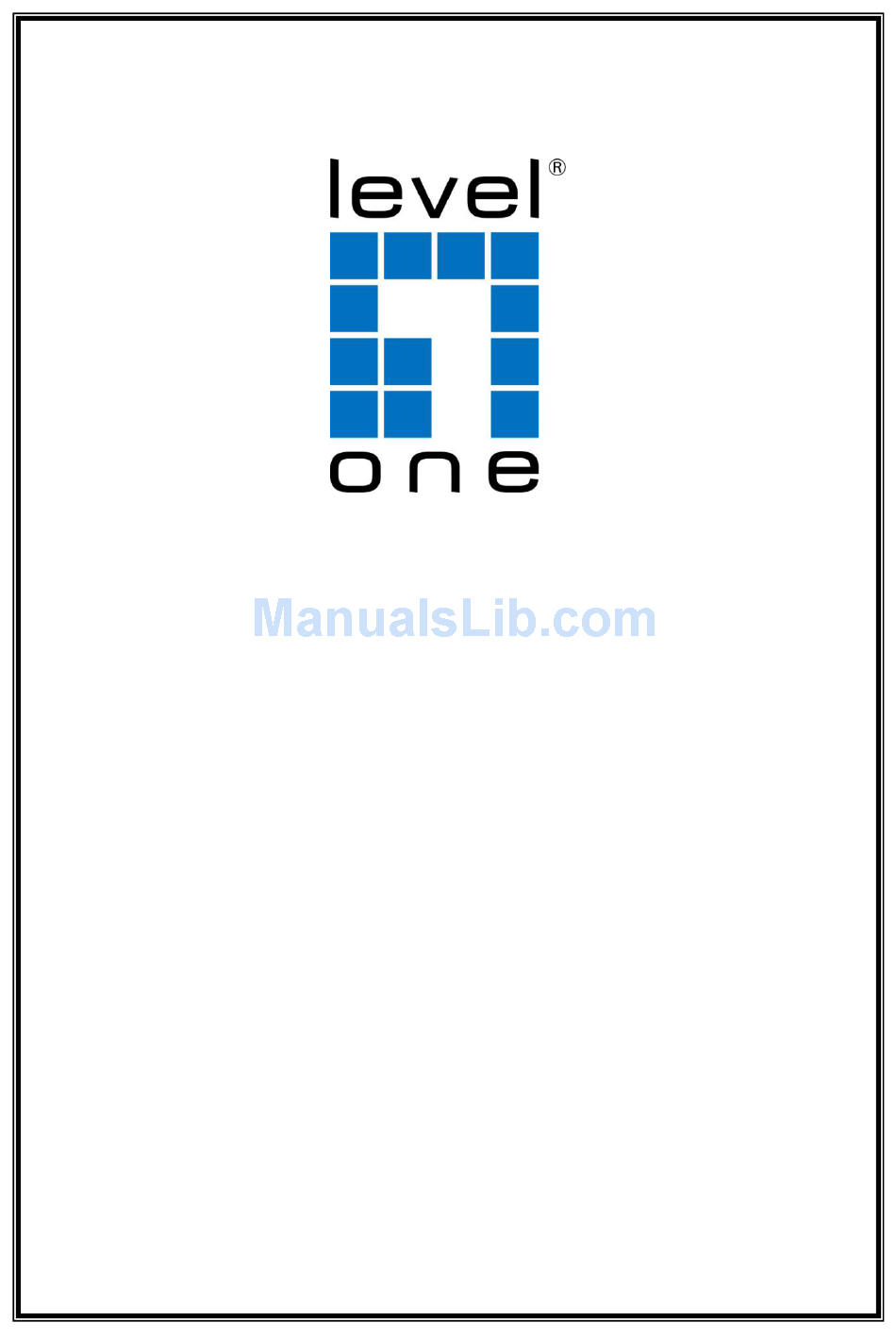

Page 1: User Manual

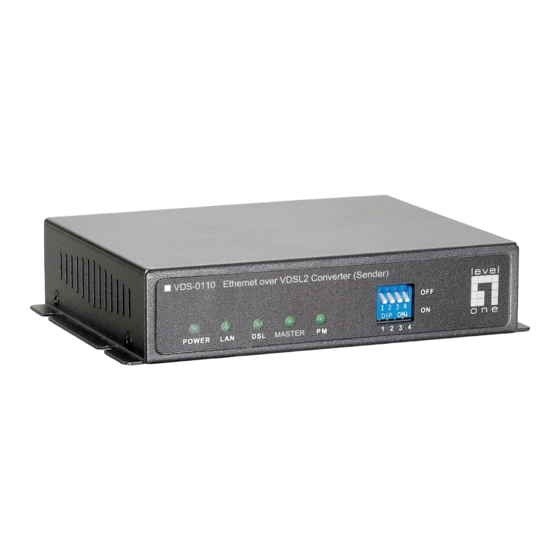

LevelOne User Manual VDS-0110 / VDS-0111 Ethernet over VDSL2 Converter (Sender) Ethernet over VDSL2 Converter (Receiver) V1.0... - Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Table of Content 1. INTRODUCTIONS ................... 4 2. APPLICATION NOTES ................4 3. FEATURES ..................... 5 4. PACKING CONTENTS ................5 5. LED INDICATORS .................. 6 6. DIP SWITCHES SETTINGS ..............7 7. DATA RATES & DISTANCES ..............9 8. TECHNICAL SUPPORT ................ 10... -
Page 4: Introductions
Introductions The VDS-0110 and VDS-0111, a line power pair of VDSL2 (Very high-bit-rate Digital Subscriber Line) converter, provides a broadband transmission up to 100/60Mbps of downstream/upstream data rate over single pair copper line for point-to-point Ethernet connectivity. With 100/60Mbps data rate, VDS-0110/VDS-0111 supports transmission distance up to 350 meters for line power connection. -
Page 5: Features
Supports Line Powered VDSL2 connection Conforms Safety-Extra-Low-Voltage (SELV) standard RJ11 for DSL interfaces + RJ45 for Ethernet LAN port 5 LED Indicators for VDS-0110(Master) 4 LED indicators for VDS-0111(Slave) 4 Dip Switches for Configuration Settings ... -
Page 6: Led Indicators
LED Indicators On the front panel of VDS-0110/VDS-0111, there are 5 LED indicators as the following VDS-0110 Front Panel VDS-0111 Front Panel VDS-0110 Rear Panel/ VDS-0111 not Power Jack POWER Green On Indicates power is on and normal... -
Page 7: Dip Switches Settings
Fast Full Rate Pin 1: VTU-C/R Switch VTU-C: The VDS-0110 converter will act as at the Central Office (CO) side. VTU-R: The VDS-0111 converter will act as at the Customer Premise Equipment (CPE) or Remote side. Pin 2: Mode for impulse noise protection Interleave mode: Protection for up to 250ms impulse noises with latency less than 6 ms. - Page 8 Pin 3: Rate limit control 50/20 Mbps: Line rate limited to 50/20 Mbps. Full Rate: Provides up to 100Mbps/60Mbps line rate in short line. Pin 4: Signal to Noise Ratio (SNR) 9dB: Higher SNR margin (9dB) will result in less error with more stable VDSL2 link. 6dB: Original and Normal channel noise protection with 6 dB SNR.
-
Page 9: Data Rates & Distances
Data Rates & Distances Performance in AWG 26 Line at 6dB with full rate Down Stream Data Rate (Mbps) Up Stream Data Rate (Mbps) Distance (feet) 1000 1250... -
Page 10: Technical Support
Technical Support Thank you for selecting LevelOne products. LeveOne’s website contains the latest user documentation and soft-ware updates for LevelOne products. Please contact LevelOne Technical Support through our website. World Wide Web http://www.level1.com...
